Understanding Electronic Fuel Injection (EFI)

In the intricate world of automotive engineering, achieving optimal engine performance and efficiency hinges on one critical factor: the precise delivery of fuel. For petrol engines, this means ensuring the right amount of fuel is mixed with air at all times. Historically, this delicate balance was managed by a mechanical marvel known as the carburettor. While effective for its time, the carburettor had inherent limitations, particularly as environmental concerns and emissions regulations began to tighten during the 1970s. The advent of catalytic converters, designed to dramatically reduce harmful exhaust emissions, highlighted these shortcomings. These converters are highly sensitive, requiring a very specific air-to-fuel ratio to operate effectively without damage. Simple carburettors struggled to meet this demand, leading manufacturers to seek a more precise and electronically controlled solution: Electronic Fuel Injection, or EFI.

EFI systems represent a significant leap forward, utilising electronically operated injectors to deliver fuel with unparalleled accuracy. This not only safeguarded the newly mandated catalytic converters but also brought about substantial improvements in fuel efficiency, drivability, and overall engine performance. By the 1980s, EFI was rapidly gaining traction, and by the 1990s, it had become the standard fuel delivery system in most new vehicles, cementing its place as a cornerstone of modern automotive technology.

The Fundamental Principles of EFI Operation

At its core, an Electronic Fuel Injection system is a sophisticated network designed to precisely control the amount of fuel entering an engine's combustion chambers. Unlike the mechanical nature of a carburettor, EFI relies on electronic signals and sensors to make real-time adjustments, ensuring the engine always receives the ideal fuel-air mixture for any given operating condition. This intricate dance of data and delivery is orchestrated by a central brain: the Electronic Control Unit (ECU).

A basic EFI system comprises several key components working in harmony. Firstly, a fuel pump is essential for delivering fuel from the tank to the engine at the required pressure. Secondly, there are the fuel injectors themselves, the precise nozzles that atomise and spray the fuel. Finally, a suite of sensors continuously monitors various engine parameters, providing vital data back to the ECU. The number and type of these sensors, along with the quantity of injectors, will naturally vary depending on the complexity of the system, the specific engine configuration, and the number of cylinders.

The Role of Sensors and the ECU

The Electronic Control Unit (ECU) is the nerve centre of the EFI system. It's essentially a powerful miniature computer pre-programmed with a vast array of data tables, often referred to as the 'map' or 'engine map'. This map contains ideal fuel delivery parameters for countless engine operating scenarios. To navigate this map effectively, the ECU relies on a constant stream of data from various sensors strategically placed around the engine, its intake, and exhaust systems.

These sensors gather critical information, including:

• Water Temperature Sensor: Measures engine coolant temperature, crucial for cold starting and engine warm-up fuelling.
• Air Temperature Sensor: Measures the temperature of the incoming air, affecting air density and thus the amount of fuel needed.
• Crankshaft Position Sensor: Determines engine RPM and piston position, essential for precise injection timing.
• Camshaft Position Sensor: Provides information on valve timing, particularly important for engines with variable valve timing.
• Oxygen (O2) Sensor: Located in the exhaust, this sensor measures the oxygen content in the exhaust gases, indicating whether the engine is running rich (too much fuel) or lean (too little fuel). This is a vital feedback mechanism for the ECU.
• Throttle Position Sensor (TPS): Detects the position of the throttle pedal, indicating driver demand for power.
• Mass Airflow (MAF) Sensor or Manifold Absolute Pressure (MAP) Sensor: These are crucial for measuring the amount of air entering the engine. A MAF sensor directly measures the mass of air, while a MAP sensor measures the pressure in the intake manifold, which the ECU then uses to calculate air mass.

Upon receiving this torrent of data, the ECU rapidly processes it and compares it against its in-built map. Based on this comparison, the ECU determines the precise amount of fuel the engine needs at that exact moment. It then adjusts the fuel supplied by the injectors by controlling their 'duration' – the exact amount of time each injector remains open. A longer duration means more fuel is sprayed. This continuous feedback loop, where sensors provide data, the ECU processes it, and then adjusts fuel delivery, allows the system to fine-tune the mixture for the specific load and environmental conditions – a level of responsiveness and accuracy that carburettors simply could not achieve.

Fuel Delivery and Atomisation

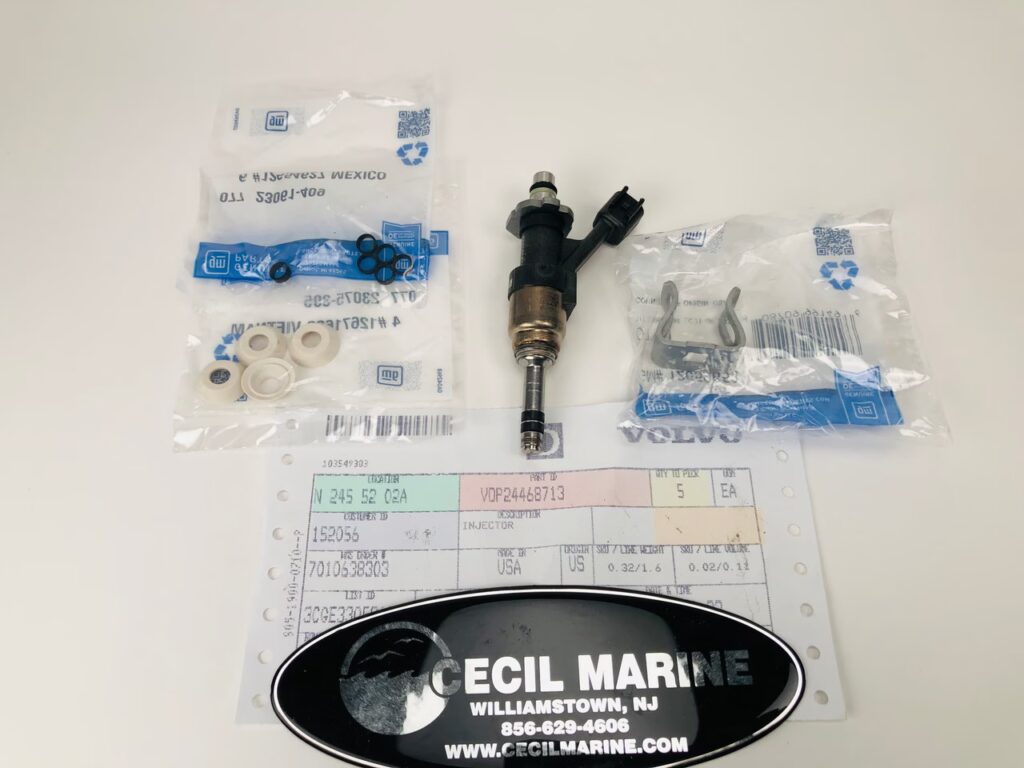

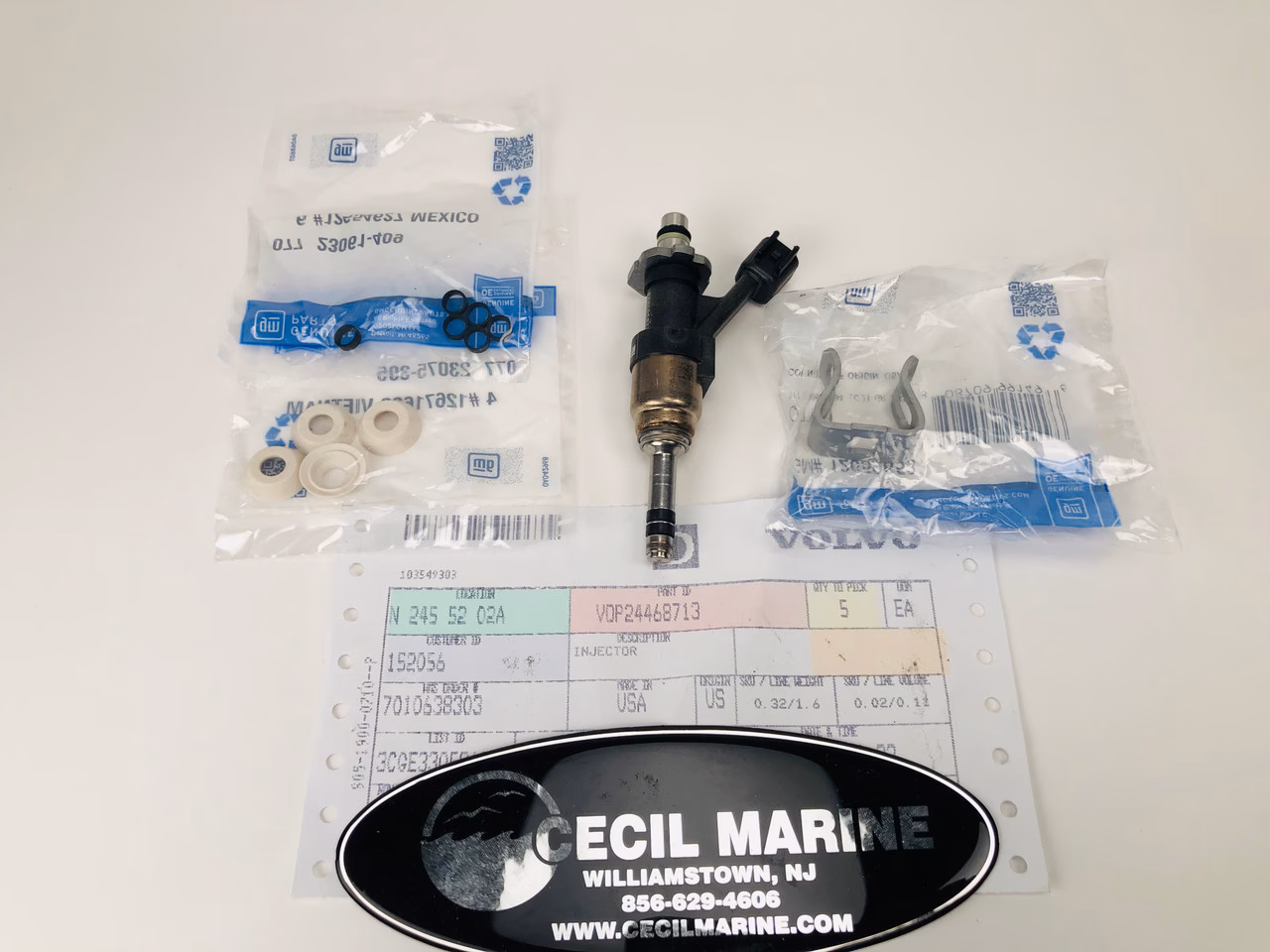

In most EFI systems, each cylinder typically has its own fuel injector. These injectors are generally positioned in the inlet runners, just before the intake valves of each cylinder. When triggered by the ECU, the injector sprays a finely atomised mist of fuel through its nozzle. This atomisation is crucial, as it allows the fuel to mix easily and consistently with the incoming air, forming a homogenous mixture that burns efficiently in the combustion chamber. Modern ECUs often go beyond just controlling fuel injection; they also manage other critical engine elements, such as the ignition system and even variable valvetrain mechanisms, further enhancing drivability, performance, and efficiency.

Carburettor vs. Electronic Fuel Injection: A Comparison

To truly appreciate the advancements brought by EFI, it’s helpful to understand the limitations of its predecessor.

Common Types of Fuel Injection Systems

Over the years, EFI technology has evolved, leading to several distinct types, each with its own characteristics and applications.

Single Point Injection (SPI) / Throttle Body Injection (TBI)

This was one of the earliest forms of EFI to become widespread. In a single point system, one or more injectors are mounted within a central throttle body, much like a carburettor. The fuel is sprayed into the intake manifold, where it then mixes with the air before being distributed to the individual cylinders. While a significant improvement over carburettors in terms of precision and emissions control, SPI was still limited by the need for the fuel-air mixture to travel through the intake manifold, which could lead to less uniform distribution among cylinders, especially in multi-cylinder engines. It served as an important transitional technology.

Multi-Point Injection (MPI) / Port Fuel Injection (PFI)

Multi-point injection is perhaps the most common and widely used form of EFI for petrol engines for many years. In an MPI system, there is typically one fuel injector per cylinder, positioned in the inlet runner leading directly to that cylinder's intake valve. This allows for more precise and individualised fuel delivery to each cylinder, as the fuel is sprayed much closer to the combustion chamber. This results in a more uniform fuel-air mixture for each cylinder, leading to improved fuel economy, lower emissions, and better engine performance compared to SPI systems. The fuel is injected into the intake port, hence the alternative name 'Port Fuel Injection'.

Direct Injection (DI) / Gasoline Direct Injection (GDI)

Direct injection represents a further advancement in EFI technology. As the name suggests, in a direct injection system, the fuel injector supplies fuel directly into the engine's combustion chamber, rather than into the intake manifold or port. This requires much higher fuel pressures and specially designed injectors capable of withstanding the heat and pressure within the cylinder. The primary advantage of direct injection is even greater precision in fuel delivery. By injecting fuel directly into the cylinder, often during the compression stroke, it allows for more efficient combustion, higher compression ratios, and improved power output, along with better fuel economy and reduced emissions. This technology is increasingly common in modern petrol engines due to its significant performance and efficiency benefits, often denoted as GDI (Gasoline Direct Injection) or FSI (Fuel Stratified Injection) by various manufacturers.

Benefits of Electronic Fuel Injection

The widespread adoption of EFI was driven by a multitude of advantages it offered over older carburettor systems:

• Improved Fuel Efficiency: By precisely metering fuel, EFI systems ensure the engine receives exactly the amount it needs, reducing waste and improving miles per gallon (or kilometres per litre).
• Reduced Emissions: The ability to maintain an optimal air-fuel ratio allows catalytic converters to operate at peak efficiency, significantly lowering harmful exhaust emissions.
• Enhanced Performance and Drivability: EFI provides better throttle response, smoother acceleration, and more consistent power delivery across the entire RPM range.
• Reliable Cold Starts: EFI systems automatically adjust the fuel mixture for cold engine conditions, eliminating the need for manual chokes and ensuring quick, reliable starts.
• Better Adaptability: Sensors allow the system to compensate for changes in altitude, temperature, and engine load in real-time, maintaining optimal performance.
• Increased Engine Longevity: Running at the ideal air-fuel ratio reduces engine stress, preventing issues associated with running too rich (carbon build-up) or too lean (overheating).

What About Diesel Engines?

While often discussed in the context of petrol engines, fuel injection is equally, if not more, critical for diesel engines. In fact, diesel engines have historically relied on fuel injection, even before its widespread adoption in petrol vehicles, as they operate on the principle of compression ignition. Most diesel engines function by injecting fuel directly into their combustion chambers, where the heat generated by compressing air ignites the fuel. This process can be managed by either mechanical or electronic systems.

In many modern instances, particularly with the advent of Common Rail Direct Injection (CRDI), the fuel injection process in diesel engines is controlled in a remarkably similar fashion to that of a petrol engine's electronic fuel injection system. An ECU monitors various parameters – such as engine speed, load, and temperature – and precisely controls the timing and quantity of fuel injected by high-pressure injectors. A key difference, however, is that diesel engines are not controlled by a throttle body in the same way conventional petrol engines are. Instead, engine speed and power output in a diesel are primarily regulated by the amount of fuel flow injected into the cylinders.

Maintenance and Common EFI Issues

While EFI systems are remarkably reliable, they are not entirely maintenance-free. Common issues can arise, often related to the components themselves:

• Clogged Fuel Injectors: Over time, deposits from fuel can build up, restricting flow and leading to misfires or poor performance. Fuel system cleaners can help, but sometimes professional cleaning or replacement is needed.
• Faulty Sensors: A malfunctioning sensor (e.g., O2 sensor, MAF sensor) can send incorrect data to the ECU, leading to improper fuel metering and various engine problems, often indicated by a 'Check Engine' light.
• Fuel Pump Issues: A failing fuel pump can lead to insufficient fuel pressure, causing hesitation, stalling, or a complete inability to start the engine.
• ECU Malfunctions: While rare, an ECU can fail, leading to significant engine control issues.
• Wiring and Connector Problems: Corroded or loose connections can disrupt communication between sensors, ECU, and injectors.

Regular vehicle servicing, including fuel filter replacement and ensuring quality fuel is used, can help maintain the longevity and performance of your EFI system.

Frequently Asked Questions About EFI

Q1: Can I convert my old carburettor car to EFI?

Yes, it is possible to convert an older carburettor-equipped car to an EFI system. There are aftermarket conversion kits available, or custom setups can be fabricated. However, it is a complex and often costly undertaking, requiring significant mechanical and electrical work. It usually involves installing a high-pressure fuel pump, fuel lines, injectors, an ECU, and various sensors. The benefits include improved reliability, efficiency, and performance.

Q2: How do I know if my EFI system has a problem?

Common signs of an EFI system problem include: the 'Check Engine' light illuminating on your dashboard, decreased fuel economy, rough idling, misfires, hesitation during acceleration, difficulty starting (especially when cold), or a noticeable loss of power. A diagnostic scan tool can read fault codes stored in the ECU, pinpointing the specific sensor or component causing the issue.

Q3: Is direct injection always better than port injection?

Direct injection generally offers superior fuel efficiency and power output compared to port injection due to its ability to precisely control fuel delivery directly into the combustion chamber. However, it also comes with increased complexity and potential for carbon build-up on intake valves (as fuel no longer washes over them). Many modern engines now use a combination of both port and direct injection to get the best of both worlds, using port injection at low loads to reduce carbon build-up and direct injection at higher loads for maximum efficiency and power.

Q4: What is the 'engine map' in an EFI system?

The 'engine map' refers to the comprehensive set of data tables stored within the ECU. These tables contain pre-programmed instructions and ideal parameters for fuel delivery, ignition timing, and other engine functions across a vast range of engine speeds, loads, temperatures, and other operating conditions. The ECU constantly references this map, along with real-time sensor data, to make instantaneous adjustments to engine operation.

The Enduring Legacy of EFI

Electronic Fuel Injection has undeniably transformed the automotive landscape. From its origins as a solution to meet stricter emissions standards, it has evolved into a highly sophisticated system that underpins the performance, efficiency, and reliability of virtually every modern internal combustion engine. By precisely controlling the heart of an engine's operation – fuel delivery – EFI has not only ensured cleaner air but has also provided drivers with a more responsive, economical, and enjoyable driving experience. Its continuous development, with advancements like direct injection and even more intelligent ECUs, promises that EFI will remain a crucial technology as the automotive industry continues to innovate.
