In the intricate world of automotive engineering, the humble fuel injector plays a pivotal role in your engine's performance, efficiency, and emissions. Far from being a simple nozzle, it's a precisely controlled valve, often operating thousands of times a minute, atomising fuel into a fine mist for optimal combustion. At the heart of this precision lies the Engine Control Unit (ECU), the vehicle's electronic brain, which dictates exactly when and for how long each Fuel Injector opens. Understanding this relationship is crucial for anyone keen on the mechanics of their vehicle, especially when delving into high-performance or bespoke fuel delivery systems.
The fundamental principle is straightforward: the ECU needs to deliver the exact amount of fuel required for combustion, no more, no less, and at precisely the right moment. To achieve this, the ECU constantly gathers data from a myriad of sensors strategically placed around the engine. These sensors monitor critical parameters such as engine speed (RPM), throttle position, manifold absolute pressure (MAP), air intake temperature, coolant temperature, and crucially, the oxygen content in the exhaust gases (via the O2 sensor). Each piece of data provides a vital clue, allowing the ECU to build a real-time picture of the engine's operating conditions.
Armed with this information, the ECU consults its pre-programmed maps and algorithms. It calculates the ideal fuel quantity needed for the current conditions and then determines the precise duration, known as Pulse Width, for which each injector needs to remain open. A longer pulse width means more fuel is delivered, typically required under heavy load or acceleration. Conversely, a shorter pulse width reduces fuel delivery, common during idle or light throttle cruising. The ECU then sends an electrical signal to the injector, activating an electromagnetic solenoid that opens a tiny pintle valve, allowing pressurised fuel to spray into the engine. This process repeats for every cylinder, thousands of times per minute, ensuring a meticulously controlled fuel-air mixture.

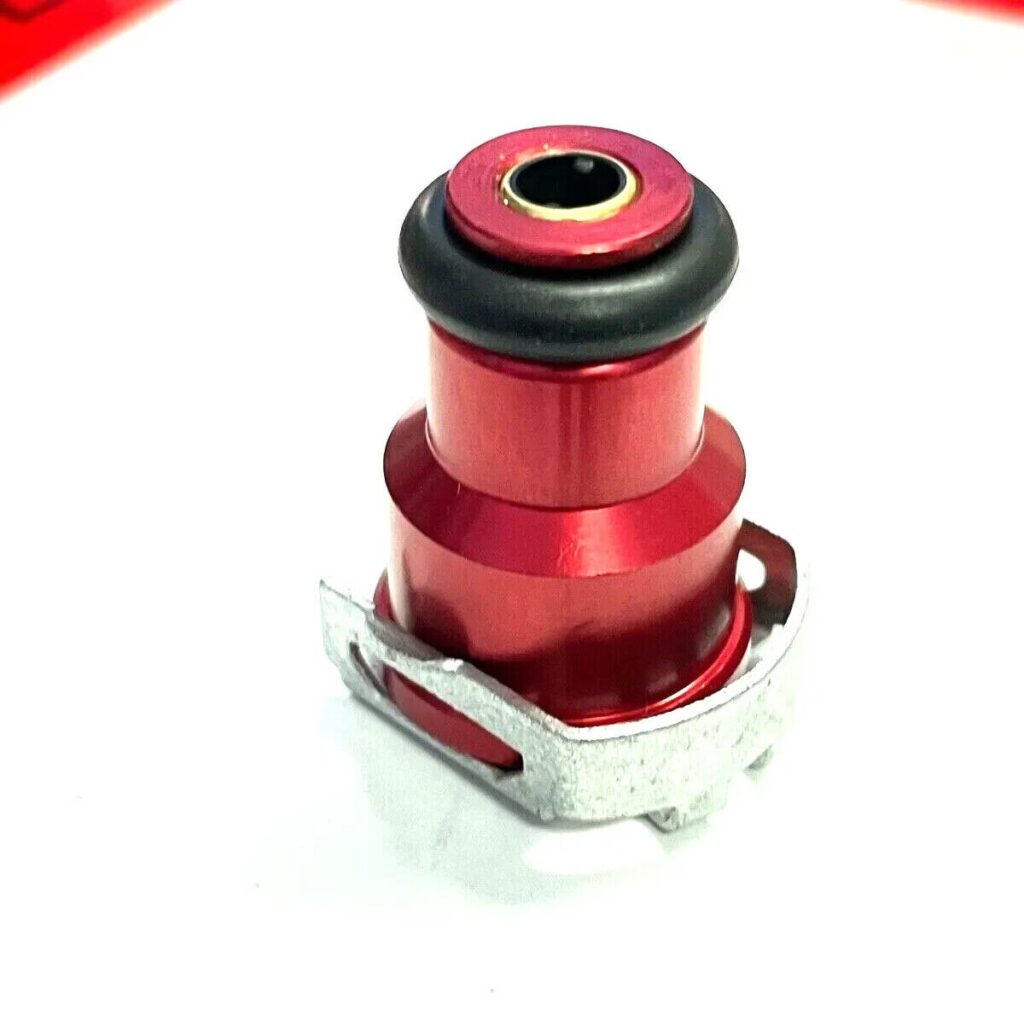

The Innovative EFI/Mech Blend System: A New Paradigm
While traditional EFI systems mount injectors directly within the intake manifold or even directly into the cylinder (direct injection), some specialised applications demand a more bespoke approach to unleash maximum horsepower. This is where an innovative EFI/Mech blend system comes into its own, offering a unique fusion of electronic precision and mechanical flow capabilities, particularly suited for high-performance setups involving superchargers or blowers. Unlike conventional systems where EFI injectors are housed within an injector hat, this blend kit takes a different path, mounting them externally to maximise the potential of your hat/blower combination.
This distinct design positions the EFI injectors between two key components: the top and bottom blocks. The top block serves as the feed block, responsible for supplying fuel to the injectors. It's thoughtfully designed with three ports, offering crucial flexibility for plumbing your fuel system. These ports allow for a return line, directing excess fuel back to either the regulator, the fuel tank, or even to other fuel rails in a more complex setup. This multi-port design enhances fuel system stability and ensures a consistent supply to the injectors, even under extreme demands.
Beneath the top block lies the bottom block, the crucial chamber where the EFI injectors spray their meticulously atomised fuel. From this point, the fuel doesn't go directly into the engine's runners via conventional EFI means. Instead, it transitions into the realm of mechanical injection, being sent to the injector hat through traditional mechanical injection hoses and nozzles. This clever integration allows the Hybrid System to leverage the precise metering capabilities of electronic fuel injection while utilising the robust, high-flow characteristics of a mechanical delivery system to the hat.
Tailored Fuel Delivery Options
To cater to different performance needs and plumbing preferences, this EFI/Mech blend system offers two distinct bottom block configurations, each designed to optimise fuel flow from the EFI injectors to the injector hat:
- Single #8 Hose Output: One bottom block variant features a single, larger #8 hose port. All the fuel sprayed by the EFI injectors within this block is collected and then routed through this #8 hose. This single, high-volume line then typically feeds into a distribution block, which in turn delivers the fuel to the injector hat. This option simplifies plumbing somewhat, consolidating the fuel flow into one main artery before it's distributed.
- Four Individual #3 Hose Outputs: The alternative bottom block design provides four individual ports, each designed to accept a #3 hose. These smaller hoses can then be run directly from the bottom block to the injector hat. A significant advantage of this configuration is its ability to bolt directly to the injector hat in the normal distribution block position, offering a clean and integrated setup. This option might offer more direct and potentially more even fuel distribution to the hat's entry points, depending on the hat's design.
The choice between these two bottom block options typically depends on the specific injector hat being used, the desired fuel distribution characteristics, and the overall packaging constraints within the engine bay. Both options are engineered to ensure efficient and reliable fuel transfer from the electronically controlled injectors to the mechanical delivery components.
Electronic Barrel Valve Control: Precision Redefined
One of the most compelling aspects of this EFI/Mech blend system is its innovative approach to fuel control. It's designed to manage fuel flow with the same effectiveness as a traditional mechanical barrel valve, but with the unparalleled accuracy and adaptability of electronic control. A mechanical barrel valve, often found in purely mechanical injection systems, precisely meters fuel based on throttle position and engine speed. This blend system achieves a similar outcome, but instead of physical cams and levers, it uses the ECU's sophisticated algorithms and the rapid response of the EFI injectors.
The ECU, through its precise control of the injector pulse width and timing, essentially mimics the fuel metering function of a barrel valve. It can dynamically adjust fuel delivery in real-time, responding instantly to changes in engine load, RPM, and other environmental factors. This electronic replication of a barrel valve's function brings several advantages:
- Superior Accuracy: Electronic control allows for much finer and more accurate fuel metering than mechanical systems, leading to better fuel atomisation and more complete combustion.
- Dynamic Adjustability: The ECU can adjust fuel delivery on the fly, compensating for varying air density, fuel temperature, and even engine wear, something a mechanical system struggles with without manual adjustments.
- Tuning Flexibility: Electronic control offers immense tuning flexibility, allowing engine builders and tuners to dial in the fuel curve for peak performance across the entire RPM range, optimising for specific fuels or track conditions.
Crucially, the wiring and control of the EFI injectors within this blend system are handled by the ECU "as normal." This means that from the ECU's perspective, it's operating standard EFI injectors, sending the familiar electrical signals to open and close them. This simplifies the electronic integration, as existing EFI ECU platforms and tuning software can be leveraged to manage the fuel delivery for this unique hybrid setup.
Benefits and Maintenance
The innovation behind this EFI/Mech blend system isn't just about raw power; it also brings tangible benefits in terms of practicality and longevity. A significant advantage highlighted by the system's design is the ease of servicing or replacement of the injectors. Because the EFI injectors are mounted externally between the top and bottom blocks, rather than deep within an injector hat, they are far more accessible. This means:
- Reduced Downtime: Injector inspection, cleaning, or replacement can be performed quickly and efficiently, minimising time spent off the track or out of action.
- Simplified Troubleshooting: If an injector issue arises, diagnosing and isolating the problem is much simpler due to their accessible location.
- Cost-Effectiveness: Easier access can translate to lower labour costs for maintenance and repairs.
This thoughtful design demonstrates a commitment to not only maximising performance but also ensuring that the system remains practical and manageable for owners and mechanics.
Comparative Overview: Fuel Injection Systems
To better understand where the EFI/Mech blend system fits in, let's briefly compare it to traditional EFI and purely mechanical injection systems:
| Feature | Traditional EFI | Mechanical Injection | EFI/Mech Blend System |
|---|---|---|---|
| Fuel Metering | Electronic (ECU, sensors) | Mechanical (Barrel valve, nozzles) | Electronic (ECU) to mechanical delivery |
| Precision/Control | High, dynamic | Moderate, less dynamic | Very high (electronic metering) |
| Tuning Flexibility | Excellent, software-based | Limited, physical adjustments | Excellent, software-based |
| Injector Placement | Intake manifold/Cylinder | Injector hat/Nozzles | External, between blocks |
| Primary Application | Road cars, high-performance | Drag racing, extreme power | High-horsepower blower/hat setups |
| Maintenance Ease | Varies by system | Generally complex | Improved for injectors |
Frequently Asked Questions (FAQs)
Q: What is an injector hat, and why is it used in this system?
A: An injector hat, often associated with supercharged or blown engines, is essentially an air intake manifold that sits atop the blower. In traditional mechanical injection setups, fuel is sprayed directly into this hat. In the EFI/Mech blend system, the hat still serves as the final fuel delivery point to the engine, but the fuel arrives via mechanical hoses from the electronically controlled injectors.
Q: Why would I choose an EFI/Mech blend over a full EFI system?
A: This blend system is specifically designed to extract maximum horsepower from certain hat/blower combinations. While full EFI offers incredible control, this hybrid approach can sometimes unlock higher flow rates or better fit specific packaging requirements of extreme performance builds where the mechanical hat is already part of the setup.
Q: What kind of ECU is required for this blend system?
A: The system is designed to be controlled by a conventional EFI ECU, as the injectors are wired and controlled "as normal." This means high-performance aftermarket ECUs capable of managing sequential or batch-fire injection, often with advanced tuning capabilities, would be suitable.
Q: How does tuning work with this EFI/Mech blend system?
A: Tuning is primarily done through the ECU's software, just like a standard EFI system. The tuner adjusts fuel maps, injector pulse widths, and other parameters to optimise fuel delivery based on sensor inputs and engine performance data. The goal is to ensure the electronically metered fuel perfectly matches the engine's requirements as it passes through the mechanical delivery components.
Q: Is this system suitable for street use?
A: Given its design for maximum horsepower and specific hat/blower combinations, this EFI/Mech blend system is primarily geared towards high-performance racing applications. Its suitability for street use would depend on local regulations, emissions requirements, and the specific tuning, which may make it impractical or illegal for road vehicles.
Conclusion
The relationship between the ECU and fuel injectors is a cornerstone of modern engine management, embodying the Precision required for optimal performance and efficiency. The advent of innovative systems like the EFI/Mech blend takes this relationship to new heights, offering a unique solution for high-horsepower applications. By combining the electronic accuracy of ECU-controlled fuel injection with the robust delivery characteristics of mechanical systems, it provides a powerful, adaptable, and surprisingly serviceable approach to fuel management. For enthusiasts pushing the boundaries of what's possible with their engine builds, understanding such intricate systems is not just an academic exercise but a pathway to unlocking true automotive potential.
