Essential Tools for EV Servicing

The Rise of EVs and the Need for Specialised Tools

In recent years, the automotive landscape has undergone a significant transformation, with electric vehicles (EVs) steadily gaining popularity. This shift is driven by a growing awareness of environmental concerns and the desire for more economical and sustainable transportation. As more drivers embrace the benefits of EVs, such as reduced emissions and quieter operation, the demand for specialised servicing and maintenance also increases. While the core principles of vehicle care remain, EVs present unique challenges and require a distinct set of tools and technologies that differ from those used for traditional internal combustion engine (ICE) vehicles. It's crucial for mechanics and car owners alike to understand these differences to ensure the safety and longevity of these innovative machines. This article delves into the essential tools and technologies that are indispensable for anyone looking to service or maintain an electric vehicle.

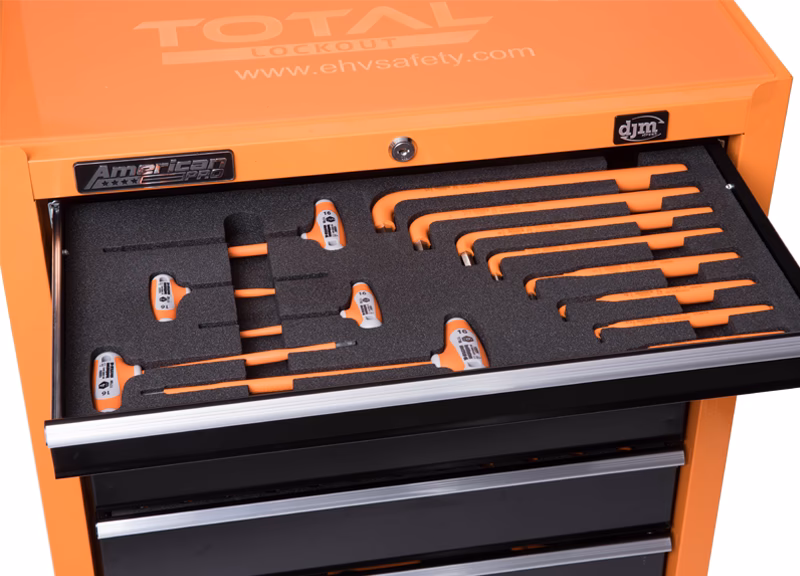

Insulated Hand Tools: Your First Line of Defence

Electric vehicles operate on high-voltage battery systems, typically utilising lithium-ion technology. When fully charged, these batteries store a substantial amount of energy, posing a potential risk of electric shock if not handled with the utmost care. This is precisely why insulated hand tools are not just recommended, but an absolute necessity when working on EVs. These tools are designed with a protective rubber or plastic coating over the handles, acting as a barrier between the user and any energised components. When selecting insulated tools for EV servicing, it's vital to look for the official "1,000-volt" rating symbol. This marking, along with the year of manufacture and insulation, signifies that the tool has been rigorously tested and meets strict safety standards for working with high-voltage systems. The quality of this insulation is paramount; even a minor compromise can lead to severe injury. Therefore, investing in high-quality, certified insulated tools, such as torque wrenches, screwdrivers, pliers, and ratchets, is a non-negotiable aspect of EV maintenance. Any tool that comes into contact with the vehicle's electrical system must possess this insulation to protect the user from potential electrical hazards.

Key Features of Insulated Tools:

Fault Detection Computers: Diagnosing the Unknown

Modern EVs are sophisticated pieces of technology, often equipped with complex electronic control units (ECUs) and intricate software systems. To effectively diagnose issues and monitor the health of these systems, a fault detection computer, also known as an OBD-II scanner or diagnostic tool, is essential. These intelligent devices plug directly into the vehicle's diagnostic port, allowing mechanics to access a wealth of data about the vehicle's performance, system status, and any detected fault codes. For EV servicing, a high-quality diagnostic tool is crucial for identifying anomalies within the battery management system, powertrain control, and other critical electronic components. It can quickly pinpoint the root cause of a problem, whether it's a minor sensor malfunction or a more significant issue with the battery pack. This proactive approach to diagnostics not only speeds up the repair process but also helps prevent potential breakdowns and ensures the overall safety and reliability of the vehicle. Without a reliable fault detection computer, diagnosing and resolving issues in an EV would be a significantly more challenging and time-consuming endeavour.

Oscilloscopes and Multimeters: Measuring the Flow of Power

When dealing with electrical systems, understanding and measuring electrical properties is fundamental. Oscilloscopes and multimeters are two indispensable tools for any EV mechanic. A multimeter is a versatile device used to measure voltage, current, and resistance. It can be used to check the state of charge of the battery, test the integrity of electrical connections, and identify voltage drops across components. An oscilloscope, on the other hand, provides a visual representation of electrical signals over time. This allows for a more in-depth analysis of waveforms, helping to identify subtle issues such as signal noise, intermittent faults, or incorrect timing within electronic circuits. For instance, an oscilloscope can be used to analyse the charging and discharging patterns of individual battery cells or to diagnose issues with the electric motor's control signals. Proficiency in using both multimeters and oscilloscopes is a hallmark of a skilled EV technician, enabling them to accurately assess the health of the vehicle's electrical components and troubleshoot complex problems.

Multimeter vs. Oscilloscope: What's the Difference?

A Car Jack: For When You Need to Go Under

Despite their advanced technology, EVs are still fundamentally cars, and like any car, they require periodic maintenance that involves lifting them off the ground. This is where a reliable car jack becomes indispensable. Whether it's for a tyre change, brake inspection, or suspension work, a car jack provides the necessary elevation to access the underside of the vehicle. EVs, particularly battery-electric vehicles (BEVs), tend to be heavier than their ICE counterparts due to the substantial weight of the battery pack. This increased weight necessitates a robust and high-capacity car jack. Both mechanical and hydraulic jacks are suitable, with hydraulic jacks often preferred for their ease of use and stability, especially those on wheeled trolleys for manoeuvrability in a workshop setting. When choosing a jack, ensure it meets the weight requirements of the specific EV you're working on and provides a stable and secure platform for lifting. The safety features, such as a secure locking mechanism, are also crucial considerations.

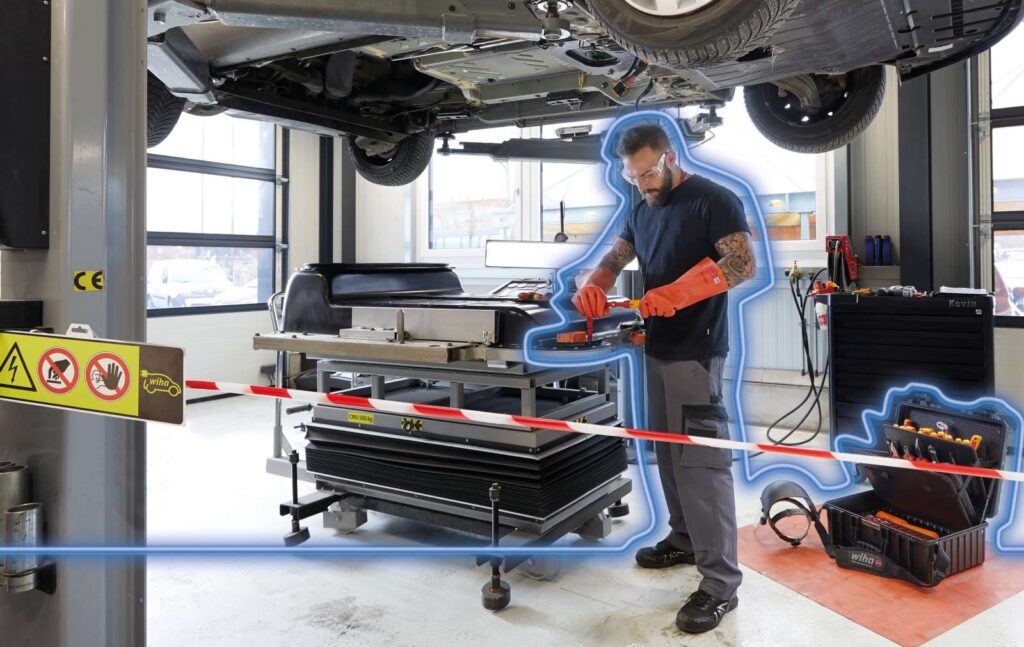

Battery Pack Lifts: Handling the Heart of the EV

EV batteries are not only heavy but also contain sensitive and valuable components. Removing, installing, or transporting an EV battery pack is a task that requires specialised equipment to ensure both the safety of the technician and the integrity of the battery itself. This is where a battery pack lift comes into play. These heavy-duty lifting devices are specifically designed to handle the weight and dimensions of EV battery packs. These lifts can range from simple lifting tables to more sophisticated robotic arms. Their primary function is to safely lift the battery pack from its housing, manoeuvre it, and place it onto a workbench or transport trolley, and vice versa. Without a dedicated battery pack lift, attempting to manually lift or manoeuvre an EV battery could lead to serious injury or damage to the valuable battery components. For workshops servicing EVs, a battery pack lift is a critical piece of equipment that ensures efficient and safe battery management.

Cell Balancers: Optimising Battery Health

One of the key aspects of EV battery maintenance is ensuring the longevity and optimal performance of the lithium-ion battery pack. Over time, and with usage, the voltage of individual cells within a battery pack can become imbalanced. This imbalance can lead to reduced overall range, slower charging, and premature degradation of the battery. A cell balancer is a specialised tool designed to address this issue. Cell balancers work by equalising the voltage across all the cells in a battery pack. They achieve this by drawing excess charge from higher-voltage cells and redistributing it to lower-voltage cells, or by bleeding off excess energy from overcharged cells. This process ensures that all cells are operating at a similar voltage level, which is crucial for maintaining the battery's capacity, extending its lifespan, and ensuring consistent performance. Regular use of a cell balancer, particularly for slightly older EVs, can significantly improve the driving range and overall health of the battery pack.

Other Essential Considerations for EV Servicing

Beyond the core tools, several other factors are vital for a safe and efficient EV servicing environment. Vehicle lifts, for instance, need to be wider and have lower profile arms to accommodate the design of EVs, often avoiding scissor lifts. Supplemental vehicle securing straps are also recommended when removing heavy components like battery packs. Tyre and wheel equipment is also important, as EVs, due to their weight and instant torque delivery, can cause accelerated tyre wear. Therefore, proper wheel alignment equipment, capable of handling the specific requirements of EV suspension systems (including adjustable rear axles), is beneficial. Furthermore, fume extraction systems, while traditionally associated with ICE vehicles, also have specific considerations for EV battery handling and charging environments. Finally, a well-organised workshop with appropriate power supplies, safety barriers, signage, and workbench solutions contributes to overall efficiency and safety. Investing in the right equipment and ensuring technicians are properly trained in EV servicing protocols is paramount for any workshop looking to cater to the growing EV market. The expertise of companies specialising in garage equipment, who can offer advice on workshop design and installation, is invaluable in this transition.

Summary of EV Servicing Essentials:

• Insulated Hand Tools: For protection against high-voltage risks.
• Fault Detection Computers: For comprehensive system diagnostics.
• Oscilloscopes & Multimeters: For precise electrical measurements.
• Car Jacks: For safe vehicle elevation.
• Battery Pack Lifts: For secure handling of heavy batteries.
• Cell Balancers: To maintain battery health and performance.
• Appropriate Vehicle Lifts: Designed for EV dimensions and weight.
• Wheel Alignment Equipment: To manage increased tyre wear.
• Safety Equipment: Including fume extraction and securing straps. By equipping your workshop with these essential tools and adopting best practices, you can confidently and safely service the ever-increasing number of electric vehicles on our roads, ensuring they provide reliable and efficient transportation for years to come.
