Mastering Wheel Alignment

Maintaining the correct wheel alignment on your vehicle is crucial for several reasons, impacting not only driving safety but also the longevity of your tyres and the overall efficiency of your car. Misalignment can lead to uneven tyre wear, pulling to one side, and a less responsive steering feel. This guide will delve into the process of adjusting wheel alignment, drawing upon fundamental principles of vehicle suspension and steering systems.

Understanding Wheel Alignment

Wheel alignment refers to the adjustments made to the suspension and steering components to ensure your wheels are positioned at the correct angles relative to the road surface and to each other. The key angles involved are:

• Camber: The inward or outward tilt of the top of the tyre when viewed from the front.
• Caster: The forward or backward tilt of the steering axis when viewed from the side.
• Toe: The inward or outward angle of the tyres when viewed from above. 'Toe-in' means the front of the tyres are closer together than the rear, while 'toe-out' is the opposite.

When these angles are incorrect, it's time for an alignment check. Signs that your alignment may be off include:

• Uneven or rapid tyre wear (e.g., wear on the edges or inner/outer shoulders).
• The vehicle pulling to one side of the road.
• The steering wheel being off-centre when driving straight.
• A general feeling of vagueness or looseness in the steering.

Routine Suspension and Steering Maintenance

Before diving into alignment adjustments, it's vital to ensure the underlying suspension and steering components are in good order. Routine maintenance should include:

• Periodic inspections: Check for any loose, worn, or damaged components within the suspension and steering systems. This includes ball joints, tie rod ends, bushings, and shock absorbers.
• Alignment checks: Regularly have your alignment checked, especially after hitting a significant pothole or kerb, or when new tyres are fitted.
• Lubrication: Ensure that components like ball joints and wheel bearings are lubricated according to the manufacturer's recommendations. Always use the specified lubricants.

Wheel Bearing Inspection and Adjustment

Properly functioning wheel bearings are essential for accurate alignment readings and safe operation. Here's how to inspect and adjust them:

Inspection:

1. Lift the front of the vehicle and support it securely on jack stands.
2. Rotate each front wheel, feeling for any roughness or grinding.
3. With one hand on the spindle, grasp the bottom of the tyre and attempt to rock it back and forth. Any significant play indicates a potential issue with the wheel bearing or spindle.

Adjustment:

1. Lift and support the front of the vehicle.
2. Remove the dust cap and the old cotter pin.
3. Loosen the castellated nut.
4. With the wheel mounted hand-tight to the hub and the hub loosely secured on the spindle, tighten the castellated nut until a slight resistance is felt when rotating the wheel. This seats the bearings.
5. Rotate the wheel an additional 2-3 turns to displace any excess grease.
6. If necessary, tighten the castellated nut again until slight resistance is felt.
7. Align the castellated nut with the nearest slot and insert a new cotter pin. If the hole doesn't align, loosen the nut slightly to the next available slot.
8. Ensure the wheel rotates smoothly and freely with no play.
9. Replace the dust cap and lower the vehicle.

Performing a Wheel Alignment Adjustment

Once you've confirmed that all suspension and steering components, including wheel bearings, are in good condition, you can proceed with the alignment adjustment. The provided information specifically details adjusting the 'toe' angle, which is a common requirement.

The Toe Adjustment Process

The primary method for adjusting wheel alignment, specifically the toe angle, involves the tie rods. Here's a breakdown:

1. Preparation: Lift the front of the vehicle and support it securely on jack stands. Ensure the vehicle is on a level surface.
2. Chalking the Tyres: Rotate each wheel and scribe a chalk line around the circumference of the tyre at the centre of the tread pattern. This line will serve as your reference point.
3. Setting the Normal Running Position: Lower the vehicle. With the steering wheel in the straight-ahead position, roll the vehicle forward approximately five feet. This allows the tyres to settle into their normal running position.

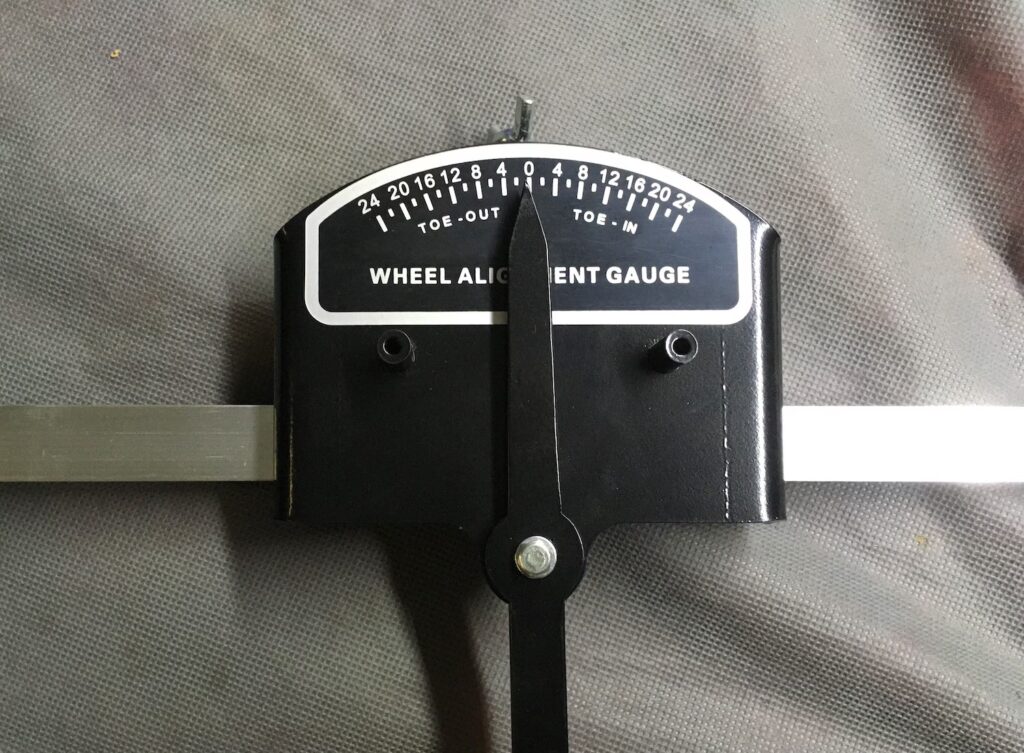

4. Measuring Toe: Measure the distance between the chalk lines at the front and rear of each tyre. The measurement at the front of the tyres should be between 0" and 1/8" (0 – 3 mm) less than the measurement at the rear. This indicates the correct 'toe-in' setting.
5. Making the Adjustment:
• Locate the tie rod jam nuts. These are typically lock nuts that secure the adjustable tie rod ends.
• Loosen the tie rod jam nuts.
• Turn the tie rod itself. Rotating the tie rod will either lengthen or shorten it, thereby adjusting the toe angle. Turning the tie rod will change the distance between the chalk lines.
• Continue making adjustments and re-measuring until the correct toe measurement is achieved.
6. Tightening: Once the alignment is correct, tighten the tie rod jam nuts to the specified torque, typically 36 – 40 ft. lbs. (49 – 54 Nm).

Post-Alignment Checks

After the alignment adjustments have been made, it's crucial to perform a few checks:

• Test Drive: Drive the vehicle and confirm that it tracks straight and doesn't pull to either side.
• Steering Wheel Centering: Ensure the steering wheel is centred when the vehicle is travelling straight. If it's not, you may need to disconnect the intermediate shaft from the steering shaft, centre the steering wheel, and then reconnect the intermediate shaft. Tighten the bolt to 155 – 215 in. lbs. (18 – 25 Nm) torque.

Component Replacements Affecting Alignment

Several other component replacements can directly impact wheel alignment. It's essential to re-check and adjust alignment after any of the following procedures:

Front Shock Absorber Replacement

While shock absorbers primarily control damping, their mounting points are integral to the suspension geometry. After replacing front shock absorbers, ensure all mounting nuts are tightened until the rubber bushings expand to match the diameter of the shock absorber washers. Always check and adjust front wheel alignment afterwards.

Front Axle Replacement

Replacing the front axle is a significant undertaking that will certainly affect alignment. The procedure involves careful disassembly and reassembly of suspension components. Crucially, after installing the new front axle, all hardware must be tightened to the specified torques (e.g., leaf spring and rack and pinion hardware to 35 – 50 ft. lbs. (50 – 70 Nm), and spindle lock nuts to 56 – 70 ft. lbs. (75 – 95 Nm)). A final check and adjustment of the front wheel alignment is mandatory.

Front Spring Replacement

Replacing front springs also necessitates an alignment check. The procedure involves ensuring the correct positioning of the axle relative to the frame. After installation and tightening of spring hardware (35 – 50 ft. lbs. (50 – 70 Nm) for spring and rack and pinion hardware), always perform a front wheel alignment adjustment.

Hub Replacement

When replacing a hub, which houses the wheel bearings, proper bearing adjustment is critical. After installing the new hub and performing the bearing adjustment, lower the vehicle and tighten the wheel(s). A subsequent alignment check is recommended.

Wheel Bearing and Race Replacement

Similar to hub replacement, correctly installing and adjusting wheel bearings and races is vital. After reassembling the hub with new bearings and races and performing the bearing adjustment, always check and adjust front wheel alignment.

Rack Ball Joint Replacement

The rack ball joint connects the steering rack to the steering knuckle. After replacement, the castellated nut should be tightened to 36 ft. lbs. (50 Nm), potentially up to 50 ft. lbs. (70 Nm) to align the cotter pin hole. Proper clearance checks and jam nut tightening (35 – 45 ft. lbs. (47 – 61 Nm)) are also important. Crucially, always check and adjust front wheel alignment after this procedure.

Tie Rod Inspection/Replacement

Worn tie rods are a common cause of misalignment. After replacing a tie rod end, the castellated nut should be tightened to at least 36 ft. lbs. (50 Nm), and up to 50 ft. lbs. (70 Nm) to accommodate the cotter pin. The jam nut requires tightening to 36 – 40 ft. lbs. (49 – 54 Nm). A subsequent front wheel alignment check and adjustment is essential.

Bellows Replacement

While replacing bellows on the steering rack, adjustments to the rack extension-to-rack and pinion unit clearance are made. This involves ensuring an 1/8" gap and tightening the jam nut to 35 – 45 ft. lbs. (47 – 61 Nm). After this, an alignment check is necessary.

Pinion Seal Replacement

Accessing the pinion seal requires removing the rack and pinion unit. Once reinstalled, it's vital to check and adjust front wheel alignment.

Spindle Replacement

Replacing a spindle involves critical torque specifications for new lock nuts (56 – 70 ft. lbs. (75 – 95 Nm)) and castellated nuts (36 ft. lbs., potentially up to 50 ft. lbs. for cotter pin alignment). Following this, a front wheel alignment adjustment is mandatory.

Rack and Pinion Unit Disassembly, Inspection, and Replacement

Whether disassembling, inspecting, or replacing the entire rack and pinion unit, precise adjustments and checks are required. This includes tightening specific bolts and nuts to correct torque values (e.g., tensioner bolts to 100 – 120 in. lbs. (11.5 – 13.8 Nm), rack and pinion unit mounting nuts to 35 – 50 ft. lbs. (50 – 70 Nm), and intermediate shaft bolts to 155 – 215 in. lbs. (18 – 25 Nm)). Setting the rack extension-to-rack and pinion unit clearance correctly is also vital. After any work on the rack and pinion system, always check and adjust front wheel alignment.

Checking/Adjusting Rack Extension-to-Rack and Pinion Unit Clearance

This specific adjustment ensures proper steering response. It involves checking that the rear spindle arm rests against the front axle. Adjustments are made at the rack ball joint, ensuring an 1/8" gap between the rack extension hex and the rack and pinion unit. The jam nut is then tightened to 35 – 45 ft. lbs. (47 – 61 Nm).

Steering Wheel and Steering Shaft/Column Replacement

While replacing the steering wheel or shaft/column itself doesn't directly alter wheel alignment angles, it's good practice to ensure the steering wheel is centred correctly during reinstallation. The steering wheel retaining nut should be torqued to 15 – 20 ft. lbs. (20 – 27 Nm), and steering column bolts to 29 ft. lbs. (39 Nm). After reassembly, a confirmation of steering wheel centering and a final check of wheel alignment is prudent.

Frequently Asked Questions

Q1: How often should I get my wheel alignment checked?

It's recommended to have your wheel alignment checked annually, or whenever you notice signs of misalignment such as uneven tyre wear or the vehicle pulling to one side. It's also advisable after hitting a large pothole or kerb.

Q2: Can I adjust my wheel alignment myself?

Basic toe adjustments can be performed by a knowledgeable DIYer using the tie rod adjustments, as outlined in this guide. However, camber and caster adjustments often require specialized equipment and are best left to a professional alignment shop.

Q3: What are the consequences of poor wheel alignment?

Poor alignment leads to accelerated and uneven tyre wear, reduced fuel efficiency, and can negatively impact the vehicle's handling and stability, potentially compromising safety.

Q4: What's the difference between wheel alignment and wheel balancing?

Wheel balancing corrects the distribution of weight around a tyre and wheel assembly to prevent vibrations. Wheel alignment adjusts the angles of the wheels to ensure they are parallel to each other and perpendicular to the ground.

Q5: How long does a wheel alignment take?

A typical professional wheel alignment can take anywhere from 30 minutes to an hour, depending on the complexity of the adjustments needed and the vehicle's condition.

By understanding these principles and following the correct procedures, you can effectively manage your vehicle's wheel alignment, ensuring a safer, more efficient, and more comfortable driving experience.
