Keeping Your BMW E46 Shifting Smoothly: A Gearbox Oil Deep Dive

The gearbox is the unsung hero of your driving experience, and for BMW E46 owners, maintaining its health is paramount to enjoying that signature BMW driving dynamic. Whether you're cruising on the motorway or tackling a spirited drive, the transmission fluid plays a crucial role. This guide will delve into the specifics of your BMW E46 gearbox oil, focusing on capacity, the best fluid choices, and a comprehensive walkthrough of the oil change process.

BMW E46 Gearbox Oil Capacity: The Numbers You Need

One of the most common questions among E46 owners is, "How much oil does my gearbox actually take?" The answer can vary slightly depending on the specific gearbox model fitted to your E46, but for the highly sought-after BMW M3 E46, the manual gearbox typically requires approximately 1.6 to 1.7 litres of gear oil. It's always wise to have a little extra on hand, as topping up or dealing with minor spills is always a possibility. For other E46 models with manual transmissions, while the exact figure might differ slightly, this range provides a good benchmark. Always consult your vehicle's owner's manual for the most precise specification.

Choosing the Right Gearbox Oil: More Than Just a Lubricant

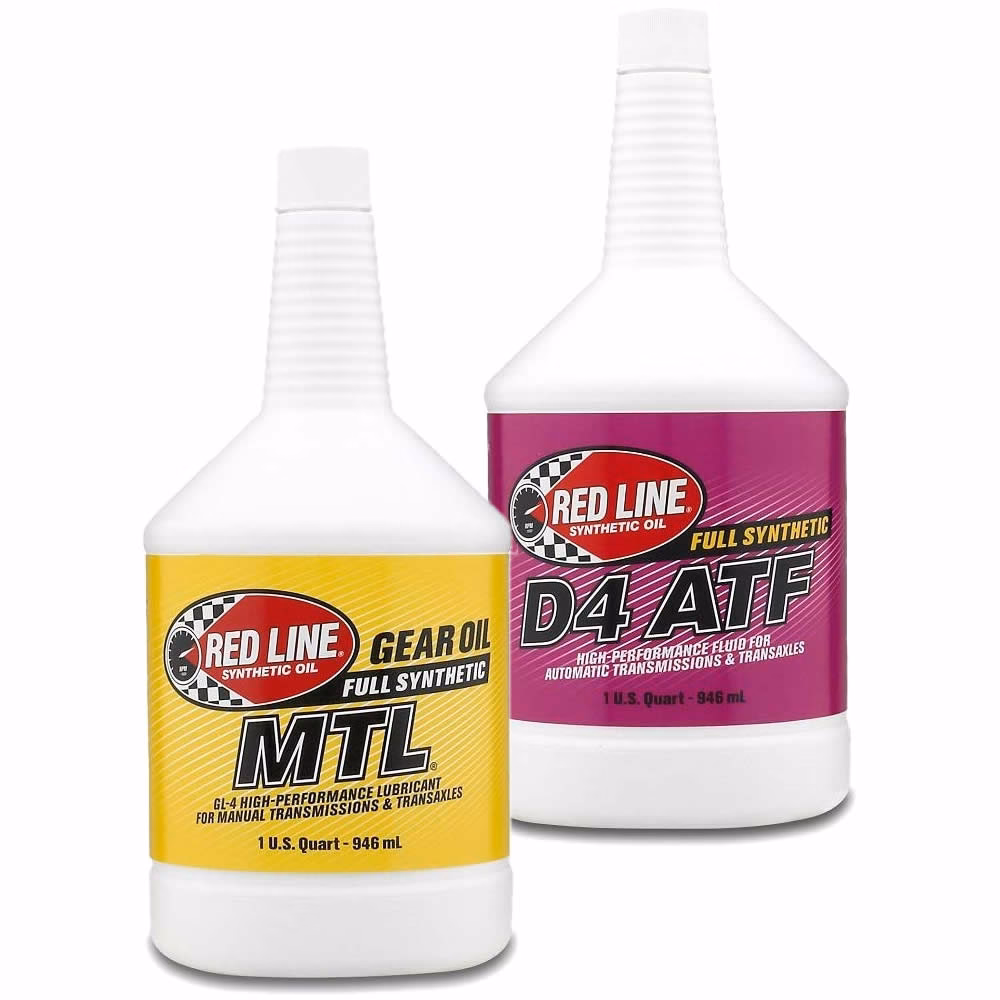

The type of oil you use in your gearbox is critical. It's not just about lubrication; it's about ensuring smooth gear changes, protecting components from wear, and maintaining optimal operating temperatures. For the BMW E46, especially the M3, a blend of specific oils has proven to be highly effective. A popular and well-regarded combination involves mixing Red Line MTL (Manual Transmission Lubricant) and Red Line D4 ATF (Automatic Transmission Fluid). This unique blend aims to deliver the best of both worlds: the slick, precise shifting associated with MTL, and the excellent protection and viscosity characteristics of D4 ATF. This mixture is the result of extensive research and feedback from the BMW owner community, many of whom report significantly improved gear change feel and reduced transmission noise.

However, the optimal mix can depend on your driving style:

• Everyday Driving & Shorter Journeys: If you use your E46 primarily for daily commutes, shorter trips, and avoid track days, a blend starting with all of the Red Line D4 ATF, followed by topping up with Red Line MTL until you have about 200-300 ml of MTL left, is recommended. This prioritises smooth operation in varied conditions.
• Enthusiast Driving & Occasional Track Use: For those who enjoy spirited weekend drives or the occasional track day, starting with filling the gearbox with all of the Red Line MTL first, and then topping up with Red Line D4 ATF, is suggested. This prioritises high-temperature protection.
• Track-Focused Driving: If your E46 spends more time on the track than on the road, it is strongly recommended to use only Red Line MTL. This provides superior protection under extreme high-temperature conditions.

For non-M E46 models, BMW's recommended fluid is typically MTF-LT-2 Transmission Fluid SAE 75W-80. This fluid is essential for ensuring the correct operation of the transmission's synchronisation and durability.

DIY Gearbox Oil Change: A Step-by-Step Guide

Changing your gearbox oil is a rewarding DIY task that can significantly contribute to the longevity of your E46. While this guide is based on a specific procedure, always exercise caution and ensure you are comfortable with the steps involved. Disclaimer: This guide is for informational purposes only. The author and publisher are not responsible for any damage to your vehicle, yourself, or others. Proceed at your own risk.

Tools and Parts You'll Need:

Before you begin, gather the necessary tools and parts:

The Procedure:

1. Prepare the Vehicle: Safely position your E46 on ramps or use jack stands to elevate the vehicle. Ensure the car is as level as possible to allow for complete draining and accurate filling. Never work under a vehicle supported only by a jack.
2. Access the Gearbox: Remove any underbody panels or covers that obstruct access to the gearbox. These are often secured by 8mm and 10mm bolts.
3. Locate the Plugs: Identify the gearbox drain plug, fill plug, and the oil strainer bolt. The drain plug is typically at the lowest point of the gearbox casing, the fill plug is usually on the side, and the oil strainer is often located near the fill plug.
4. Remove the Fill Plug FIRST: Before draining any oil, remove the fill plug using the 8mm Hex bit. This is crucial. If you drain the oil and then find you cannot remove the fill plug, you'll be unable to refill the gearbox.
5. Drain the Old Oil: Position your oil pan beneath the drain plug. Using the 8mm Hex bit, carefully loosen and remove the drain plug. Allow the old gearbox oil to drain completely. This may take some time.
6. Inspect the Oil Strainer: Once the oil has drained, use the 22mm socket to remove the oil strainer bolt. Inspect the strainer for any metallic debris. A small amount of fine metallic dust is normal, but large chunks or shavings indicate potential internal wear and should be investigated further. Replace the gasket ring on the oil strainer bolt, whether you are reusing the strainer or fitting a new one.
7. Reinstall the Drain Plug: Clean the drain plug and fit a new gasket ring. Screw the drain plug back into the gearbox casing. Using your torque wrench, tighten it to the manufacturer's specified torque, typically around 35 Nm (25.81 lb/ft).
8. Reinstall the Oil Strainer: Fit the oil strainer (if removed) with its new gasket ring into its housing. Tighten it securely, usually to around 25 Nm (18.44 lb/ft) using your torque wrench.
9. Fill with New Oil: Using your fluid pump and hose, begin filling the gearbox with the new, specified oil through the fill hole. Continue filling until the oil just begins to overflow from the fill hole. This indicates the gearbox is full to the correct level.
10. Reinstall the Fill Plug: Once the oil has stopped overflowing, clean the fill plug and fit a new gasket ring. Tighten the fill plug to the specified torque, typically 35 Nm (25.81 lb/ft).
11. Activate the Pump (Important Step): Lower the vehicle. Start the engine and drive the car for a short distance (a few minutes) to allow the gearbox oil pump to circulate the fluid and ensure it's properly distributed throughout the transmission, including the cooler if applicable.
12. Check Oil Level: Allow the vehicle to cool slightly. Safely raise the vehicle again. With the engine off, open the fill plug once more. The oil level should still be at the bottom of the fill hole. If it has dropped significantly, add a small amount of oil until it reaches the correct level.
13. Final Tightening and Checks: Reinstall and tighten the fill plug to the specified torque of 35 Nm (25.81 lb/ft). Wipe down the gearbox casing and surrounding areas to check for any leaks.
14. Reassemble and Lower: Reinstall any underbody panels that were removed. Lower the vehicle safely.

Frequently Asked Questions (FAQs)

Q1: How often should I change my E46 gearbox oil?

A1: A general recommendation for manual gearbox oil changes is every 30,000 miles (approximately 50,000 km) or as per your vehicle's service schedule. More frequent changes might be beneficial if you drive aggressively or in harsh conditions.

Q2: Can I use a universal gearbox oil?

A2: While tempting, it's highly recommended to use the specific type of oil recommended for your BMW E46, whether it's the BMW MTF-LT-2 or a reputable aftermarket equivalent like the Red Line MTL/D4 ATF blend. Using the wrong oil can lead to poor shifting, increased wear, and potential damage.

Q3: What does the oil strainer do?

A3: The oil strainer acts as a filter, catching small metallic particles that may break off from the gearbox's internal components. Inspecting it during an oil change can provide an early warning of potential wear issues.

Q4: Why do I need to remove the fill plug first?

A4: Removing the fill plug before draining ensures you can refill the gearbox. If the fill plug is seized or difficult to remove, you would discover this before losing all the old oil, preventing you from being stranded with an empty transmission.

Q5: Is it normal for some oil to remain in the transmission cooler?

A5: Yes, it is common for a small amount of residual oil to remain in the transmission cooler and associated pipework, as this DIY method typically doesn't actively flush the entire system. The driving step afterwards helps to circulate the new fluid and top up any air pockets.

By understanding your BMW E46's gearbox oil requirements and following a diligent maintenance schedule, you can ensure your beloved Beemer continues to provide that engaging and reliable driving experience for years to come. Regular attention to fluids like gearbox oil is a cornerstone of preserving your vehicle's performance and value.
