BMW E46 Engine Guide

The BMW E46 3 Series, a beloved icon of the late 90s and early 2000s, is renowned for its exquisite driving dynamics, sophisticated styling, and, crucially, its magnificent engines. Across its various body styles – saloon, coupe, convertible, touring, and compact – BMW offered a diverse range of petrol and diesel powertrains, each contributing to the E46's enduring appeal. Understanding these engines is key for any enthusiast looking to purchase, maintain, or simply appreciate this automotive masterpiece. This guide delves into the heart of the E46, exploring the petrol and diesel engines that powered this generation of the 3 Series.

Petrol Engines: The Heart of the Driving Experience

BMW's commitment to the inline-six engine is legendary, and the E46 3 Series was a prime beneficiary of this engineering philosophy. While smaller four-cylinder options were also available, the six-cylinder petrol engines truly defined the 'Ultimate Driving Machine' moniker for this era.

The M54 Family: The Pinnacle of Naturally Aspirated Inline-Six

The M54 engine series represents the zenith of naturally aspirated inline-six performance in the E46 generation. Known for its smooth power delivery, impressive torque, and characteristic BMW exhaust note, these engines are highly sought after.

M54B22 (320i)

This 2.2-litre variant produced around 170 bhp and 193 lb-ft of torque. While not the most powerful, it offered a refined and economical entry into the inline-six experience.

M54B25 (325i/325xi/325Ci)

The 2.5-litre version delivered approximately 189 bhp and 245 Nm (181 lb-ft) of torque. This was a popular choice, offering a superb balance of performance and everyday usability.

M54B30 (330i/330xi/330Ci/330Cd)

The flagship of the M54 range, the 3.0-litre M54B30, produced a healthy 231 bhp and 300 Nm (221 lb-ft) of torque. This engine provided exhilarating performance, making models like the 330Ci a true driver's car.

Key features of the M54 engines:

• Aluminium block and cylinder head
• Double VANOS (Variable Valve Timing)
• Sequential electronic fuel injection
• Often featured a "dual-pipe" exhaust system for a smoother sound

The M52 Family: The Predecessor

Before the M54, the M52 engine family powered many early E46 models. While sharing the inline-six configuration, they had some key differences, including a cast-iron block for some variants, which offered enhanced durability.

M52B20 (320i)

The 2.0-litre M52B20 produced around 150 bhp.

M52B25 (323i/323Ci)

The 2.5-litre M52B25 in the 323 models offered about 170 bhp.

M52B28 (328i/328Ci)

The potent 2.8-litre M52B28 delivered roughly 193 bhp and 280 Nm (207 lb-ft) of torque, providing strong performance before the arrival of the M54B30.

Key features of the M52 engines:

• Some variants featured a cast-iron block, others aluminium
• VANOS (on later models)
• Generally robust and reliable

The M43 Family: The Four-Cylinder Option

For those seeking a more economical entry point, BMW offered four-cylinder engines. The M43 series was a reliable and relatively simple powertrain.

M43B18 (318i/318is)

The 1.8-litre M43B18 produced around 115 bhp. This was a common engine in the entry-level 318 models.

M43B19 (318i/318is)

A slightly larger 1.9-litre version, the M43B19, offered a modest increase in power to about 118 bhp.

Key features of the M43 engines:

• Cast-iron block
• SOHC (Single Overhead Camshaft)
• Known for its simplicity and longevity

Diesel Engines: Torque and Efficiency

BMW's diesel engines in the E46 range offered a compelling blend of fuel efficiency and robust performance, particularly the turbocharged variants. These were excellent choices for long-distance cruising and everyday driving.

The M47 Family: The Four-Cylinder Turbo Diesel

The M47 was BMW's workhorse four-cylinder diesel engine, providing a good balance of economy and performance.

M47D20 (320d)

The 2.0-litre M47D20, found in the 320d, typically produced around 136 bhp and 280 Nm (207 lb-ft) of torque. This engine made the 320d an exceptionally popular model due to its excellent fuel economy and respectable performance.

Key features of the M47D20:

• Turbocharged direct injection diesel
• Common Rail fuel system
• Known for its tractability and efficiency

The M57 Family: The Six-Cylinder Turbo Diesel

The M57 engine family represented the pinnacle of diesel performance in the E46, offering smooth, powerful, and refined motoring.

M57D25 (325d - later models)

While less common in some markets, a 2.5-litre M57 variant was available, offering a good blend of power and efficiency.

M57D30 (330d/330Cd)

The 3.0-litre M57D30 was a truly impressive engine. In the E46 330d and 330Cd, it produced around 184 bhp and a substantial 390 Nm (288 lb-ft) of torque. This gave the 330d exceptional mid-range punch and effortless cruising ability. Later versions saw power increases.

Key features of the M57 engines:

• Turbocharged direct injection diesel
• Common Rail fuel system
• Known for strong torque output and refinement
• Robust construction

Engine Specifications Comparison

Here's a brief overview comparing some of the most popular E46 engines:

Common E46 Engine Issues and Maintenance

While generally robust, E46 engines, like any, can develop common issues. Proactive maintenance is key to longevity.

Cooling System

The cooling system is a frequent point of attention. Components like the water pump (often plastic impeller), thermostat, and expansion tank can fail. Overheating can lead to severe engine damage, so regular checks and replacement of cooling system components are vital.

Vanos System

The VANOS system, particularly on M54 engines, can suffer from solenoid failure or oil leaks from the seals. Symptoms include rough idling, hesitation, and reduced power. Rebuild kits are widely available.

Oil Leaks

Valve cover gaskets, oil pan gaskets, and oil filter housing gaskets are common sources of oil leaks on many E46 engines. Addressing these promptly prevents oil loss and potential fire hazards.

CCV (Crankcase Ventilation) System

The CCV system on M54 engines can become clogged, leading to increased crankcase pressure, oil leaks, and rough running. Regular inspection and replacement are recommended.

Diesel Specifics

For diesel models (M47 and M57), glow plugs, EGR valves, and turbocharger health are important considerations. The dual-mass flywheel can also wear over time.

Choosing Your E46 Engine

The "best" engine depends on your priorities. If you seek refined performance and the classic BMW inline-six experience, the M54 petrol engines, particularly the M54B30 in the 330 models, are exceptional. For strong torque, excellent fuel economy, and long-distance capability, the M57 diesel engines, especially the 330d, are highly regarded. The four-cylinder options offer a more accessible entry point, with the M47 diesel being a particularly frugal choice.

Frequently Asked Questions

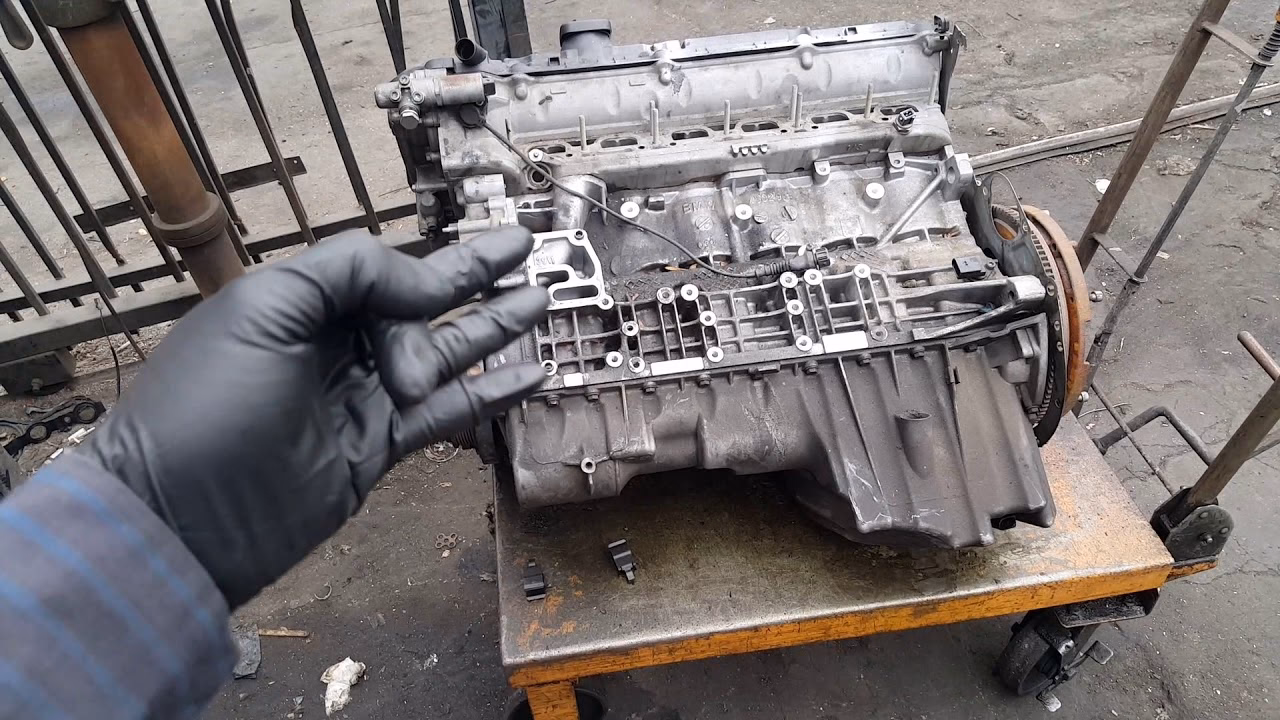

What engine is in a BMW E46 330Ci?

The BMW E46 330Ci is powered by the M54B30 engine, a 3.0-litre naturally aspirated inline-six petrol engine producing approximately 231 bhp.

What is the engine capacity of a BMW E46 330d?

The BMW E46 330d is equipped with the M57D30 engine, which has a capacity of 3.0 litres (2926cc).

Are E46 engines reliable?

Generally, E46 engines are considered reliable, especially the inline-six petrol units (M54 and M52) and the M57 diesel engines, provided they have been well-maintained. Common issues tend to be related to specific components like the cooling system or VANOS, rather than catastrophic engine failures.

Which E46 engine is the most powerful?

The most powerful standard engine offered in the E46 3 Series was the M54B30 (330i/Ci/xi) with 231 bhp. However, performance variants like the E46 M3 used the S54 engine, which significantly outpowered all standard 3 Series engines.

What are the common problems with the M54 engine?

Common issues with the M54 engine include oil leaks (valve cover gasket, oil filter housing gasket), CCV system failure, VANOS solenoid issues, and potential failure of the plastic water pump impeller.

The BMW E46 3 Series offered a superb array of engines, catering to different driving needs and preferences. Whether you lean towards the silky smooth power of the inline-six petrols or the muscular efficiency of the diesels, understanding these powertrains is crucial for appreciating and maintaining this iconic model.
