BMW E36 Z3 EWS Explained

The BMW E36 chassis, a beloved platform for enthusiasts, often features advanced electronic systems that, while beneficial, can sometimes lead to troubleshooting challenges. One such system is the Electronic Immobiliser System, commonly known as EWS. For owners of the popular BMW E36 Z3 and its M variants, understanding the EWS is crucial, especially when diagnosing starting issues or considering modifications. This article delves into whether the E36 Z3 is equipped with EWS, the implications of an EWS delete, and common reasons why your BMW E36 might not be cranking.

Does the BMW E36 Z3 Have EWS?

Yes, the BMW E36 Z3, particularly models from 1995 onwards, is equipped with the EWS (Elektronische Wegfahrsperre) electronic immobiliser system. This system is designed to prevent the vehicle from being started without the correct key, which contains a transponder chip. The EWS control unit communicates with the Engine Control Unit (ECU), often referred to as the DME (Digital Motor Electronics) in BMW terminology, to authorise the engine's operation. If the EWS system detects an issue, such as an unrecognised key or a fault within the EWS module itself, it will prevent the engine from starting, often by disabling the fuel pump or starter motor.

Understanding EWS Deletion

An EWS delete is a modification performed on a vehicle's electronic systems to bypass the factory immobiliser. This process primarily focuses on altering the software within the ECU to circumvent the need for EWS authentication. It's important to understand what an EWS delete does and, crucially, what it doesn't do.

What an EWS Delete Does:

• Bypasses Immobiliser: The core function is to disable the EWS system, allowing the engine to start and run without the need for the EWS control unit or correctly coded keys.
• Facilitates Engine Swaps: It is extremely useful when performing engine transplants, especially when the donor engine comes from a vehicle with a different EWS configuration or when the original EWS system is problematic.
• Resolves Key Issues: It can be a solution for lost keys or faulty EWS rings, eliminating the need for expensive key recoding or replacement.
• Aids in ECU/DME Replacement: If your original ECU or DME fails and a replacement unit is not EWS-coded for your vehicle, an EWS delete can make the new ECU functional.

What an EWS Delete Does NOT Do:

Crucially, an EWS delete, when performed correctly, should not directly impact your BMW's engine performance. The process is designed to bypass an electronic security feature, not to alter engine mapping or hardware parameters. Therefore, you should not expect changes in:

• Horsepower
• Torque
• Fuel efficiency
• Overall driving dynamics

The primary purpose is to enable the engine to start and operate. Any modifications that claim to enhance performance alongside an EWS delete are typically separate tuning processes. It is vital that the EWS delete is carried out by professionals with expertise in BMW electronics and software. Improper modifications can lead to electrical gremlins, dashboard warning lights, or even further damage to the vehicle's electronic systems.

Common ECU Fitment for S50B32 Engines

The S50B32 engine, famously found in the Euro-spec BMW E36 M3 Evolution, requires specific ECUs. For these engines, options often include:

As mentioned, an EWS delete is particularly beneficial when installing an S50B32 engine into another vehicle or when dealing with a faulty EWS system linked to the original ECU. Alpha-N remapping is another modification often associated with these engines, which can potentially increase power by removing the Mass Air Flow (MAF) sensor and relying on the manifold absolute pressure (MAP) sensor for load calculation.

Why is My BMW E36 Not Cranking?

A BMW E36 that refuses to crank is a common frustration for owners. While several factors can cause this, the EWS system and its associated components are frequent culprits. Here's a breakdown of common causes and troubleshooting steps:

Common Causes for a No-Crank E36:

• EWS System Failure: This is perhaps the most common reason. If the EWS module, the EWS ring sensor around the ignition barrel, or the EWS-coded keys fail, the system will prevent the engine from cranking or starting.
• Key Transponder Issues: The transponder chip within the key may have failed, or the EWS ring sensor might not be detecting it correctly.
• Starter Motor Issues: A faulty starter motor, starter solenoid, or related wiring can prevent the engine from cranking.
• Battery Issues: A weak or dead battery will obviously prevent the car from starting, though usually, you'll get some signs of life like dashboard lights.
• Ignition Switch Problems: A worn or faulty ignition switch may not send the correct signals to the starter.
• ECU/DME Faults: While less common for a pure no-crank situation, a faulty ECU can certainly cause starting problems.

Troubleshooting Steps:

1. Check the Key: Try a spare key if you have one. If the spare key works, the issue is likely with your primary key.
2. Inspect EWS Ring: Ensure the EWS ring sensor around the ignition barrel is properly seated and undamaged.
3. Listen for the Fuel Pump: When you turn the ignition to the 'on' position (not cranking), you should hear the fuel pump prime for a few seconds. If you don't hear it, it could indicate an EWS or fuel delivery issue.
4. Check Battery Voltage: Ensure your battery is adequately charged.
5. Scan for Codes: Using a compatible diagnostic tool, scan the ECU and EWS modules for fault codes. This is often the quickest way to pinpoint the problem.
6. Consider EWS Bypass/Delete: If EWS is consistently causing issues, an EWS delete service can permanently resolve these problems, although it does remove a layer of security.

EWS Delete Service for MSS50 DMEs

For owners of the BMW E36 M3 and early Z3 M models equipped with the Euro S50 engine, the Siemens MSS50 DME is the control unit. These units are known to be susceptible to failure, and unfortunately, replacements are becoming increasingly scarce. Failures often occur due to issues like failed ignition coils damaging the ECU's internal circuitry. In such cases, a DME control unit may no longer be available, leaving the vehicle immobilised.

Specialist services offer solutions for these MSS50 DMEs, including:

• DME Cloning: Your original DME's data can be cloned onto a donor DME. This requires you to source a compatible donor unit.
• EWS Delete Service: This service completely removes the EWS function from the DME's software. This is highly advantageous for engine conversions, when an EWS control unit has failed, or when the original DME data is unrecoverable.

These services are typically performed on a workbench, meaning you only need to send the DME unit itself, not the entire vehicle. This is ideal for remote customers or those undertaking significant conversions.

The Case for EWS Deletion: A DIY Perspective

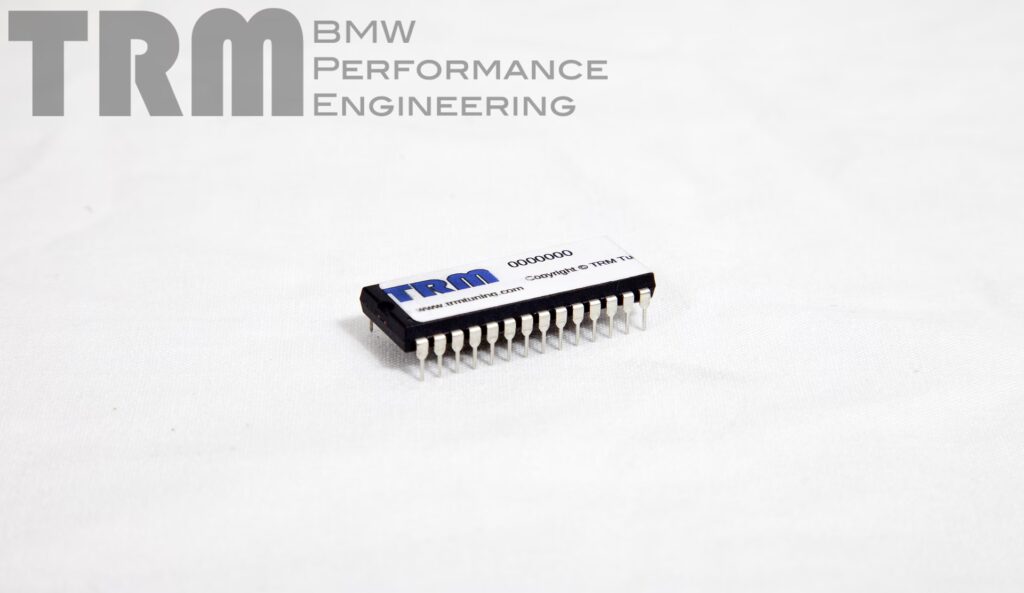

The decision to delete the EWS system often arises from persistent starting problems. In some instances, DIY enthusiasts have found that bypassing the EWS system provides a more reliable and cost-effective solution than trying to repair or replace faulty EWS components. One common approach discussed online involves using an EWS delete chip. These chips are designed to be installed within the ECU, effectively reprogramming it to ignore EWS authentication. Some of these chips also come with performance-enhancing maps, offering a dual benefit.

The DIY route can be significantly cheaper than dealership repairs. For example, a new DME might cost hundreds of pounds, plus coding fees. An EWS delete chip might cost around £40-£100, and while it might still require a replacement DME, the overall cost can be substantially lower. However, this path requires careful research and a willingness to tackle unconventional solutions.

Mechanics vs. DIY on EWS Issues:

It's often noted that traditional mechanics may be reluctant to perform EWS deletes due to liability concerns or a lack of familiarity with these more complex electronic bypasses. They might default to more conventional, and often more expensive, repair methods such as replacing EWS modules or recoding keys. For skilled DIYers, researching and implementing an EWS delete can save considerable money and restore functionality to a car plagued by immobiliser issues. The key is to suppress the fear of the unconventional and conduct thorough research.

Conclusion

The EWS system is a standard feature on many BMW E36 Z3 models, designed for security but often becoming a source of starting problems. Understanding its function and the implications of an EWS delete is vital for E36 owners. While an EWS delete should not negatively impact your vehicle's performance when done correctly, it is a modification that requires professional execution or thorough DIY research. If your BMW E36 is not cranking, the EWS system is a prime suspect, and an EWS delete service can be an effective solution for persistent immobiliser-related issues, especially when dealing with hard-to-find components like the MSS50 DME.

Frequently Asked Questions (FAQs)

Q1: Will an EWS delete void my BMW's warranty?

A: If your vehicle is still under manufacturer warranty, performing an EWS delete will almost certainly void any warranty related to the engine management and security systems. However, for older vehicles like the E36 Z3, warranty is typically not a primary concern.

Q2: Can I perform an EWS delete myself?

A: While technically possible with the right knowledge, tools, and software, it's a complex process that carries risks. Incorrect modifications can lead to significant electrical issues. It is generally recommended to use a professional service for EWS deletes.

Q3: What are the signs of a failing EWS system?

A: Common signs include the engine not cranking, the engine starting but immediately dying, the EWS warning light flashing on the dashboard, or intermittent starting problems.

Q4: Is an EWS delete reversible?

A: In most cases, yes. The original software can often be restored to the ECU if needed, though this would depend on the specific method used for the delete.

Q5: How much does an EWS delete service typically cost?

A: Costs can vary, but services for units like the MSS50 DME are often in the region of £150-£300, depending on the specialist and the exact work required (e.g., cloning vs. simple delete).
