Fixing a Misaligned Steering Wheel: Your Guide

A misaligned steering wheel can be more than just an aesthetic annoyance; it's a significant indicator that something isn't quite right with your vehicle's steering or suspension system. While your car might still drive in a straight line, a crooked steering wheel suggests that the wheels themselves aren't perfectly parallel to each other or to the car's direction of travel, even if the steering wheel is held 'straight'. This can lead to a host of problems, from uneven tyre wear and compromised handling to reduced fuel efficiency and, most importantly, a less safe driving experience. Understanding the causes and knowing how to rectify this issue is crucial for any car owner. This guide will walk you through the common reasons for misalignment and provide detailed instructions on how to bring your steering wheel back to its rightful, central position.

Understanding Steering Wheel Misalignment

Before diving into the fixes, it's essential to grasp what causes a steering wheel to become misaligned. The steering wheel's position is directly linked to your vehicle's wheel alignment, specifically the 'toe' angle. Toe refers to how much the front of your tyres points inwards or outwards when viewed from above. If the toe is out of specification, even if your car drives straight, your steering wheel might be off-centre. Other factors contributing to misalignment can include:

• Impacts: Hitting potholes, kerbs, or other road debris can jar components, throwing alignment off.
• Worn Suspension Components: Over time, parts like ball joints, tie rod ends, control arm bushings, and strut mounts can wear out, introducing play and affecting alignment.
• Recent Repairs: Any work involving steering or suspension components (e.g., replacing struts, tie rods, or steering rack) can necessitate an alignment check afterwards.
• Tyre Issues: Uneven tyre wear or incorrect tyre pressure can sometimes mimic or contribute to alignment problems.

Symptoms of a Misaligned Steering Wheel

Recognising the symptoms early can save you from more significant repair bills down the line. Here are the tell-tale signs:

• Crooked Steering Wheel: This is the most obvious sign. When driving straight on a level road, your steering wheel isn't centred.
• Vehicle Pulling: Your car drifts or pulls to one side, requiring constant correction from the steering wheel.
• Uneven Tyre Wear: Tyres wearing more on one edge (inner or outer) is a classic sign of incorrect toe or camber settings.
• Loose or Sloppy Steering: A feeling of excessive play in the steering, or a lack of responsiveness.
• Squealing Tyres: Tyres might squeal, especially during turns, due to being dragged or scrubbed.

Tools and Safety Precautions

Before attempting any work on your vehicle, always prioritise safety. Ensure your car is on a level surface, the parking brake is engaged, and the wheels are chocked. If lifting the vehicle, use sturdy jack stands. You'll typically need:

• Wrenches (various sizes, especially for tie rod lock nuts)
• Measuring tape or laser alignment tool
• Penetrating oil (for seized nuts)
• Rustproofing agent (for strut threads)
• Torque wrench (for re-tightening components to specification)
• Safety glasses and gloves

Method 1: Minor Misalignment (Adjusting Toe Angle)

For minor steering wheel deviations, often the culprit is a slight imbalance in the toe settings of your front wheels. This method involves adjusting the tie rod ends to subtly shift the steering wheel's centre position without drastically altering the overall toe. This is the most common and often sufficient fix for a slightly off-centre wheel, assuming the overall wheel alignment (camber and caster) is otherwise correct.

1. Preparation: Park your vehicle on a level surface. Ensure the steering wheel is locked (if your car has a steering lock) or held straight with a bungee cord or a helper. It's crucial that the steering rack is centred.

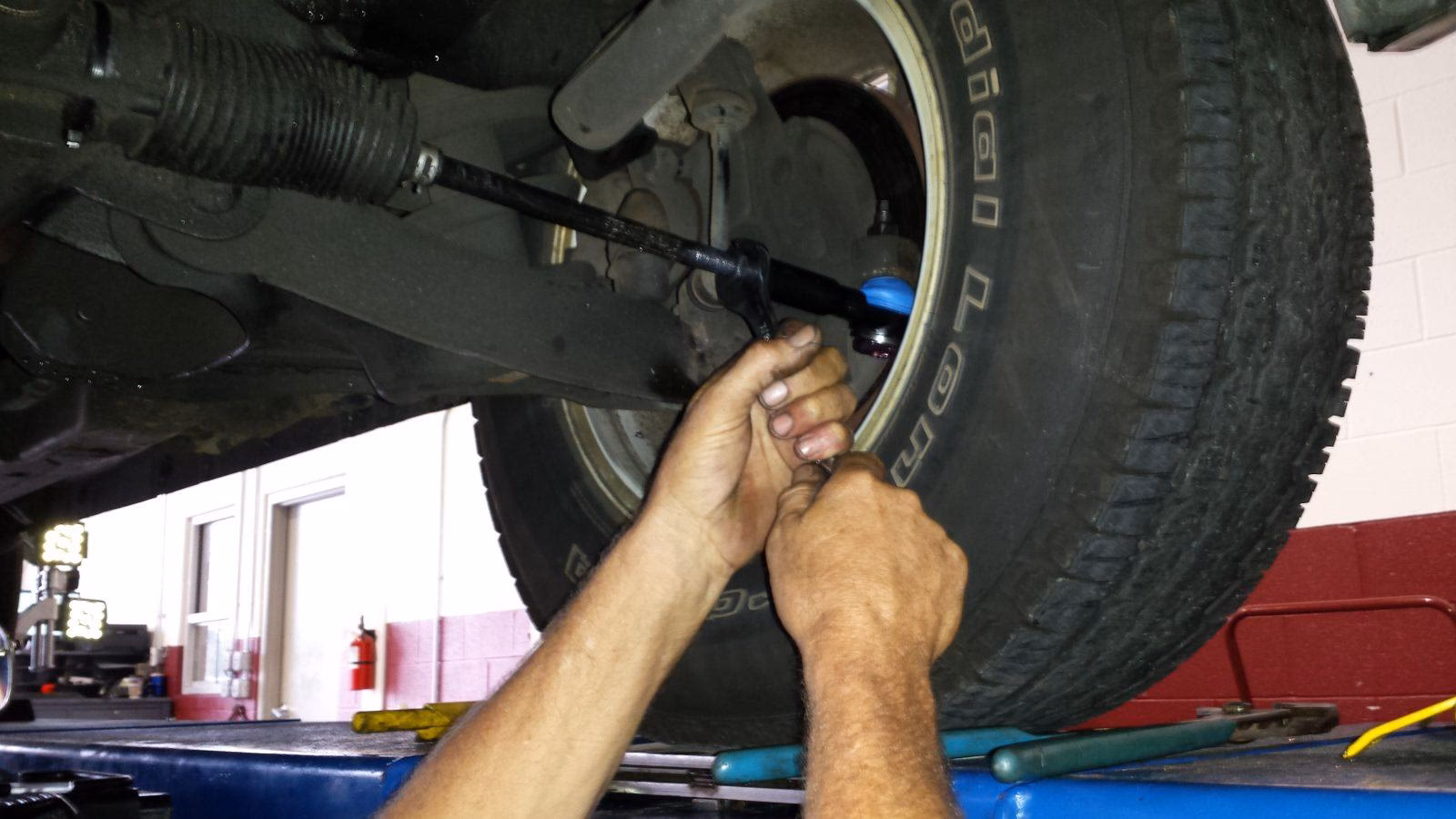

2. Locate Tie Rods: The tie rods connect the steering rack to the steering knuckles. Each front wheel has one. You'll see an inner tie rod and an outer tie rod end, joined by an adjustment sleeve.

3. Loosen Lock Nuts: Apply penetrating oil to the lock nuts on the tie rod adjustment sleeves. Using an appropriately sized wrench, loosen these nuts on both sides. They can be very tight.

4. Measure Initial Toe: While this method primarily focuses on centring the steering wheel, a rough measurement of the current toe can be helpful. Measure the distance between the front and rear of your tyres at hub height (e.g., using two straight edges against the tyres and measuring the distance between them at the front and back). Note these measurements.

5. Adjusting for Steering Wheel Centre: The key here is to make equal, opposite adjustments to the tie rods. If your steering wheel is off-centre to the left (meaning the car wants to go straight but the wheel is turned left), you need to effectively lengthen the left tie rod and shorten the right tie rod by the same amount. Conversely, if the wheel is off-centre to the right, you'd shorten the left and lengthen the right.

• To Lengthen a Tie Rod: Turn the adjustment sleeve clockwise (when looking from the front of the car).
• To Shorten a Tie Rod: Turn the adjustment sleeve counter-clockwise.

Make very small adjustments, perhaps a quarter or half turn at a time. The goal is to move the steering wheel back to centre without significantly altering the overall toe. If you shorten one side by a quarter turn, you must lengthen the other side by a quarter turn. This ensures the total toe remains largely unchanged, only shifting the steering wheel's neutral position.

6. Test Drive: After making an adjustment, tighten the lock nuts temporarily. Take the car for a short test drive on a straight, level road. Observe the steering wheel's position. If it's still off, return and make further small, equal, and opposite adjustments.

7. Final Tightening: Once the steering wheel is perfectly centred, torque the tie rod lock nuts to the manufacturer's specified torque. This is critical to prevent them from loosening during driving.

8. Rustproofing: As a good practice, after tightening any components that involve threads, such as the strut threads if they were loosened or adjusted during a related repair, treat them with a rustproofing agent. This prevents corrosion and makes future adjustments or repairs easier.

Method 2: Major Misalignment (Steering Wheel Repositioning)

This method is typically reserved for more significant deviations where adjusting the toe alone won't suffice, or when the steering wheel was incorrectly installed after previous work. It involves removing the steering wheel and repositioning it on the steering column's spline. This should only be considered if you are certain that the mechanical alignment (toe, camber, caster) of the wheels themselves is correct, perhaps after a professional alignment, but the steering wheel is still off-centre. This method does NOT correct any underlying wheel alignment issues.

Warning: This procedure involves working around the airbag system. Always disconnect the vehicle's battery and wait at least 15-30 minutes before starting work to allow the airbag system to fully discharge. Failure to do so could result in accidental airbag deployment, causing serious injury.

1. Disconnect Battery: Disconnect the negative terminal of your car's battery and wait the recommended time.

2. Remove Airbag Module: Most steering wheels have an airbag module that needs to be carefully unclipped or unbolted from the steering wheel. Consult your vehicle's service manual for the exact procedure, as it varies significantly between models. Be extremely gentle with the airbag module and its wiring. Place it face-up in a safe location away from direct sunlight or heat.

3. Disconnect Electrical Connectors: Once the airbag module is free, carefully disconnect any electrical connectors for the airbag, horn, and steering wheel controls. Note their positions or take photos for reassembly.

4. Remove Steering Wheel Nut: There will be a large central nut holding the steering wheel onto the steering column. Use an appropriately sized socket wrench to loosen and remove this nut. Some vehicles may require a steering wheel puller, but often it can be gently wiggled off.

5. Mark Current Position (Optional but Recommended): Before fully removing the wheel, it's wise to make a small mark on the steering wheel hub and the steering column spline to denote its current position. This helps if you need to revert or if your first attempt isn't perfect.

6. Remove Steering Wheel: Carefully pull the steering wheel straight off the steering column. Be mindful of any clock spring (a ribbon cable for electrical connections) behind the wheel; do not twist it.

7. Reposition Steering Wheel: With the car on a straight, level road and the wheels pointed perfectly straight ahead, re-mount the steering wheel onto the steering column spline, ensuring it is now perfectly centred. You'll be shifting it by one or more splines to correct the misalignment. This might take a few attempts to get it exact.

8. Reassemble: Once the steering wheel is centred, re-install the central nut and torque it to the manufacturer's specifications. Reconnect all electrical connectors, then carefully re-install the airbag module and any covers. Reconnect the battery.

9. Test Drive: Take the vehicle for a test drive on a straight road to confirm the steering wheel is now centred. If not, repeat the process, making small adjustments to the spline position.

When to Seek Professional Help (Professional Alignment)

While the above methods can address many steering wheel misalignment issues, it's crucial to understand their limitations. Adjusting the steering wheel directly (Method 2) does not correct underlying wheel alignment issues. Adjusting the toe (Method 1) can fix a crooked wheel, but if other alignment parameters (camber, caster) are off, or if the toe was severely out to begin with, a full professional wheel alignment is the only correct solution.

You should consider a professional alignment if:

• Your car pulls significantly to one side, even with the steering wheel centred.
• You notice rapid or uneven tyre wear.
• You've recently replaced major suspension or steering components.
• Your vehicle has been involved in an accident or hit a large pothole.
• You're unable to achieve a centred steering wheel using the DIY methods.

A professional alignment shop uses precise equipment to measure all alignment angles (toe, camber, and caster) and adjust them to factory specifications, ensuring your wheels are perfectly oriented for optimal handling, tyre life, and safety.

Preventative Measures

To minimise the chances of your steering wheel becoming misaligned:

• Avoid Potholes and Kerbs: Drive carefully and avoid impacts with road hazards.
• Regular Inspections: Have your suspension and steering components inspected regularly for wear.
• Tyre Maintenance: Keep your tyres properly inflated and rotate them according to your vehicle's schedule.
• Periodic Alignments: Consider a professional wheel alignment check every 12,000 to 15,000 miles, or annually, even if you don't notice any issues.

Common Symptoms and Potential Causes Table

Frequently Asked Questions

Q: Can I drive with a misaligned steering wheel?
A: While you technically can, it's not advisable. A misaligned steering wheel can lead to premature and uneven tyre wear, reduced fuel efficiency, compromised handling, and increased strain on steering and suspension components. More importantly, it can affect your ability to react quickly and safely in an emergency, as the car might not respond as expected.

Q: How much does a professional wheel alignment cost in the UK?
A: The cost of a professional wheel alignment in the UK can vary, but typically ranges from £40 to £100 for a standard four-wheel alignment. Prices can fluctuate based on the garage, vehicle type, and whether any adjustments are seized and require extra labour.

Q: How often should I get my wheel alignment checked?
A: It's generally recommended to have your wheel alignment checked annually or every 12,000 to 15,000 miles, whichever comes first. You should also get it checked after hitting a significant pothole or kerb, after replacing any steering or suspension components, or if you notice any of the symptoms of misalignment.

Q: Does tyre rotation affect steering alignment?
A: No, tyre rotation itself does not directly affect your wheel alignment. Tyre rotation involves moving tyres from one position to another on the vehicle to promote even wear. However, if your tyres have worn unevenly due to a previous alignment issue, rotating them might make existing alignment problems more noticeable, as the uneven wear patterns might now be on a different axle.

Q: What's the difference between wheel alignment and steering wheel alignment?
A: Wheel alignment refers to the adjustment of the angles of the wheels themselves (toe, camber, caster) relative to each other and the car's body. This is a fundamental aspect of vehicle handling and tyre wear. Steering wheel alignment, on the other hand, specifically refers to the steering wheel being straight when the wheels are pointed straight. While often linked (a crooked steering wheel is usually a symptom of poor wheel alignment), you can have perfectly aligned wheels with a slightly off-centre steering wheel if it was incorrectly installed, or vice-versa if the steering wheel was adjusted without correcting the underlying wheel angles. A proper wheel alignment should always result in a centred steering wheel.

Addressing a misaligned steering wheel promptly is key to maintaining your vehicle's performance, safety, and the longevity of your tyres. While minor adjustments can often be handled at home, understanding when to call in the professionals for a full wheel alignment is equally important. Drive safe and keep your wheel straight!
