In the intricate world of automotive mechanics and industrial machinery, braking systems are paramount. They are not merely components for slowing down or stopping; they are critical safety features, precision control instruments, and performance enhancers. From the robust systems designed to hold heavy loads on a vertical axis to the high-performance pads built for extreme stopping power, understanding the nuances of various braking technologies is essential. This article delves into two distinct yet equally vital braking innovations: the DR500 brake option and Renthal RC-1 Works Brake Pads, exploring their functionalities, applications, and the underlying principles that make them indispensable.
- Understanding the DR500 Brake Option: The Vertical Axis Guardian
- Delving into Renthal RC-1 Works Brake Pads: Performance at Your Fingertips
- Brake System Fundamentals: A Deeper Dive
- Comparative Analysis of Brake Technologies
- Choosing the Right Brake Solution
- Maintenance and Longevity
- Frequently Asked Questions (FAQ)
Understanding the DR500 Brake Option: The Vertical Axis Guardian
The DR500 brake option represents a specialised and highly critical component within industrial and automated systems, particularly where movement occurs along a vertical axis. As an integral option, its primary purpose is to provide a fail-safe mechanism to maintain position when power is unexpectedly removed or intentionally cut from that axis. Imagine a heavy load being lifted by a crane or a robotic arm holding a delicate component; if power is lost, an uncontrolled descent could lead to catastrophic damage or serious injury. The DR500 system is engineered precisely to prevent such scenarios.
At its core, the DR500 achieves this essential function through a normally-on electromagnetic brake. What does 'normally-on' mean? Unlike conventional brakes that engage when a force (like pressing a pedal) is applied, a normally-on brake is inherently engaged by default, typically through spring pressure. It only disengages when an electrical current is applied to an electromagnet, which then overcomes the spring force, releasing the brake. When the power supply is interrupted, whether intentionally or due to a fault, the electromagnet loses its charge, and the springs immediately re-engage the brake, holding the load firmly in place. This makes it inherently fail-safe, as the default state is 'braked' rather than 'released'.
This ingenious mechanism is coupled directly to the load or the motor driving the vertical movement. Its applications are widespread in demanding industrial environments, including but not limited to: material handling equipment like overhead cranes and hoists, automated storage and retrieval systems (AS/RS), lifts, elevators, and advanced robotic systems where precise and secure positioning on a vertical plane is non-negotiable. The reliability and safety offered by a DR500-type system are critical for preventing accidents, protecting valuable equipment, and ensuring operational continuity even in the face of power anomalies.

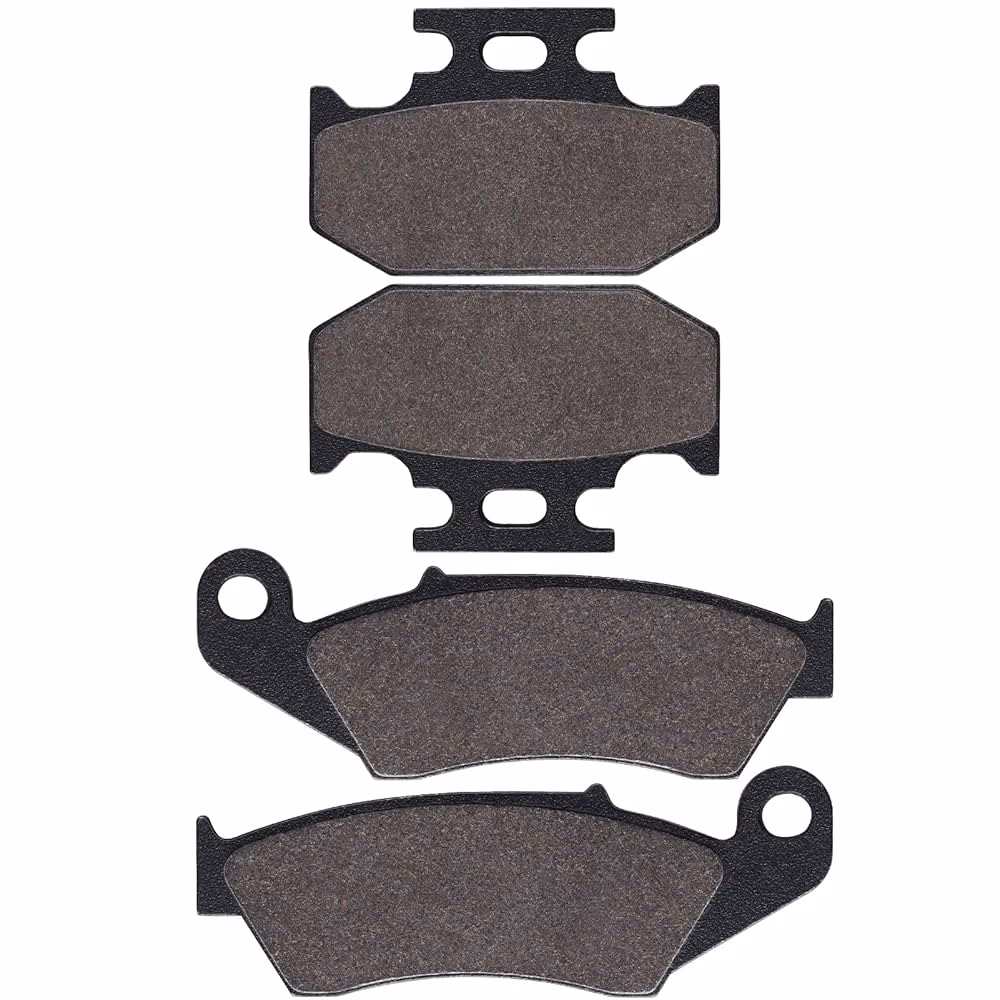

Delving into Renthal RC-1 Works Brake Pads: Performance at Your Fingertips
Shifting from industrial safety to high-performance vehicle dynamics, Renthal RC-1 Works Brake Pads stand out as a premium choice for enthusiasts and professional drivers alike. Renthal, a brand synonymous with quality and performance in the motorsport world, has engineered these pads to deliver exceptional stopping power and reliability under demanding conditions.
These pads are crafted from a high-performance sintered metal compound. Sintering is a manufacturing process that involves compacting powdered metals and other materials under high pressure and then heating them to a temperature below their melting point. This process fuses the particles together, creating a dense, durable, and highly friction-resistant material. Unlike organic or semi-metallic pads, sintered metal pads are renowned for their superior heat resistance, making them ideal for aggressive braking and sustained high-temperature operation, common in racing or spirited driving.
Key attributes of Renthal RC-1 Works Brake Pads include their excellent wet and dry braking power. This consistency in performance across varying environmental conditions is crucial for safety and confidence, particularly when pushing a vehicle to its limits. They offer a strong initial bite, minimal fade even after repeated hard braking, and a predictable feel at the brake lever or pedal. While often associated with motorcycles, given Renthal's heritage, such high-performance sintered pads are also sought after for performance cars where extreme braking demands are present.
It's worth noting the reference to "Universal Brake Pads (0052-1605DS-A) by Performance Machine®." While Renthal manufactures the RC-1 Works pads, Performance Machine is another reputable brand in the aftermarket automotive and motorcycle parts industry, known for their high-quality components, including universal brake pads. This highlights that while specific premium pads like Renthal's are tailored for high performance, there are also universal options available from other manufacturers designed for broader compatibility.
Brake System Fundamentals: A Deeper Dive
At its core, any braking system operates on the principle of converting kinetic energy (the energy of motion) into thermal energy (heat) through friction. When brake pads are pressed against a rotor or drum, the friction generated slows the rotating component, thereby slowing the vehicle or stopping the machinery. The effectiveness of this conversion, and thus the braking performance, depends heavily on the materials used, the design of the components, and the system's ability to dissipate heat.
For road vehicles, the most common braking system is the disc brake, which consists of a caliper, brake pads, and a rotor (disc). When the brake pedal is pressed, hydraulic pressure forces the caliper to clamp the pads onto the spinning rotor, creating friction. Drum brakes, while less common on modern passenger cars, are still found on the rear wheels of some vehicles and in many industrial applications. They use shoes that press against the inside of a spinning drum.
In industrial settings, brakes can be hydraulic, pneumatic, or electromagnetic, often integrated directly into motors or gearboxes, as seen with the DR500. These systems are designed for specific tasks, whether it's emergency stops, holding loads, or precise motion control.
Comparative Analysis of Brake Technologies
Understanding the distinctions between different braking technologies is crucial for selecting the appropriate solution for specific needs. Here, we compare brake pad materials and the operational differences between industrial fail-safe systems and conventional vehicle brakes.
Table 1: Brake Pad Material Comparison
| Pad Type | Composition | Key Characteristics | Typical Applications | Pros | Cons |
|---|---|---|---|---|---|
| Sintered Metal | Metallic particles fused under heat/pressure | High friction, excellent heat resistance, consistent wet/dry performance | Motorcycles, racing cars, heavy-duty vehicles, demanding conditions | High friction coefficient, extreme durability, minimal fade, excellent in wet conditions | Can be noisy, aggressive on rotors, higher cost, less initial bite when cold |
| Organic (NAO) | Non-asbestos organic materials (fibreglass, carbon, rubber, resins) | Soft, quiet, good initial bite | Standard passenger cars, light-duty vehicles | Quiet operation, gentle on rotors, inexpensive, good initial feel | Lower heat resistance, prone to fade under heavy use, shorter lifespan, more dust |
| Semi-Metallic | 30-65% metal (steel, iron, copper), fillers, friction modifiers | Good balance of performance, durability, and cost | Most modern passenger cars, SUVs, light trucks | Better fade resistance than organic, good stopping power, moderate lifespan | Can be noisy, produce more dust than organic, harder on rotors than organic |
| Ceramic | Ceramic fibres, filler materials, bonding agents | Clean, quiet, good fade resistance, consistent performance | Luxury cars, performance cars, everyday driving | Very quiet, low dust, long lifespan, gentle on rotors, good in various temperatures | Higher cost, less aggressive cold bite than semi-metallic, not ideal for extreme racing |
Table 2: DR500 System vs. Conventional Vehicle Brakes
| Feature | DR500 Brake Option (Industrial) | Conventional Vehicle Brakes (e.g., Disc Brakes) |
|---|---|---|
| Primary Purpose | Fail-safe load holding on vertical axes; precision positioning when power is removed. | Controlling vehicle speed, bringing vehicle to a stop, holding vehicle stationary. |
| Engagement Mechanism | Normally-on (spring-applied, electromagnetically released). Engages when power is lost. | Normally-off (hydraulically or mechanically applied). Engages when an external force is applied (e.g., pedal). |
| Failure Mode | Fails to 'on' (braked) state, ensuring safety. | Fails to 'off' (released) state if hydraulic pressure or mechanical linkage is lost (unless emergency/parking brake is engaged). |
| Typical Application | Industrial machinery (cranes, hoists, robotics, lifts). | Passenger cars, trucks, motorcycles, bicycles. |
| Control Input | Electrical signal (to release the brake). | Mechanical force via pedal/lever, converted to hydraulic pressure or cable tension. |
Choosing the Right Brake Solution
Selecting the appropriate braking solution is a decision that impacts safety, performance, and operational efficiency. For industrial applications requiring a DR500-like system, the choice is driven by stringent safety regulations, the weight and nature of the load, the operating environment, and the need for absolute reliability in power-loss scenarios. These systems are specialised and integrated during the design phase of machinery, ensuring seamless fail-safe operation.
When it comes to vehicle brake pads, the decision hinges on the vehicle type, driving style, and expected conditions. For a daily driver, standard organic or semi-metallic pads offer a good balance of performance, noise, and cost. However, for a high-performance vehicle or one used in motorsport, the superior heat resistance and consistent stopping power of sintered metal pads like the Renthal RC-1 Works are invaluable. While they may produce more noise or wear rotors faster than softer compounds, the enhanced safety margin and control under extreme braking justify the investment for performance-oriented drivers.
Maintenance and Longevity
Regardless of the type, all braking systems require diligent maintenance to ensure optimal performance and longevity. Regular inspections are crucial for identifying wear and tear before it becomes a safety hazard. For vehicle brake pads, this means checking pad thickness, rotor condition, and brake fluid levels. Worn pads will reduce stopping power and can damage rotors, leading to more expensive repairs. Signs of wear include screeching noises, grinding sounds, a spongy brake pedal, or increased stopping distances.
High-performance pads, while durable, can be more demanding on other brake components due to their aggressive friction characteristics and the heat they generate. Rotors should be inspected for warping, cracking, or excessive wear. For industrial brakes like the DR500, maintenance involves checking the electromagnetic coils, spring mechanisms, and ensuring the brake surfaces are clean and free from contamination. Adhering to the manufacturer's recommended service intervals and using genuine or high-quality replacement parts is paramount for both vehicle and industrial braking systems.
Frequently Asked Questions (FAQ)
Q1: Is the DR500 brake suitable for a passenger car?
No, the DR500 brake option is specifically designed for industrial applications involving vertical axis control and load holding, such as cranes, hoists, and robotics. Its 'normally-on' fail-safe mechanism is not typically required or suitable for the dynamic braking needs of a passenger vehicle, which uses a different brake system architecture.
Q2: What does 'normally-on' mean for the DR500?
'Normally-on' means the brake is engaged by default, usually by spring pressure. It requires an electrical current to an electromagnet to disengage or 'release' the brake. If power is lost or intentionally removed, the electromagnet de-energises, and the brake immediately re-engages, providing a fail-safe stopping and holding action.
Q3: Are Renthal RC-1 pads suitable for everyday driving?
While Renthal RC-1 Works Brake Pads offer excellent performance, their sintered metal composition is primarily designed for high-performance and racing applications where extreme heat and consistent stopping power are critical. For everyday driving, they might be overkill, potentially generating more noise and dust, and could be more aggressive on rotors than standard organic or ceramic pads. They are generally more suited for motorcycles and specific performance cars.
Q4: How do sintered metal pads differ from ceramic pads?
Sintered metal pads are made from metallic particles fused together, offering superior heat resistance and a high friction coefficient, especially in wet conditions, making them ideal for aggressive braking and racing. Ceramic pads, made from ceramic fibres and filler materials, are known for quiet operation, low dust, long life, and being gentle on rotors, making them popular for luxury and everyday performance cars where comfort and cleanliness are priorities over extreme track performance.
Q5: How often should I inspect my braking system?
For vehicles, it's generally recommended to have your braking system inspected at least once a year or every 12,000 miles, whichever comes first. However, if you notice any changes in braking performance (e.g., squealing, grinding, spongy pedal, reduced stopping power), you should have them checked immediately. For industrial DR500-type systems, follow the manufacturer's specific maintenance schedule, which is often tied to operating hours or specific safety protocols.
