Wheel Alignment: Wheels Off or On?

It's a common query among motorists: does a wheel alignment involve taking off the wheels? Many assume that for such a precise adjustment, the wheels must be removed, perhaps for better access or to facilitate specific measurements. However, the short answer is no, a wheel alignment typically does not require the removal of your vehicle's wheels.

This misconception often stems from confusion with other automotive services like tyre rotation or brake inspection, where wheel removal is indeed necessary. Understanding the actual process of a wheel alignment will clarify why your wheels stay firmly attached to your vehicle throughout the procedure.

The Truth About Wheel Removal During Alignment

When you take your car in for a wheel alignment, the primary goal is to adjust the angles of the wheels so they are perfectly perpendicular to the ground and parallel to each other. This ensures optimal contact with the road, leading to better handling, reduced tyre wear, and improved fuel efficiency. Modern alignment equipment relies heavily on the wheels themselves to perform these measurements accurately.

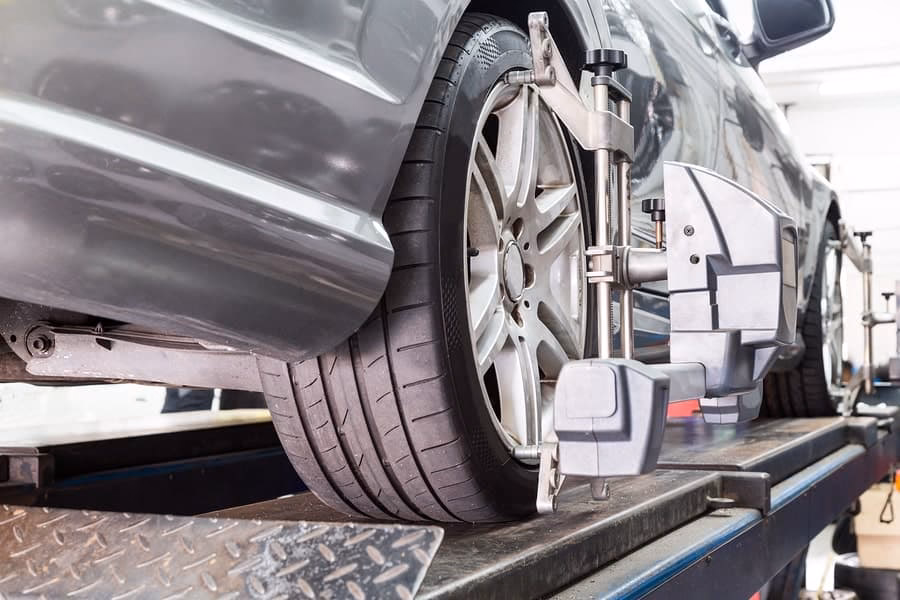

Specialised clamps, often equipped with sensors or targets, are attached directly to the wheels. These sensors communicate with a computer system, usually via lasers or infrared beams, to precisely measure the current angles of each wheel. If the wheels were removed, there would be no accurate point of reference for these crucial measurements. The entire process is designed to work with the wheels in place, simulating real-world driving conditions as closely as possible on the alignment rack.

Understanding the Alignment Process: No Wheel Removal Required

Let's break down what actually happens during a standard four-wheel alignment to illustrate why wheel removal isn't part of the routine:

1. Vehicle Positioning: Your vehicle is driven onto a specialised alignment rack, which is a level, flat platform designed to support the vehicle's weight and allow technicians access to the suspension components underneath.
2. Sensor Attachment: Technicians attach high-precision sensors or reflective targets to each of your vehicle's wheels. These devices are carefully mounted to ensure they are stable and provide accurate readings.
3. Measurement: Using lasers or advanced imaging technology, the alignment machine measures the current angles of your wheels relative to the vehicle's chassis and to each other. This data is fed into a computer, which then compares it against the manufacturer's specifications for your specific make and model.
4. Adjustment: Based on the readings, the technician makes precise adjustments to the suspension components, such as the tie rods (for toe angle), control arms (for camber), and sometimes subframe mounts (for caster). These adjustments are performed while the wheels remain on the vehicle, allowing the technician to see the real-time effect of their adjustments on the computer screen.
5. Final Check: Once all adjustments are within specification, the system performs a final check to confirm that the alignment is correct. The sensors are then removed, and your vehicle is ready.

As you can see, the wheels are integral to the measurement and adjustment process. Removing them would render the entire procedure impossible with current alignment technology.

Why Alignment and Tyre Rotation Are Separate Services

Your query about why tyre rotation isn't included if the wheels are supposedly removed for an alignment touches upon a common point of confusion. The simple answer, as established, is that wheels are not removed for alignment. However, even if they *were* removed for some hypothetical reason during an alignment, tyre rotation is a distinct service with a different purpose.

Tyre rotation involves strategically moving your tyres from one position on the vehicle to another (e.g., front to back, side to side) to promote even tyre wear across all four tyres. Different positions on a vehicle cause tyres to wear in different ways due to varying weight distribution, braking forces, and steering demands. Regular rotation helps extend the life of your tyres by ensuring they wear down uniformly. This process inherently requires the removal of each wheel to facilitate the swap.

Wheel alignment, conversely, is about adjusting the angles of the wheels themselves relative to the vehicle to ensure they are pointing in the correct direction. It doesn't involve moving the tyres to different positions. While both services contribute to tyre longevity and vehicle performance, they address fundamentally different aspects of wheel and tyre maintenance.

Therefore, when NTB (or any other garage) tells you that tyre rotation is not included with an alignment, it's because they are two separate, albeit complementary, services. One doesn't necessitate the other in terms of the physical process of wheel removal.

Key Alignment Angles: Camber, Caster, and Toe

To fully appreciate the importance of wheel alignment, it's helpful to understand the three primary angles that technicians adjust:

1. Toe

Toe refers to how much the front or rear of the tyres point inward or outward when viewed from above. Imagine looking down at your feet: if your toes point inwards, that's 'toe-in'; if they point outwards, that's 'toe-out'.

• Toe-in: When the front of the wheels are closer together than the rear. Can improve stability but may cause increased tyre wear on the outer edges.
• Toe-out: When the front of the wheels are further apart than the rear. Can improve steering response but may lead to increased tyre wear on the inner edges.

Incorrect toe is the most common cause of rapid and uneven tyre wear, as the tyres are constantly scrubbing against the road surface.

2. Camber

Camber is the inward or outward tilt of the tyre when viewed from the front of the vehicle. Think of your car leaning slightly in or out.

• Positive Camber: The top of the tyre tilts outwards from the vehicle. Can be seen on some heavy-duty vehicles to compensate for heavy loads.
• Negative Camber: The top of the tyre tilts inwards towards the vehicle. Often used in performance cars to maximise grip during cornering, but can cause inner tyre wear if excessive.

Improper camber can lead to uneven tyre wear on one side of the tyre (inner or outer edge) and can affect handling, especially when cornering.

3. Caster

Caster is the angle of the steering axis when viewed from the side of the vehicle. It's about where the steering pivot point is relative to the tyre's contact patch with the road.

• Positive Caster: The steering axis tilts towards the rear of the vehicle. This helps with straight-line stability and steering wheel self-centring (the wheel returning to the straight-ahead position after a turn). Most modern cars use positive caster.
• Negative Caster: The steering axis tilts towards the front of the vehicle. Less common in modern vehicles, can make steering feel lighter but less stable.

Caster primarily influences steering feel and high-speed stability. Incorrect caster usually doesn't cause significant tyre wear but can make the vehicle difficult to drive straight, requiring constant steering corrections.

When Does Your Vehicle Need an Alignment?

Even if you're not due for a scheduled alignment, certain signs indicate your vehicle might need immediate attention:

• Uneven or Rapid Tyre Wear: This is one of the most common indicators. Look for wear on only one edge of the tyre, feathering, or flat spots.
• Vehicle Pulling to One Side: If you find yourself constantly correcting the steering wheel to keep the car going straight on a level road, your alignment is likely off.
• Crooked Steering Wheel: When driving straight, if your steering wheel isn't centred, it's a clear sign of misalignment.
• Loose or Wandering Steering: If the steering feels vague or you have to make many small adjustments to stay in your lane, alignment could be a factor.
• Squealing Tyres: Tyres that squeal, especially during turns, can indicate excessive toe or camber issues.
• After Certain Events: Always get an alignment after hitting a significant pothole, curb, or after replacing suspension components (like tie rods, control arms, or struts/shocks) or steering components.

The Benefits of a Properly Aligned Vehicle

Investing in regular wheel alignments offers several significant benefits:

1. Extended Tyre Life: By ensuring even tyre wear across the tread, you can significantly prolong the lifespan of your expensive tyres, saving you money in the long run.
2. Improved Fuel Efficiency: When wheels are misaligned, they drag rather than roll freely, increasing rolling resistance. This forces your engine to work harder, consuming more fuel. A proper alignment reduces this drag.
3. Enhanced Driving Safety: A vehicle that pulls to one side or has vague steering is harder to control, especially in emergency situations. Proper alignment ensures predictable handling and responsiveness.
4. Better Handling and Comfort: Your car will steer more accurately, feel more stable on the road, and provide a smoother, more comfortable ride.
5. Reduced Stress on Suspension Components: Misalignment can put undue stress on various steering and suspension parts, potentially leading to premature wear and costly repairs down the line.

How Often Should You Get an Alignment?

There's no universal answer, as it depends on your vehicle, driving habits, and road conditions. However, general recommendations include:

• Annually: Many manufacturers and mechanics recommend a wheel alignment check at least once a year, or every 10,000 to 12,000 miles.
• With New Tyres: Always get an alignment when you purchase a new set of tyres. This ensures your new tyres start their life correctly aligned, preventing premature wear.
• After Suspension Work: Any time major suspension or steering components are replaced, an alignment is mandatory.
• After an Incident: If you've hit a large pothole, curb, or been involved in a minor collision, it's wise to get an alignment check, even if you don't notice immediate symptoms.

Comparative Table: Two-Wheel vs. Four-Wheel Alignment

Frequently Asked Questions About Wheel Alignment

Q1: How long does a wheel alignment take?

A typical wheel alignment usually takes between 30 minutes to an hour, assuming no parts are seized or rusted, which could prolong the process.

Q2: Is a wheel alignment the same as tyre balancing?

No, they are different services. Tyre balancing corrects imbalances in the weight distribution of the tyre and wheel assembly, preventing vibrations at speed. Alignment adjusts the angles of the wheels relative to the vehicle's chassis.

Q3: Can I perform a wheel alignment myself?

While some DIY enthusiasts might attempt rudimentary adjustments, proper wheel alignment requires highly specialised and calibrated equipment that is not typically available to the home mechanic. It's best left to certified professionals.

Q4: Does hitting a pothole definitely mean I need an alignment?

A significant impact, like hitting a large pothole or curb, can certainly knock your alignment out. Even if your car doesn't immediately pull, it's a good idea to have it checked to prevent long-term issues like uneven tyre wear.

Q5: Will an alignment fix steering wheel vibrations?

Typically, steering wheel vibrations are caused by unbalanced tyres, bent wheels, or worn suspension components, not alignment issues. While alignment ensures the wheels are pointing correctly, it doesn't address rotational balance problems.

In conclusion, the next time you consider a wheel alignment, rest assured that your wheels will remain securely attached to your vehicle. The process is a sophisticated interplay of precision measurements and adjustments, all designed to keep your car driving safely and efficiently. Understanding this process helps demystify vehicle maintenance and ensures you know exactly what your vehicle needs to perform at its best.
