Spark Plug vs. Fuel Injector: Core Differences

In the intricate world of automotive mechanics, two components often stand out for their critical roles in ensuring your engine runs smoothly: the spark plug and the fuel injector. While both are indispensable for internal combustion, their functions are fundamentally different, yet equally vital. Understanding these differences is key to proper vehicle maintenance and diagnosing potential issues. This guide will meticulously break down what each component does, how they operate, and why their individual contributions are essential for the symphony under your bonnet.

The Spark Plug: The Ignition Maestro

At its core, a spark plug is an electrical device designed to ignite the compressed air-fuel mixture within the engine's combustion chamber. Without this crucial spark, the engine simply wouldn't start or run. Think of it as the tiny lightning bolt that kickstarts the power stroke of your engine's cycle.

How a Spark Plug Works

When you turn the key or press the start button, the ignition system sends a high-voltage electrical current to the spark plugs. This current travels down the central electrode of the spark plug. As the voltage builds, it eventually jumps the gap between the central electrode and the ground electrode (which is typically part of the spark plug's metal shell and grounded to the engine block). This jump creates an intense electrical arc – the spark – which is hot enough to ignite the finely atomised air-fuel mixture present in the cylinder. This sudden ignition causes a rapid expansion of gases, pushing the piston downwards and generating power.

Anatomy and Materials

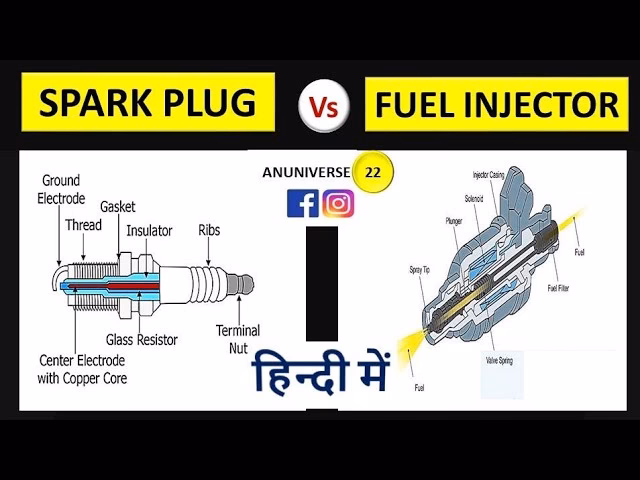

A typical spark plug consists of a few key parts: a metal shell with threads (to screw into the cylinder head), an insulator (usually ceramic) to prevent the high voltage from shorting out, and the central and ground electrodes. Traditionally, spark plugs featured copper core electrodes due to copper's excellent electrical conductivity. However, modern vehicles increasingly use platinum or iridium electrodes. These precious metals are harder and more resistant to wear and fouling, allowing for much longer replacement intervals – sometimes up to 100,000 miles or more, compared to 30,000-60,000 miles for copper plugs.

Signs of a Failing Spark Plug

Like any component, spark plugs wear out over time. Common symptoms of failing spark plugs include:

• Engine Misfires: A noticeable stumble or hesitation, especially under acceleration.
• Rough Idling: The engine feels shaky or vibrates excessively when stationary.
• Reduced Fuel Economy: An inefficient burn means more fuel is consumed for the same power output.
• Difficulty Starting: The engine cranks but struggles to turn over.
• Reduced Power: The vehicle may feel sluggish or lack acceleration.

The Fuel Injector: The Precision Sprayer

While the spark plug provides the flame, the fuel injector is responsible for delivering the fuel. It is an electronically controlled valve that sprays a precise amount of fuel into the engine, ensuring the air-fuel mixture is optimal for combustion. Without accurate fuel delivery, the spark plug would have nothing to ignite.

How a Fuel Injector Works

Fuel injectors receive fuel under high pressure from the fuel pump. When the engine's Electronic Control Unit (ECU) determines that fuel is needed, it sends an electrical signal to the injector. This signal energises a solenoid inside the injector, which opens a tiny valve. The pressurised fuel then exits through a fine nozzle, emerging as a highly atomised mist. This atomisation is crucial as it allows the fuel to mix thoroughly with the air, creating a combustible mixture that burns efficiently. The duration for which the injector remains open (known as 'pulse width') is precisely controlled by the ECU, dictating the exact amount of fuel delivered.

Anatomy and Materials

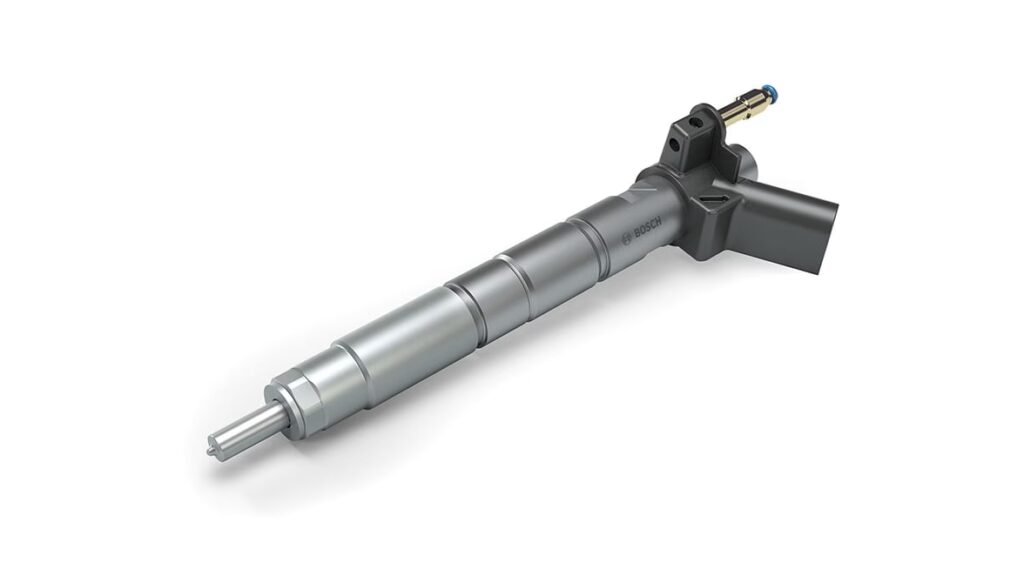

Fuel injectors are more complex than spark plugs, containing several internal components such as a solenoid, a spring, a pintle or disc valve, and a nozzle assembly. The body of the injector is typically made from durable materials like stainless steel or high-grade plastics, designed to withstand the high pressures and corrosive nature of fuel. The internal components, particularly the nozzle, are precision-engineered to ensure consistent and fine fuel spray patterns.

Types of Fuel Injection

There are two primary types of fuel injection systems common today:

• Port Fuel Injection (PFI): Fuel is sprayed into the intake manifold, just before the intake valve, where it mixes with air before entering the cylinder.
• Direct Injection (GDI - Gasoline Direct Injection): Fuel is sprayed directly into the combustion chamber at very high pressures, often allowing for more precise control over the air-fuel mixture and improved fuel efficiency.

Signs of a Failing Fuel Injector

A failing fuel injector can significantly impact engine performance. Symptoms often include:

• Rough Idling: Similar to spark plugs, but often due to an inconsistent fuel supply.
• Engine Hesitation or Stalling: Especially during acceleration or when coming to a stop.
• Poor Fuel Economy: A clogged or leaking injector can lead to excessive fuel consumption.
• Check Engine Light: The ECU may detect a misfire or an incorrect air-fuel ratio and illuminate the warning light.
• Fuel Odour: A strong smell of petrol can indicate a leaking injector.

The Fundamental Divide: Ignition vs. Delivery

The core difference between a spark plug and a fuel injector lies in their primary function. The spark plug is solely responsible for creating the spark that ignites the air-fuel mixture. It is an electrical component. The fuel injector, conversely, is a mechanical and electrical component responsible for delivering and atomising the fuel. It does not ignite anything; it merely prepares the fuel for ignition.

Think of it this way: the fuel injector is like the tap that precisely delivers water into a kettle, while the spark plug is the heating element that boils the water. Both are essential for making a cup of tea, but they perform entirely different, non-overlapping functions. In your car's engine, these two components work in perfect synchronisation, with the fuel injector spraying its precise mist just as the intake valve opens, and the spark plug firing at the exact moment of peak compression.

Comparative Table: Spark Plug vs. Fuel Injector

To further clarify their distinct roles, here's a side-by-side comparison:

Why Maintenance Matters for Both

Both spark plugs and fuel injectors are consumables that wear out over time. Regular maintenance and timely replacement are paramount for the overall health and performance of your engine. Neglecting either can lead to a cascade of problems, from reduced fuel precision and power to increased emissions and even costly engine damage.

Spark Plug Maintenance

Spark plugs should be replaced according to your vehicle manufacturer's recommendations. For copper plugs, this might be every 30,000 miles, while platinum or iridium plugs can last significantly longer. When replacing, it's crucial to use the correct type of plug and ensure the gap between the electrodes is set accurately. Fouled or worn spark plugs can lead to incomplete combustion, wasting fuel and increasing harmful emissions.

Fuel Injector Maintenance

Fuel injectors, while generally more durable than spark plugs, can become clogged over time due to deposits from fuel. Using high-quality fuel and occasionally adding a reputable fuel system cleaner can help prevent deposit buildup. If injectors become severely clogged or fail, professional cleaning or replacement may be necessary. A faulty injector can lead to an incorrect air-fuel ratio, causing misfires, reduced power, and potential damage to other engine components like the catalytic converter.

Common Issues and Troubleshooting

While their symptoms can sometimes overlap, understanding the specific issues related to each component can aid in troubleshooting.

• Misfires: A common symptom for both. If it's a consistent misfire on a particular cylinder, checking the spark plug first is often the easiest step. If the plug looks good, then investigate the ignition coil or the fuel injector for that cylinder.
• Poor Fuel Economy: Both worn spark plugs (inefficient burn) and clogged/leaking fuel injectors (wasting fuel) can cause this.
• Rough Idle: Can be caused by either, leading to an unbalanced engine operation.

It's always recommended to consult your vehicle's service manual or a qualified mechanic for accurate diagnosis and repair.

Frequently Asked Questions (FAQs)

Q1: Can a bad spark plug damage a fuel injector, or vice versa?

While a bad spark plug won't directly damage a fuel injector, and vice versa, their individual failures can put additional strain on the engine as a whole. For instance, a misfiring cylinder (due to a bad spark plug) means unburnt fuel entering the exhaust, which can damage the catalytic converter. Similarly, a leaking fuel injector can dilute engine oil or cause engine damage due to excessive fuel in the cylinder.

Q2: How often should spark plugs and fuel injectors be replaced?

Spark plug replacement intervals vary widely by type and manufacturer, typically every 30,000 to 100,000 miles. Fuel injectors generally do not have a set replacement schedule and can last the lifetime of the vehicle if well-maintained. However, they may require cleaning or replacement if they become clogged or fail.

Q3: Are they expensive to replace?

The cost varies significantly. Spark plugs are relatively inexpensive, and replacing them is often a straightforward DIY task for many enthusiasts. Fuel injectors are more expensive per unit, and their replacement or professional cleaning usually requires specialist tools and expertise, making it a pricier job.

Q4: Can I clean them myself?

You can visually inspect and clean carbon deposits off spark plugs if they're not too badly worn. However, attempting to clean a fuel injector yourself without proper equipment can be risky. While fuel system cleaners added to the tank can help prevent buildup, a truly clogged injector often requires professional ultrasonic cleaning or replacement.

Q5: What happens if I ignore issues with spark plugs or fuel injectors?

Ignoring issues can lead to diminished engine performance, reduced fuel economy, increased exhaust emissions, and potentially more severe and costly engine damage over time. It could also lead to a failed MOT test due to high emissions or engine warning lights.

Conclusion

Spark plugs and fuel injectors are two distinct but equally vital components that work in a precise ballet to power your vehicle. The spark plug provides the necessary jolt of energy for ignition, while the fuel injector delivers the fuel with pinpoint accuracy. Understanding their individual functions and knowing the signs of wear are crucial for any car owner. Regular maintenance of both will ensure your engine runs efficiently, reliably, and delivers the smooth performance you expect, keeping you safely on the road for miles to come.
