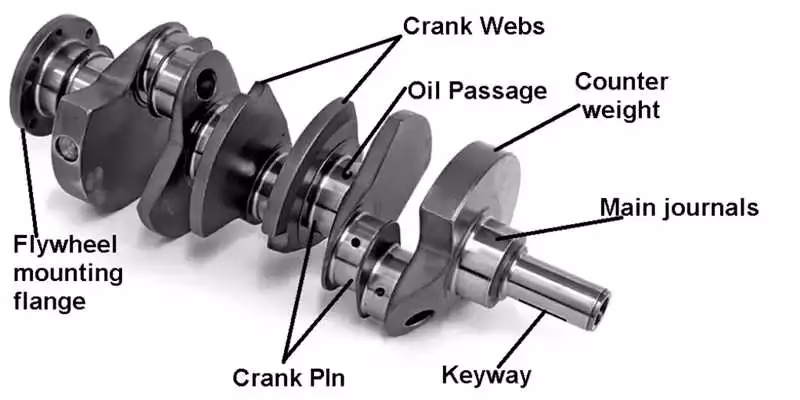

When it comes to the intricate heart of your vehicle, the engine, every component plays a crucial role in its smooth operation and longevity. Among these, the crankshaft stands as a central pillar, converting the linear motion of the pistons into rotational energy that powers your wheels. However, even the slightest imbalance in this critical component can lead to a cascade of problems, from excessive vibration to premature engine wear. This is precisely where crankshaft balancing becomes not just beneficial, but absolutely essential for any well-maintained or performance-tuned engine.
An unbalanced crankshaft can introduce significant forces into the engine, leading to an array of undesirable outcomes. Imagine a washing machine with an uneven load; the violent shaking and banging illustrate the kind of stress an unbalanced crankshaft can impose on your engine's internal components. Properly balancing the crankshaft ensures that the rotating mass is evenly distributed around its axis, creating a harmonious rotation that minimises stress and maximises efficiency. It's a meticulous process that requires precision and expertise, but the rewards are substantial: a smoother, more powerful, and significantly more durable engine.
Why Crankshaft Balancing is Crucial
The primary objective of crankshaft balancing is to eliminate or significantly reduce vibrations caused by an uneven distribution of mass. These vibrations are not merely an annoyance; they are destructive forces that can lead to a host of problems over time. Here’s why it’s so critical:
- Reduced Vibration and Noise: A perfectly balanced crankshaft spins with minimal wobble, leading to a much smoother engine operation. This translates to less vibration felt in the cabin and a quieter engine, enhancing the overall driving experience.
- Extended Engine Life: Excessive vibration puts undue stress on bearings, connecting rods, pistons, and even the engine block itself. By removing these stresses, balancing helps to prevent premature wear and tear, significantly extending the lifespan of your engine and its components.
- Improved Performance and Efficiency: When an engine runs smoothly, more of its generated power is translated into useful work, rather than being lost to parasitic vibrations. This can lead to subtle improvements in horsepower and torque, and potentially even better fuel efficiency. High-performance engines, in particular, benefit immensely as they operate at higher RPMs where imbalances are greatly magnified.
- Enhanced Reliability: Reduced stress on components means fewer chances of catastrophic failures, such as bearing seizure or crankshaft breakage, especially under demanding conditions.
Understanding Types of Imbalance: Static vs. Dynamic
Crankshaft balancing addresses two primary types of imbalance:
- Static Imbalance: This occurs when the centre of gravity of the crankshaft is not on its rotational axis. Imagine a weight bolted to one side of a wheel; it will always settle with the heavy spot at the bottom. In a crankshaft, this causes a consistent heavy spot that pulls downwards.
- Dynamic Imbalance: This is a more complex issue, occurring when the mass is unevenly distributed along the length of the crankshaft, creating a rocking or wobbling motion as it spins. Even if the overall centre of gravity is on the axis, different sections might have heavy or light spots, causing forces to be generated in opposing directions along the shaft. This is particularly problematic at higher RPMs.
Modern crankshaft balancing techniques focus on correcting both static and dynamic imbalances simultaneously, ensuring a truly smooth and stable rotation.
The Crankshaft Balancing Process
Achieving a perfectly balanced crankshaft is a precise, multi-step operation, typically performed by specialists using dedicated machinery. Here’s a general overview of the process:
- Inspection and Preparation: The crankshaft is thoroughly cleaned and inspected for any damage, cracks, or excessive wear. All journals must be in excellent condition.
- Bob-Weight Calculation: This is perhaps the most critical preparatory step for dynamic balancing. The bob-weight represents the equivalent reciprocating and rotating mass that each crankpin (where the connecting rod attaches) sees. It involves meticulously weighing each piston, piston pin, piston rings, connecting rod (both big end and small end), and often a percentage of the oil that will be in the bearing clearances. This total mass is then translated into a specific weight that is attached to the crank throws during the balancing process to simulate the real-world forces.
- Mounting on the Balancing Machine: The crankshaft is mounted onto a specialised balancing machine. These machines use sensitive sensors to detect vibrations and determine the exact location and magnitude of any imbalances.
- Measurement and Analysis: The machine spins the crankshaft at a specific RPM and measures the imbalances. The data is then analysed by the operator, often with computer assistance, to pinpoint where weight needs to be added or removed.
- Weight Correction: Correction is done in two main ways:
- Material Removal: Small amounts of material are drilled or ground away from the counterweights of the crankshaft at the 'heavy' spots.
- Material Addition: In some cases, if a spot is too light, weight may need to be added, typically by welding tungsten slugs into drilled holes in the counterweights. This is less common but sometimes necessary for highly customised or lightweight crankshafts.
- Re-measurement and Refinement: After corrections are made, the crankshaft is re-spun on the machine. This iterative process continues until the imbalance is reduced to an acceptable, usually extremely low, tolerance.
Internal vs. External Balancing
Engines are designed with either internal or external balancing, which dictates how the crankshaft and its associated rotating components are balanced. Understanding the difference is key, especially when replacing parts or performing engine modifications.
| Feature | Internal Balancing | External Balancing |
|---|---|---|
| Weight Distribution | All necessary counterweights are integrated within the crankshaft itself. | Relies on additional counterweights on the flywheel/flexplate and harmonic balancer to achieve balance. |
| Appearance | Crankshaft typically has large, prominent counterweights. Flywheel/flexplate and harmonic balancer are often neutrally balanced (zero balance). | Crankshaft may have smaller counterweights. Flywheel/flexplate and harmonic balancer will have specific weights or offset holes. |
| Engine Types | Common in many modern engines, especially V8s and straight-sixes. Often preferred for high-performance applications. | Common in older V8s (e.g., some small-block and big-block Chevrolet engines) and some V6s. |
| Component Replacement | If the crankshaft is balanced internally, you generally need a 'zero balance' flywheel/flexplate and harmonic balancer. | Critical to match the original balance of the flywheel/flexplate and harmonic balancer, or re-balance the entire rotating assembly if components are changed. |
| Complexity | Can be more complex to achieve perfect internal balance due to space constraints, sometimes requiring tungsten inserts. | Simpler for manufacturers but can complicate component upgrades as all external components must match. |
When performing engine work, especially on older or performance engines, it is absolutely critical to know whether your engine is internally or externally balanced. Mixing components from different balance types can lead to severe engine vibration and damage.
When is Crankshaft Balancing Necessary?
While not a routine maintenance item, crankshaft balancing becomes essential in several scenarios:
- Engine Rebuilds: Any time an engine is torn down for a rebuild, especially if components like the crankshaft, connecting rods, or pistons are replaced, balancing the entire rotating assembly is highly recommended.
- Performance Upgrades: For engines destined for high RPMs or increased power output (e.g., racing, forced induction), precision balancing is a must to prevent catastrophic failure and maximise reliability.
- Component Replacement: If you replace a crankshaft, connecting rods, or pistons with aftermarket parts, their weights may differ from the original components. Balancing ensures harmony.
- Diagnosing Persistent Vibration: If your engine exhibits unexplained, persistent vibrations that aren't resolved by simpler fixes (like wheel balancing or engine mount replacement), an unbalanced crankshaft could be the culprit.
Signs of an Unbalanced Crankshaft
Recognising the symptoms of an unbalanced crankshaft can help you address the issue before it leads to more serious damage:
- Excessive Engine Vibration: This is the most obvious sign. The vibration might be more noticeable at certain RPMs or throughout the entire operating range. It can be felt through the steering wheel, floor, or seats.
- Premature Bearing Wear: Bearings supporting the crankshaft and connecting rods will wear out much faster due to the constant pounding from the imbalance. This might manifest as unusual engine noises (knocking, rattling) or low oil pressure.
- Unusual Engine Noises: Beyond bearing noises, an unbalanced crankshaft can cause a general rough running sound or a distinct 'wobble' sound, especially at idle or low RPMs.
- Cracked Engine Components: In severe, prolonged cases, the constant stress can lead to cracks in the crankshaft itself, the engine block, or other highly stressed parts.
- Oil Leaks: Excessive vibration can loosen seals and gaskets, leading to oil leaks around the crankshaft seals or oil pan.
Frequently Asked Questions About Crankshaft Balancing
Q: How much does crankshaft balancing cost?
A: The cost can vary significantly depending on your location, the type of engine, and the extent of the work required. For a standard V8 engine, you might expect to pay anywhere from £200 to £500 for a professional balance, not including removal or installation of the engine. Performance or exotic engines can be considerably more.
Q: Can I balance a crankshaft myself?
A: While theoretically possible, it is highly inadvisable without specialist equipment and extensive experience. Achieving the necessary precision requires a dedicated balancing machine and a skilled operator. DIY attempts are likely to lead to further imbalance and potential engine damage.
Q: Is balancing really necessary for a stock engine rebuild?
A: While some manufacturers claim their components are balanced from the factory, variations can occur. For maximum longevity and smoothness, especially if mixing new and old components or using aftermarket parts, balancing is always a worthwhile investment during a rebuild. It's often considered cheap insurance against future problems.
Q: How long does the balancing process take?
A: The actual balancing process on the machine, once all components are weighed and bob-weights calculated, can take a few hours to a full day, depending on the initial imbalance and the number of iterations required. The entire process, including disassembly, component weighing, and reassembly, will take longer.
Q: What is the tolerance for crankshaft balancing?
A: Precision balancing aims for extremely low tolerances, often measured in gram-inches or gram-millimetres. For high-performance engines, tolerances can be as tight as 0.1 gram-inch, meaning the imbalance is virtually imperceptible. For street engines, slightly higher tolerances are acceptable but still very precise.
Q: Does balancing affect horsepower?
A: Direct horsepower gains from balancing are usually minimal, perhaps a few horsepower at most. The primary benefits are improved reliability, reduced vibration, and the ability for the engine to rev higher safely without destructive forces. However, in a performance engine, preventing power loss due to vibration effectively 'frees up' existing horsepower.
Conclusion
Crankshaft balancing is a meticulous and often overlooked aspect of engine building and maintenance. It is a testament to the fact that in engine mechanics, precision is paramount. Investing in a professionally balanced crankshaft, whether for a routine rebuild or a high-performance application, ensures a smoother, more reliable, and longer-lasting engine. It transforms a collection of rotating and reciprocating parts into a harmonious, efficient power unit, allowing you to enjoy your vehicle's full potential without the hidden stresses of imbalance. For any serious engine enthusiast or mechanic, understanding and appreciating the art of crankshaft balancing is a fundamental step towards achieving peak engine health.
