Wet Belts vs. Timing Chains: The UK Driver's Guide

In the intricate world of automotive engineering, two primary components typically ensure your engine's internal dance of pistons and valves remains perfectly synchronised: the timing belt and the timing chain. Both have served admirably for decades, but recent innovations have introduced a controversial contender – the 'belt in oil' system, often referred to as a wet belt. This relatively new approach promises efficiency gains for manufacturers, yet it has sparked considerable debate among mechanics and motorists alike regarding its long-term reliability. Is this evolution a genuine advancement for the consumer, or merely a cost-saving measure with hidden pitfalls? Let's delve into the mechanics, the controversies, and the vital maintenance considerations for each system.

The Emergence of the 'Wet Belt' System

The concept of a timing belt running within an oil bath, or a 'wet belt', is not entirely novel, with early applications seen in fuel pump drives, such as certain Peugeot engines predating Ford's more widespread adoption. However, its use for the critical timing of the engine's camshafts and crankshaft has become a hot topic. Manufacturers like Ford, particularly with their 1.0 EcoBoost, and PSA (now Stellantis) with their 1.2 PureTech engines, have embraced this technology.

The primary motivation for this shift, from a manufacturer's standpoint, is rooted in the relentless pursuit of compliance with stringent emissions and fuel efficiency norms. A wet belt system boasts significantly lower frictional losses – reportedly up to 30% less than a conventional timing chain setup. While this translates to a seemingly modest 1% fuel efficiency gain, in the automotive industry, every fraction counts towards meeting overall fleet targets. For car makers, it's a strategic decision aimed at gaining a competitive edge in efficiency ratings, even if it introduces new complexities for the end user.

Wet Belt Woes: Reliability Under the Microscope

Despite the theoretical benefits, real-world experiences with wet belt systems have raised significant concerns regarding their long-term reliability. The most prevalent and alarming issue revolves around the belt's degradation within the oil environment. Over time, the reinforced rubber material of the belt can gradually wear, shedding microscopic particles. This 'belt dust' then settles in the engine's sump, posing a critical threat by potentially blocking the oil pump intake strainer. A blocked strainer restricts oil flow, leading to oil starvation for vital engine components, which can result in severe, often catastrophic, engine damage and hefty repair bills.

Manufacturers have attempted to address these issues with new belt chemistries, supposedly offering improved durability. However, ironically, some of these 'improved' belts come with recommended reduced replacement intervals, contradicting the initial promise of a longer-lasting component. Many mechanics and owners view the wet belt as combining the disadvantages of both traditional timing belts (requiring periodic replacement) and timing chains (reliance on clean oil and potential for internal contamination). As one Ford Transit owner grimly noted, finding pieces of the timing belt in the oil sump strainer is a disturbingly common complaint, highlighting the compromise in integrity and the risk of engine seizure.

Timing Chain: The Tried and Tested Workhorse

For decades, the timing chain has been the backbone of many automotive engines, revered for its robust nature and perceived longevity. Unlike belts, chains are typically made of metal and are lubricated by the engine oil, which theoretically means they should last the entire lifespan of the engine, particularly in well-maintained petrol vehicles.

Advantages of Timing Chains:

• Durability: Often designed to last the engine's life, eliminating the need for periodic, costly replacements.
• Warning Signs: Chains typically give audible warnings (e.g., rattling noises) when they are beginning to wear or stretch, allowing for preventative action before catastrophic failure.
• Resilience: Less susceptible to brittleness or cracking with age compared to rubber belts.
• Packaging Space: Can be narrower, saving some space in the engine bay.

Disadvantages of Timing Chains:

• Noise: Generally noisier than timing belts, although the difference might not be stark in modern petrol engines. Diesel engines with chains can sound noticeably louder.
• Cost of Replacement: If a chain does need replacing (due to stretch or tensioner failure), the job is often more complex and expensive than a belt replacement.
• Oil Dependency: Relies heavily on clean, good quality engine oil and strict adherence to oil change intervals for optimal lifespan.
• Potential for Leaks: Timing chain covers can be a potential weak spot for oil leaks.
• Parasitic Losses: Operates under relatively high tension, which can lead to slightly higher parasitic losses compared to a low-tension belt.

Traditional Timing Belt: The Familiar Synchroniser

Before the wet belt, and alongside chains, the traditional dry timing belt has been a common sight. Made from reinforced rubber, these belts connect the crankshaft to the camshaft(s), ensuring precise valve timing. Older designs, often made from neoprene, were susceptible to heat and oil, necessitating replacements as often as every 60,000 miles. Newer ethylene propylene diene monomer (EPDM) rubber compounds offer better resistance and extended intervals, sometimes up to 110,000 miles.

Advantages of Traditional Timing Belts:

• Weight: Lighter than chains.
• Flexibility: Can handle some 'tricky situations' without snapping, and can operate under lower tension, reducing parasitic losses.
• Cost: Generally lower cost for the belt and its associated components.
• Simplicity: No sealing required as they operate externally.

Disadvantages of Traditional Timing Belts:

• Periodic Replacement: Their finite lifespan means mandatory, scheduled replacements are necessary.
• Ageing: Can become brittle and develop cracks with age, even in low-mileage vehicles.
• Sudden Failure: Tend to snap without warning, unlike chains which often provide audible cues.
• Sensitivity: Can be sensitive to side tracking, leading to edge wear.

Wet Belt vs. Timing Chain vs. Traditional Timing Belt: A Comparative Overview

To help you weigh up the options, here's a comparison of the key characteristics:

The Crucial Act: Timing Belt Replacement

Regardless of the type of timing component your vehicle uses, understanding its role and the implications of its failure is paramount. For vehicles fitted with a traditional timing belt, timely replacement is not merely a recommendation; it's a critical preventative measure that safeguards your engine from potentially catastrophic damage.

Why is Timing Belt Replacement So Important?

The timing belt’s job is to synchronise the rotation of the crankshaft (which drives the pistons) and the camshaft(s) (which operate the valves). This precision ensures that the engine’s intake and exhaust valves open and close at precisely the right moment during each cylinder’s cycle. If this synchronisation is lost, the consequences can be dire, especially in what are known as 'interference engines'.

Interference vs. Freewheeling Engines: Know the Risk

• Interference Engine: Most modern engines are of this design. In an interference engine, the valves and pistons occupy the same space within the cylinder at different times. If the timing belt breaks or skips a tooth, the camshaft stops rotating, leaving valves open, while the crankshaft continues to drive the pistons. This leads to the pistons colliding with the open valves with immense force, causing severe damage to both, often rendering the engine irreparable or requiring extensive, costly repairs (typically £2,500 to £4,000 or more).
• Freewheeling Engine: Some older or less common engines are 'freewheeling' or 'non-interference' designs. These engines have sufficient clearance between the valves and pistons that even if the timing belt breaks, a collision will not occur. While the engine will immediately stop running, requiring a tow and belt replacement, the internal damage is usually avoided.

Even with a freewheeling engine, ignoring a recommended timing belt replacement is ill-advised. A broken belt will leave you stranded and still necessitate the full cost of replacement plus towing. For interference engines, delaying an £800 timing belt service can easily escalate into a £4,000 engine rebuild. Prevention is undeniably cheaper than cure.

When to Replace Your Timing Belt

Replacement intervals vary significantly between car manufacturers and engine types, typically ranging from as low as 60,000 miles to as high as 110,000 miles. Always consult your vehicle's owner's manual or a reputable mechanic for the precise interval recommended for your specific model. The type of rubber used in the belt also plays a role in its lifespan.

The Timing Belt Replacement Process: A Mechanic's Insight

Replacing a timing belt is a complex, labour-intensive procedure that requires specialist tools and expertise. It is generally not a DIY job for the average motorist. Here’s a simplified overview of the steps involved:

1. Preparation: The engine must be cool. All necessary tools, including specialist locking tools, a comprehensive wrench and socket set, and a new timing belt kit (often including tensioners and idlers), are gathered.
2. Accessing the Timing Belt: This often involves removing engine covers, accessory drive belts (e.g., serpentine belt), and sometimes engine mounts to gain clear access to the timing belt cover.
3. Aligning Timing Marks: Crucially, before the old belt is removed, the engine's crankshaft and camshaft timing marks must be precisely aligned. This ensures the engine remains in the correct synchronised position for reassembly.
4. Removing the Old Timing Belt: Once aligned and accessible, a locking tool is often installed to prevent the camshafts from moving. The tensioner is released, and the old timing belt is carefully removed. It's vital to inspect the tensioner and idler pulleys at this stage for any signs of wear.

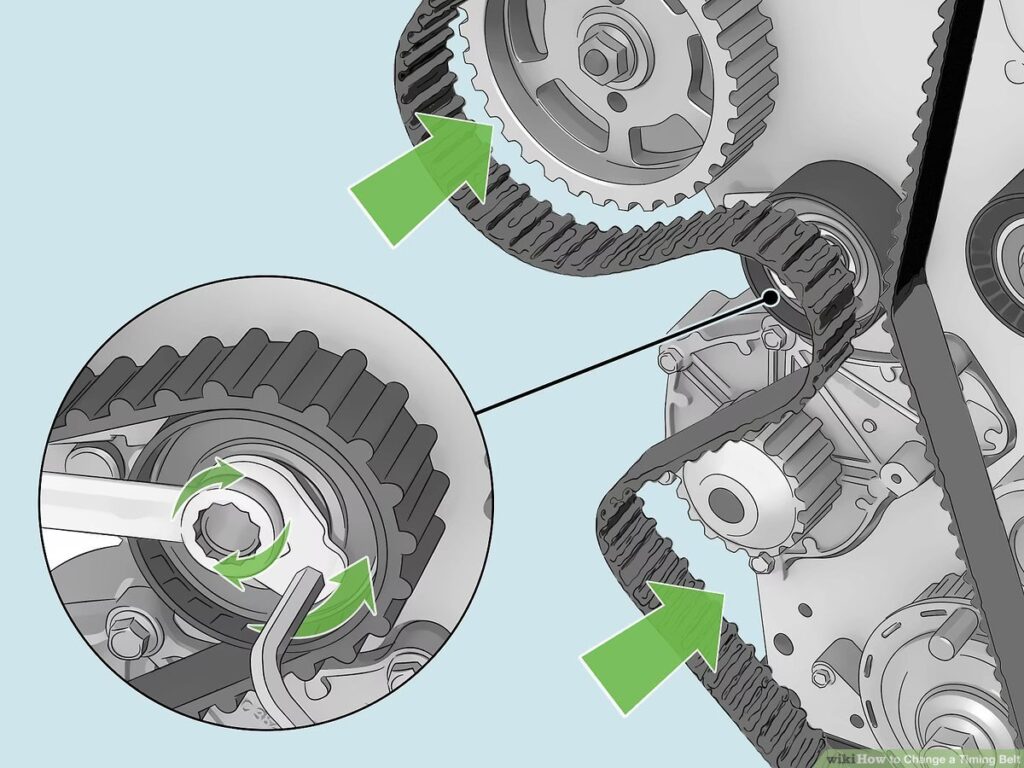

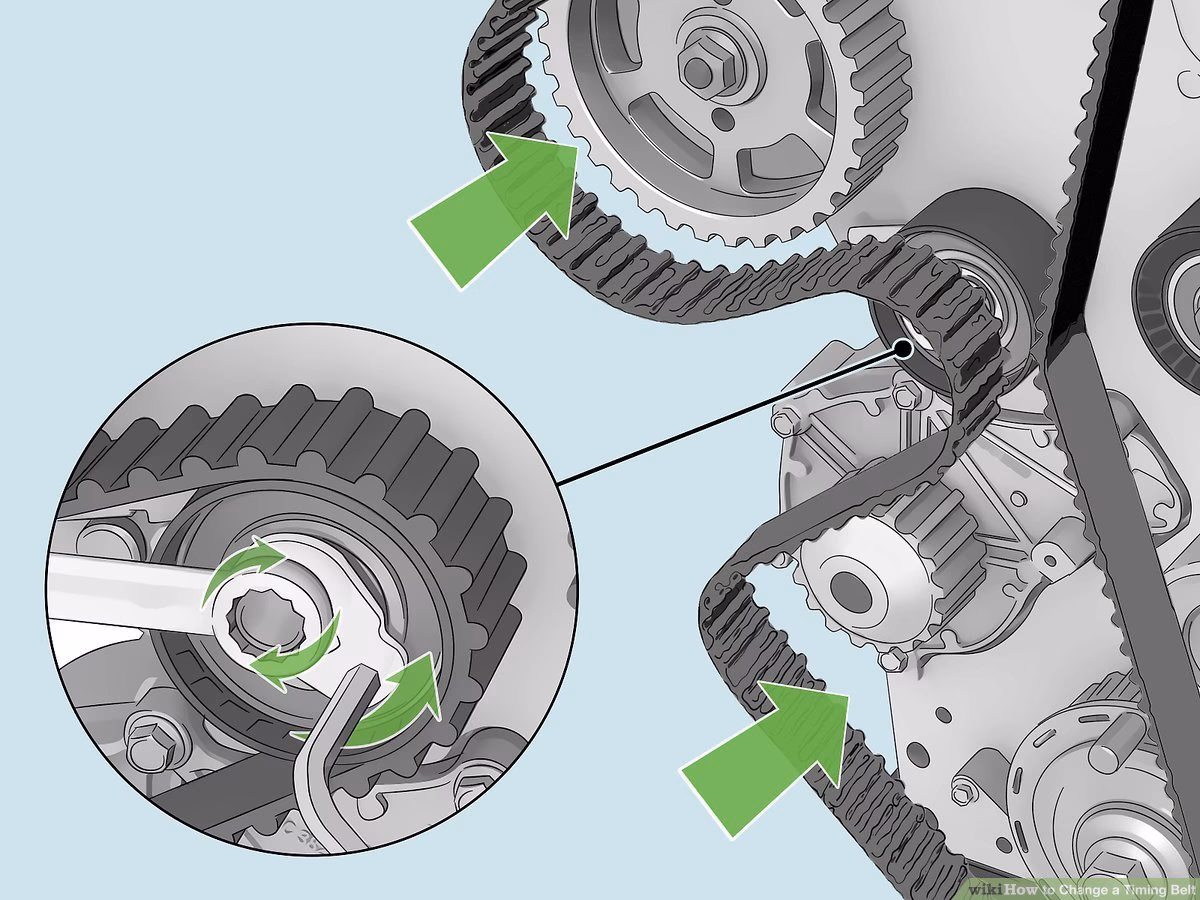

5. Installing the New Timing Belt: The new timing belt is fitted, ensuring it's correctly routed and tensioned according to the manufacturer's specifications. All timing marks must be re-checked for perfect alignment.
6. Reassembling Components: All previously removed components, including the tensioner, idler rollers (which should ideally be replaced with new ones), and timing covers, are reinstalled.
7. Reinstalling Drive Belts and Engine Covers: Accessory drive belts and any disturbed engine mounts or covers are put back into place.
8. Testing the Engine: Finally, the engine is started and allowed to run, ensuring it operates smoothly without unusual noises, confirming the correct installation of the timing belt.

Beyond the Belt: Recommended Concurrent Replacements

Given the significant labour involved in accessing the timing belt, it makes financial and practical sense to replace other components that are easily accessible at the same time. This 'while you're in there' approach can save you from paying for the same labour twice if these parts fail soon after a belt change.

1. Timing Belt Tensioner and Idler Pulleys

Every timing belt system includes a tensioning device and often idler rollers to maintain correct belt tension. Reusing old components is a false economy. If a tensioner or idler pulley fails, it can cause the new belt to become slack, skip teeth, or even snap, leading to the same catastrophic damage as a broken belt. Most reputable shops will insist on replacing these components concurrently, as their warranty on the timing belt job often depends on it. Tensioners and idlers have bearings that wear out, and the idler surface can develop grooves that damage a new belt prematurely.

2. Water Pump

In many engines, the water pump is driven by the timing belt, and accessing it requires removing the belt. Water pumps typically have a finite lifespan, often failing before 200,000 miles. If your timing belt is due at, say, 90,000 miles, and you plan to keep the car, it's highly probable the water pump will fail before the next belt change at 180,000 miles. Replacing it simultaneously means you only pay the additional cost of the pump itself and a small amount of extra labour for its removal/installation and cooling system work, rather than the full labour cost of accessing it again later. While there are scenarios where waiting might seem to save money (if the pump lasts significantly longer), the risk of another costly labour bill usually outweighs this.

3. Crankshaft and Camshaft Seals

Both the crankshaft and camshaft have seals to prevent oil leaks from the engine. Like the water pump, these are easily accessible once the timing belt area is exposed. Many shops recommend replacing them as a preventative measure. The parts are inexpensive (often less than £20 per seal), and the extra labour is minimal (around half an hour). If the technician notes that the existing seals are already leaking, replacement is a no-brainer. If they aren't leaking, the decision is more nuanced; some mechanics argue that if they aren't leaking now, they might never leak, or at least not before the car's end of life. It's a calculated risk whether to authorise this extra work.

4. Cooling System Flush

If the water pump is being replaced, a portion of the cooling system will need to be drained. This presents an opportune moment for a full cooling system flush, especially if your vehicle's coolant is nearing its recommended change interval (often around 100,000 miles). Ask your shop if they can offer this as a package deal, as you should receive a discount on the labour for the flush since the system is already partially drained.

Avoiding Rip-Offs During Timing Belt Replacement

Because timing belt replacement involves extensive dismantling of the front of the engine, it's an area where unscrupulous shops might 'double-dip' on labour charges. For example, they might quote you the full standalone labour time for replacing a water pump, even though most of that labour is already covered by the timing belt job. To illustrate, consider a 2008 Subaru Outback:

• Labour hours for timing belt replacement: 2.3 hours

If done concurrently, the *additional* flat-rate labour hours for other components are:

• Crankshaft seal: 0.5 hrs
• Camshaft seals: 0.4 hrs
• Oil pump seal: 0.5 hrs
• Idler pulley: 0.1 hrs
• Timing belt tensioner: 0.1 hrs
• Water pump: 0.7 hrs

So, the total labour for a comprehensive job (belt, seals, tensioner, idlers, water pump) should be approximately 2.3 + 0.5 + 0.4 + 0.5 + 0.1 + 0.1 + 0.7 = 4.6 hours. If a shop quotes you, for instance, 3.9 hours for the belt and seals, but then an *additional* 3.0 hours for the water pump (which is its standalone time), they are overcharging you. The extra labour for the water pump, when done with the belt, should only be 0.7 hours.

Similarly, ensure you're not charged extra labour for removing and reinstalling serpentine drive belts; this is an inherent part of the timing belt job. You should only be charged for the parts if they are replaced. The best way to protect yourself is to ask the shop to show you their flat-rate labour guide, which clearly lists the base job time and the 'combination' times for additional components.

Where to Get Your Timing Belt Replaced

Given the complexity and critical nature of a timing belt replacement, choosing the right workshop is crucial. While independent garages often offer lower hourly rates than main dealers, the expertise required for this specific job can vary widely. If the technician is unfamiliar with the precise design of your engine, an improper installation can lead to poor performance or even engine damage.

It is often in your best interest to consider a main dealer service department, especially for highly specific engine designs. Alternatively, seek out an independent garage that specialises in your car make. Don't hesitate to ask prospective shops how often they work on your brand of vehicle and how many timing belt jobs they've performed on your particular engine model. If they don't routinely handle your car brand, they might even recommend a more specialised workshop, which is a sign of an honest and professional outfit.

Frequently Asked Questions (FAQs)

Q1: What happens if I don't replace my timing belt at the recommended interval?

A1: If you have an interference engine (most modern cars), the belt can snap, causing pistons to collide with valves, leading to severe and costly engine damage. If you have a freewheeling engine, the engine will simply stop running, leaving you stranded, but usually without internal damage.

Q2: How often should a timing belt be replaced?

A2: Replacement intervals vary by car manufacturer and engine type, typically ranging from 60,000 to 110,000 miles or a certain number of years (e.g., every 5-7 years), whichever comes first. Always check your vehicle's owner's manual.

Q3: Can I replace a timing belt myself?

A3: Timing belt replacement is a complex job requiring specialist tools, precise timing knowledge, and significant mechanical aptitude. It is strongly recommended to have it performed by a qualified and experienced mechanic to avoid costly mistakes.

Q4: What's the difference between an interference and a non-interference engine?

A4: In an interference engine, the valves and pistons occupy the same space at different times, meaning a broken timing belt will cause them to collide. In a non-interference (freewheeling) engine, there's enough clearance that a broken belt will not result in a collision, only a stalled engine.

Q5: Is a wet belt really that bad?

A5: While designed for efficiency, wet belts have shown reliability concerns, primarily due to belt degradation and the resulting debris blocking oil pump strainers. This can lead to severe engine damage. While manufacturers are working on improvements, many consider them a higher risk than traditional chains or dry belts due to their specific failure mode.

Conclusion

The debate between wet belts and timing chains, and the ongoing necessity of timing belt maintenance, underscores a fundamental tension in modern automotive design: the balance between efficiency gains for manufacturers and long-term reliability for consumers. While wet belts offer marginal improvements in fuel economy, their documented reliability issues, particularly the risk of oil starvation, present a significant concern. Timing chains, despite being slightly noisier and heavier, generally offer superior durability, provided they are properly lubricated with clean oil. Traditional dry timing belts, while requiring periodic replacement, are a known quantity with well-established maintenance protocols.

Ultimately, for the UK motorist, understanding your vehicle's specific timing system is crucial. If your car has a wet belt, be extra vigilant about oil quality and change intervals. If it has a traditional timing belt, adhere strictly to the manufacturer's recommended replacement schedule, and consider replacing associated components like the water pump and tensioners concurrently. And always ensure any complex engine work is carried out by experienced professionals. Your engine's longevity, and your wallet, will thank you for it.
