Class 7 MOT Bay: Mastering DVSA Space Rules

Establishing a Class 7 MOT bay is a significant undertaking for any garage or workshop, requiring not only a substantial investment in specialised equipment but also a meticulous understanding of the stringent spatial requirements set forth by the Driver and Vehicle Standards Agency (DVSA). While the allure of shiny new machinery might capture immediate attention, neglecting the precise dimensions and clearances mandated by the DVSA can lead to costly redesigns, delays, or even outright failure to secure approval for your test facility. This comprehensive guide will delve into the critical spatial considerations for a Class 7 MOT bay, ensuring your planning is robust, compliant, and future-proof.

General Test Bay Dimensions: Laying the Foundation

The very first step in designing your Class 7 MOT bay involves ensuring that the overall footprint of your proposed testing area meets the DVSA’s fundamental requirements. Class 7 vehicles, defined by their weight, can nevertheless vary considerably in their physical dimensions, necessitating ample safe working space. This ensures technicians can perform inspections safely and effectively, and that vehicles can be manoeuvred without risk.

• A width of at least 4.2 metres (m). This provides sufficient lateral clearance for vehicles and personnel.
• A headroom (or clear height) of at least 3.2m. This is crucial for general vehicle movement and allows for basic inspection tasks.
• An entrance and exit doorway that is a minimum of 3.2m high and 3.0m wide. These dimensions facilitate the safe and easy passage of larger Class 7 vehicles into and out of the bay.

It is important to note that these are baseline requirements. Specific configurations, particularly those involving brake testing areas, can introduce variations. For instance, if the entrance or exit doubles as part of the brake test standing area, the door must be wider, requiring a minimum of 3.5m to accommodate the necessary manoeuvring and safety clearances.

The Critical Role of the Vehicle Inspection Pit

For many MOT centres, a vehicle inspection pit remains a preferred method for under-vehicle inspections. If you opt for a pit in your Class 7 MOT bay, the spatial and structural requirements become even more exacting, designed to guarantee both the safety of your inspection teams and strict adherence to DVSA regulations. These regulations are not merely guidelines; they are absolute mandates that dictate the design and construction of your pit.

A vehicle inspection pit for a Class 7 MOT bay must adhere to the following precise dimensions:

• A working length of at least 6.0m. This must be an uninterrupted working length, allowing ample space for a technician to move freely and safely along the underside of the vehicle.
• A minimum width of 760 millimetres (mm) and a maximum width of 1.3m. This measurement is taken across both pit walls over the entire working length. This specific range ensures comfortable access for technicians while preventing excessive width that could compromise safety or structural integrity.
• A depth of at least 1.4m and not more than 1.8m over the working length. This depth range is crucial for ergonomic working conditions, allowing technicians to stand comfortably upright beneath vehicles without straining, while also preventing an excessive depth that could pose rescue challenges.
• Access for workers must be designed in such a way that it does not impede or reduce the specified working dimensions of the pit. Steps, if integrated, may be an exception, provided there is a clear clearance width of at least 600mm alongside them, ensuring they do not obstruct the primary working area.

These strict regulations underscore the complexity of installing a compliant inspection pit. The significant groundworks involved mean there is very little room for error. Therefore, selecting an installer with proven experience in Class 7 MOT bays and an intimate knowledge of DVSA requirements is paramount. Incorrectly constructed pits can lead to extensive remedial work, financial penalties, or even the refusal of your MOT bay licence. The safety of your technicians depends on these precise specifications being met.

Table 1: Key Inspection Pit Dimensions for Class 7 MOT Bays

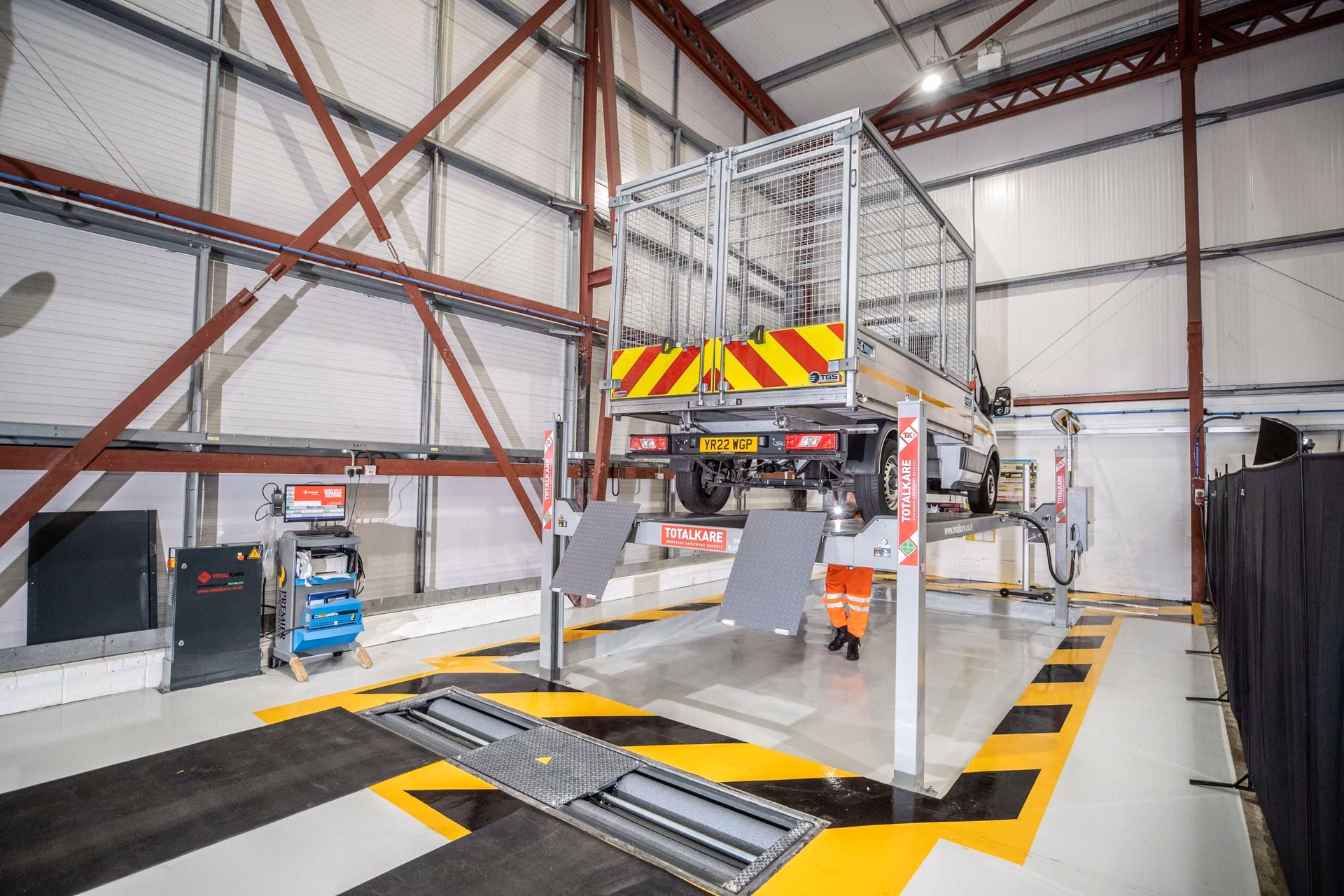

Navigating Vehicle Lift Specifications

For MOT bays that utilise a vehicle lift instead of a pit, the spatial requirements shift, becoming somewhat more intricate due to the dynamic nature of the lifting equipment and the need to accommodate vehicles at various heights. The primary concern here is ensuring adequate headroom and surrounding clearance when the vehicle is raised.

For a Class 7 MOT bay incorporating a vehicle lift, you will need:

• At least 4.8m of headroom, measured from the lifting platforms when they are fully lowered. This increased height compared to a pit bay accounts for the raised position of the vehicle.
• Headroom that extends a minimum of 500mm beyond the outer edges of the lifting platforms. This ensures there is no obstruction above the vehicle’s widest points when elevated.
• Headroom that extends a minimum of 500mm in front of the platforms (at the non-drive-on end). This provides clearance for technicians working at the front of the vehicle.
• Headroom that extends a minimum of 1000mm to the rear of the platforms (at the drive-on end). The greater clearance here is necessary to accommodate the approach and departure of vehicles, and for technicians to work around the rear of the vehicle.

These specific clearances are designed to ensure that your teams have sufficient safe working space to inspect vehicles thoroughly and without hindrance when they are raised on the lift, accommodating a wide range of vehicle shapes and sizes.

Precision in Headlamp Testing Zones

The accuracy of headlamp tests is highly dependent on precise spatial relationships and a perfectly level testing surface. Therefore, the layout of your Class 7 MOT bay must meticulously account for the headlamp testing area. Even minor discrepancies can lead to inaccurate readings and failed tests.

The DVSA mandates the following for all headlamp testing installations:

• A clearance of 600mm directly behind the headlamp aim tester optical head. This ensures the equipment can function correctly and provides access for calibration or maintenance.
• This clearance behind the optical head must be entirely free from any floor-mounted equipment. Any obstruction could interfere with the light path or the tester's operation.
• The vehicle standing area must be certified flat to within ±6mm in any 3m. This is a critical requirement to ensure that the vehicle is perfectly level when its headlamps are being aimed, preventing false readings.
• The standing area itself needs to be 2.5m wide and 4.5m long, measured from the datum line. The datum line is the universally recognised reference point used for aligning and positioning the vehicle correctly in relation to the headlamp tester.

Brake Testing: Space Demands Unpacked

Amongst all the equipment in a Class 7 MOT bay, the brake testers often present the most demanding spatial requirements. The need for clear, unobstructed run-up and run-off areas means their positioning requires careful consideration and often dictates the overall bay layout. The exact requirements vary significantly depending on whether you opt for a roller brake tester or a plate brake tester.

Roller Brake Tester Requirements:

If your bay is equipped with a roller brake tester, you will need to plan for:

• An unobstructed working area that is at least 14m long and 3.5m wide. This considerable length allows for the vehicle to approach the rollers, undergo the test, and then safely drive off.
• The brake tester itself must be located centrally within this designated working area to ensure symmetrical approach and departure.
• A minimum of 600mm clearance between the brake tester and any adjacent pit or lift. This is a crucial safety measure to prevent collisions or obstructions during testing.

Plate Brake Tester Requirements:

Plate brake testers, while perhaps appearing less imposing, have their own unique spatial demands:

• The brake tester must be centrally located within an area that is at least 3.6m wide. This width accommodates the vehicle’s full track and allows for slight lateral adjustments.
• A clear area of 7.0m is required in advance of the tester. This advance area is vital for the vehicle to build up the necessary speed and stability before engaging the plates. This section can be partially or even fully located outside the main bay, depending on your workshop layout, but it must be unobstructed.
• Any doorways situated within this advance area must be at least 3.6m wide to ensure unhindered passage for the vehicle.
• A clear run-off distance of 4m is needed immediately after the brake tester working surface. This distance excludes any part of lift platforms if they are present directly after the tester, ensuring a safe exit.
• If the plate surface is not flush with the floor (i.e., it involves ramps), there must be at least 600mm clearance between any doorways and these ramps. This prevents vehicles from getting snagged or damaged.
• In the case of a drive-through setup where the plate tester is positioned after a lift or a pit, a clear distance of 7.0m is required between the tester and the preceding lift or pit. This maintains a safe operating sequence.

Regardless of the type of brake tester chosen, it is clear that these systems demand significant spatial allocation. This necessitates meticulous planning and often careful compromise within existing workshop footprints.

Why Accurate Planning is Paramount

With so many precise dimensions, clearances, and operational spacings to consider, the process of installing a compliant Class 7 MOT bay can be incredibly complex. This is particularly true for workshops with limited space, where every square metre must be utilised with maximum efficiency. Errors in planning can lead to:

• Non-compliance: The DVSA will not approve a bay that does not meet their exact specifications, leading to delays and potential financial losses.
• Safety Hazards: Insufficient clearance or incorrectly dimensioned areas can put technicians and vehicles at risk.
• Operational Inefficiency: A poorly laid out bay can hinder workflow, increase inspection times, and reduce overall productivity.
• Costly Rework: Correcting structural or equipment placement errors after initial installation can be prohibitively expensive and time-consuming.

Therefore, the easiest and most reliable way to ensure your new Class 7 MOT bay is compliant, safe, and efficient is to engage with experienced professionals who specialise in MOT bay design and installation. Their expertise can help navigate the complexities, optimise your available space, and ensure all DVSA requirements are met from the outset.

Common Questions About Class 7 MOT Bays

Q1: Do I need a vehicle inspection pit for a Class 7 MOT Bay?

A1: No, a vehicle inspection pit is not strictly mandatory. You can choose to install a vehicle lift instead. Both options have specific DVSA requirements regarding dimensions and clearances that must be met for compliance.

Q2: How much space do I need for a Class 7 MOT bay?

A2: The minimum general dimensions are 4.2m width and 3.2m headroom, with a 3.2m high x 3.0m wide entrance/exit. However, specific equipment like lifts, pits, and brake testers require much larger and more precise clearances, which can extend the overall footprint significantly. A roller brake tester, for example, needs an unobstructed area of 14m x 3.5m.

Q3: Can I use an existing workshop space for a Class 7 MOT bay?

A3: Possibly, but it depends entirely on whether the existing space can be adapted to meet all the DVSA's stringent dimensional and structural requirements for a Class 7 bay, including specific clearances for pits, lifts, headlamp testers, and brake testers. It often requires significant modification.

Q4: What are the key safety considerations for a Class 7 MOT pit?

A4: Safety is paramount. Key considerations include maintaining the precise width and depth for technician comfort and escape, ensuring uninterrupted working length, providing clear and unencumbered access points, and ensuring proper lighting and ventilation. Pit covers are also essential when the pit is not in use.

Q5: How much does a MOT pit cost?

A5: The cost of an MOT pit can vary dramatically based on numerous factors, including its size, specific features (e.g., integrated lighting, drainage), the complexity of groundworks required, and the chosen installer. It's a significant investment, but without precise project details, a general figure cannot be provided. It is always recommended to obtain detailed quotes from reputable installers based on your specific site requirements.

Conclusion

The successful establishment of a Class 7 MOT bay hinges on a thorough understanding and strict adherence to the DVSA’s detailed spatial and dimensional requirements. From the overall test bay footprint to the precise specifications for inspection pits, vehicle lifts, headlamp testers, and especially brake testing equipment, every detail matters. Investing time in meticulous planning and consulting with experienced MOT bay installers from the outset will not only ensure compliance and safety but also create an efficient, productive, and future-proof testing facility that serves your business for years to come. Do not underestimate the critical role that space plays in the efficacy and legality of your Class 7 MOT operations.
