DL501 Gearbox: Oil, Issues & Repairs Explained

The VAG DL501 (0B5) gearbox, a sophisticated dual-clutch transmission found in many Audi models, represents a pinnacle of modern automotive engineering. However, its advanced design also means it demands precise maintenance, particularly concerning its transmission fluid. Unlike conventional gearboxes, the DL501 is cleverly divided into two distinct compartments, each requiring a specific type of lubrication. One section, the 'mechanical' part, utilises a hypoid oil akin to that found in traditional manual gearboxes. The other, crucial 'automatic' section, housing the double clutch frictions and the intricate valve body, relies exclusively on a highly specialised fluid: DL501 - G 052 529 A2 transmission oil. This 'intelligent' oil is not merely a lubricant; it's a critical component in itself, enabling the precise operation of the clutches and the Mechatronics unit. Understanding its role, and the common pitfalls associated with its degradation or the use of incorrect alternatives, is paramount for any owner or technician aiming to prolong the life and ensure the smooth operation of this complex transmission.

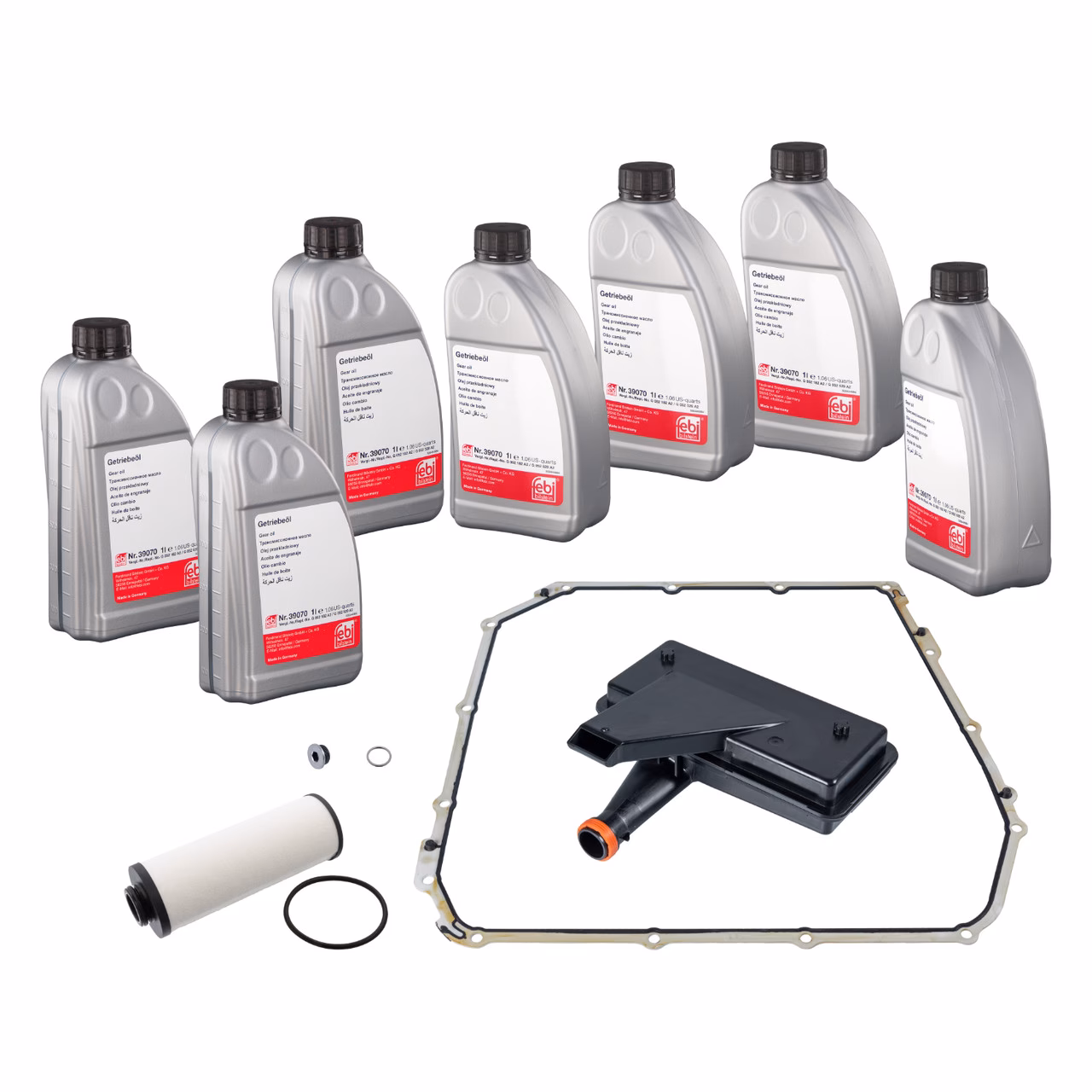

The Uniqueness of G 052 529 A2 Transmission Oil

The DL501 – G 052 529 A2 oil is far from a generic automatic transmission fluid (ATF). It is specifically engineered to meet the stringent demands of the DL501's wet multi-plate clutch system and its integrated Mechatronics unit. This fluid must possess a unique blend of properties:

• Precise Frictional Characteristics: Essential for the smooth engagement and disengagement of the dual clutches, preventing slip and ensuring efficient power transfer.
• Thermal Stability: The clutches generate significant heat, and the oil must maintain its viscosity and protective qualities even under extreme temperatures.
• Hydraulic Efficiency: It acts as a hydraulic medium for the valve body, controlling the clutch engagement and gear changes with incredible precision.
• Lubrication and Cooling: Beyond its hydraulic function, it lubricates the moving parts within the automatic section and dissipates heat generated by friction.
• Compatibility with Electrical Components: Crucially, it must not degrade or interfere with the sensitive electronic components of the Mechatronics unit, which are bathed in this fluid.

Using any oil other than the specified G 052 529 A2 can lead to immediate operational issues or long-term damage, compromising clutch performance, accelerating wear on internal components, and potentially causing catastrophic failure of the Mechatronics unit.

Typical Technical Issues Plaguing the DL501 Gearbox

Despite its sophisticated design, the DL501 gearbox, like any complex mechanical system, is prone to certain characteristic problems. These issues often stem from the interaction of mechanical wear with the specific properties of the transmission fluid.

1. Metal Chips and Contamination

One of the most frequently cited problems originates from metal chips. These contaminants are typically generated from the wear of internal components, most notably the clutch drum. Once present in the oil, these chips become highly destructive:

• Harm to the Filter: The transmission filter is designed to capture debris, but an excessive amount of metal chips can quickly overwhelm and clog it, impeding proper oil flow.
• Damage to Gearbox Components: Circulating metal particles act as an abrasive, accelerating wear on bearings, gear teeth, and other precision-machined surfaces.
• Electrical System Interference: Perhaps most critically, these chips can enter the delicate Mechatronics unit. Being conductive, they can short-circuit electrical pathways, leading to erratic behaviour or complete failure of the control unit. This can manifest as rough shifts, lost gears, or the vehicle entering 'limp mode'.

The presence of metal chips in the oil is a clear indicator of internal wear and necessitates immediate attention to prevent further, more severe damage.

2. Mechatronics Unit Failures

The Mechatronics unit is the brain of the DL501 gearbox, integrating the electronic control unit (ECU) and the hydraulic control unit (valve body) into a single module. Issues with the Mechatronics are unfortunately common across many 7-speed DL501 transmissions. Problems can arise from:

• Internal Electrical Shorts: As mentioned, metal chips can cause shorts.
• Solenoid Wear/Malfunction: The solenoids within the valve body control the hydraulic pressure to engage clutches and shift gears. Wear or contamination can lead to sticking solenoids, resulting in harsh shifts, delays, or inability to select gears.
• Temperature Sensor Failures: Integrated sensors provide crucial data to the ECU. If these fail, the transmission may operate incorrectly or go into protective modes.
• Software Glitches: Less common, but sometimes software corruption or calibration issues can lead to erratic behaviour.

A failing Mechatronics unit often presents with warning lights on the dashboard, erratic gear changes, or a complete loss of drive.

3. Solenoid Wear-Out Due to Contaminated Oil

The operation of the gearbox with metal chips in the oil leads to rapid wear-out of the solenoids. These precision components rely on clean fluid for smooth operation. Abrasive particles cause internal wear, leading to:

• Reduced Performance: Solenoids may not open or close fully, leading to incorrect hydraulic pressure.
• Sticking: Chips can cause solenoids to stick in one position, preventing proper gear engagement.
• Complete Failure: Prolonged exposure to contaminants will ultimately lead to the failure of the solenoids, requiring replacement of the Mechatronics unit or individual solenoids if possible.

4. Clutch Drum Issues

As far as the hardware of this gearbox is concerned, the main component often requiring replacement due to wear is the entire clutch drum. The wet clutches, while robust, are subject to wear over time, particularly if the oil is contaminated or not changed at appropriate intervals. Excessive wear on the clutch plates can lead to:

• Slipping Clutches: Loss of power transfer, especially under acceleration.
• Overheating: Increased friction from slipping generates more heat, further degrading the oil and accelerating wear.
• Generation of Debris: Worn clutch material contributes to the metal chip problem, creating a vicious cycle of degradation.

Replacement of the clutch drum is a significant repair, often indicative of extensive internal wear.

Diagnosis and Repair Guidelines

Addressing DL501 gearbox issues requires a systematic approach, often necessitating specialised diagnostic tools and expertise. Given the complexity, DIY repairs are generally not recommended beyond basic fluid checks.

1. Professional Diagnosis is Key

The first step is always a thorough diagnostic scan using VAG-specific diagnostic equipment (e.g., VCDS, ODIS). This will read fault codes from the transmission control module (TCM) which can pinpoint specific issues within the Mechatronics or other sensors. A qualified technician will also perform a road test to observe shifting behaviour, listen for unusual noises, and monitor live data parameters such as oil temperature, clutch pressures, and solenoid current values.

2. Transmission Fluid Analysis

A sample of the DL501 – G 052 529 A2 oil should be drained and inspected. The presence of metal flakes, a burnt smell, or an unusually dark colour are all indicators of internal wear. While not a definitive diagnostic, it provides valuable insight into the gearbox's health.

3. Repair Strategies for Common Problems

• Addressing Metal Chips: If metal chips are present, a simple oil change is insufficient. The transmission typically requires a thorough flush, and the transmission filter must be replaced. In severe cases, where significant internal wear is evident (e.g., from the clutch drum), a full disassembly and cleaning of the gearbox may be necessary to remove all contaminants. Failure to remove all chips will lead to recurrent issues.
• Mechatronics Repair/Replacement: This is often the most expensive repair. Depending on the specific fault, some Mechatronics units can be repaired by replacing faulty solenoids or circuit boards. However, in many instances, a complete replacement with a new or remanufactured unit is required. Post-replacement, the unit must be coded and calibrated to the vehicle using diagnostic software.
• Solenoid Replacement: If individual solenoids are identified as faulty and are replaceable, this can be a more cost-effective solution than a full Mechatronics replacement. This still requires specialist tools and knowledge.
• Clutch Drum Replacement: This is a labour-intensive repair that involves removing and disassembling the gearbox. The old clutch drum is replaced with a new or remanufactured unit. It's crucial that all associated seals and gaskets are also replaced during this process.

Crucially, after any repair involving fluid drainage, the gearbox must be refilled with the correct DL501 - G 052 529 A2 transmission oil to the precise level specified by the manufacturer. Incorrect fluid levels or the use of non-specified fluid can immediately negate the repair and cause further damage.

Preventative Maintenance for Your DL501 Gearbox

While the DL501 is a complex unit, proactive maintenance can significantly extend its lifespan and prevent many of the common issues. The cornerstone of this is the proper management of its transmission fluid.

• Regular Fluid and Filter Changes: Despite some manufacturers claiming 'sealed for life' transmissions, experience shows that regular fluid and filter changes are vital for the DL501. The recommended interval varies, but typically every 35,000 to 40,000 miles (approximately 55,000 to 65,000 kilometres) or every 4-5 years is a sensible approach, especially for vehicles driven in heavy traffic or under strenuous conditions. This helps remove accumulated wear particles and replenishes the fluid's critical additives.
• Use Only Genuine G 052 529 A2 Oil: This cannot be stressed enough. Using aftermarket fluids, even those claiming to be compatible, carries significant risk. The specific frictional and hydraulic properties of the genuine Audi/VW fluid are essential for the longevity of the clutches and the precise operation of the Mechatronics unit. Always verify the part number on the fluid container.
• Monitor for Early Signs: Pay attention to any changes in your gearbox's behaviour. Subtle shifts in gear change quality, new noises, or even slight hesitation can be early indicators of a developing problem. Addressing these promptly can prevent minor issues from escalating into major, expensive repairs.
• Avoid Aggressive Driving: While the DL501 is designed for spirited driving, constant aggressive acceleration and harsh braking can put undue stress on the clutches and other internal components, accelerating wear.

Frequently Asked Questions (FAQs)

Q: Can I use a universal or aftermarket ATF in my DL501 gearbox instead of G 052 529 A2?

A: Absolutely not. The DL501 gearbox, particularly its wet clutch and Mechatronics unit, is highly sensitive to the specific properties of the G 052 529 A2 fluid. Using any other fluid, even one claiming to be 'compatible' or 'multi-vehicle', can lead to immediate shift quality issues, accelerated wear, and potentially catastrophic failure of critical components like the Mechatronics or clutches. Always use the genuine, specified fluid.

Q: How often should the transmission oil in the DL501 gearbox be changed?

A: While Audi may state 'sealed for life' for some models, common practice among specialists recommends changing the G 052 529 A2 fluid and filter every 35,000 to 40,000 miles (or roughly 55,000 to 65,000 km) or every 4-5 years, whichever comes first. This interval can be shortened for vehicles used for towing, in hot climates, or in heavy stop-and-go traffic.

Q: What are the common signs of a failing Mechatronics unit in a DL501 gearbox?

A: Signs often include harsh or erratic gear changes, delayed engagement of drive or reverse, the gearbox slipping out of gear, warning lights on the dashboard (e.g., PRNDS flashing, gearbox malfunction light), or the vehicle entering 'limp mode' with limited gears available. Sometimes, unusual noises may also accompany these symptoms.

Q: Is it possible to repair a DL501 Mechatronics unit, or does it always need replacement?

A: It depends on the specific fault. In some cases, individual solenoids or sensors within the Mechatronics unit can be replaced, or the unit can be repaired by a specialist. However, often due to internal circuit board damage or extensive wear, a complete replacement with a new or remanufactured unit is necessary. This is a complex repair requiring specialist tools and software for coding and adaptation.

Q: What is the significance of metal chips found in the DL501 transmission oil?

A: Metal chips indicate internal wear within the gearbox, most commonly from the clutch drum or other friction components. These chips are highly problematic as they can clog the filter, accelerate wear on other internal components, and, most critically, short-circuit the sensitive electronic components within the Mechatronics unit. Their presence signals the need for immediate attention and potentially a thorough flush and component inspection.

Conclusion

The DL501 (0B5) gearbox is a marvel of modern engineering, offering exceptional performance and efficiency. However, its intricate design necessitates a meticulous approach to maintenance, with the DL501 - G 052 529 A2 transmission oil being at the core of its longevity and reliable operation. Understanding the specific challenges posed by issues like metal contamination, Mechatronics failures, and clutch drum wear is crucial for owners and technicians alike. Regular fluid and filter changes, coupled with the unwavering commitment to using only the correct, genuine specification oil, are the best defences against costly repairs. Should symptoms arise, prompt and professional diagnosis is paramount. By respecting the DL501's unique requirements and addressing problems swiftly, you can ensure your vehicle continues to deliver the smooth, responsive driving experience it was designed for, keeping you confidently on the road for many miles to come.
