Mastering Your Mountain Bike Disc Brakes

Disc brakes have revolutionised cycling, particularly in the realm of mountain biking. They offer unparalleled stopping power, even in the most challenging wet conditions, are remarkably low maintenance, and afford the flexibility for larger tyres on rims that might not be perfectly straight. Their impact on mountain biking is undeniable; we've come to rely on their consistent performance. However, this reliance means that any deviation from their optimal function becomes immediately noticeable and can significantly impact your riding experience. This comprehensive guide will delve into the finer points of disc brake adjustment, ranging from straightforward fixes to slightly more complex procedures, and conclude with some insightful tips you may not have previously considered. While much of the information here applies to both hydraulic and mechanical disc brakes, there are specific nuances, particularly for mechanical systems, which we will address later.

Before we embark on these adjustments, it's crucial to observe some general safety precautions. Your safety on the trails depends heavily on well-functioning brakes, so always proceed with caution. Be extremely careful around spinning brake rotors; never place your fingers near them as they can cause far more significant damage than you might anticipate. Furthermore, avoid touching your rotor or pad surfaces with bare fingers, as the natural oils from your skin can contaminate them, leading to reduced braking performance and potential noise issues. If at any point you feel unsure about a procedure, it is always advisable to seek assistance from your local bike shop (LBS). Ensuring your mountain bike brakes are correctly adjusted and maintained is paramount.

Signs Your Brakes Need Adjustment

Let's begin by identifying the common symptoms that indicate your brakes might require some attention. While some of these are frequently encountered and others less so, it's highly probable that most riders will have experienced at least one of these issues at some point in their riding journey.

Spongy Brake Lever

A brake lever that feels 'spongy' or exhibits excessive free-throw before engagement can point to one of two primary issues: either your brake pads are worn and require replacement, or there is air within your hydraulic system, necessitating a brake bleed. When diagnosing brake problems, one of the first things to inspect is the remaining life of your brake pads. Peer into the caliper and examine the pad material against the backing plate. If there's minimal material left, replacing them is a prudent first step. It can often be beneficial to remove the wheel for a more thorough inspection, as pads can wear unevenly, often faster at the bottom, making an accurate assessment difficult without removal. If, after replacing the pads, the lever still pulls too close to the handlebar, this is a strong indication that air has infiltrated your hydraulic system, and a bleed is likely required. Brake bleeding is a detailed procedure in itself, which warrants its own dedicated discussion.

Brake Lever Travels Too Far or Not Far Enough

Many modern brake systems offer various lever adjustments, frequently without the need for specialised tools. Always consult the user manual for your specific brake model to understand the available adjustments and their precise functions.

Reach Adjustment

Reach adjustment dictates the distance between the handlebars and the brake lever. Riders with smaller hands will typically prefer to adjust their levers closer to the bars for comfortable and effective engagement. It's important to note that this particular adjustment should not influence the actual braking performance or power.

Bite Point / Free Stroke Adjustment

The bite point, also known as free stroke adjustment, refers to the distance the brake lever must travel before the pads make contact with the rotor and begin to engage. If your brakes are not engaging quickly enough, or if the lever comes into contact with the handlebars when fully engaged, initially try adjusting the bite point to see if this resolves the issue. Should this not prove effective, your brakes are likely in need of either a bleed or a new set of pads.

Rubbing Brakes

Rubbing brakes represent one of the most vexing problems a cyclist can encounter. Not only do they cause a frustrating loss of precious power with every pedal stroke, but the incessant sound of the rotor rubbing against the pads can become intensely irritating. Fortunately, there are several effective methods to rectify this, ranging from simple adjustments to more intricate procedures. Let's start with the most straightforward solution.

Re-align the Caliper

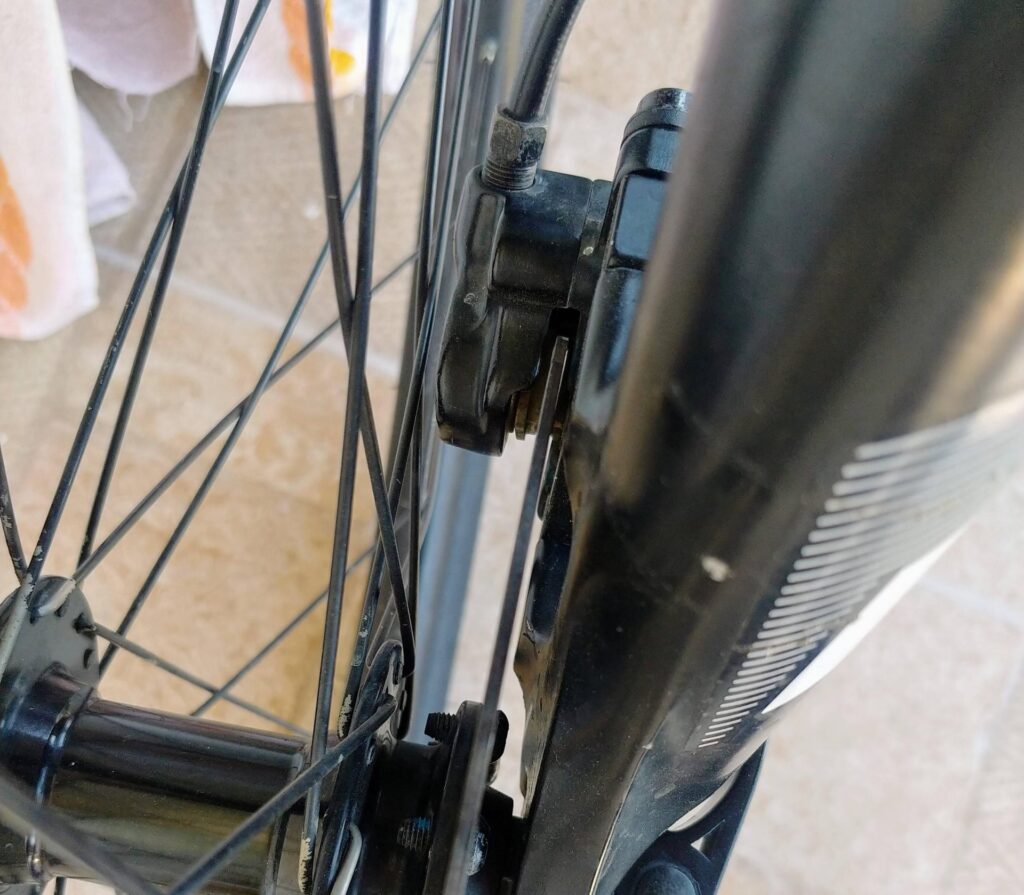

One of the simplest remedies for rubbing brakes is a straightforward realignment of the brake caliper. Over time, the caliper can subtly shift to one side, leading to one brake pad being closer to the rotor than the other, which causes the rubbing. Realigning the caliper to be perfectly centred with the rotor can often resolve this quickly and easily. If you have adequate lever travel (meaning your brake lever moves freely) but experience slight rubbing, this should be your first port of call.

Easy Caliper Realignment Steps:

1. Position your bike in a work stand, flip it upside down, or elevate it sufficiently so that the wheel can spin freely without obstruction.
2. Loosen the two caliper mounting bolts by approximately a half-turn. These are the bolts that secure the caliper to the frame or fork, not the bolts that hold the caliper halves together. The caliper should now be able to move slightly from side to side on these bolts.
3. Spin the wheel and then slow it to a complete stop by firmly applying the brake. Maintain pressure on the brake lever.
4. While still holding the brake lever, carefully tighten the caliper mounting bolts.
5. Spin your wheel again. Hopefully, it now spins freely. If not, repeat steps 2-5 a couple more times until the rubbing ceases.

If the above method does not yield the desired result, an alternative approach is to align the caliper by eye:

Visual Caliper Alignment Steps:

1. Place the bike in a work stand or flip it upside down.
2. Loosen the caliper bolts just enough so that the caliper can be moved by hand, but not so loose that it moves freely – perhaps an eighth of a turn.
3. Position yourself so you can clearly see through the caliper, observing the gap between the pads and the rotor.
4. Carefully move the caliper by hand into a position where you can visually perceive an equal gap between the pads and the rotor on both sides.
5. Tighten the caliper bolts. It can sometimes be helpful to align one end, tighten that bolt, and then align the other before fully tightening both.
6. Spin the wheel. With a bit of luck, your brakes should now be rub-free.

Reset the Pistons (and Burping Excess Fluid)

If the aforementioned tips haven't resolved your rubbing issues, it might be time to reset your brake pistons. When you look down into the caliper, the pistons should ideally extend equally on both sides. Occasionally, one piston may advance more than the other, pushing the caliper out of the range that a simple realignment can fix. Alternatively, if the brake lever was inadvertently pulled while the wheel was removed, the pistons might have extended too far. Pushing these pistons back is a relatively straightforward fix.

A less common, but regular occurrence, particularly with brakes utilising DOT fluid (such as SRAM systems), is the lever firming up to the point where the brake jams on and offers zero lever travel. This phenomenon occurs when the brake fluid absorbs water and expands, effectively overfilling the brake system. DOT fluid is hygroscopic, meaning it readily absorbs moisture from the air, a characteristic not found in mineral oil-based brake systems (like Shimano). Fortunately, we can address this by simply 'burping' a small amount of fluid and retracting the pistons.

Piston Reset & Fluid Burping Steps:

1. Place the bike in a work stand.
2. Remove the wheel from the bike.
3. Locate and remove the bleed port screw on the brake lever. If you have a bleed funnel or syringe specific to your brake, insert it. If not, simply loosen the screw enough for a small amount of fluid to leak out, and wrap a rag around it to absorb any escaping fluid.
4. Grab a piston press or a similar suitable tool; a plastic tyre lever often works well.
5. Leaving the brake pads in place, insert your chosen tool between the pads and gently lever the pistons back until they are fully retracted.
6. For SRAM brakes, a useful tip is to use the black plastic pad spacer provided with new pads. Insert the thicker side of the spacer into the caliper, pull the lever until the pads grip the spacer, then flip it around and repeat the process. This helps to space the pads correctly for the rotor and ensure the pistons are equally advanced.
7. Refit the wheel to the bike.
8. Perform the caliper alignment procedure as described previously. Note that it may take a few pulls of the lever for the pads to re-engage with the rotor initially; do not be alarmed by this.

If these steps don't work and you notice that pistons on one side are still sitting further out than the other, it could be beneficial to clean the pistons before attempting the reset process again.

True the Rotor

If you've managed to get your brakes mostly rub-free but find that the rubbing persists in just one specific spot on the rotor, it's highly probable that the rotor itself is bent. If the bend is minor and merely causes a slight slowing of the wheel, it can usually be corrected. However, if the bend is severe enough to cause the wheel to stop abruptly, it's likely time for a new rotor. It's worth remembering that brake rotors often come with a slight bend even when new, and no rotor will ever be 100% perfectly straight, making the skill of truing a valuable one.

Rotor Truing Steps:

For this task, the only specialised tool you truly need is a rotor truing tool. Many brands manufacture specific tools for this purpose, though it's quite feasible to improvise with an adjustable wrench, ensuring it's thoroughly cleaned with isopropyl alcohol beforehand to avoid contamination.

1. Place the bike in a work stand or elevate it (by flipping it or otherwise) so the wheel can spin freely.
2. Slowly spin the wheel and carefully observe where the rotor rubs against the pads. Performing this in a quiet environment can greatly assist in pinpointing the exact location.
3. When the rotor rubs, stop the wheel by hand, look down into the caliper, and make a note of which side the rotor is rubbing on.
4. Rotate the wheel back slightly, then grip the rotor firmly with your truing tool or improvised wrench. Gently bend the rotor in the opposite direction of the rub. Do not apply excessive force; small, subtle bends are key.
5. Repeat steps 2-4 as many times as necessary until the rotor is sufficiently straight. Approach this like truing a wheel: small, incremental corrections are far more effective than large adjustments. Continue working your way around the rotor until you achieve a satisfactory result. This process can be time-consuming initially, but with practice, it becomes remarkably easy.

Howling Brakes

Howling brakes are undeniably annoying. While some brake models naturally produce more noise than others, persistent howling should not be ignored, as it usually indicates an underlying issue. There are several reasons why brakes might howl or squeak, and by paying close attention to when and how the noise occurs, you can often easily diagnose and fix the problem. The most common reason is water; if your brakes perform silently in dry conditions but become noisy when wet, this is entirely normal. There's no need for concern. Typically, after a period of hard braking, the water will evaporate, and the brakes will become silent again, only to howl once more when they get wet after you release the levers. Again, this is a normal occurrence and there's little you can do to prevent it.

Contaminated Pads

If your brake howls the moment you touch the lever, even when simply walking the bike, at any speed, and simultaneously exhibits a noticeable lack of power, there's a strong likelihood that your pads are contaminated. Contamination occurs when any type of oil or foreign substance gets onto the braking surfaces—the pads and rotor—reducing friction and leading to poor braking performance accompanied by a loud, often piercing, noise. Frequently, when pads are contaminated, the rotor will visibly display a black, oily residue. Contamination can stem from various sources, including oil spilled during a brake bleed, oversprayed chain lubricant, oil encountered on the road, or even simply greasy fingers. It pays to exercise extreme caution around your brake pads.

So, what's the solution for contaminated pads? The most effective course of action is simply to replace your pads. While you might hear suggestions about 'saving' them by baking them in an oven, setting them on fire, sanding them, or other methods, in my experience, none of these approaches consistently work, or they work so infrequently that it's not worth the time and effort. Just replace the pads. Before fitting new pads, give the rotor a thorough clean with isopropyl alcohol, follow the guide above for resetting the pistons, and once the pistons are fully retracted, slot in your new pads. Perform a proper bed-in procedure, and you should be good to go.

Glazed Pads

Glazed brake pads are an extremely common issue. This occurs when the brake becomes excessively hot due to prolonged or sustained braking, causing the pad surface to 'glaze over' and become glassy and shiny in appearance. This is often accompanied by a rotor that looks slightly burnt or discoloured with an orange or purple tint. Effective braking relies on friction, and shiny, glassy surfaces are counterproductive to creating friction. The easiest way to identify glazed pads is to observe if the brake offers very little power but remains silent until you come to a complete stop, at which point it produces a howling or honking noise. Additionally, upon removal, glazed pads will exhibit a visibly shiny or glassy finish. Thankfully, this issue can be easily rectified by following the steps below:

Glazed Pad Fix Steps:

1. Place the bike in a work stand or remove the wheel.
2. Remove the pad bolt clip and bolt, or the split pin, depending on your brake model.
3. Carefully remove the brake pads. There is no need to push the pistons back for this procedure.
4. Using sandpaper, gently abrade the surface of the pads until the shiny, glassy finish is completely removed.
5. Lightly scuff the brake rotor surface with sandpaper.
6. Refit the pads and their retaining pin, and then reinstall the wheel.
7. Perform a thorough bed-in procedure for the newly scuffed pads and rotor.

Worn or Misaligned Brake Rotor

The final element worth checking when dealing with howling brakes is the rotor itself. Insufficient contact between the pads and the rotor can cause the brake to howl as the sound resonates through a small contact patch. Sometimes, this simply means the brake caliper requires realignment, so try that first. However, this issue frequently arises when new pads are fitted to an older, worn rotor. The older rotor may have developed a concave shape from previous pad wear, and when new, perfectly flat pads are installed, they do not conform to the rotor's shape, leading to noise. Check your rotor surface for any noticeable concave shape, and also measure its thickness. Most rotors have a minimum thickness marked on them. You can easily check the thickness using a pair of vernier calipers. If the rotor is at or below its minimum thickness (typically 1.5mm for most standard 1.8mm rotors), it should be replaced.

Specific Brake Types and Considerations

Flat Mount Brakes

Flat-mount brakes are commonly found on gravel and road bikes, and increasingly on some ultra-light cross-country race bikes. All the repair methods and adjustment techniques discussed above apply equally to flat-mount systems. The primary distinction between flat-mount and post-mount brakes lies in their mounting bolts. While post-mount calipers typically have bolts that pass through the caliper and thread directly into the frame or fork, flat-mount bolts usually pass through the frame and thread into the caliper for the rear brake. For the front brake, the caliper often bolts to an adapter, and that adapter then bolts to the fork. This configuration can vary, so always pay close attention to which bolts you are loosening. Otherwise, proceed with the adjustments as normal.

Mechanical Disc Brakes

Much of the general advice provided above also applies to mechanical disc brakes, with a few key exceptions. Since mechanical brakes do not utilise hydraulic fluid to actuate the pistons, there is no need to push pistons back or 'burp' fluid from the system. Instead, when changing pads on mechanical brakes, the pad contact dial should be fully wound out, and the cable clamp on the lever arm should be completely released.

Unlike hydraulic brakes, which are self-adjusting to some extent, mechanical disc brakes require constant manual adjustment of pad contact. Most mechanical disc brakes feature a single pad-contact dial, typically located on the spoke-side of the caliper, with only one piston that moves. When the brake lever exhibits too much free-throw and pulls too close to the handlebar, simply wind the pad-contact dial clockwise. This action manually pushes the pad closer to the rotor, reducing the lever's travel.

If you're out on the trail without tools, a quick temporary fix can be to wind out the barrel-adjuster on the cable counter-clockwise. However, this should not be considered a substitute for correctly winding in the pad contact dial. Often, once either of these adjustments has been made, the brake will require realignment, as one pad will have moved significantly while the other has not. This realignment can be performed using the exact same methods described for hydraulic brakes earlier in this article.

Frequently Asked Questions (FAQ)

A well-adjusted and maintained braking system is fundamental to a safe and enjoyable riding experience. Disc brakes, with their exceptional performance, require attention to detail to ensure they operate at their peak. By understanding the common symptoms of maladjustment and knowing how to apply the various troubleshooting and adjustment techniques outlined in this guide, you empower yourself to keep your mountain bike's stoppers in top condition. Whether it's a simple caliper realignment, a piston reset, or addressing persistent howling, the ability to fine-tune your brakes will not only enhance your control and confidence on the trails but also prolong the life of your components. Remember, if ever in doubt, your local bike shop is an invaluable resource for professional assistance. Happy riding, and may your brakes always be sharp and silent!
