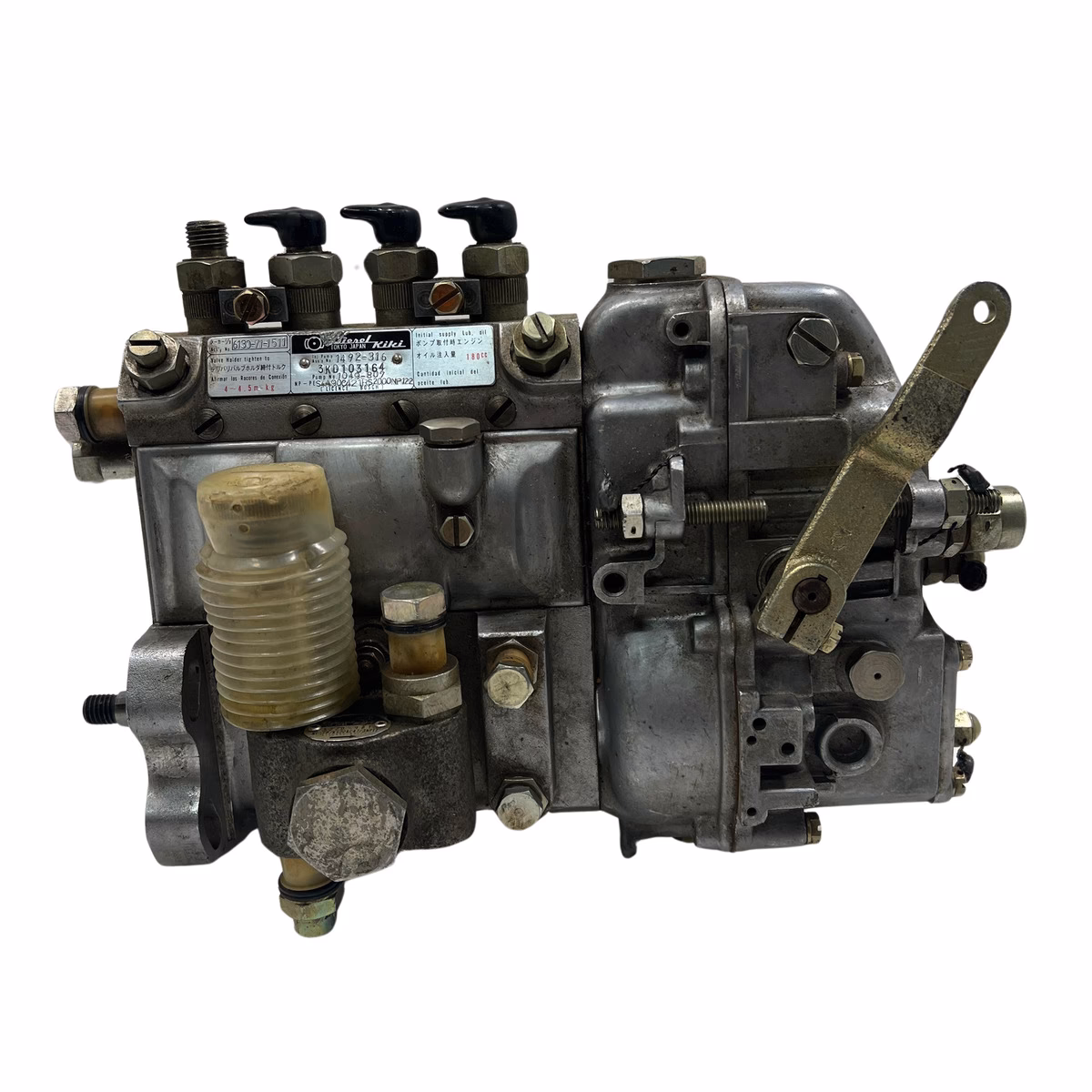

Replacing Your Kiki Bosch Injection Pump

A failing injection pump can bring your vehicle to a grinding halt, manifesting as rough idling, loss of power, excessive smoke, or even a complete refusal to start. If you're dealing with issues linked to your Kiki Bosch injection pump, the daunting task of replacement might be on your horizon. While a complex undertaking, with the right knowledge, tools, and a methodical approach, it's a job many competent DIY mechanics can tackle. This guide will walk you through the essential steps, ensuring you understand the intricacies involved in restoring your engine's heart.

The injection pump is a precision component, crucial for delivering fuel at the exact pressure and timing required for combustion. A 'Kiki Bosch' pump, while not a commonly recognised combination of terms in standard automotive literature (Bosch is the manufacturer, and 'Kiki' might refer to a specific series, a local designation, or even a misremembered model, though Bosch pumps are widely used), typically operates on principles common to many mechanical diesel injection systems. The process outlined here will be applicable to most Bosch-style rotary (VE-type) or inline pumps found in numerous diesel vehicles.

Understanding Your Kiki Bosch Injection Pump

Before you even think about wielding a spanner, it's vital to understand what your injection pump does. It's the brain and brawn of your diesel fuel system, responsible for drawing fuel from the tank, pressurising it, and delivering it to the injectors at precisely the right moment in the engine's cycle. Any wear or malfunction within this unit can severely impact engine performance, fuel efficiency, and emissions. Common failures include internal seal leaks, worn cam plates or rollers, or electrical solenoid issues on more modern mechanical pumps. Identifying the correct pump type and its specific mounting and timing marks is paramount before beginning any work.

Safety First: Paramount Precautions

Working on a vehicle's fuel system, especially with diesel, requires extreme caution. Fuel is flammable, and high-pressure fuel lines can cause serious injury. Always prioritise safety:

• Disconnect the Battery: Always disconnect both the positive and negative terminals of the vehicle's battery to prevent accidental starting or electrical shorts.
• Work in a Well-Ventilated Area: Ensure good airflow to disperse fuel vapours.
• Use Appropriate Personal Protective Equipment (PPE): Wear safety glasses, gloves, and appropriate work clothing.
• Have a Fire Extinguisher Handy: A Class B fire extinguisher designed for flammable liquids should be within reach.
• Allow Engine to Cool: Never work on a hot engine. Hot fuel lines and components can cause burns.
• Relieve Fuel System Pressure: Consult your vehicle's service manual for specific procedures, as some systems retain pressure.

Tools and Materials for the Job

Having the right tools is half the battle. Skimping on tools can lead to frustration, damage, or even injury. Here's a comprehensive list:

• Socket and Ratchet Set (Metric)
• Open-Ended and Ring Spanners (Metric)
• Torque Wrench (Essential for correct bolt tension)
• Marking Pen or Paint (For alignment marks)
• Drain Pan (For catching spilled fuel)
• Clean Rags
• Gloves and Safety Glasses
• Fuel Line Clamps (To prevent excessive fuel loss)
• New Kiki Bosch Injection Pump (Ensure it's the correct part number for your vehicle)
• New Gaskets and O-rings (Often supplied with the new pump, but check)
• Fuel Filters (Good practice to replace)
• Bleeding Pump (Hand primer or vacuum pump, depending on system)
• Timing Pin or Dial Gauge (Crucial for setting pump timing)
• Workshop Manual for your specific vehicle (Indispensable!)
• Brake Cleaner or Degreaser (For cleaning up spills)

The Step-by-Step Kiki Bosch Injection Pump Replacement Guide

This process requires precision and patience. Do not rush any step.

1. Preparation is Key

Firstly, ensure your vehicle is on a level surface with the handbrake engaged and wheels chocked. Disconnect the battery. Now, locate your Kiki Bosch injection pump, usually mounted on the side of the engine, driven by the timing belt or chain.

Before touching anything, thoroughly clean the area around the pump. This prevents dirt and debris from entering the fuel system, which can cause significant damage. Use an air compressor or a stiff brush to remove any grime.

Crucial Step: Engine Timing. This is arguably the most critical part of the entire process. The injection pump's timing must be perfectly synchronised with the engine's crankshaft and camshaft. Many engines require the crankshaft to be set to Top Dead Centre (TDC) on the compression stroke for cylinder 1 before removing the pump. Consult your workshop manual for the precise procedure for your vehicle. Look for timing marks on the crankshaft pulley, camshaft pulley, and the injection pump itself. Use a marking pen or paint to clearly mark the alignment of the pump to its mounting bracket and the engine block. These marks are vital for installing the new pump in roughly the correct position.

Remove any components obstructing access to the pump, such as air intake pipes, intercooler hoses, or auxiliary belts.

2. Careful Disassembly

Now, you'll begin disconnecting the various lines and connectors from the pump:

• Fuel Lines: There will be a fuel supply line (from the tank) and a return line (back to the tank). Use fuel line clamps to minimise spillage if your system doesn't have self-sealing connectors. Loosen and remove these carefully. Have your drain pan ready.
• High-Pressure Fuel Lines: These are the rigid metal lines running from the pump to each injector. Loosen the nuts at both the pump and injector ends. Be extremely careful not to bend or damage these lines. Once loosened, remove them entirely. Cap the ends of the lines and the injector inlets to prevent dirt ingress.
• Electrical Connectors: Disconnect any electrical plugs, such as those for the fuel shut-off solenoid or timing advance solenoid.
• Throttle Linkage/Cables: If your pump has a mechanical throttle linkage, carefully disconnect it.
• Mounting Bolts: Identify all the bolts securing the pump to the engine block or mounting bracket. These can vary in number and location. Some pumps might have a support bracket underneath.

3. Pump Removal

With all lines and connectors detached, and the mounting bolts loosened, the pump should now be ready for removal. It might be snug due to gaskets or seals, so a gentle wiggle or light prying might be needed. Be careful not to damage the mounting surfaces on the engine block. Once free, carefully lift the old Kiki Bosch pump out, ensuring no small parts fall into the engine bay.

4. New Pump Installation: Precision is Paramount

Before installing the new pump, compare it with the old one to ensure they are identical. Transfer any brackets or sensors from the old pump to the new one if they are not pre-installed. Install new gaskets or O-rings on the mounting flange of the new pump.

Carefully lower the new pump into position, aligning it with the marks you made earlier. This initial alignment is crucial for getting the engine to start. Once roughly aligned, insert and hand-tighten the mounting bolts. Do not fully tighten them yet, as you'll need some play for final timing adjustments.

Reconnect all high-pressure fuel lines, fuel supply and return lines, electrical connectors, and throttle linkage. Tighten the high-pressure fuel lines at both the pump and injector ends, but do not overtighten them, as this can strip threads or crack lines. Use a torque wrench for the mounting bolts according to your vehicle's specifications. The torque values for these bolts are critical for secure mounting and proper pump operation.

5. Initial Start-Up and Fine-Tuning

With the new pump in place and all connections secured, it's time to prime the fuel system. This removes air from the fuel lines and the pump itself. Methods vary:

• Manual Primer Pump: Many diesel systems have a hand primer pump on the fuel filter housing. Pump this until you feel resistance, indicating fuel is flowing and air is expelled.
• Electric Fuel Pump: Some vehicles have an electric lift pump in the tank; turning the ignition on (without starting) may activate it to prime the system.
• Bleeding at Injectors: In some cases, you may need to loosen the high-pressure nuts at the injector end (one at a time) and crank the engine until fuel (without air bubbles) squirts out. Tighten the nut before moving to the next injector.

Once primed, attempt to start the engine. It might take a few longer cranks than usual as the system fully purges air. If it starts, let it idle for a few minutes, checking for any fuel leaks around the pump and lines. The engine might run rough initially due to residual air.

The final and most critical step is setting the timing of the new pump. Even with careful marking, a new pump will require fine adjustment. This typically involves rotating the pump body slightly while the engine is running or using a dial gauge and specific timing tools. This procedure is highly specific to the pump type and engine. Incorrect timing can lead to poor performance, increased fuel consumption, excessive smoke, and even engine damage. If you're unsure about this step, it's highly recommended to consult a professional or a detailed workshop manual.

Common Challenges and Troubleshooting Tips

Even with meticulous care, issues can arise:

• Engine Won't Start: Most likely cause is air in the fuel system. Re-prime thoroughly. Check all electrical connections. Ensure the fuel shut-off solenoid is receiving power.
• Rough Idling/Excessive Smoke: Often a sign of incorrect pump timing. This needs immediate attention and adjustment.
• Fuel Leaks: Re-check all fuel line connections. Ensure all banjo bolts have new washers and are torqued correctly.

When to Call in the Experts

While replacing an injection pump is a DIY possibility for the mechanically inclined, there are situations where professional help is advisable:

• Lack of Specific Tools: If you don't have the required timing tools (dial gauge, locking pins), attempting the job is risky.
• Uncertainty with Timing: Setting the pump timing accurately is complex. If you're not confident, a professional diesel mechanic has the expertise and diagnostic equipment to do it correctly.
• Complex Electronic Control: Some 'Kiki Bosch' or modern Bosch pumps have integrated electronic control units (ECUs) that might require diagnostic software for calibration or error code clearing.
• Persistent Issues: If you've replaced the pump and are still experiencing problems, it might indicate a deeper issue with the engine or another component, requiring professional diagnosis.

Frequently Asked Questions (FAQs)

How long does it typically take to replace a Kiki Bosch injection pump?

For an experienced mechanic, it might take 4-8 hours. For a DIY enthusiast, especially if it's your first time, expect a full day or even a weekend. Much depends on vehicle access and the complexity of the specific engine.

Do I absolutely need special tools for pump replacement?

While you can remove and install the pump with standard hand tools, you absolutely need specific timing tools (like a dial gauge and locking pin) to accurately set the pump timing. Without these, you're guessing, which can lead to severe engine issues. A good torque wrench is also non-negotiable.

Can I replace the pump without disturbing the engine's main timing belt/chain?

In many cases, yes. The injection pump often has its own drive gear or pulley that can be removed independently. However, you must still ensure the engine is at the correct timing position (e.g., TDC for cylinder 1) before removing the old pump and installing the new one to get the initial alignment correct.

What are the signs of a badly timed injection pump?

Symptoms include hard starting, excessive black or white smoke (especially under load), reduced power, poor fuel economy, increased engine noise (knocking or rattling), and overheating. Incorrect timing can also lead to long-term engine damage.

My engine still won't start after replacing the pump. What now?

The most common reason is air in the fuel system. Re-prime the system thoroughly. Check all electrical connections to the pump, especially the fuel shut-off solenoid. Double-check all fuel line connections for leaks. If still no start, verify the pump timing is at least close to correct, and consider if there's a problem with the new pump itself (rare, but possible).

Replacing a Kiki Bosch injection pump is a challenging but rewarding task for the dedicated DIY mechanic. By following these steps meticulously, paying close attention to timing and priming, and prioritising safety, you can successfully restore your vehicle's performance. Remember, when in doubt, professional assistance is always a wise investment to protect your engine and ensure reliable operation.
