DeWalt Drill Troubleshooting Guide

It's a common frustration for any DIY enthusiast or professional tradesperson: your trusty DeWalt drill, an essential tool for countless tasks, suddenly decides to pack up. Whether it's refusing to power on, losing its vigour mid-job, or making peculiar noises, a malfunctioning drill can bring your project to a grinding halt. Fortunately, most DeWalt drill issues are not insurmountable. This guide is designed to help you diagnose and, where possible, resolve the most frequent problems encountered with DeWalt 20V Max cordless drill/driver kits, such as the popular DCD771C2 model.

Common DeWalt Drill Problems and Solutions

Let's delve into the specific issues you might be facing and explore practical steps to get your DeWalt drill back in working order.

Drill Won't Turn On

The most immediate and disruptive problem is a drill that refuses to power on at all. Before assuming the worst, consider these simple checks:

• Battery Check: This is the most frequent culprit. Ensure the battery is fully charged and correctly seated in the drill. If the battery is old or has been subjected to extreme temperatures, it might have lost its capacity. Try a different, known-good battery if you have one.
• Switch Issues: The trigger switch can become dirty or damaged. A build-up of dust or debris can impede the electrical connection. Sometimes, a gentle tap can dislodge minor obstructions, but if the switch feels loose or unresponsive, it may require cleaning or replacement.
• Fuse: Some DeWalt tools have an internal fuse. If this blows, the drill will not receive power. Locating and checking this fuse, often found within the battery pack or near the motor, is a more advanced step. Consult your drill's manual for specific fuse locations.

Drill Won't Stay On

If your drill powers on but then cuts out shortly after, or intermittently stops, the issue might lie within the motor's electrical system:

• Worn Brushes: In brushed motors (common in older or less expensive models), carbon brushes make electrical contact with the rotating commutator. As these brushes wear down, they can cause intermittent power or the drill to shut off unexpectedly. Replacing worn brushes is a common repair. Look for black soot around the motor housing or visibly short brushes.
• Overheating Protection: Many modern drills have thermal overload protection. If the drill gets too hot during prolonged use, it will shut itself off to prevent damage. Allow the drill and battery to cool down completely before attempting to use it again. Ensure the ventilation slots are clear of debris.

Drill is Not Drilling Correctly

When the drill powers on but fails to penetrate or perform as expected, several factors could be at play:

• Loose Chuck: Ensure the drill bit is securely tightened in the chuck. A loose bit will spin within the material, preventing effective drilling.
• Dull Drill Bit: A dull or damaged drill bit will struggle to cut through materials, leading to slow progress and increased strain on the drill. Replace the bit if it shows signs of wear.
• Obstruction: While less common, ensure there's nothing physically blocking the path of the drill bit where you are trying to drill.

Drill is Not Driving Screws

Driving screws requires precise torque control. If your drill is struggling to sink screws or is over-driving them:

• Clutch Setting: The adjustable clutch is designed to prevent over-tightening and stripping screw heads. Ensure the clutch is set to an appropriate torque setting for the screw size and material. If the clutch is set too low, it will disengage prematurely. Experiment with different settings to find the sweet spot.
• Clutch Malfunction: Over time, the clutch mechanism can wear out. If you've tried adjusting it and it still doesn't engage correctly, the clutch assembly might need replacement.

Drill is Overheating

An overheating drill is not only a sign of a potential problem but can also be a safety hazard:

• Blocked Ventilation: The primary cause of overheating is often restricted airflow. Check that the drill's ventilation ports are clear of dust, wood shavings, or any other debris. Use compressed air to blow out any blockages.
• Worn Brushes/Motor Issues: As mentioned earlier, worn brushes can lead to increased friction and heat. A damaged motor can also generate excessive heat.
• Overloading: Pushing the drill too hard, especially when drilling into dense materials or using large bits, can cause it to overheat. Allow the tool to cool down and consider using a more appropriate tool or technique.

Noisy Drill

Unusual noises can indicate internal wear and tear:

• Worn Bearings: The most common cause of grinding or rattling noises is worn-out bearings within the motor or gearbox. Replacing bearings is a more involved repair but is often feasible for those with mechanical aptitude.
• Loose Components: Occasionally, a screw or internal component might have vibrated loose, causing rattling. A visual inspection (after disconnecting the battery) might reveal loose parts.

Drill Has No Torque/Losing Torque

A noticeable reduction in power, even with a fully charged battery, points to specific internal issues:

• Worn Brushes: This is a prime suspect for power loss. When brushes are worn, they cannot maintain consistent contact with the commutator, reducing the motor's efficiency and torque output.
• Armature Damage: The armature is the rotating part of the motor that the brushes contact. If the commutator surface (where the brushes ride) is damaged, pitted, or excessively worn, it will impede power transfer. This often requires motor replacement.

Won't Change Speed

If your drill's variable speed trigger is unresponsive or stuck on one speed:

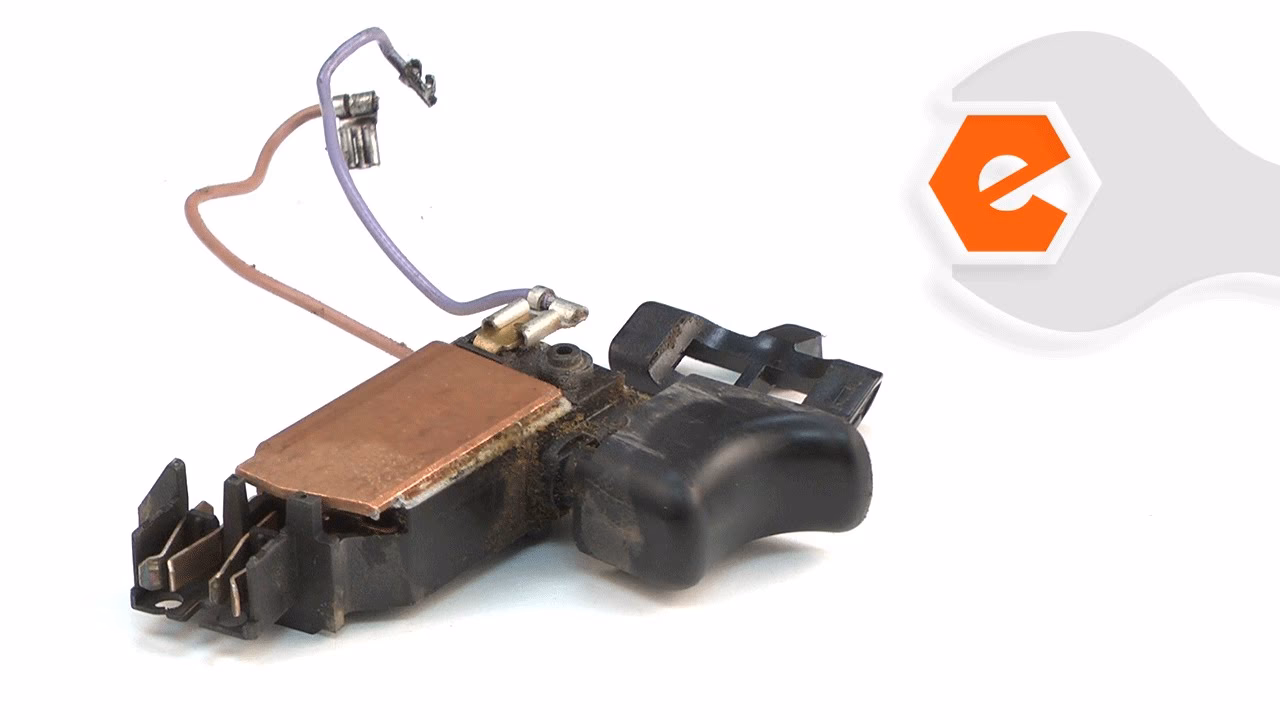

• Trigger Mechanism: The trigger itself contains a variable speed control. Dust or damage to the internal contacts of the trigger can prevent speed changes. Sometimes, cleaning around the trigger area can help.
• Switch Fault: The main switch assembly controls power flow. If it's damaged, it might only allow the motor to run at a single speed.
• Motor Issue: In rare cases, a problem within the motor might prevent it from responding to speed control signals.

Won't Turn to Hammer Drill Mode

For drills equipped with a hammer function:

• Mode Selector Switch: Ensure the mode selector switch is correctly positioned in the 'hammer' setting. Sometimes these switches can become stiff or partially engaged.
• Internal Hammer Mechanism: The hammer function relies on a specific internal mechanism that engages when the mode is selected. If this mechanism is damaged or jammed, the hammer action won't activate.

Drilling Too Slow

Slow drilling can be frustratingly similar to other issues:

• Dull Bit: As mentioned, a dull bit is a common cause.
• Incorrect Bit Type: Using the wrong type of drill bit for the material (e.g., a wood bit in masonry) will result in slow and inefficient drilling.
• Low Power: This could point back to battery, brush, or motor issues.

Brake Not Working

The electric brake stops the chuck rotation almost instantly when the trigger is released. If it's not working:

• Brushless Motor Issues: In brushless drills, the brake is often integrated into the motor's electronic control. A defect here might require professional diagnosis.
• Chuck Cleaning: While less likely to affect the brake directly, ensuring the chuck is clean and free of debris is good practice.

Beeping And Not Working

A beeping sound often indicates a specific fault detected by the drill's internal electronics:

• Battery Fault: The drill may detect a faulty or critically low battery. Try charging the battery fully or using a different one. Inspect the battery contacts for corrosion.
• Overload/Overheat: Some models beep to signal an overload or overheating condition. Allow it to cool and try again with less load.
• Internal Error: Beeping can also signal a more complex internal electronic fault.

Light Won't Turn Off / Light On Or Flashing But Not Working

Illuminating LEDs are a handy feature, but they can sometimes malfunction:

• Low Battery: In some cases, a very low battery can cause the LED to stay on constantly or flash erratically. Charge or replace the battery.
• Switch/LED Circuitry: The LED is usually controlled by the trigger switch or a separate circuit. Damage or dirt on the switch contacts or within the LED's wiring can cause it to remain illuminated. Cleaning the switch area or checking the LED's connection might resolve this.

Troubleshooting Table

Here's a quick reference for common symptoms and likely causes:

Frequently Asked Questions (FAQ)

Q1: What should I do if my DeWalt drill stops working suddenly?

A1: First, check the power source – ensure the battery is charged and properly inserted. If you were using it, it might have overheated; let it cool. Check for any obvious damage or blockages.

Q2: How do I know if my DeWalt drill batteries are bad?

A2: Signs include the drill having significantly less power than usual, not holding a charge for long, or not charging at all. If a battery consistently fails to power the drill effectively, it's likely time for a replacement.

Q3: How often should I clean my DeWalt drill?

A3: Regular cleaning is recommended, especially after dusty jobs. A quick wipe-down of the exterior and blowing out dust from vents with compressed air every few months can significantly prolong the life of your tool.

Q4: Why does my DeWalt drill stop working while I'm using it?

A4: This could be due to overheating protection kicking in, a battery losing its charge, or an internal electrical fault. If it's not overheating or a dead battery, investigate internal components like brushes or switches.

Q5: Is there a fuse in a DeWalt drill?

A5: Some DeWalt drills, particularly older models or specific lines, may have an internal fuse. Consult your specific model's manual to determine its location and how to check it. Often, it's a small cylindrical fuse accessible by removing the battery pack or a specific cover.

Q6: How do I test a motor for a DeWalt drill?

A6: Testing a motor typically requires a multimeter. With the battery removed, you'd test for continuity or resistance across the motor terminals. A reading of infinite resistance usually indicates a failed motor. However, this is an advanced diagnostic step and may be best left to professionals if you're unsure.

Q7: How do I know if my DeWalt drill battery is bad?

A7: A failing battery will often show reduced run time, a lack of power even when fully charged, or it may fail to charge altogether. Inspect the battery contacts for dirt or corrosion. If multiple batteries exhibit these symptoms, it might indicate an issue with the charger.

Conclusion

Experiencing issues with your DeWalt drill can be a significant setback, but with this guide, you're better equipped to identify the problem and explore potential solutions. Always prioritize safety by disconnecting the power source (removing the battery) before attempting any internal inspection or repair. For complex issues or if you're uncomfortable with disassembly, consulting the owner's manual or seeking assistance from a qualified repair centre is always advisable. Getting your DeWalt drill back in working order means you can get back to tackling your projects with confidence.
