Understanding Modern Car Fuel Injection

The journey of fuel from your tank to the engine's combustion chamber is a fascinating and critical aspect of modern automotive engineering. Over the decades, engineers have continuously refined how fuel is delivered, striving for greater efficiency, power, and reduced emissions. This evolution has led us from simple carburettors to sophisticated electronic fuel injection systems, each with its own set of advantages and challenges. Understanding these systems isn't just for mechanics; it helps every car owner appreciate the complexity and ingenuity beneath the bonnet and can even inform decisions about vehicle maintenance and upgrades.

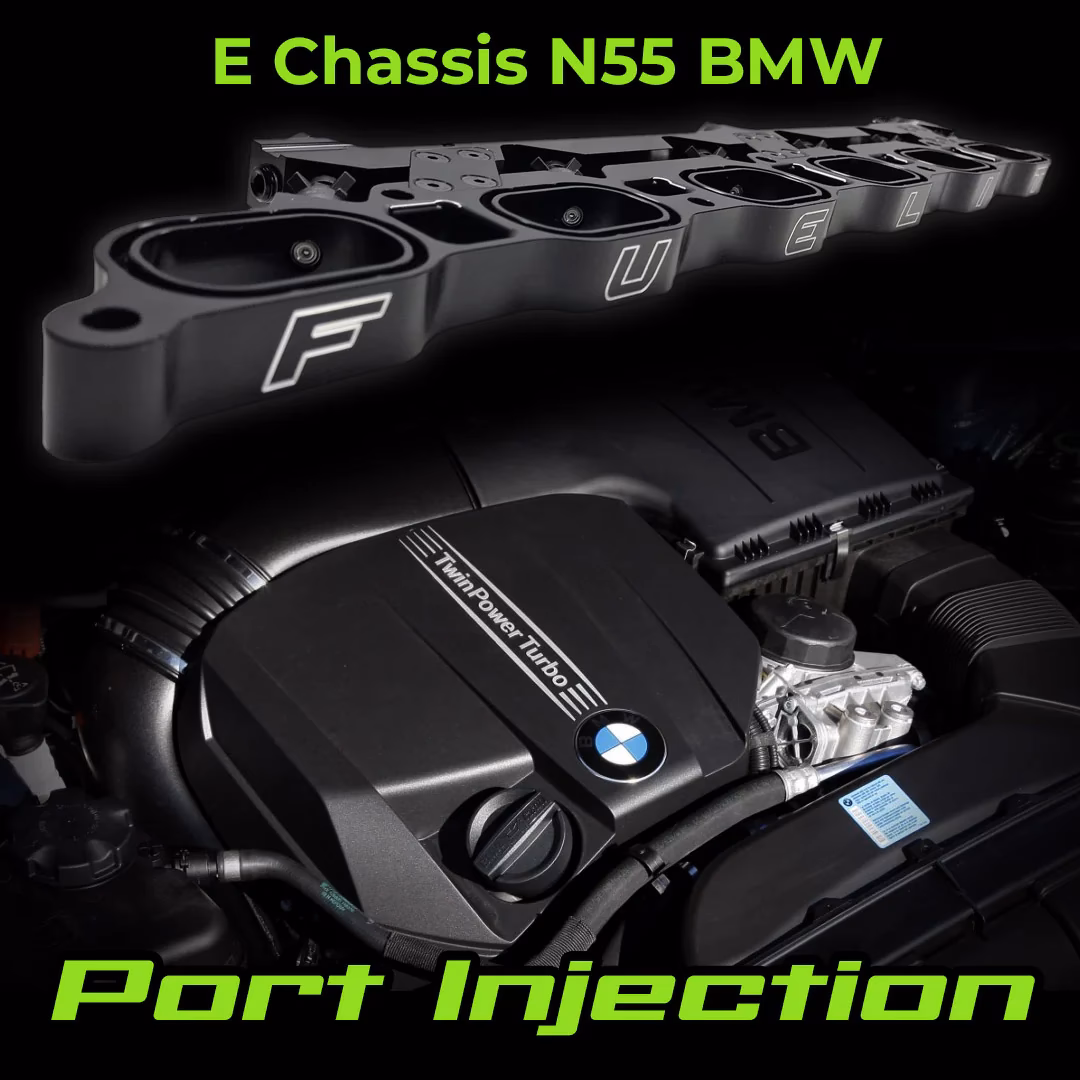

What is Port Fuel Injection (PFI)?

In the grand lineage of fuel delivery systems, Port Fuel Injection (PFI) represents a significant leap forward. At its core, PFI involves placing individual fuel injectors strategically close to each intake valve. This design ensures that fuel is precisely sprayed into the intake port, just before it enters the combustion chamber. Unlike older systems that might mix fuel and air much earlier in the intake manifold, PFI allows for a more controlled and atomised delivery, leading to improved fuel-air mixture quality and, consequently, better combustion efficiency.

The widespread adoption of PFI marked a pivotal moment in automotive history, particularly from the mid-1980s onwards. It allowed for more precise control over the air-fuel ratio compared to carburettors or earlier throttle body injection systems. This precision is vital for optimising engine performance, reducing fuel consumption, and meeting increasingly stringent emissions regulations. The individual placement of injectors means that each cylinder receives a more consistent and tailored fuel charge, contributing to smoother engine operation and more predictable power delivery across the RPM range. PFI has been the dominant fuel injection method for the vast majority of petrol engines for several decades, proving its reliability and effectiveness.

PFI's Solution to Direct Injection Carbon Build-up

While PFI has served us well, the automotive industry continues to innovate, leading to the development of Direct Fuel Injection (DI). In DI systems, fuel is sprayed directly into the combustion chamber, similar to how diesel engines operate. This technology offers impressive benefits, including enhanced fuel economy and higher power output, primarily by allowing for higher compression ratios and more precise fuel metering at various engine loads. However, DI petrol engines come with a significant Achilles' heel: carbon build-up on the intake valves.

The reason for this carbon accumulation is straightforward. In a DI engine, fuel bypasses the intake valves entirely as it's injected directly into the cylinder. This means the fuel, which in PFI systems acts as a natural cleaning agent, never washes over the backside of the intake valves. Over time, oil vapours and unburnt fuel residues from the PCV (Positive Crankcase Ventilation) system can bake onto the hot intake valves, forming stubborn carbon deposits. These deposits restrict airflow, reduce engine efficiency, and can lead to rough idling, misfires, and a noticeable drop in performance.

This is where the ingenious concept of adding Port Fuel Injection to a Direct Injection engine comes into play. Known as dual-injection or combined injection systems, this setup leverages the best of both worlds. By introducing PFI alongside DI, a small amount of fuel is periodically sprayed into the intake ports. This fuel then washes over the intake valves, effectively cleaning away carbon deposits before they can accumulate and cause problems. It's a remarkably effective solution that addresses the primary drawback of DI engines without sacrificing their inherent benefits. For owners of modern DI vehicles experiencing or looking to prevent carbon build-up, this dual-injection strategy offers a robust and long-term fix, ensuring the engine runs cleanly and efficiently for years to come.

Understanding Fuel Delivery Technologies: Carb vs. TBI vs. MPFI vs. DI

When it comes to feeding your engine the vital petrol it needs, there's been a fascinating evolution of technologies, each presenting its own engineering marvels, advantages, and disadvantages. Let's delve into the primary methods that have powered vehicles over the decades, from the mechanical intricacies of carburettors to the electronic precision of modern injection systems.

Carburettor: The Old School Approach

Let's begin with the carburettor, the original method for mixing air and fuel before the advent of widespread fuel injection. Predominant until the 1980s, carburettors are mechanical devices that rely on the Venturi effect to draw fuel into the incoming air stream. As air accelerates through a narrowed section (the Venturi) within the carburettor, a low-pressure area is created. This pressure differential pulls fuel from a float chamber, atomising it into the airflow before it enters the intake manifold and subsequently the cylinders.

Carburettors are intricate devices, featuring multiple circuits for different engine operating conditions: idle circuits for when you're off the accelerator, power valves for high-demand situations, and accelerator pumps to compensate for rapid throttle openings. Tuning a carburettor involves adjusting jets (the size of the fuel orifices) and needle valves, a process often requiring considerable experience and intuition. The primary advantage of carburettors, particularly for performance applications, is their ability to cool the intake charge. When fuel is injected high in the intake manifold, it evaporates and cools the air, making it denser and allowing for more power. However, carburettors are highly susceptible to atmospheric conditions, less precise in fuel metering, and struggle to maintain optimal air-fuel ratios across a wide RPM range, making them less efficient and environmentally friendly than modern systems.

Throttle Body Injection (TBI): The First Step into Modern Injection

Throttle Body Injection (TBI) emerged as a transitional technology, bridging the gap between carburettors and more advanced fuel injection systems. Visually, a TBI unit might resemble a two-barrel carburettor, sitting atop the intake manifold. However, the similarities end there. TBI units do away with the complex Venturis, floats, and jets. Instead, they feature one or two large fuel injectors positioned above a throttle plate.

TBI operates as a low-pressure system, though at higher pressures than a typical carburettor. Fuel delivery is precisely controlled by the Engine Control Unit (ECU), which monitors various engine parameters like airflow, engine demand, and oxygen levels in the exhaust. The ECU determines how long and how often the injectors open using Pulse Width Modulation (PWM), rapidly switching them on and off thousands of times per second to deliver the exact amount of fuel needed. Like carburettors, TBI injects fuel high in the intake manifold, benefiting from the same intake charge cooling and densification. While more precise and efficient than carburettors, TBI systems still suffer from some limitations, such as less uniform fuel distribution to individual cylinders and a limited RPM power window compared to later multiport systems. TBI was largely phased out by the early 2000s in favour of more sophisticated designs.

Multiport Fuel Injection (MPFI) / Tuned Port Fuel Injection (TPI): The Dominant Force

The next significant evolution brought us Multiport Fuel Injection (MPFI), also frequently known as Tuned Port Fuel Injection (TPI), Intake Runner Injection, or by various manufacturer-specific names. This system revolutionised fuel delivery by placing an individual fuel injector for each cylinder, typically located in the intake runner, just upstream of the intake valve. This design ensures that fuel is delivered directly to each cylinder's intake port, providing superior control and atomisation compared to TBI or carburettors.

MPFI systems operate at much higher fuel rail pressures than TBI, which further aids in atomising the fuel into a very fine mist. The ECU's control over MPFI is incredibly precise, allowing it to fine-tune fuel delivery based on a multitude of factors, including throttle position, manifold pressure, engine RPM, exhaust oxygen (lambda) readings, and even boost pressure in forced-induction applications. This level of precision enables optimal air-fuel mixtures across the entire engine operating range, leading to excellent fuel economy, lower emissions, and consistent power delivery.

While some traditionalists found the electronic complexity of MPFI daunting, its advantages are undeniable. Although injecting fuel closer to the valve might slightly increase intake air temperature compared to injecting it further upstream, the ability to precisely control fuel delivery at the intake valve itself allows for lower combustion chamber temperatures, which is a significant benefit for engine longevity and performance. Modern MPFI systems can even auto-adjust for changes in atmospheric conditions or engine demand, making them incredibly adaptable and efficient. The transition of high-performance racing series, like NHRA Pro Stock, from carburettors to MPFI highlights its superior performance potential and precision, even if initial adaptations presented challenges with intake manifold design.

Direct Injection (DI): The Cutting Edge (for Petrol)

Direct Injection (DI) represents the pinnacle of petrol engine fuel delivery technology, having been a staple in diesel engines for much longer. In a DI system, the fuel injector is positioned directly within the combustion chamber itself, rather than in the intake manifold or port. This allows for incredibly precise timing and metering of fuel delivery, often injecting fuel multiple times within a single combustion cycle.

There are generally two main approaches to DI injector placement: 'wall-guided' DI, where the injector is typically positioned on the side of the cylinder head (similar to a spark plug location) and sprays fuel onto a specially shaped piston crown to guide atomisation; and 'spray-guided' DI, where the injector is placed centrally between the intake and exhaust valves, often akin to the spark plug location in a pent-roof or hemi-roof combustion chamber. DI systems operate at extremely high fuel pressures, often reaching thousands of PSI, to ensure ultra-fine fuel atomisation for rapid and complete combustion.

The advantages of DI are substantial: superior fuel efficiency, increased power output, and reduced emissions. By injecting fuel directly into the cylinder, DI allows for higher compression ratios without pre-detonation (knocking), even with lower octane fuels, thanks to the cooling effect of the evaporating fuel within the cylinder. This enables engines like the new EcoTec3 series to run efficiently on both regular and premium fuels. However, as discussed earlier, the primary drawback of DI petrol engines is the aforementioned carbon build-up on intake valves, as fuel no longer washes over them. Despite this challenge, the performance and efficiency gains offered by DI mean it is the dominant technology in new petrol vehicles, often augmented by PFI in dual-injection systems to mitigate the carbon issue.

Comparative Overview of Fuel Delivery Systems

Frequently Asked Questions About Fuel Injection

Can I add Port Fuel Injection to my Direct Injection engine?

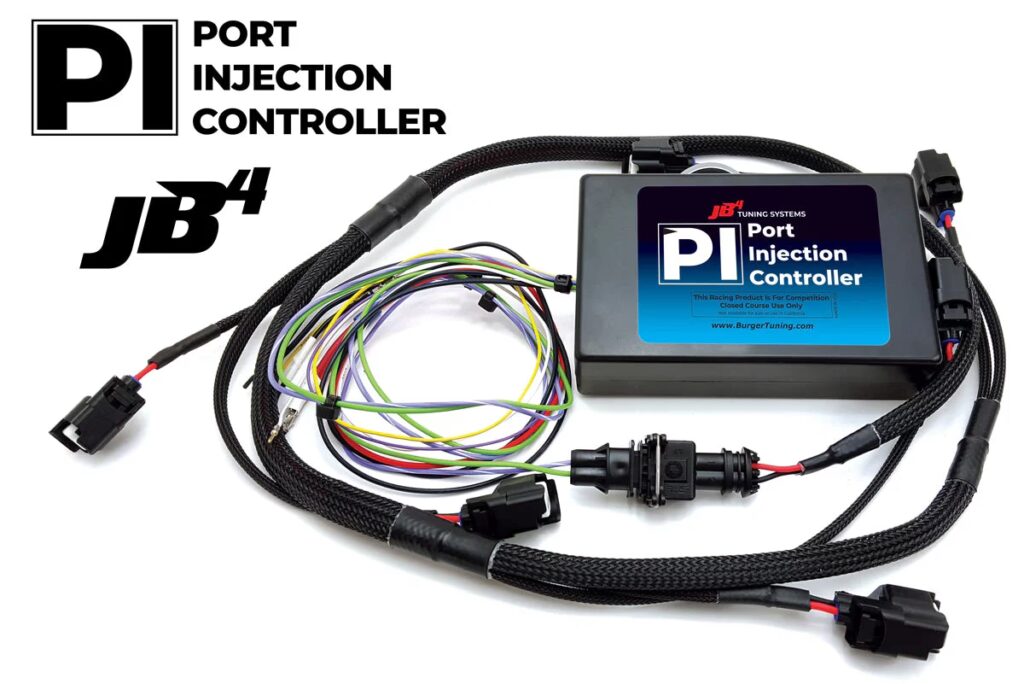

Yes, adding Port Fuel Injection (PFI) to a Direct Injection (DI) engine is a known and effective modification, often referred to as a 'dual injection' or 'supplementary PFI' system. This modification is primarily undertaken to combat the issue of carbon build-up on the intake valves of DI engines. By introducing a secondary set of PFI injectors, fuel is periodically sprayed into the intake ports, washing over the intake valves and preventing carbon deposits from accumulating. While it can be a complex modification requiring careful tuning of the Engine Control Unit (ECU), it offers a significant long-term solution to a common DI engine problem, ensuring sustained performance and efficiency.

Is Multiport Fuel Injection (MPFI) the same as Tuned Port Fuel Injection (TPI)?

Yes, for all practical purposes, Multiport Fuel Injection (MPFI) and Tuned Port Fuel Injection (TPI) refer to the same fundamental concept. TPI was a specific marketing term used by General Motors, particularly for their V8 engines in the 1980s (like those found in the Chevrolet Corvette and Camaro). It highlighted the 'tuned' length of the intake runners designed to optimise airflow and fuel delivery from the multiple injectors. However, the underlying technology – an individual fuel injector located at each intake port – is precisely what defines MPFI. So, while TPI is a specific type of MPFI, the terms are often used interchangeably to describe systems with individual port injectors.

What are the signs of a failing fuel injector?

Signs of a failing fuel injector can vary but commonly include a misfiring engine, rough idling, reduced fuel economy, a noticeable loss of power or acceleration, and an illuminated 'Check Engine' light. You might also detect a strong smell of fuel if an injector is leaking, or hear a ticking noise from the engine if an injector is stuck open or closed. Since modern fuel injectors are precisely controlled components, even a slight malfunction can significantly impact engine performance and emissions. It's crucial to address these symptoms promptly to prevent further damage to your engine or catalytic converter.

Can I clean my fuel injectors?

Yes, fuel injectors can often be cleaned, but the effectiveness depends on the severity and type of contamination. For minor issues, using a high-quality fuel system cleaner added to your petrol tank can help dissolve deposits. For more significant blockages, professional cleaning methods are available, such as ultrasonic cleaning where injectors are removed and precisely cleaned and flow-tested off the vehicle. While DIY fuel additives are a good preventative measure, severe clogs or mechanical failures (like a faulty solenoid) usually require professional intervention or replacement. Always consult your vehicle's manufacturer recommendations before using any additives.

Why is fuel pressure so high in Direct Injection systems?

Fuel pressure in Direct Injection (DI) systems is exceptionally high (often thousands of PSI) for a critical reason: to achieve ultra-fine fuel atomisation directly within the high-pressure environment of the combustion chamber. When fuel is injected directly into the cylinder, it needs to mix rapidly and thoroughly with the air for efficient combustion, even under high compression. High pressure forces the fuel through tiny orifices in the injector nozzle at very high velocity, creating a highly atomised spray. This fine mist allows for faster, more complete combustion, leading to greater power, better fuel economy, and lower emissions compared to systems operating at lower pressures.

Conclusion

The evolution of automotive fuel delivery systems, from the elegant simplicity of the carburettor to the intricate precision of modern direct injection, showcases a relentless pursuit of efficiency, power, and environmental responsibility. Each technological leap, including the widespread adoption of Multiport Fuel Injection and the innovative dual-injection systems that combine PFI with DI, has brought significant improvements to how our vehicles perform. Understanding these systems not only demystifies the mechanics beneath the bonnet but also empowers you as a vehicle owner to make informed decisions about maintenance and to appreciate the sophisticated engineering that drives your daily commute or weekend adventure. While the technology may seem complex, the underlying goal remains constant: to deliver the right amount of fuel at precisely the right time for optimal performance.
