Understanding Type 1 Sub Base

When embarking on any construction project, from a simple garden path to a sprawling car park or a vital roadway, the foundation upon which everything is built is absolutely paramount. Often, the unsung hero of this foundational work is the sub-base material. In the United Kingdom, a widely recognised and extensively used sub-base material is known as Type 1 Sub Base, also frequently referred to as Class 1A Fill Sub Base. This article will delve into what Type 1 Sub Base is, its composition, its critical applications, and why it's an indispensable component in creating robust and long-lasting structures.

What Exactly is Type 1 Sub Base?

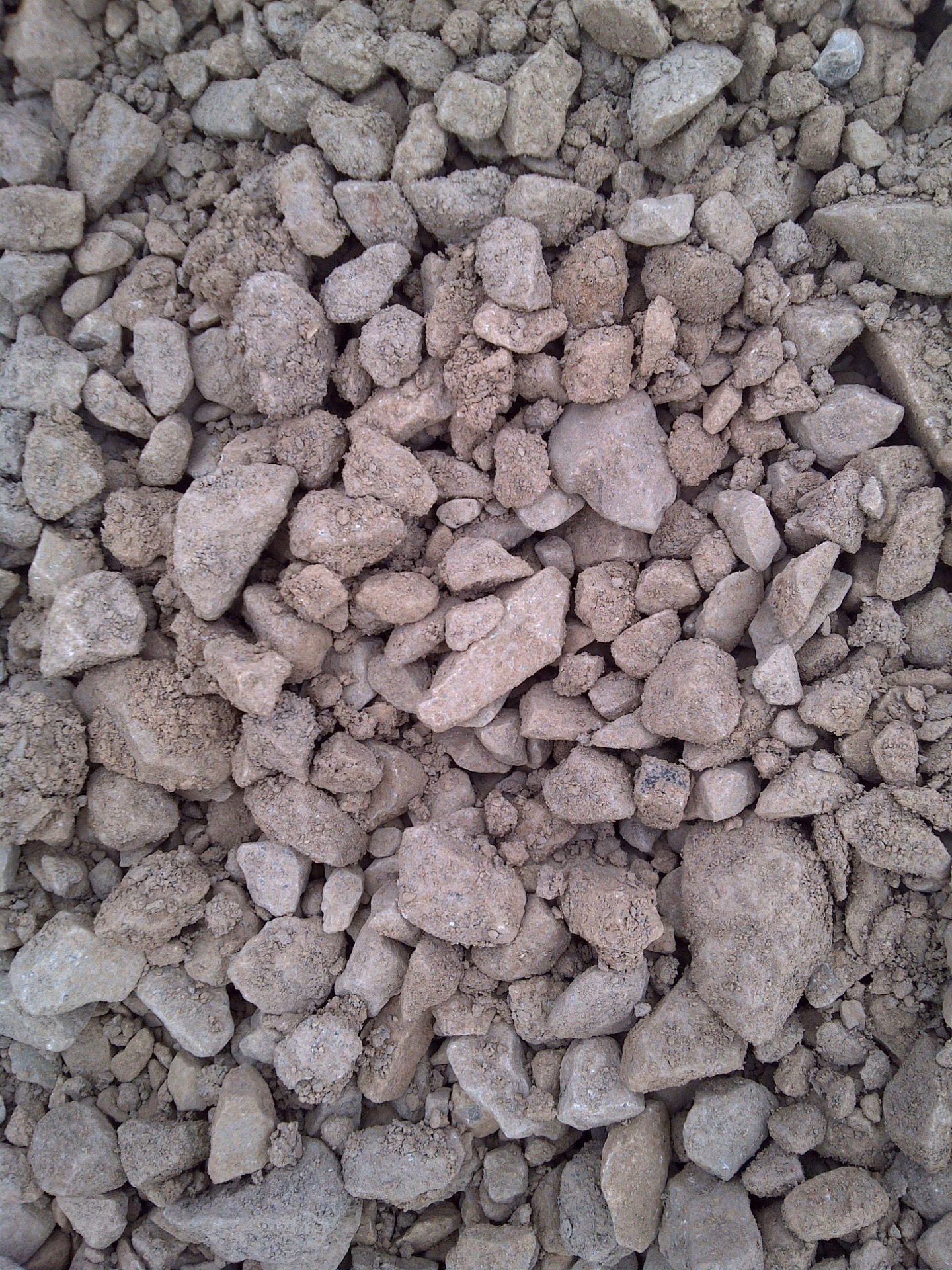

Type 1 Sub Base is a specifically engineered aggregate material. Its primary characteristic is its graded composition, typically ranging from a maximum particle size of 40mm down to a fine dust. This grading is not accidental; it's meticulously designed to allow the material to compact effectively, creating a dense, stable, and load-bearing layer. The 'dust' component is crucial as it fills the voids between the larger aggregate particles, resulting in a cohesive and impermeable layer when properly compacted. This makes it an ideal material for providing a solid platform for subsequent layers of construction, such as asphalt or concrete. The "Type 1" designation refers to a British Standard specification, ensuring a consistent quality and performance across different suppliers.

Composition and Properties

The exact composition of Type 1 Sub Base can vary slightly depending on the source of the aggregate, but it is generally derived from crushed stone, such as limestone, granite, or basalt. The key is the grading of particle sizes. A typical specification might look something like this:

It's important to note that the measurement of stone sizes is taken at their narrowest point. This means that while a stone might be described as 40mm, its actual dimensions could be slightly larger in other directions. This technical measurement ensures that the material adheres to the specified grading curves, which are critical for its performance.

The properties that make Type 1 Sub Base so valuable include:

• Excellent Compaction: The graded nature allows it to be compacted to a high density, providing a firm and stable base.
• Load Bearing Capacity: When properly compacted, it can effectively distribute loads, preventing excessive settlement or deformation of the overlying layers.
• Drainage: While relatively impermeable when fully compacted, the aggregate structure still allows for some degree of drainage, preventing waterlogging beneath the surface.
• Durability: Made from hard, crushed rock, it is resistant to weathering and degradation.
• Versatility: Suitable for a wide range of applications.

Key Applications of Type 1 Sub Base

Type 1 Sub Base is a workhorse material in the construction industry, playing a vital role in numerous projects:

Road Construction

In road building, Type 1 is used as the base layer directly beneath the tarmac or asphalt wearing course. It provides a stable platform that can withstand the heavy loads imposed by traffic, preventing the road surface from cracking or deforming. It forms a crucial part of the pavement structure, ensuring the longevity and safety of the road.

Car Parks

Similar to roads, car parks experience significant traffic and static loads from parked vehicles. Type 1 Sub Base provides the necessary strength and stability to support these loads, ensuring that the car park surface remains level and free from potholes or rutting.

Pathways and Footpaths

For pedestrian pathways and cycle paths, Type 1 Sub Base offers a firm and stable surface, making them comfortable and safe to use. It prevents the surface from becoming uneven due to ground movement or erosion.

Hard Standing Areas

Any area requiring a durable, load-bearing surface, such as industrial yards, storage areas, or temporary event sites, benefits from a Type 1 Sub Base. It creates a robust foundation that can support heavy machinery, stored materials, or large crowds.

Building Platforms

When preparing a site for a new building, the ground often needs to be levelled and stabilised. Type 1 Sub Base is used to create a firm, level platform upon which the building's foundations or ground floor slab will be laid. This is critical for ensuring the structural integrity of the building.

Laying and Compaction

The effectiveness of Type 1 Sub Base is heavily dependent on the way it is laid and compacted. The process typically involves:

1. Preparation of the Subgrade: The underlying soil layer (subgrade) must be prepared, often by excavating to the required depth and ensuring it is firm and well-drained.
2. Spreading the Material: Type 1 Sub Base is spread evenly across the prepared subgrade, usually in layers of no more than 150mm thickness.
3. Compaction: Each layer is then thoroughly compacted using appropriate plant, such as a vibrating roller or a plate compactor. Compaction is essential to achieve the desired density and stability. Multiple passes are usually required.
4. Watering: Sometimes, water is lightly applied during compaction to help the finer particles bind together, aiding the creation of a cohesive layer.

Achieving the correct level of compaction is critical. This is often verified using a nuclear density gauge or by conducting plate bearing tests to ensure the sub-base meets the required engineering specifications. A poorly compacted sub-base will lead to premature failure of the overlying construction.

Why is Type 1 Sub Base So Important?

The importance of Type 1 Sub Base cannot be overstated. It acts as the intermediary between the natural ground (subgrade) and the final surface material (e.g., asphalt, concrete, paving slabs). Its key roles include:

• Load Distribution: It spreads the weight of traffic or structures over a wider area of the subgrade, reducing the stress on the underlying soil.
• Frost Protection: By providing a well-drained layer, it helps prevent water from penetrating the subgrade and freezing, which can cause heave and damage.
• Providing a Level Surface: It creates a smooth, level plane for the installation of the final surface, ensuring a good finish and preventing stress concentrations.
• Stability: It provides a stable and unyielding layer that prevents the movement or deformation of the overlying materials.

Without a properly constructed sub-base, even the most durable surface materials would quickly fail under load and environmental conditions. It is the invisible strength that underpins our infrastructure.

Frequently Asked Questions

Q1: What is the main difference between Type 1 and Type 2 sub-base?
Type 1 is a crushed aggregate with a wider range of particle sizes (40mm down to dust), designed for excellent compaction and load-bearing. Type 2, conversely, is typically a cleaner, single-sized aggregate (often 20mm or 30mm), which is more permeable and used primarily for drainage layers or as a clean fill where high compaction isn't the primary requirement.

Q2: Can I use Type 1 sub-base for a small garden patio?
Yes, for a garden patio, especially if it will receive foot traffic and occasional light loads, Type 1 Sub Base is an excellent choice for the foundation layer. It ensures stability and prevents the patio from sinking or becoming uneven.

Q3: How thick should the Type 1 sub-base layer be?
The required thickness depends on the expected loads and the quality of the subgrade. For pathways and patios, 100-150mm is common. For roads and car parks, layers can be significantly thicker, often laid in multiple compacted lifts.

Q4: Is Type 1 sub-base the same as MOT Type 1?
Yes, Type 1 Sub Base is commonly referred to as MOT Type 1, as it meets the specifications set by the UK's Department for Transport (DfT), formerly the Ministry of Transport (MOT), for use on highways.

Conclusion

Type 1 Sub Base, or Class 1A Fill Sub Base, is a fundamental material in modern construction. Its precisely graded composition, derived from hard-wearing crushed stone, allows for exceptional compaction, providing the necessary stability, load-bearing capacity, and durability for a wide array of applications, from major road networks to domestic pathways. Understanding its properties and the importance of correct installation is key to ensuring the longevity and performance of any construction project. It is truly the foundation upon which reliable infrastructure is built, offering unseen but vital support.
