Understanding and Addressing Head Gasket Failures
A malfunctioning head gasket can be a significant concern for any vehicle owner, often leading to a cascade of engine problems. Recognizing the signs of a blown head gasket early on and addressing the problem promptly can save you from more extensive and costly repairs. In this comprehensive guide, we will walk you through the process of fixing a blown head gasket, covering everything from diagnosis to the actual repair.
Why Do Head Gaskets Fail?
Before you go about repairing your leaky or blown head gasket, it’s helpful to understand why it may fail in the first place. Head gaskets perform a task which puts an incredible amount of stress on them, so it’s not surprising that some will break down. However, this can potentially be disastrous as far as the efficiency of a vehicle is concerned.
Head gaskets are crucial components that seal the combustion chambers, oil passages, and coolant passages between the engine block and the cylinder head. They are designed to withstand immense pressure and heat generated during the combustion process. However, over time, due to factors like extreme temperatures, excessive pressure, or general wear and tear, the gasket material can degrade, leading to failure.
There are two major faults the head gasket can have:
- Allowing combustion gases to leak out: When combustion gases escape from the cylinder, it leads to a loss of compression. This manifests as rough idling, misfires, and a noticeable drop in engine power. Furthermore, these hot gases can overheat and damage the surrounding engine components, including the cylinder head itself.
- Letting coolant leak in: If the head gasket fails to seal the coolant passages, coolant can leak into the combustion chamber or mix with the engine oil. Coolant entering the combustion chamber will be burned off, producing thick, white smoke from the exhaust. Coolant mixing with oil creates a milky, frothy substance, often referred to as "mayonnaise," which severely compromises the oil's lubricating properties and can lead to catastrophic engine damage.
Identifying the Signs of a Blown Head Gasket
Several common symptoms can indicate a leaky or blown head gasket. Being vigilant and familiar with these signs can help you catch the problem before it escalates:
- Overheating: This is one of the most common indicators. If combustion gases leak into the cooling system, they can create air pockets, reducing the coolant's efficiency in dissipating heat. Alternatively, if coolant is leaking out, the system won't have enough fluid to keep the engine cool.
- White smoke from the exhaust: Persistent white, sweet-smelling smoke emanating from your exhaust pipe, especially after the engine has warmed up, is a strong sign that coolant is leaking into the combustion chamber and being burned.
- Exhaust gases/bubbles in the overflow tank: If you notice bubbles forming in your coolant reservoir or overflow tank while the engine is running, it's a clear indication that combustion gases are being forced into the cooling system.
- Milky oil: Check your engine oil. If it has a milky, light brown, or frothy appearance, it means coolant has contaminated the oil. This is often visible on the dipstick or under the oil filler cap.
- Loss of coolant: If you find yourself constantly topping up your coolant reservoir without any visible external leaks, it's possible the coolant is escaping internally into the engine.
Whilst these may all point to an issue with your head gasket, it is always possible that there is an alternative cause. If you’re unsure, it’s advisable to have your vehicle checked out by a local mechanic.
How to Repair a Blown Head Gasket: The Traditional Method
Unfortunately, repairing a blown head gasket will more often than not call for a replacement part, and the process can be lengthy and complicated. Below we’ll take you through this process step-by-step to ensure an efficient repair is achieved. This is a job best suited for experienced DIY mechanics or professional workshops due to the precision and effort involved.
1. Carry Out a Diagnostic Check
Once you have identified signs of a blown head gasket, perform a compression test, coolant system pressure test, and exhaust gas analysis for accurate diagnosis. This will assure you before you begin that you are tackling the right issue.
Compression Test: Measures the pressure within each cylinder. Low compression in one or more cylinders, especially if adjacent cylinders have low compression, strongly suggests a blown head gasket.
Coolant System Pressure Test: Pressurises the cooling system to check for leaks. If the pressure drops, it indicates a leak, which could be internal (head gasket) or external.
Exhaust Gas Analysis: A special tool can detect the presence of hydrocarbons (fuel) or coolant in the exhaust gases, confirming a breach in the head gasket.
2. Gather Tools and Materials
Collect your tools—you’ll need a comprehensive socket set, wrenches, screwdrivers, torque wrench, gasket scraper, and potentially specialized tools for timing belt or chain removal. Necessary materials include a replacement head gasket (ensure it's the correct one for your vehicle make and model), new head bolts (often recommended to be replaced), gasket sealer, fresh engine oil, and the correct type and amount of coolant.
3. Preparation and Safety
Ensure you wear safety gear such as gloves and eye protection throughout the repair process. Disconnect the vehicle’s battery to prevent accidental electrical shorts. Always work on a cool engine to avoid severe burns from hot components or fluids. Place drain pans strategically to catch any spilled fluids.
4. Replacing Your Blown Head Gasket
Once you’re prepped and protected, it’s time to carry out your head gasket replacement. Follow these crucial steps:
- Drain Coolant and Oil: This will prevent spills during the repair. Ensure all fluids are drained into appropriate containers for disposal.
- Remove Components: This is the most time-consuming part. You will need to carefully disassemble components to access the cylinder head. This typically includes the intake and exhaust manifolds, valve cover, spark plugs, fuel injectors, coolant hoses, and importantly, the timing belt or chain. It's vital to mark the position of the timing components before removal to ensure correct reinstallation.
- Remove the Cylinder Head: Loosen the cylinder head bolts in the sequence specified by the manufacturer. These bolts are often torqued to very high specifications and may be TTY (Torque-To-Yield) bolts, meaning they stretch during tightening and must be replaced. Carefully lift the cylinder head off the engine block.
- Inspect and Clean: Thoroughly inspect the cylinder head and the mating surface of the engine block for any signs of damage, warping, or corrosion. Use a gasket scraper to meticulously clean both surfaces, ensuring they are completely free of old gasket material, oil, and debris. A clean, flat surface is paramount for a successful seal. Consider having the cylinder head professionally checked for flatness (decking) if any warping is suspected.
- Place the New Head Gasket: Carefully position the new head gasket onto the engine block or cylinder head, ensuring it is perfectly aligned with all the bolt holes and coolant/oil passages. Some gaskets are designed for a specific orientation, so refer to the manufacturer's instructions.
- Reinstall the Cylinder Head: Carefully place the cylinder head back onto the engine block.
- Torque Bolts to Specifications: Install the new head bolts and tighten them in the manufacturer's specified sequence and stages using a torque wrench. This is a critical step; incorrect torquing can lead to leaks or even damage to the new gasket or the cylinder head itself.
- Reassemble Components: Reassemble all the components that were removed in the reverse order of disassembly. Again, follow torque specifications for all fasteners. Reinstall the timing belt/chain correctly, ensuring the engine timing is spot on.
- Refill Coolant and Oil: Refill the engine with the correct type and amount of engine oil. Refill the cooling system with the recommended coolant mixture, ensuring all air is bled from the system.
- Post-Repair Checks: Once everything is reassembled, reconnect the battery. Start the engine and let it idle. Monitor for any unusual noises or warning lights. Perform a coolant system pressure test again to check for leaks. Take the vehicle for a test drive, paying close attention to temperature readings and any signs of performance issues.
Remember to prioritize safety throughout the process, use quality materials, and seek professional assistance if you encounter difficulties during the repair. The complexity and potential for error make this a challenging but rewarding repair for the skilled mechanic.
How to Fix a Blown Head Gasket Without Replacing It: Chemical Sealants
The traditional head gasket replacement can be a significant undertaking in terms of both time and cost. For many, especially with older vehicles or tighter budgets, this can be prohibitive. Fortunately, there are chemical solutions available that can effectively seal minor to moderate head gasket leaks without the need for engine disassembly.
Products like K-Seal and Bar's Leaks offer advanced formulations designed to permanently repair and seal most head gasket failures, including:
- Coolant to cylinder leaks
- Cylinder to coolant leaks
- Blown head gaskets
- Some coolant to oil leaks
The application is typically straightforward: shake the product and pour it directly into your cooling system. The sealant then circulates with the coolant, finds any cracks or leaks in the head gasket, and permanently seals them. For the best results, it's important to catch a leak early to reduce the risk of further engine damage and to use a product appropriate for the severity of the leak.
Why Motorists Worldwide Choose Chemical Sealants
Chemical sealants are gaining popularity due to their ease of use, cost-effectiveness, and proven efficacy. Leading roadside repair and recovery organizations often use these technologies because they mix successfully with all types of antifreeze and engine coolant, preventing combustion gases from escaping and coolant from leaking into the engine cylinders.
These products are often scientifically proven and independently tested to ensure they meet industry standards. For example, K-Seal and Bar's Leaks products are designed to be safe for all cooling system components and are formulated with advanced sealing agents and reinforcing fibres.
Choosing the Right Chemical Sealant: Severity Matters
The effectiveness of chemical sealants often depends on the severity of the head gasket failure. Generally, if your vehicle can run for at least 15-20 minutes without overheating, a chemical sealant is likely to be a viable solution. If your engine overheats very rapidly, the damage may be too severe for a chemical repair, and a mechanical replacement will be necessary.
Different products cater to varying levels of damage:
- For minor to moderate leaks (engine can run for 20+ minutes without overheating): Products like Bar's Leaks Head Gasket Fix (1111) are ideal. They are easy to install by simply pouring into the coolant tank and are highly effective for less severe leaks.

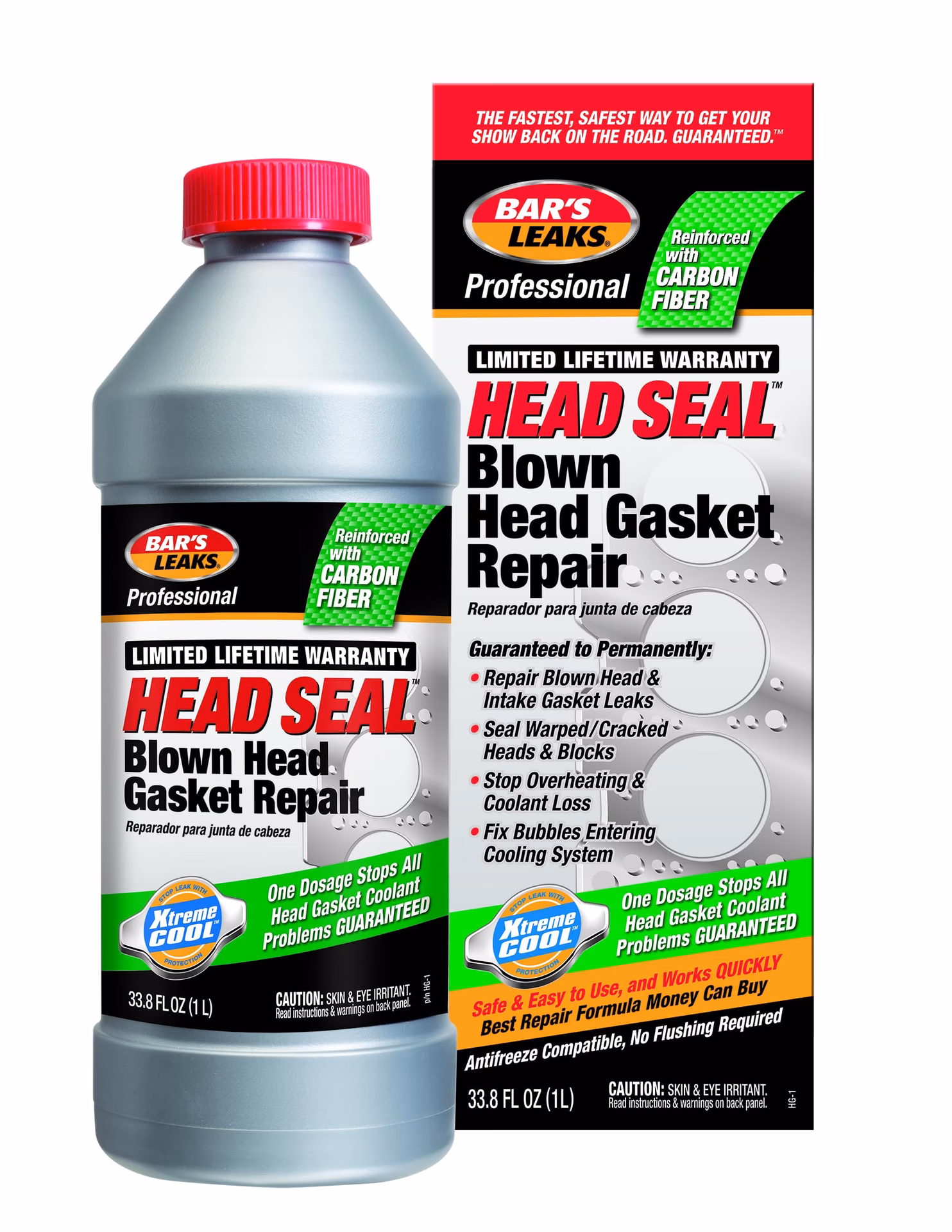

- For more significant leaks (engine overheats in 15-20 minutes): Bar's Leaks Head Seal Blown Head Gasket Repair (HG-1) is a professional-grade solution containing carbon fibres for a stronger, more permanent seal. It's added directly to the radiator without needing to drain the coolant.
- For borderline cases or when a more robust seal is desired (requires more effort): Bar's Leaks Head Gasket Repair (1100) uses Aramid fibres for a strong bond but requires draining and flushing the cooling system and refilling with water only, as it's not compatible with antifreeze.
It's crucial to follow the product's specific application instructions carefully. Always ensure you are working in a well-ventilated area when handling these chemicals.
Table: Comparing Head Gasket Repair Options
| Repair Method | Complexity | Cost | Time Required | Suitability |
|---|---|---|---|---|
| Mechanical Replacement | High | £1000 - £3000+ (Parts & Labour) | Several days | Severe gasket failure, warped heads, major coolant/oil leaks. |
| Chemical Sealant (e.g., K-Seal, Bar's Leaks HG-1) | Low | £20 - £50 | 1-2 hours (application time) | Minor to moderate leaks, engine overheats within 15-20 mins. |
| Chemical Sealant (e.g., Bar's Leaks 1111) | Very Low | £15 - £30 | 30 mins (application time) | Minor leaks, engine overheats after 20+ mins. |
| Chemical Sealant (e.g., Bar's Leaks 1100) | Medium | £15 - £30 | 2-3 hours (includes draining/refilling) | Minor to moderate leaks, requires antifreeze removal. |
Frequently Asked Questions
Q1: Can a blown head gasket be fixed without replacing it?
Yes, for minor to moderate leaks, chemical sealants can effectively repair a blown head gasket without the need for mechanical replacement, provided the engine doesn't overheat too rapidly.
Q2: How long does a chemical head gasket repair last?
Reputable chemical sealants, when applied correctly to an appropriate level of damage, can provide a permanent seal, lasting for the life of the engine. The reinforcing fibres used in many formulations create a durable bond.
Q3: Will chemical sealants clog my cooling system?
High-quality chemical sealants are specifically formulated with particles and fibres that are sized to seal leaks without clogging smaller passages in the cooling system. Inferior products may cause clogging, but reputable brands are designed to be safe for all cooling system components.
Q4: What if my engine overheats very quickly?
If your engine overheats very rapidly (within minutes of starting), the head gasket damage is likely too severe for a chemical sealant. In such cases, a mechanical replacement of the head gasket is necessary.
Q5: Can I use a chemical sealant if my oil is already milky?
While a chemical sealant might help stop further coolant ingress, the damage caused by coolant contamination of the oil (reduced lubrication) may already be significant. It's advisable to address the oil contamination by flushing the system and changing the oil and filter as soon as possible, even after applying a sealant.
Conclusion
A blown head gasket is a serious issue that requires prompt attention. While the traditional mechanical replacement is the most robust solution for severe damage, modern chemical sealants offer an accessible, cost-effective, and often permanent alternative for less critical failures. By understanding the signs, assessing the severity, and choosing the right repair method, you can get your engine back to optimal health and avoid costly repairs.
