Unlocking CRDi: Modern Diesel Engine Power

In the evolving landscape of automotive engineering, few advancements have revolutionised diesel engines quite like Common Rail Direct Injection, or CRDi. This sophisticated fuel system stands as a cornerstone of modern vehicle performance, efficiency, and emissions control, moving far beyond the limitations of older diesel designs. While the underlying principle of direct injection is shared across both petrol (often termed GDI or FSI) and diesel engines, CRDi specifically refers to its application in diesel powerplants, bringing with it a suite of benefits that have firmly cemented its place in the industry.

What is Common Rail Direct Injection (CRDi)?

At its core, Common Rail Direct Injection is an advanced fuel delivery system designed to precisely inject fuel directly into an engine's combustion chamber. Unlike conventional diesel systems where each injector received fuel directly from a dedicated pump line, CRDi utilises a single, common 'fuel rail' that acts as a shared reservoir for all injectors. This rail maintains a consistently high pressure, ready to supply fuel on demand to each cylinder.

Historically, conventional diesel engines were often characterised by their sluggish response, noticeable noise, and less-than-optimal performance, particularly in passenger vehicles. These deficiencies were largely due to the limitations of their fuel delivery systems. CRDi technology was developed to overcome these very challenges, ushering in an era of quieter, more responsive, and significantly more efficient diesel engines. While petrol engines employ similar direct injection principles, often branded as Gasoline Direct Injection (GDI) or Fuel Stratified Injection (FSI), the CRDi designation is predominantly used for diesel applications. Despite their shared design philosophy of a common fuel rail feeding injectors, they differ considerably in operating pressures and the type of fuel used, optimising each system for its specific fuel type.

The Ingenious Working of CRDi Systems

The remarkable precision and efficiency of a CRDi system stem from its close integration with the engine's Electronic Control Unit (ECU). This 'brain' of the engine constantly receives inputs from a myriad of sensors monitoring critical parameters such as engine speed, load, temperature, and even throttle position. Based on this real-time data, the ECU meticulously calculates the exact quantity of fuel required for optimal combustion and, crucially, determines the precise timing of its injection.

This level of control is a quantum leap from older mechanical systems. The CRDi system features highly intelligent components that are controlled electronically and electrically. Conventional, mechanically operated injectors have been replaced by more advanced, electrically operated solenoid or piezo-electric injectors. An electrical signal from the ECU triggers these injectors to open, allowing fuel to be injected at precisely the right moment and for the exact duration required. This dynamic control ensures that combustion occurs directly within the main combustion chamber, a cavity cleverly located within the piston crown, maximising energy extraction.

The central element, the 'common fuel rail', is more than just a distribution pipe. It serves as a high-pressure accumulator, constantly storing and supplying fuel to the solenoid valve injectors at the exact required pressure, which can be incredibly high. This is fundamentally different from earlier direct injection (DI) designs, where a fuel injection pump supplied diesel through independent, often less precise, fuel lines to each injector. The common rail's ability to maintain optimum residual fuel pressure and act as a shared fuel reservoir for all cylinders ensures consistent performance and rapid response, allowing for multiple, precisely timed injections per combustion cycle if needed.

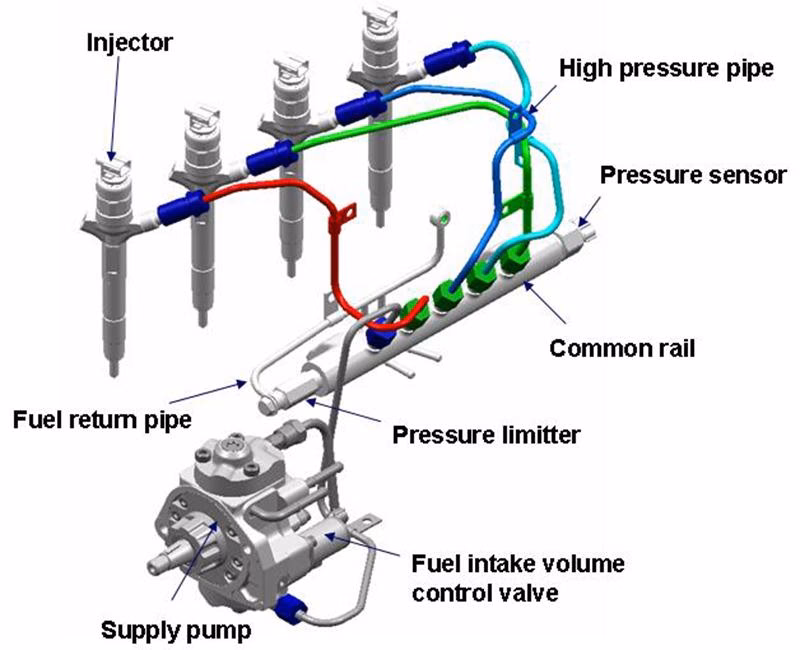

Core Components of a CRDi System

Understanding the individual components is key to appreciating the sophistication of the CRDi system:

1. High-Pressure Fuel Pump

This is the workhorse of the system, responsible for compressing the diesel fuel to immense pressures, typically around 1,000 bar (or 15,000 psi), and in some advanced systems, even higher. This highly pressurised fuel is then delivered via a robust high-pressure pipe to the inlet of the common fuel rail. The sheer pressure is crucial for atomising the fuel into an incredibly fine mist when it's injected, ensuring rapid and complete combustion.

2. Common Fuel Rail

As discussed, this is the shared 'distribution pipe' that connects all the injectors. Its robust construction allows it to withstand and maintain the extreme fuel pressure. It acts as an accumulator, dampening pressure fluctuations and ensuring that a consistent, high-pressure supply of fuel is always available to each injector, irrespective of the engine's demands or the firing order of the cylinders.

3. Injectors

The injectors are the final point of fuel delivery, directly injecting the atomised diesel into the combustion chamber. Modern CRDi systems primarily use two types:

• Solenoid Injectors: These are electrically operated valves that open and close based on an electrical signal from the ECU. They are robust and widely used.
• Piezo-electric Injectors: These are even faster and more precise than solenoid injectors, using the rapid expansion and contraction of piezo crystals to open and close the injector needle. Their speed allows for multiple, even finer, and more accurately timed injections per combustion cycle, leading to even better efficiency and lower emissions.

The precision of these injectors is paramount. They determine not only the quantity of fuel but also the spray pattern and the timing of injection, all of which are critical for efficient combustion.

4. Engine Control Unit (ECU)

The ECU is the central command centre. It continuously processes data from various sensors (e.g., crankshaft position, camshaft position, airflow, exhaust gas oxygen, fuel pressure, temperature) and uses complex algorithms to determine the optimal injection parameters. It then sends precise electrical signals to the high-pressure pump to regulate fuel pressure and to the injectors to control the timing and duration of fuel delivery. This electronic control allows for dynamic adjustments in real-time, optimising engine performance under all operating conditions.

The Working Principle in Detail

The journey of fuel in a CRDi system begins with the high-pressure pump drawing fuel from the tank and compressing it to immense pressures. This pressurised fuel then flows into the common fuel rail, where it is held at a constant, high pressure, ready for immediate use. When the ECU determines that a particular cylinder is ready for injection, it sends an electrical signal to that cylinder's injector. The injector then opens for a precise duration, spraying a finely atomised mist of diesel directly into the combustion chamber, positioned within a cavity on the piston crown.

A significant advancement in most modern CRDi engines is their combination with a turbocharger. This synergy allows for even greater power output and helps meet increasingly stringent emission norms. The turbocharger forces more air into the engine, and the CRDi system can then inject more fuel, leading to a more powerful and efficient combustion cycle. This combination significantly improves engine power, throttle response, and fuel efficiency while rigorously controlling emissions. While manufacturers may implement minor design changes and customisations, the fundamental principle and working of CRDi technology remain largely consistent across the board. However, its ultimate performance is heavily influenced by factors such as the specific combustion chamber design, the exact fuel pressures utilised, and the type of injectors employed.

The Advantages of CRDi Technology

The widespread adoption of CRDi is a testament to its significant benefits:

• Improved Fuel Efficiency: The precise control over fuel quantity and injection timing, coupled with superior atomisation, ensures that every drop of fuel is used effectively, leading to lower fuel consumption.
• Enhanced Performance: Better combustion translates directly into more power and torque, providing a more responsive and enjoyable driving experience. The immediate availability of high-pressure fuel also contributes to sharper throttle response.
• Reduced Emissions: The finer fuel atomisation and precise control lead to a more complete and cleaner burn, significantly reducing harmful pollutants like particulate matter and nitrogen oxides (NOx), helping vehicles meet strict environmental regulations.
• Quieter Operation: By controlling the injection process with such precision, including the possibility of multiple, smaller 'pilot' injections before the main injection, CRDi systems dramatically reduce the characteristic 'diesel knock' sound, making diesel engines much quieter and smoother.
• Smoother Running: The finely controlled combustion process results in less vibration and a smoother engine operation, enhancing overall driving comfort.

Decoding CRDi Acronyms: A Manufacturer's Guide

To distinguish their products in the competitive automotive market, many manufacturers have adopted their own custom acronyms for CRDi technology. While the underlying principle is the same, these names often highlight specific features or branding. Here's a list of common CRDi acronyms you might encounter:

For instance, Volkswagen's TDI™, which stands for Turbocharged Direct Injection, is a highly recognised trademark. It signifies a turbo-diesel engine combined with Cylinder-Direct Injection, representing their integrated approach to performance and efficiency.

Maintaining Your CRDi System

Given the extreme precision and high pressures involved, maintaining a CRDi system requires careful attention. The smallest contaminants or deviations in fuel quality can have significant impacts. Using high-quality, clean fuel is paramount, as even microscopic particles can damage the finely tuned injectors or the high-pressure pump. Regular servicing, including fuel filter replacement as per manufacturer recommendations, is crucial to protect these sophisticated components and ensure the longevity and optimal performance of your CRDi engine. While CRDi systems are designed for robustness, their precision makes them sensitive to poor maintenance or substandard fuel.

Frequently Asked Questions (FAQs)

What is Common Rail Direct Injection system?

The Common Rail Direct Injection system is an advanced fuel delivery technology that precisely injects fuel into an engine's combustion chamber under high pressure for improved performance, efficiency, and emissions control.

What is the difference between direct injection and common rail?

The key difference between direct injection and common rail lies in the method of fuel delivery: direct injection refers to fuel being directly injected into the combustion chamber, while common rail employs a high-pressure fuel rail to supply fuel to individual injectors for more precise control.

What are the two types of injectors used in a common rail diesel engine?

The two types of injectors used in a common rail diesel engine are solenoid injectors and piezo-electric injectors.

How does a CRDi injector work?

A CRDi injector works by precisely controlling pressurised fuel delivery into the engine's combustion chamber through an electronically controlled valve, resulting in efficient combustion and improved engine performance.

Conclusion

Common Rail Direct Injection technology has fundamentally transformed the diesel engine, dispelling old notions of noisy, inefficient powerplants. By enabling unprecedented precision in fuel delivery, CRDi engines deliver remarkable improvements in fuel efficiency, power output, and environmental performance. As automotive technology continues to advance, CRDi remains a vital component, ensuring that modern diesel vehicles are not only powerful and economical but also environmentally responsible. Its intricate design and intelligent control systems are a testament to the continuous innovation in automotive mechanics, promising a cleaner and more dynamic driving experience for years to come.
