A cracked cylinder head is one of the most dreaded diagnoses for any car owner. It’s a problem that strikes at the very heart of your vehicle’s engine, leading to a cascade of issues from coolant leaks and overheating to reduced performance and even catastrophic engine failure if left unaddressed. The mere mention of a cracked cylinder head often sends shivers down the spine, primarily due to the notoriously high repair costs associated with this critical component. For many, the initial quote for a traditional repair can be disheartening, often pushing well over the £4,000 mark. This substantial expenditure can leave vehicle owners contemplating whether to repair, replace the engine, or even scrap the car entirely. However, what if there was a more accessible, less financially crippling solution? This article delves into the complexities and costs of traditional cracked cylinder head repairs and introduces an innovative alternative that promises significant savings without compromising effectiveness.
The cylinder head is a marvel of precision engineering, designed to withstand immense pressures and temperatures while housing crucial components like valves, camshafts, and spark plugs. Its primary role is to seal the top of the engine block, forming the combustion chambers where fuel ignites. When this vital component cracks, typically due to extreme thermal stress, sudden temperature changes, or even manufacturing defects, the integrity of the engine is severely compromised. Coolant can leak into the combustion chambers or oil passages, exhaust gases can escape, and oil can mix with coolant, leading to a milky sludge. These symptoms are clear indicators of a serious problem that demands immediate attention to prevent further, more extensive damage to the engine.
Why Are Traditional Cracked Cylinder Head Repairs So Expensive?
The exorbitant cost of repairing a cracked cylinder head through conventional methods stems from several key factors, primarily revolving around the intensive labour required and the cost of specialist parts and machining. It’s not simply a matter of patching up a crack; it involves a comprehensive process that is both time-consuming and technically demanding.
Intensive Labour and Engine Disassembly
The cylinder head is deeply embedded within the engine bay. Accessing it requires significant engine disassembly. Mechanics often need to remove numerous components, including the intake manifold, exhaust manifold, timing belt or chain, camshafts, rocker arms, and various hoses and electrical connections. This process is incredibly labour-intensive, often taking skilled technicians many hours, sometimes even days, to complete. Each component must be carefully catalogued and stored to ensure correct reassembly. The sheer number of hours billed for labour forms a substantial portion of the total repair cost.
Specialist Machining and Inspection
Once the cylinder head is removed, it cannot simply be reinstalled. It must undergo a thorough inspection for warping, pitting, and the extent of the crack. Often, it needs to be sent to a specialist machine shop for pressure testing, crack repair (which might involve welding or stitching), and resurfacing (skimming) to ensure a perfectly flat sealing surface. This machining work requires highly specialised equipment and expertise, adding another layer of cost. If the crack is too severe or the head is too warped, it might be deemed irreparable, necessitating a complete replacement, which is even more expensive.
Cost of Replacement Parts
Even if the original cylinder head can be repaired, a host of new parts are essential for reassembly. These include a new head gasket, which is crucial for sealing the cylinder head to the engine block, often cylinder head bolts (which are typically 'stretch' bolts and cannot be reused), intake and exhaust manifold gaskets, valve stem seals, and potentially new timing components if they are due for replacement or damaged during disassembly. The cost of these genuine or quality aftermarket parts can quickly add up.
Ancillary Costs and Potential Complications
Beyond the core components, there can be ancillary costs. Coolant and oil will need to be replaced. There's also the risk of discovering additional issues once the engine is opened up, such as worn camshafts, lifters, or valves, which would further inflate the repair bill. The complexity and potential for unforeseen issues contribute to the high quotes provided by garages, as they must factor in contingencies.
Symptoms of a Cracked Cylinder Head
Recognising the signs of a cracked cylinder head early can prevent more severe damage. Common symptoms include:
- Overheating: The engine consistently runs hotter than usual, often due to coolant loss or compromised cooling system integrity.
- White Smoke from Exhaust: A sweet-smelling white exhaust smoke indicates coolant burning in the combustion chambers.
- Milky Oil: If oil mixes with coolant, the engine oil on the dipstick will appear milky or foamy.
- External Coolant Leaks: Coolant may leak from the exterior of the cylinder head, though this is less common for internal cracks.
- Loss of Power/Misfires: Compression loss due to the crack can lead to rough idling, misfires, and reduced engine power.
- Coolant Disappearance Without External Leak: Your coolant reservoir depletes, but there's no visible leak on the ground, suggesting internal consumption.
The Traditional Repair Process: A Detailed Look
Understanding the steps involved in a traditional repair highlights why it's so costly and time-consuming:
- Diagnosis: Initial checks include compression tests, leak-down tests, and sometimes a chemical test to detect exhaust gases in the coolant.
- Coolant and Oil Drainage: All fluids are drained from the engine.
- Engine Component Removal: The long and meticulous process of removing everything connected to the cylinder head begins: air intake, exhaust manifold, fuel lines, wiring harnesses, timing belt/chain, camshafts, etc.
- Cylinder Head Removal: Once all connections are severed, the cylinder head bolts are carefully loosened in sequence, and the head is lifted from the engine block.
- Inspection and Machining: The removed head is thoroughly cleaned and inspected. It's often sent to a specialist machine shop for pressure testing to locate cracks, welding or stitching to repair them, and then 'skimming' (resurfacing) to ensure it's perfectly flat for a proper seal.
- Engine Block Preparation: While the head is at the machine shop, the engine block's surface is cleaned and inspected for any damage or warping.
- Reassembly with New Gaskets and Bolts: Once the head returns, new head gaskets are carefully positioned, and the cylinder head is reinstalled with new head bolts, torqued down to specific settings in a precise sequence. All previously removed components are then meticulously reattached.
- Fluid Refill and Testing: New engine oil and coolant are added, and the system is bled of air. The engine is then started and thoroughly tested for leaks, proper operation, and performance.
Introducing the Innovative Repair Kit Solution

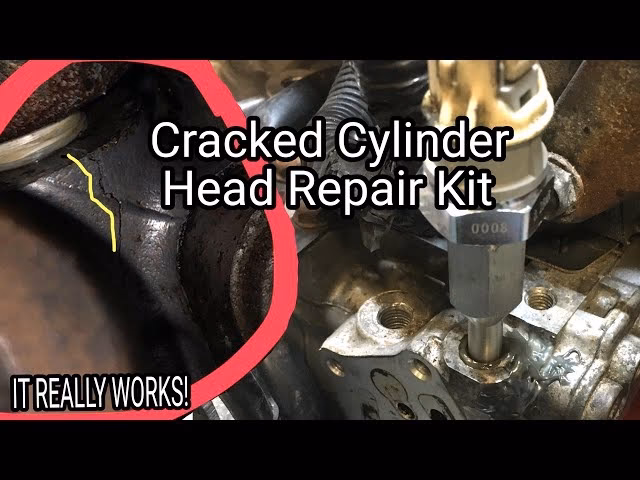

Given the daunting costs and extensive downtime associated with traditional repairs, an innovative and remarkably effective alternative has emerged: the cracked cylinder head repair kit. This solution aims to provide a robust, long-term fix without the need for extensive engine disassembly or specialist machining, significantly reducing both the cost and the inconvenience for the vehicle owner.
These kits typically utilise advanced chemical formulations designed to seek out and permanently seal cracks within the cylinder head and engine block. Unlike temporary stop-gap measures or 'pour-and-pray' sealants, these professional-grade kits employ sophisticated liquid glass or ceramic polymer technologies that react to heat and pressure, forming an incredibly strong, durable, and permanent seal. This technology is often derived from industrial applications, adapted for the challenging environment within an internal combustion engine.
How the Repair Kit Works
The principle behind these kits is ingenious. The repair fluid is introduced into the engine's cooling system. As the engine runs and reaches operating temperature, the solution circulates. When it encounters a crack, the combination of heat, pressure, and the specific chemical properties of the fluid causes it to crystallise or polymerise within the crack. This forms an incredibly strong, glass-hard or ceramic-like bond that effectively seals the breach, preventing further leakage of coolant, oil, or combustion gases. The process is self-seeking; the fluid is drawn into the crack by the pressure differential and temperature, ensuring a targeted repair.
Key Benefits of the Repair Kit
- Dramatic Cost Savings: This is arguably the most significant benefit. By avoiding the vast majority of labour costs associated with engine disassembly and reassembly, along with expensive machining and new cylinder head components, the total cost of repair can be reduced by thousands of pounds.
- Minimal Downtime: The repair process typically takes only a few hours, rather than days or weeks. This means your vehicle is back on the road much faster, minimising disruption to your daily life.
- DIY Potential: While professional garages can certainly use these kits, many are designed to be user-friendly enough for competent DIY mechanics to apply, further reducing labour costs. Clear instructions typically guide the user through the process.
- Effective and Permanent Solution: When applied correctly to suitable cracks, these kits offer a permanent, durable seal that can withstand the engine's operating conditions. They are not merely a temporary patch but a genuine repair.
- Addresses Multiple Leak Points: The fluid circulates throughout the cooling system, meaning it can potentially seal multiple small cracks or porous areas within the cylinder head or even the engine block, which might be difficult to pinpoint individually with traditional methods.
- Less Invasive: There's no need to dismantle the engine, which reduces the risk of introducing new problems during reassembly or damaging other components.
Limitations and Considerations
While highly effective, these kits are not a universal panacea for all types of cylinder head damage. They are most effective for hairline cracks and porosity. They may not be suitable for very large cracks, severely warped cylinder heads, or instances where significant portions of the head have fractured or are missing. It’s crucial to accurately diagnose the extent of the damage before opting for a kit solution. Consult with a trusted mechanic to assess if your specific crack is a good candidate for this innovative repair method.
DIY vs. Professional Application
For those with a reasonable level of mechanical aptitude and the ability to follow instructions meticulously, applying these kits can be a highly rewarding DIY project, saving even more on labour. However, for those less confident, many professional garages are now offering this kit-based repair as a cost-effective alternative to traditional methods. A professional application ensures correct preparation of the cooling system and adherence to the manufacturer's instructions, maximising the chances of a successful repair.
Comparative Table: Traditional Repair vs. Repair Kit
| Feature | Traditional Cracked Cylinder Head Repair | Innovative Repair Kit Solution |
|---|---|---|
| Typical Cost | £2,000 - £6,000+ (Highly dependent on model and damage) | £100 - £300 (For the kit itself, plus minimal labour if professional applied) |
| Labour Intensity | Extremely High (Days of work) | Very Low (Few hours, often DIY possible) |
| Downtime | Several Days to Weeks | Hours to 1 Day |
| Engine Disassembly | Extensive and Meticulous | Minimal to None |
| Machining Required | Often Yes (Skimming, welding, pressure testing) | No |
| Permanence of Fix | Permanent (If done correctly) | Permanent (If suitable crack and applied correctly) |
| Suitable for | All crack types, severe warping, complete fractures | Hairline cracks, porosity, minor leaks |
| Risk of Further Issues | Potential for issues during reassembly | Minimal once applied, no reassembly risks |
| Skill Level Required | Professional Mechanic Only | Competent DIYer or Professional |
Frequently Asked Questions (FAQs)
Q1: Can I drive with a cracked cylinder head?
A: Driving with a cracked cylinder head is highly inadvisable. While your car might still run, continuing to drive risks escalating the damage. You could quickly face severe engine overheating, hydro-locking (where coolant fills a cylinder, preventing the piston from moving), or severe internal engine damage due to coolant mixing with oil. These can lead to catastrophic engine failure, turning a costly repair into an even more expensive engine replacement or a scrapped vehicle. It's always best to cease driving immediately and seek professional advice.
Q2: What causes a cylinder head to crack?
A: The most common cause of a cracked cylinder head is rapid and extreme temperature changes. This often occurs when an engine severely overheats and then cold water is added to the radiator, or if the engine suddenly cools down due to a catastrophic coolant leak. The sudden contraction and expansion of the metal can cause it to fracture. Other causes include manufacturing defects, excessive engine tuning that creates extreme heat and pressure, or rarely, physical impact from within the engine.
Q3: Is the repair kit a permanent fix, or just a temporary one?
A: High-quality, professional-grade cylinder head repair kits are designed to provide a permanent solution for suitable cracks. They are not merely temporary sealants. The advanced chemical formulations react with the heat and pressure within the cooling system to form a strong, durable, and permanent seal that can withstand the harsh operating conditions of an engine. However, their permanence relies on correct application and the crack being within the kit's repair capabilities (typically hairline cracks and porosity, not large fractures).
Q4: How long does the traditional cylinder head repair typically take?
A: A traditional cracked cylinder head repair is a multi-day job, often taking anywhere from 20 to 40 hours of labour, not including the time the cylinder head spends at a machine shop. This means your vehicle could be off the road for several days to over a week, depending on the mechanic's schedule, parts availability, and machine shop turnaround times. This lengthy downtime is a significant factor in the overall inconvenience and cost of the repair.
Q5: Are all cracked cylinder heads repairable with a kit?
A: No, not all cracked cylinder heads are suitable for repair with a kit. These kits are highly effective for hairline cracks, porosity issues, and minor coolant leaks within the cylinder head or engine block. However, they are generally not recommended for very large, structural cracks, severely warped cylinder heads, or instances where there is significant material loss or a complete fracture. A professional diagnosis is crucial to determine the extent of the damage and whether a kit solution is appropriate for your specific situation.
Conclusion
A cracked cylinder head is undoubtedly a serious and potentially costly problem for any car owner. The traditional repair route, while effective, can be a financial burden due to its incredibly labour-intensive nature, the need for specialist machining, and the cost of numerous replacement parts. However, the emergence of advanced, innovative repair kits offers a compelling and significantly more affordable alternative. By providing a highly effective, permanent seal without the need for extensive engine disassembly, these kits present a vital opportunity for vehicle owners to address this critical issue without incurring the crippling expenses historically associated with it. If you're facing the dreaded cracked cylinder head diagnosis, it's well worth exploring this modern solution with your trusted mechanic to see if it's the right fit for your vehicle and your budget.
