Unveiling the Terminator: Mustang Cobra's Legendary Engine

The 2003-2004 Mustang Cobra, affectionately known as the 'Terminator' by enthusiasts, carved out a formidable reputation in automotive history. More than just a name, it represented a significant leap forward for Ford's Special Vehicle Team (SVT), delivering a level of performance previously unseen in a production Mustang. At its core lay a meticulously developed 4.6-litre Dual Overhead Cam (DOHC) V-8 engine, the first factory-supercharged Mustang, boasting an impressive 390 horsepower right off the assembly line. This article delves into the intricate details of this engineering marvel, from its challenging development to the myriad of upgrades and maintenance considerations that have cemented its status as a true performance icon.

The Genesis of a Legend: Engine Development

Before the 'Terminator' ever saw production, Ford's Special Vehicle Engineering (SVE), the precursor to SVT, was already exploring forced induction. Their late-90s development mule, the 'Super Stallion', offered a tantalising glimpse into the future of the Cobra. While its 5.4-litre V-8 proved overly ambitious, the inclusion of a supercharger, Independent Rear Suspension (IRS), and significant brake upgrades hinted strongly at what was to come. When it was time for the next Cobra, one directive was clear: customers demanded more power, and SVT was determined to deliver.

After exhausting natural aspiration options, the decision to supercharge the 4.6-litre engine was made, and development proceeded at a remarkable pace. A key challenge was integrating these higher-power engines and vehicles into existing assembly lines. Early prototypes utilised the previous aluminium block and powdered metal rods, paired with an Eaton supercharger derived from the F-150 Lightning. Existing cylinder heads were also retained to meet tight deadlines.

However, a critical weak link soon emerged: the powdered metal rods proved insufficient for the increased power. This led to the adoption of the now-legendary forged Manley "H-beam" rods, a crucial upgrade that saved many test engines from destruction. Thankfully, the forged steel, virtually indestructible "C38 micro-alloy" Kellogg crankshaft, standard since the '96 Cobra, was retained. Complementing these robust components were new 343-gram forged aluminium pistons, manufactured by Karl Schmidt Unisia (formerly Zollner) and utilising Sealed Power rings, featuring a supercharger-friendly 8.5:1 compression ratio, another offshoot from the Lightning programme. Due to time constraints, a heavy but durable iron block was chosen over developing a new aluminium one. The Manley rods, strikingly similar to those used in the 2000 Cobra R, significantly boosted Manley's recognition, making their name synonymous with Terminator power. Furthermore, these rods were equipped with premium ARP 8740 Chrome Moly bolts, a testament to the factory's commitment to durability.

The resulting 390 horsepower and 390 lb/ft of torque, coupled with a remarkably flat torque curve, were a significant step up, evoking the raw power of classic muscle cars. With a specific output of almost 85 HP/Litre, the Terminator engine was nearly twice as powerful as the 1993 Cobra and a substantial 70 HP more than the 2001 model. Despite modern engines surpassing these figures without forced induction, the Terminator remains a celebrated hit, offering phenomenal performance at an absolute bargain. As John Coletti, a key figure in SVT, noted, upgrading a 2001 Cobra to Terminator levels would cost well over £10,000, making the factory Terminator a truly exceptional value.

The Heartbeat: The Eaton M112 Supercharger

The Eaton supercharger, a technology first deployed in the Thunderbird Super-Coupe in the late 1980s, found its ultimate expression in the Terminator. While the Super Stallion experimented with a Garrett unit, Eaton was the chosen supplier for the Cobra. The specific model used was the "M112", named for its 112 cubic inches (approximately 1.9 litres) of air volume displaced per rotation. This positive displacement, or "Roots" type supercharger, works by drawing intake air and moving it along the outside of two counter-rotating three-lobe rotors, effectively forcing it into the engine. Boost is generated by pumping more air into the engine than it can naturally ingest, a simple, effective, and economical principle.

For enthusiasts seeking an initial upgrade without sacrificing the OEM aesthetic, porting the stock supercharger case proved an excellent option. Even a 'home porting' method, though not machine-precise, yielded significant improvements in airflow, often rivalling professional jobs. This process involved smoothing the 'drops' at the back and refining the inlet for a glass-like finish.

A common modification involved replacing the factory 3.65-inch (93mm) drive pulley with a smaller 2.93-inch (74mm) pulley, a stock component on the F-150 Lightning. This simple change, in conjunction with the stock 7.65-inch lower pulley, dramatically increased boost from the original 8 PSI to a maximum of around 14 PSI, truly awakening the engine's potential. Opting for an OEM part like the Lightning pulley provided a reliable performance boost without pushing the supercharger beyond its efficient operating parameters.

Understanding the M112's efficiency map is crucial for optimal performance. This graphic illustrates thermal efficiency, with rings indicating increasing temperature at higher boost and RPM levels. The factory 8 PSI pulley operates well within the efficient range, while the upgraded pulley, around 14 PSI, approaches the limits. Running the blower hard, especially at engine RPMs near 6,500, can push blower speeds to almost 17,000 RPM, generating considerable heat – hence the affectionate, albeit less flattering, nickname "Heaton".

Disassembly of the Eaton supercharger for maintenance or porting is relatively straightforward. The snout is removed first, followed by the gear and rotor pack assembly. Reassembly requires an anaerobic sealant, such as Loctite 518 or Motorcraft TA-16, to form a gasket between the snout and rotor pack, with careful attention to torque specifications and alternating bolt patterns. It's vital to avoid silicone, as excess can gum up the gears. The two rear rotor bearings should also be cleaned and regreased. The internal components, including the plastic-like coupler that mates the snout shaft to the rotors, are surprisingly robust. Replacement parts are readily available from specialist suppliers. The distinctive under-hood "whine" of the Terminator is a direct result of the straight-cut gears within the Eaton housing, a characteristic absent in the helical gears found in TVS or Twin-Screw superchargers.

The original oil in the snout, Nye Lubricants' "605" oil, is identical to GM part number 12345982 (AC Delco 10-4041) and Ford Motorcraft XL-4. This ester oil, with a viscosity similar to 20-weight motor oil, is technically 'lubed for life', though many enthusiasts opt to change it periodically. Two small bottles (approximately 8 ounces) are sufficient, making it an inexpensive maintenance item. When removing or installing the supercharger, consulting the factory service procedure for detailed instructions and torque specifications is highly recommended. The entire assembly can be removed with the lower intake attached, simplifying the process. For reassembly to the intercooler, anaerobic sealant on the supercharger case flange is preferred, as excessive RTV silicone can make future removal a nightmare.

Beyond the M112: Supercharger Upgrades

For those seeking even greater performance, several supercharger upgrades exist beyond the ported Eaton M112:

Eaton TVS Supercharger

A significant step up from the original Roots-type blower is the Twin Vortices Series (TVS) supercharger, also manufactured by Eaton. Found on vehicles like the GT-500 and various GM models, as well as Roush-developed 2.3-litre kits from VMP Performance, the TVS features a revolutionary 160° rotor twist (compared to the M112's 60°). This design is not only more efficient, delivering increased boost, but also requires less energy to operate and generates lower intake air temperatures. The latest evolution, the R2650, boasts a 170° rotor twist, promising even more potent performance.

Twin-Screw Superchargers (Whipple, Kenne Bell)

Another leap in efficiency comes from Twin-Screw superchargers, offered by companies such as Whipple and Kenne Bell (whose rotor packs are sourced from Opcon Autorotor). Unlike Roots blowers, Twin-Screw units compress the incoming air between the rotors using a distinct male/female design. This results in superior efficiency, providing higher boost levels at lower operating temperatures. The concept of the Twin-Screw compressor was originally developed by the late Swede Alf Lysholm in the 1930s. Many Terminator owners, including the author, have upgraded to units like the Whipple 2.3-litre, citing its impressive performance and historical connection to Ford Racing.

Optimising Airflow: Throttle Body and Cold Air Intake

With a supercharger moving significantly more air, optimising the engine's breathing pathways is a logical next step. An engine, at its heart, is a large air pump, and efficiency gains here translate directly to more power.

Throttle Body

While the factory twin-57mm throttle body is competent, upgrading to a single-blade throttle body (SBTB) can significantly improve throttle response and add power. An SBTB can flow over 1600 CFM (cubic feet per minute) of air, compared to approximately 1100 CFM for the stock unit, provided the supercharger can support such flow rates. Common brands include BilletFlow and AccuFab. A minor quirk often associated with aftermarket SBTBs is a weaker return spring, which can lead to an inconsistent idle and a spongy accelerator pedal feel. A simple fix involves adding a small "helper" spring between the throttle cable bracket and the actuator arm, restoring the desired pedal tension and ensuring a stable idle. This seemingly minor upgrade contributes to a much crisper throttle response and easily accessible horsepower.

Cold Air Intake (CAI)

A less restrictive cold air intake is paramount for a supercharged engine, especially after supercharger upgrades. There are two primary types: "open" filters, which sit exposed in the engine bay, and fender-mounted systems, which tuck the filter away. While open filters might appear visually appealing, they often draw in hot engine bay air, leading to elevated Intake Air Temperatures (IATs) and reduced performance. The author's experience with a K&N FIPK, despite its shield, showed IATs climbing drastically, especially at idle on hot days. This highlights the importance of a true cold air intake.

Fender-mounted CAIs, such as the now-discontinued Tunable Induction (originally the DenseCharger), are highly effective. Constructed from heavy ABS plastic, they insulate the intake charge from engine bay heat, ensuring that the engine consistently draws in cooler, denser ambient air. This significantly lowers both IAT1 (inlet air temperature) and IAT2 (downstream air temperature), which is particularly beneficial for supercharged engines like the Eaton, known for running warm. The use of a high-quality filter, such as those from Green Filter USA, further enhances airflow and filtration, contributing to improved performance and engine longevity.

Precision and Power: Custom Tuning

Any significant modification to a supercharged engine, particularly changes to the supercharger itself or pulley sizes, necessitates a custom engine tune. While generic tunes are available, a custom tune is crucial for optimising fuel delivery, ignition timing, and other parameters to match the engine's new characteristics and prevent detonation, which can be catastrophic. Experienced tuners, often working remotely with data-logging software like SCT LiveLink, can precisely dial in the air-fuel ratio (AFR) and ensure the engine runs beautifully and safely.

For example, an upgraded supercharger combined with larger fuel injectors (e.g., FRPP 60pph) requires careful tuning to prevent a rich condition at idle and ensure proper fuelling under wide-open throttle (WOT). Dynomometer testing reveals the true power output after modifications. A ported Eaton supercharger, with approximately 14 pounds of boost and a custom tune, can yield impressive figures, such as 473 rear-wheel horsepower (RWHP) and 450 lb/ft of torque on a Mustang Dyno. Accounting for differences between dyno types, this could translate to over 530 RWHP on a DynoJet, and well over 600 horsepower at the crankshaft, a substantial improvement over factory specifications.

For those retaining the stock 90mm Mass Air Flow (MAF) meter with increased airflow, a calibrator like the now-discontinued DiabloSport MAFia can be used. This device adjusts the voltage signal from the MAF to be correctly interpreted by the engine control unit (ECU), negating the need for a MAF upgrade. Tuning is especially critical for modular engines, which are highly susceptible to detonation. Proper management of timing and fuel curves is paramount, particularly for positive displacement superchargers like the Whipple, which generate boost immediately at low RPMs, requiring immediate timing adjustments.

Fueling the Beast: Kenne Bell Boost-a-Pump (BAP)

With increased boost and airflow, upgrading the fuel system is an absolute necessity. The Terminator's OEM Bosch turbine fuel pumps, operating on a "Pulse Width Modulated" (PWM) "Returnless" system, perform well in stock form. The system's Electronic Control Module (ECM) monitors fuel rail pressure and instructs the Fuel Pump Driver Module (FPDM) on the required voltage to adjust pump flow, feeding the injectors precisely.

The Terminator pump assembly comprises two pumps, each flowing around 119 Litres Per Hour (LPH), totalling 238 LPH, matched with 39 Pounds Per Hour (PPH) injectors in its original configuration. While the complete pump assembly is expensive to replace from Ford, individual Bosch pumps (part number 0580453613) can be sourced affordably. The original blue fuel injectors (2R3Z-9F593-BA) are now obsolete, though readily available on the used market.

The Kenne Bell "Boost-a-Pump" (BAP) is a popular and highly effective upgrade. This device increases the voltage supplied to the factory pumps, thereby increasing their RPMs and boosting fuel flow significantly, often up to 378 LPH. A major advantage of the BAP is that it eliminates the need to drop the fuel tank or undertake a complete "return" style fuel system conversion, which can often introduce more problems than they solve. Installation typically involves wiring the BAP downstream of the FPDM, directly to the brown/pink wire, and upgrading the original 20A fuel pump fuse to a 30A fuse. While some debate the optimal wiring location, direct downstream wiring has proven reliable for many enthusiasts. It's also worth noting that spikes in fuel pressure, particularly with the factory returnless system, can damage the Fuel Rail Pressure Sensor (FRPS). A cost-effective replacement for the FRPS can be found by sourcing the Land Rover part number 4458309, which is identical to the Ford unit.

Drivetrain Durability: Idlers, Tensioners, and Belts

When upgrading the supercharger or installing a smaller drive pulley for more boost, addressing the idlers, tensioners, and belts is crucial to prevent belt slip and ensure reliable power delivery.

A smaller drive pulley often necessitates either a shorter belt or the addition of an auxiliary idler pulley, commonly known as a "snub idler". These are typically mounted below the supercharger snout on the pulley bridge. Popular options come from Metco Motorsports and BilletFlow, with some enthusiasts opting for a stealthy "hidden" version from Whipple. The idler pulleys themselves, which are subjected to increased tension, should be upgraded to robust billet versions to prevent splitting. Brands like Billet Pro Shop offer durable alternatives to the stock plastic pulleys. When replacing idlers, it's also a good opportunity to inspect and potentially replace the inner idler pulleys beneath the bridge.

Selecting the correct belt length is vital. While Metco provides helpful belt charts, a shorter belt will generally be required. High-quality aftermarket belts, such as the Continental Elite line (formerly Goodyear Gatorback), are recommended for their quiet operation, superior grip, and durability. Replacing the primary belt, which involves removing the crank pulley cage, can be a chore, but supercharger belt swaps are relatively simple.

The pulley bridge's tensioner is another component prone to flexing under additional loads. Simple and economical solutions include support plates from Metco or a sturdier tensioner from Roush (part number 404225). While the Roush unit requires shimming (approx. 3.5mm) to align perfectly, it significantly increases stiffness, preventing belt slip. The original Ford tensioner is now obsolete, but replacements can be sourced from the F-150 Lightning programme (Motorcraft BT-63 or Ford 1L3Z-6B209-BA).

Lubrication Essentials: Oil Pump, Pan, and Filter

The lubrication system is the lifeblood of any engine, and for a high-performance unit like the Terminator's, it demands particular attention, especially during rebuilds or proactive upgrades.

Oil Pump

While the factory oil pump in the Terminator is generally adequate, its Achilles' heel lies in its powdered-metal drive gears. Under high-RPM use, these gears are known to shatter, leading to catastrophic engine failure. The modular engine's "Gerotor" pumps are mounted on the front of the block and driven by the crankshaft snout. The perfect solution to this weakness is upgrading to billet steel gear sets from reputable manufacturers like Boundary Engineering, MMR, or Triangle Speed Shop. These gears are designed to withstand extreme loads and high RPMs, ensuring consistent oil pressure. Furthermore, the oil pump's back cover is a critical component; earlier factory pumps used an aluminium backing plate prone to flexing at high RPMs, potentially causing oil leaks and pressure drops. Later Ford and Ford Racing Performance Parts (FRPP) pumps, along with Melling's upgraded units, feature stiffer steel or iron backing plates to combat this issue. The latest "3V" pump, which is a high-volume and high-pressure version (75PSI relief spring vs. 60PSI in HO pump), is also a viable upgrade for 4V engines and is now used on 5.4L and 5.8L Shelby engines.

Oil Pan

The factory oil pan on the Terminator is a capable unit for most conditions, shared across '96-'04 4.6L V-8 models. However, for performance driving or with higher pressure oil pumps, a "Deep sump" pan is a popular upgrade. These larger pans hold a higher volume of oil, typically 8 to 9 quarts, ensuring adequate lubrication under demanding conditions. The Canton 15-784 "Road race" pan, which was factory installed on the 2000 Cobra R, is an excellent choice, featuring a sump with four trap doors that prevent oil from sloshing away from the pick-up during hard cornering and acceleration. A minor consideration with deep sump pans is the oil level reading on the factory dipstick, which may appear lower; a longer dipstick from an E-150 van (1C2Z-6750-AA) can be marked and trimmed for accurate readings. The factory pan also features built-in "scrapers" and works with a windage tray to limit oil foaming. While the OEM pan is still available, the "high-flow" pick-up tube is obsolete, though it can still be found as part of the FRPP oil pump kit.

Oil Filter

Choosing the right oil filter and oil is fundamental for engine health. While standard filters like the FL-820S are good, many enthusiasts opt for high-flow, high-filtration performance versions from brands such as K&N, Bosch, Wix, and Mobil1. The ultimate upgrade is a washable and reusable billet aluminium filter, like the PurePower PP8433. These filters not only offer superior flow rates and burst strength but also contribute to environmental sustainability by reducing waste. When it comes to engine oil, a consistent track record of performance is key. Regular oil analysis through services like Blackstone Labs can provide invaluable insights into an oil's performance and the engine's wear characteristics. Mobil1 synthetic oils, particularly their High-Mileage 5W-30 or European Car Formula 0W-40 (which is a 40-weight oil with excellent cold-flow properties), are favoured for their high levels of anti-wear additives like Zinc and Phosphorus (ZDDP), crucial for hard-driven engines. While 5W-20 oils are sometimes recommended for fuel economy (due to CAFE standards), a 30- or 40-weight oil offers greater durability under performance conditions.

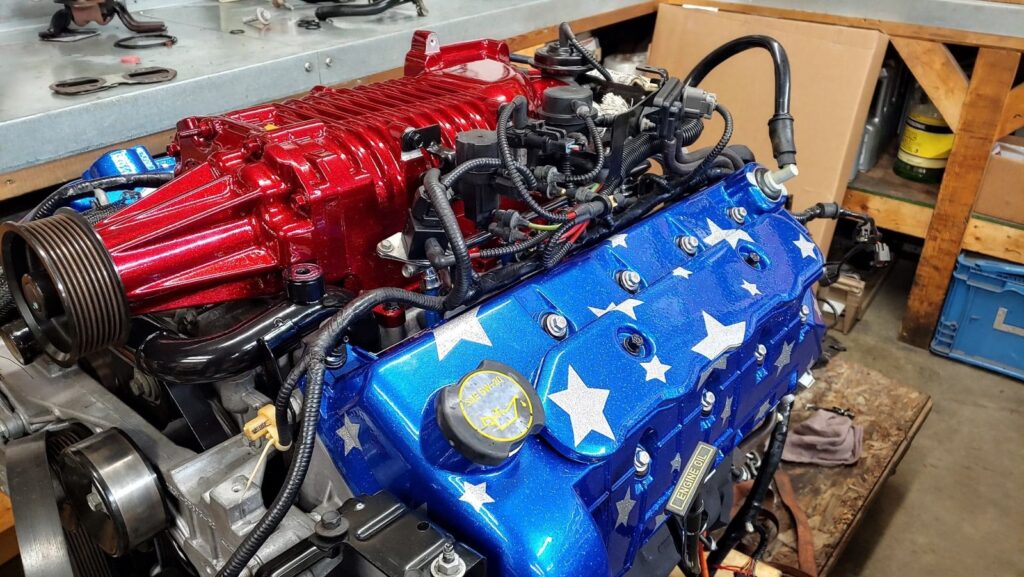

Aesthetic Touches: Engine Dress-Up

While performance is paramount, many owners enjoy adding personal aesthetic touches to their engine bay, creating a visually appealing experience alongside the raw power.

Coil covers are a popular choice. The "Powered by Ford" coil covers, originally sourced from the 5.4L Ford GT engine, fit the 4.6L perfectly and add a premium touch. Although discontinued from Ford Racing, they can still be found through Ford parts departments, though a VIN from an actual GT may be required for purchase. Alternatively, powder-coating the factory coil covers to match the supercharger housing or other engine components can achieve a custom, integrated look. Custom-made plates, such as those from Anchor Room, can fill empty spaces and add unique branding or messaging.

Smaller details, like a "Powered By Ford" emblem on the cam cover or an oil cap with "Engine Oil" rather than the specific SAE viscosity, further enhance the bespoke feel. Decorative cover plates for the Eaton housing and "Cobra" pulley covers were also available, adding a touch of flair to the supercharger itself. These dress-up items, while not directly contributing to performance, allow owners to express their individuality and pride in their 'Terminator' machine.

Frequently Asked Questions

• What kind of engine does the Terminator have?
  The 2003-2004 Mustang Cobra, or 'Terminator', is equipped with a supercharged 4.6-litre Dual Overhead Cam (DOHC) V-8 engine, factory-rated at 390 horsepower.
• What makes the Terminator engine unique?
  Its uniqueness stems from being the first production Mustang with a supercharger, featuring robust forged Manley "H-beam" connecting rods, a forged steel Kellogg crankshaft, and an iron block for enhanced durability, all contributing to its significant power output and mod-friendliness.
• What are common upgrades for a Terminator engine?
  Popular upgrades include porting the stock supercharger or upgrading to a TVS or Twin-Screw unit, installing smaller supercharger pulleys for more boost, a custom engine tune, upgraded fuel system components (like a Kenne Bell Boost-a-Pump), a cold air intake, billet oil pump gears, and a deep sump oil pan.
• Why is a custom tune important after modifications?
  A custom tune is crucial to correctly adjust the engine's fuel delivery, ignition timing, and other parameters to account for increased airflow and boost from modifications. This optimises performance, prevents detonation, and ensures engine longevity.
• What is the "whine" sound from the Terminator?
  The distinctive "whine" is produced by the straight-cut gears within the factory Eaton M112 Roots-type supercharger. This characteristic sound is a hallmark of the Terminator's forced induction.
• Are the stock Manley rods good enough for upgrades?
  Yes, the factory-installed forged Manley "H-beam" connecting rods are premium components and are highly regarded for their strength, often being adequate for significant power increases even with substantial modifications.
• What is the purpose of an oil separator?
  An oil separator (or catch can) is essential for forced-induction engines like the Terminator's. It removes excess oil vapour from the Positive Crankcase Ventilation (PCV) system before it re-enters the intake tract, preventing oil from coating the intercooler, reducing its efficiency, and lowering the fuel octane.
