Clutch Friction Plate Re-Lining: Costs & Benefits

The humble clutch friction plate is a critical component in any manual transmission vehicle, responsible for smoothly transferring power from the engine to the gearbox. Over time, the friction material on this plate wears down, leading to a slipping clutch, poor acceleration, and eventually, a complete loss of drive. When this happens, vehicle owners are typically faced with a dilemma: replace the entire clutch assembly, or consider the often more specialised, but potentially more cost-effective, option of re-lining the existing friction plate. With prices starting from approximately £75 per unit, re-lining offers a compelling solution, particularly for classic, vintage, or custom vehicles where new parts might be scarce or prohibitively expensive.

What Exactly is Clutch Friction Plate Re-lining?

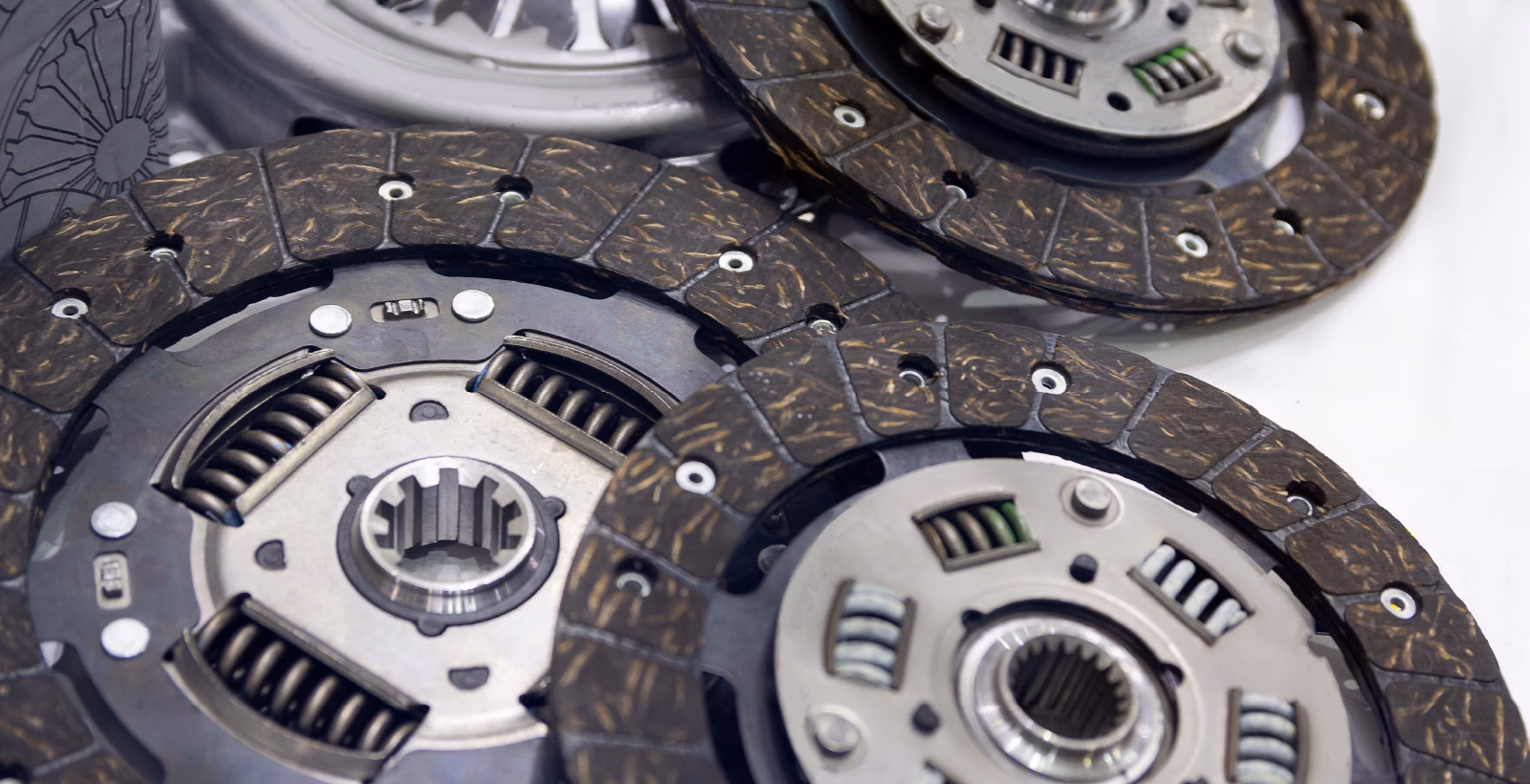

Clutch friction plate re-lining is the process of restoring a worn clutch disc by replacing its friction material. The friction plate itself is a circular disc, typically made of steel, with friction material bonded or riveted to both sides. This material is designed to wear down over time, much like brake pads. When it wears sufficiently, the plate can no longer create enough grip against the flywheel and pressure plate, resulting in a slipping clutch.

Re-lining involves carefully removing the old, worn-out friction material from the metal core of the clutch plate. The metal core is then thoroughly inspected for any damage, such as cracks, warps, or wear to the splines (the central teeth that engage with the gearbox input shaft). Assuming the core is in good condition, new friction material, specifically chosen for the application, is then precisely attached to the plate, either by riveting or using high-strength, heat-resistant adhesives. The newly lined plate is then ground to the correct thickness and often balanced to ensure smooth operation, effectively giving your old clutch plate a new lease on life.

Why Consider Re-lining Instead of Full Replacement?

While replacing a full clutch kit (which usually includes the friction plate, pressure plate, and release bearing) is a common solution, re-lining offers several distinct advantages:

• Cost Efficiency: For many vehicles, particularly older or specialist models, re-lining the friction plate can be significantly cheaper than sourcing a brand-new replacement, especially if only the friction plate itself is worn and the pressure plate and release bearing are still in good condition.
• Part Availability: This is arguably the biggest advantage for owners of classic, vintage, or rare vehicles. New clutch friction plates for such cars are often obsolete, difficult to find, or incredibly expensive. Re-lining allows you to reuse your original, otherwise functional, metal core, bypassing the challenge of finding unobtainable parts.
• Environmental Impact: Re-lining is a form of recycling. By reusing the existing metal core, it reduces waste and the demand for new manufacturing, making it a more environmentally conscious choice.
• Customisation: For performance applications, re-lining offers the flexibility to choose specific types of friction material (e.g., organic, Kevlar, ceramic) that might offer enhanced grip, heat resistance, or durability beyond standard OEM specifications. This is particularly valuable for motorsport or heavy-duty use.

The Re-lining Process: From Receipt to Despatch

When you send your clutch friction plate for re-lining, it typically undergoes a meticulous process to ensure a high-quality, durable result:

1. Initial Inspection: Upon receipt, the specialist will thoroughly inspect your clutch plate. This crucial step determines if the metal core is suitable for re-lining. They'll check for any cracks, warping, excessive wear to the splines, or damage that would compromise the integrity of the finished product. If the core is found to be irreparable, you'll usually be informed at this stage.
2. Old Material Removal: The worn-out friction material is carefully stripped away. If riveted, the rivets are drilled out; if bonded, the material is debonded, often with heat or chemical processes.
3. Core Preparation: The exposed metal core is then meticulously cleaned and prepared. This might involve shot blasting, grinding, or chemical treatments to ensure a perfectly clean and rough surface for optimal adhesion of the new material.
4. New Material Application: The chosen new friction material, cut precisely to the correct dimensions, is then applied. For riveted plates, new rivets are securely fastened. For bonded plates, high-temperature, high-strength adhesives are used, often cured under pressure and heat.
5. Finishing and Balancing: Once the new material is securely in place, the plate is precisely ground to the correct thickness and flatness. This ensures proper engagement and disengagement within the clutch assembly. For performance applications or larger plates, dynamic balancing may also be performed to prevent vibrations at high RPMs.

The service typically offers a 14-day return despatch from the moment they receive your item. This means you should factor in shipping time both ways when planning your repair schedule. This turnaround allows for the precise and careful work required for a high-quality re-line.

Understanding the Cost: What Influences the Price?

The advertised "prices start at approx £75 per unit" provides an excellent baseline, but it's important to understand that the final cost can vary based on several factors. The specialist will usually require the physical clutch plate before providing a firm quotation, as this allows for a precise assessment of these variables:

• Clutch Plate Type and Size: Larger diameter plates, those with complex designs (e.g., multi-plate clutches), or unusual configurations will naturally require more friction material and labour, leading to a higher cost than a standard, small car clutch plate.
• Condition of the Core Plate: A perfectly sound metal core helps keep costs down. However, if your existing core is warped, cracked, heavily corroded, or has damaged spline teeth, extra work may be needed for repair. In severe cases, the plate might be deemed beyond economical repair, making re-lining unviable.
• Choice of Friction Material: Standard organic friction materials are typically the most affordable. If you opt for higher-performance materials such as Kevlar, ceramic, or sintered compounds (often used in racing or heavy-duty applications), the cost will significantly increase due to the material's inherent expense and potentially more complex application processes.
• Special Requirements: Any non-standard requests, intricate designs, or very precise balancing for high-performance use can add to the overall cost.
• Shipping Costs: Remember to account for the cost of securely sending your clutch plate to the re-lining specialist and the return delivery charge. These are usually separate from the re-lining service fee.

When is Re-lining the Smart Choice for Your Vehicle?

Re-lining is not always the best option for every vehicle or situation, but it shines in specific scenarios:

• Classic and Vintage Vehicles: As mentioned, this is often the only viable solution when new replacement clutch plates are no longer manufactured. It helps preserve the originality of the vehicle.
• Obsolete Parts: For any vehicle, regardless of age, where specific clutch components have become obsolete and are impossible to source new.
• Custom or Performance Applications: If you need a clutch with specific characteristics that aren't available off-the-shelf, re-lining allows for the use of specialised friction materials tailored to your needs (e.g., for racing, heavy towing, or modified engines).
• Budget-Conscious Repairs: If your pressure plate and release bearing are still in good condition, re-lining only the friction plate can offer significant cost savings compared to purchasing a complete new clutch kit.

When Might a New Clutch Be a Better Option?

Despite the benefits of re-lining, there are situations where a brand-new clutch, or even a full clutch kit, might be the more sensible choice:

• Severely Damaged Core Plate: If the metal core of your friction plate is warped beyond repair, cracked, or has significant wear to the splines, re-lining will not be possible or safe. In such cases, a new plate is essential.
• Full Clutch Kit Required: Often, when the friction plate wears out, the pressure plate and release bearing also show signs of wear. If all components need replacing, purchasing a new, complete clutch kit can often be more cost-effective and convenient than re-lining the plate and then buying the other components separately.
• Cost Proximity: For some common, mass-produced vehicles, the price difference between re-lining a plate and simply buying a new aftermarket friction plate (or even a full kit) might be minimal. In such cases, the convenience and immediate availability of a new part might outweigh the re-lining option.
• Time Constraints: While a 14-day despatch is efficient for a specialist service, if you need your vehicle back on the road extremely quickly, and a new part is readily available off-the-shelf, then a new clutch might be the faster solution.

Re-lining vs. New Clutch Plate: A Comparison

To help you decide, here's a comparative overview:

Key Factors Influencing Re-lining Costs

While the starting price of approximately £75 is a useful guide, your final cost will depend on a detailed assessment. Here's a summary of the factors that will impact the price:

Frequently Asked Questions (FAQs) About Clutch Re-lining

Q: How long does a re-lined clutch last?

A: A properly re-lined clutch, using quality materials and expert workmanship, should last as long as, or even longer than, an original equipment clutch. Longevity largely depends on driving style, vehicle use, and the specific friction material chosen. For example, a heavy-duty material might offer extended life in demanding applications.

Q: Is re-lining as good as a brand-new clutch?

A: For the friction plate itself, yes, when done by a reputable specialist, the performance can be comparable to, or even superior to, a new OEM part, especially if enhanced friction materials are used. However, it's important to remember that re-lining only addresses the friction plate; a full new clutch kit replaces all components (pressure plate, release bearing, etc.), which might be necessary if those parts are also worn.

Q: Can all clutch plates be re-lined?

A: Most friction plates can be re-lined, provided the metal core (the hub, splines, and main plate structure) is in good, serviceable condition. If the core is severely cracked, warped, or has excessive spline wear, it may not be suitable for re-lining, and a new plate would be required if available.

Q: What information do I need to provide for a firm quote?

A: The service provider typically requires the physical clutch plate itself for a thorough inspection. This allows them to accurately assess its condition, size, specific design, and determine the exact requirements for re-lining before providing a firm, non-indicative cost.

Q: What exactly is included in the "approx £75 per unit" starting price?

A: This starting price refers to the re-lining service for a single clutch friction plate, applying new friction material to your existing metal core. It does not typically include shipping costs (to and from the specialist), or the replacement of other clutch components like the pressure plate or release bearing, which would need to be sourced separately if required.

Q: Do I need to send the entire clutch assembly?

A: No, you only need to send the clutch friction plate itself. The pressure plate and release bearing are separate components and are not part of the re-lining service. Ensure the plate is securely packaged to prevent damage during transit.

Conclusion

Re-lining your clutch friction plate offers a compelling, sustainable, and often essential alternative to full replacement, particularly for owners of classic cars, vehicles with obsolete parts, or those seeking custom performance solutions. While prices start from approximately £75, the exact cost will depend on the specific plate and its condition, which is why a firm quote often requires inspection of the actual item. Given the typical 14-day turnaround for despatch, careful planning is advisable.

For a precise quotation and to determine if re-lining is the optimal solution for your vehicle, the best course of action is always to contact a specialist directly. Be prepared to send your clutch plate for their expert assessment. It’s a smart, effective, and often indispensable option for ensuring your vehicle continues to shift smoothly and reliably for years to come.
