Understanding and Resolving a Heavy Clutch Pedal
A heavy clutch pedal can be a frustrating and even concerning issue for any driver. It signifies that something is not quite right within the clutch system, potentially making gear changes difficult and, in severe cases, impossible. This article delves into the common reasons behind a heavy clutch pedal and provides a comprehensive guide on how to diagnose and fix it, drawing on real-world repair scenarios and expert advice. We'll explore the typical time commitment for such repairs and highlight the key components involved.
What Causes a Clutch Pedal to Feel Heavy?
Several factors can contribute to a clutch pedal feeling heavier than usual. Understanding these causes is the first step towards an effective repair:
- Worn Clutch Release System Components: This is a very common culprit. The release fork, release bearing, and the bushes that support the release fork can wear over time. As seen in the example of the 2003 Mini One with 103,000 miles, worn bushes for the release fork caused it to operate at a slight angle, requiring more force to engage the clutch.
- Hydraulic System Issues: While not explicitly detailed in the provided information for the heavy pedal scenario, issues with the clutch master cylinder, slave cylinder, or air in the hydraulic lines can also lead to a stiff or heavy pedal. A leaking master cylinder, as hinted at in the squeaky pedal section, can certainly impact pedal feel.
- Clutch Plate Problems: Although the Mini One's clutch plate itself was found to be serviceable, a worn or damaged clutch plate can sometimes contribute to a heavier pedal feel.
- Linkage Wear (Specific Models): In certain vehicles, like the Renault Clio, Twingo, and Kangoo, wear in the clutch pedal linkage rod and ball joint can cause symptoms like a dropped or loose pedal. While this often results in a loose pedal, significant wear could also manifest as increased resistance.
- Pilot Bearing/Bushing: A seized or worn pilot bearing/bushing, located at the end of the crankshaft, can also cause clutch drag and a heavy pedal.
- Clutch Release Bearing Guide Tube: As mentioned in the repair guide, wear in this tube can prevent the release bearing from returning properly, impacting pedal operation.
The Mini One Case Study: A Detailed Repair Process
The repair of a 2003 Mini One with a heavy clutch pedal, which had covered 103,000 miles, provides an excellent insight into the labour involved. The scheduled labour time for this particular clutch replacement was seven hours. This figure highlights that it's not a quick fix and requires significant mechanical expertise and time.
Essential Tools and Equipment:
To undertake this repair, a specific set of tools is required:
- Two-post vehicle lift
- Engine support system
- Transmission jack
- Clutch alignment tool
- Locking wheel bolt tool
- Standard mechanic's toolset (wrenches, sockets, screwdrivers)
- Torque wrench
- Brake and clutch dust cleaner
- Emery cloth
- Oxy-acetylene torch (for seized components)
- Grease
Step-by-Step Repair Procedure:
The process is extensive and involves dismantling a significant portion of the vehicle's front end:
- Preparation: Disconnect the battery after removing the battery cover. Remove the ECU from its housing and then the battery box assembly to gain access.
- Accessing the Gearbox: Remove the air filter/air box assembly. Unscrew the clutch slave cylinder retaining bolts and secure it safely without disconnecting the hydraulic pipe. Disconnect the reverse light switch multiplug, gearchange cables, and remove the gearchange cable holder. Undo the upper bell-housing bolts and a rear engine torque arm bolt.
- Subframe Removal: This is a major step. Slacken the front wheels and hub nuts. Raise the vehicle, remove the wheels and hub nuts. Tie the steering rack to the front struts to keep it in place. Detach the engine undertray, lower ball joints, and anti-roll bar links. Remove the lower engine torque arm and subframe retaining bolts. Slightly lower the subframe to access and undo the steering rack bolts and power steering motor mounting bolts. Support and remove the subframe.
- Gearbox Oil Drainage: Drain the gearbox oil and refit the drain plug, torquing it to the manufacturer's specification.
- Driveshaft Disconnection: With the subframe removed, disconnect the driveshafts. Undo the lower bell-housing bolts, leaving a couple in place temporarily.
- Engine and Gearbox Support: Support the engine using an engine support beam or a transmission jack. A second transmission jack is used to support the gearbox.
- Gearbox Removal: Remove the gearbox mounting. From underneath, undo the remaining bell housing bolts and carefully lower the gearbox using the transmission jack.
- Clutch Inspection and Replacement: Detach the clutch assembly. Inspect the clutch plate, flywheel surface, and the release system. In this case, the problem was identified with the worn bushes of the release fork. Deglaze the flywheel surface with emery cloth and clean it. Mount the new clutch plate using a clutch alignment tool, ensuring correct orientation ('Gearbox Side' or 'Getriebe Seite' facing the gearbox). Tighten clutch bolts evenly and sequentially to the manufacturer's torque specification.
- Release Mechanism Repair: Remove the release bearing. Drill out and remove the retaining pin securing the clutch arm lever to the clutch release fork. Remove the clutch arm lever and release fork. If seized, heat the components with an oxy-acetylene torch until red hot, then quench with cold water to break corrosion. Carefully remove the clutch arm lever. Inspect the clutch release fork and bell housing for wear. Replace the release bearing guide tube if worn.
- Reassembly: Install the new release bearing. Apply a light smear of high-melting point grease to the gearbox input shaft splines and wipe off excess. Refit the gearbox, ensuring alignment dowels are correctly seated. Secure with bell housing bolts. Reinstall all other components in reverse order of removal. Refill the gearbox with the correct oil and torque all bolts. Reconnect the battery and reset electrical consumers.
- Final Checks: Road test the vehicle to confirm the repair is successful and the clutch pedal operates smoothly.
Table: Common Clutch Pedal Issues and Potential Fixes
| Symptom | Potential Cause | Likely Repair | Estimated Labour Time (indicative) |
|---|---|---|---|
| Heavy Clutch Pedal | Worn release fork bushes, seized release bearing, air in hydraulics, worn clutch hydraulics | Replace release fork bushes, release bearing, slave cylinder, master cylinder, bleed hydraulics | 5-8 hours |
| Loose Clutch Pedal (drops to floor) | Clutch fluid leak, failed master or slave cylinder, linkage failure (Renault) | Replace master/slave cylinder, repair/replace linkage | 3-7 hours |
| Squeaky Clutch Pedal | Dry or worn release bearing, pilot bearing, clutch fork pivot point | Lubricate or replace release bearing, pilot bearing, clutch fork | 4-7 hours |
| Clutch Sticking/Not Disengaging | Warped clutch plate, seized clutch hydraulics, incorrect fluid level | Replace clutch kit, flush and refill hydraulics | 5-8 hours |
Addressing Squeaky Clutch Pedals and Linkage Issues
While the primary focus is on heavy pedals, it's worth noting related issues. A squeaky clutch pedal can often stem from a dry or worn release bearing, pilot bearing, or the clutch fork's pivot points. Lubrication or replacement of these components typically resolves the noise.

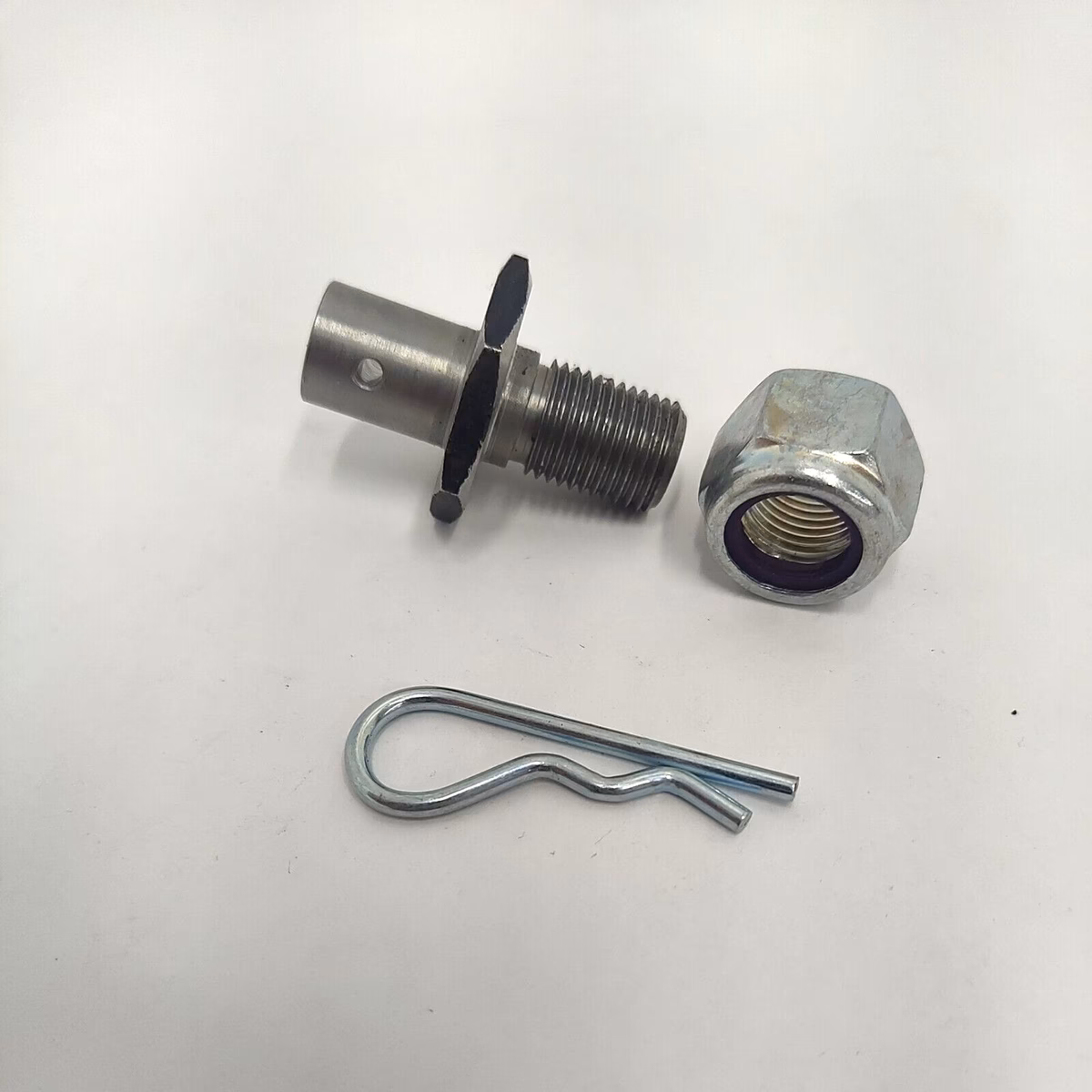

The Renault linkage issue, where the connecting rod wears and pops off its ball joint, is a specific example of a common fault. The original design often features a poor-quality nylon insert that wears against a metal ball joint. The solution involves replacing this worn component with an upgraded, heavy-duty metal linkage with locking clips, offering a significant cost saving compared to replacing the entire pedal assembly and providing a permanent fix. This type of repair is generally less labour-intensive than a full clutch replacement.
Frequently Asked Questions (FAQs)
How long does it typically take to fix a heavy clutch pedal?
The time required can vary significantly depending on the vehicle and the specific cause. For a comprehensive clutch replacement, as seen with the Mini One example, it can take around seven hours of labour. Simpler issues, like replacing a faulty slave cylinder or bleeding the system, might take considerably less time, perhaps 1-3 hours.
Can I fix a heavy clutch pedal myself?
While some minor adjustments or bleeding might be possible for experienced DIY mechanics, a heavy clutch pedal often indicates worn internal components that require significant disassembly. The process of removing the gearbox and replacing clutch parts is complex and requires specialized tools and knowledge. For most, it's a job best left to a qualified professional.
What's the difference between a heavy clutch and a slipping clutch?
A heavy clutch pedal refers to the physical resistance felt when pressing the pedal. A slipping clutch, on the other hand, means the engine revs increase, but the vehicle doesn't accelerate proportionally, often accompanied by a burning smell. While both relate to clutch issues, they indicate different problems within the system.
When should I consider replacing the entire clutch assembly?
If the clutch plate, pressure plate, and release bearing are all showing significant wear, it's often more cost-effective to replace the entire clutch kit rather than individual components. This is especially true if the vehicle has high mileage and the clutch has never been replaced before.
What are the signs of a failing clutch master cylinder?
A failing clutch master cylinder can manifest as a spongy or soft clutch pedal, a pedal that slowly sinks to the floor while holding pressure, or a noticeable drop in the clutch fluid level without any external leaks. In some cases, leaks can occur internally, as suggested by the mention of a vent hole in the brake proportioning valve (which can be integrated with the master cylinder).
In conclusion, a heavy clutch pedal is a clear indicator that attention is needed. While the repair can be time-consuming and involve extensive disassembly, identifying the root cause, whether it's worn release components or other hydraulic issues, is key to restoring your vehicle's clutch performance and ensuring a safe and enjoyable driving experience.
