SAF-Holland P89 Disc Brake Axle Inspection Guide

Understanding the Importance of SAF-Holland P89 Disc Brake Axle Inspections

The SAF-Holland P89 disc brake axle is a critical component of your vehicle's braking system, directly impacting its safety and operational efficiency. Regular and thorough inspections are not merely a recommendation; they are an absolute necessity to prevent premature wear, potential component failure, and, most importantly, to safeguard lives. Neglecting these crucial checks can lead to a cascade of problems, starting with reduced braking performance and potentially culminating in catastrophic brake failure or wheel bearing failure. This guide will delve into the essential aspects of inspecting your SAF-Holland P89 disc brake axle, providing you with the knowledge to keep your vehicle operating at its peak and ensuring peace of mind on the road.

SAF-Holland® disc brake manuals are your primary resource for understanding the intricacies of your braking system. These manuals provide the necessary information for the maintenance, inspection, and safe operation of the SAF® disc brake system. It is paramount that you read and understand this manual before using or servicing your SAF axle. Keeping this manual in a safe and accessible location for future reference is also vital. Remember, off-road operation of SAF axles and suspension systems not specifically designed for such purposes can lead to damage and compromise road safety. Therefore, continuous care, service, and maintenance are required to uphold operational and road safety, and to identify natural wear and defects promptly.

Key Inspection Points for the SAF-Holland P89 Disc Brake Axle

When conducting an inspection of your SAF-Holland P89 disc brake axle, several key areas demand your attention. These are the components that, if compromised, can significantly impact the braking system's integrity.

Brake Pads and Discs: The Heart of Braking

The condition of your brake pads and discs is fundamental to effective braking. Worn brake linings or excessively worn brake discs directly result in a reduction of braking efficiency or, in severe cases, a complete failure of the brake. When inspecting, look for:

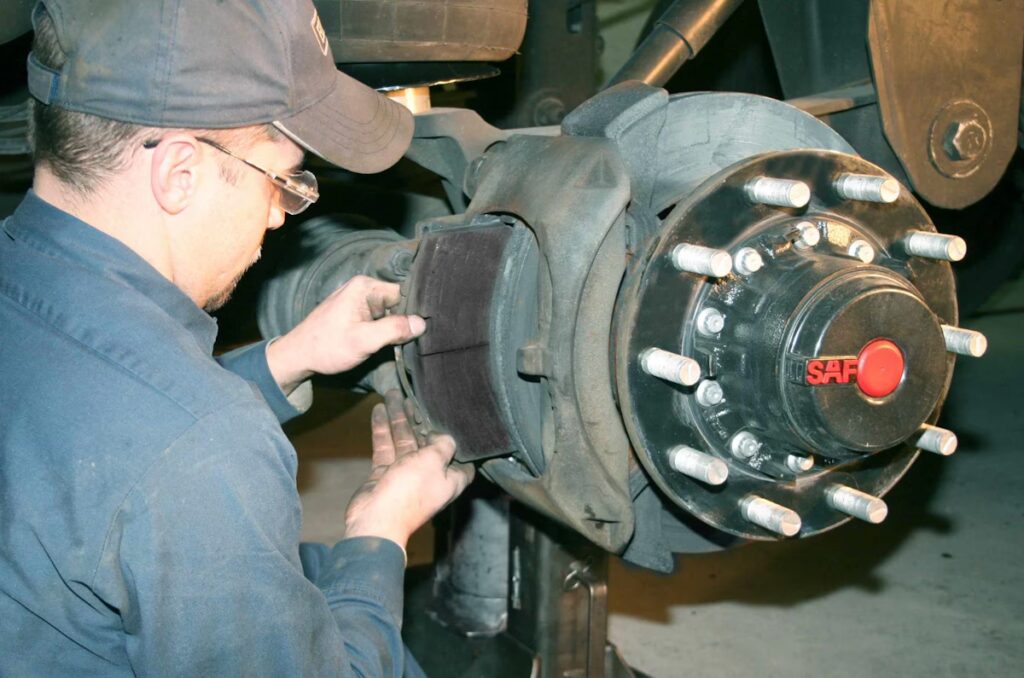

• Pad Thickness: Check the remaining thickness of the brake pads. If they are nearing their minimum thickness specification (refer to your SAF-Holland manual for exact measurements), they require immediate replacement.
• Disc Surface: Examine the brake disc surface for any signs of scoring, cracking, glazing, or uneven wear. Deep grooves or significant lateral runout can compromise braking performance.

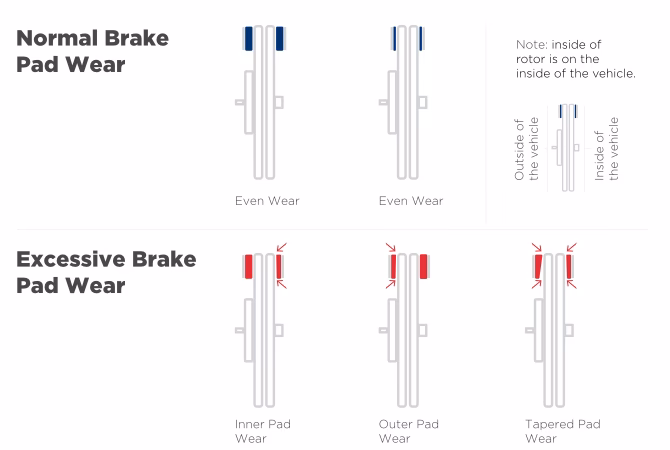

• Even Wear: Ensure that wear is consistent across the entire pad surface and disc. Uneven wear can indicate issues with caliper operation or pad seating.
• Material Grade: When replacing brake pads, always fit only brake pad material grades approved by SAF. Using incorrect materials can lead to premature wear, reduced performance, and potential damage to the disc.
• Replacement Strategy: Under normal wear and replacement conditions, always renew the brake pad kit on both sides of the axle simultaneously. This ensures balanced braking performance.

Caliper and Actuation System: The Control Mechanism

The brake caliper is responsible for applying force to the brake pads. Its proper functioning is crucial. During your inspection, pay close attention to:

• Caliper Housing: Check the caliper housing for any signs of damage, cracks, or corrosion.
• Piston Seals: Inspect the caliper piston seals for any signs of leakage, tearing, or deterioration. Damaged seals can lead to fluid leaks and reduced braking force.
• Slider Pins/Bolts: Ensure that the caliper slider pins or bolts are clean, lubricated, and move freely. Seized sliders can cause uneven pad wear and reduced braking effectiveness.
• Actuator: If your system uses an air brake actuator, inspect it for any air leaks, damage to the diaphragm, or corrosion.

Wheel Bearings and Hub Assembly: The Foundation

The wheel bearings and hub assembly are vital for the smooth rotation of the wheel and are intrinsically linked to the braking system's performance. As highlighted in the provided information, failure in these areas can have severe consequences. Your inspection should include:

• Bearing Play: Check for excessive play in the wheel bearings. This can often be detected by attempting to move the wheel assembly radially and axially when the brakes are applied. Significant movement indicates worn bearings.
• Lubrication: Ensure that the wheel bearings are adequately lubricated. Check for any signs of grease leakage from the hub.
• Hub Condition: Inspect the hub for any signs of cracking, damage, or excessive wear, particularly around the bearing seats.
• Dust Caps and Boots: Crucially, check that all dust caps and boots are present and in good condition. These components protect the bearings and seals from contaminants. Their absence or damage can lead to rapid bearing failure.

Other Essential Checks

Beyond the core braking components, several other elements require regular scrutiny:

• Fasteners: Ensure that all bolts, nuts, and fasteners related to the axle, brake assembly, and hub are present, secure, and correctly torqued. Loose fasteners can lead to significant problems.
• Brake Lines/Hoses: Inspect all brake lines and hoses for any signs of chafing, cracking, kinking, or leakage. Damaged lines can lead to a loss of hydraulic or air pressure.
• Suspension Components: While not directly part of the brake system, the condition of the axle and suspension components is paramount for overall vehicle safety. Check for any signs of damage, wear, or distortion in the axle beam, suspension arms, and mounting brackets.

Routine Service Schedule: A Proactive Approach

SAF axles require routine service, inspection, and maintenance to maintain optimum performance and operational safety. This proactive approach provides an opportunity to recognize natural wear and defects before they escalate into serious issues. Always refer to the Routine Service Schedule provided in your SAF-Holland manual (often found in Section 19). This schedule will detail the recommended intervals for various inspection and maintenance tasks, ensuring your axle system remains in top condition.

Consequences of Neglecting Maintenance

The information provided clearly outlines the severe consequences of neglecting your SAF axle's maintenance. As stated, worn brake linings or excessively worn brake discs lead to reduced braking efficiency or complete brake failure. Furthermore, issues with wheel bearings, if not addressed, can result in brake or wheel bearing failure, which, if not avoided, could result in death or serious injury. The importance of regular checks cannot be overstated. These are not just maintenance tasks; they are critical safety procedures.

General Safety Checks: A Broader Perspective

In addition to specific axle inspections, it is essential to regularly conduct general safety checks in accordance with any applicable laws and regulations. This holistic approach ensures that all aspects of your vehicle's safety systems are functioning correctly.

Frequently Asked Questions (FAQ)

Q1: How often should I inspect my SAF-Holland P89 disc brake axle?
It is recommended to consult your SAF-Holland manual for the specific routine service schedule. However, visual inspections should be carried out regularly, and more comprehensive checks should align with the manufacturer's recommended service intervals, which often depend on mileage and operating conditions.

Q2: What are the signs of worn brake pads on a SAF axle?
Signs include a significant increase in braking distance, a spongy or soft brake pedal/lever, unusual noises during braking (squealing or grinding), and visible reduction in pad thickness when inspecting the caliper. If you notice any of these, a professional inspection is advised.

Q3: Can I service my SAF axle myself?
Basic visual inspections and cleaning can often be performed by the owner. However, any component replacement, adjustment, or in-depth diagnosis should be carried out by a qualified technician experienced with SAF-Holland systems, especially if you are not fully comfortable with the procedures outlined in the manual.

Q4: What happens if I don't replace brake pads on both sides of the axle?
Replacing brake pads on only one side of the axle can lead to uneven braking force, premature wear of the remaining pad and the disc on the side that wasn't serviced, and can potentially affect steering and stability under braking.

Q5: Where can I find replacement parts for my SAF axle?
For axle end/brake replacement components, contact SAF-HOLLAND® Customer Service at 888-396-6501. They can guide you to authorised dealers or provide the necessary parts.

Conclusion: Prioritising Safety Through Diligent Inspection

The SAF-Holland P89 disc brake axle is a sophisticated piece of engineering designed for reliability and safety. However, like all mechanical components, it requires diligent attention and regular maintenance. By understanding the critical inspection points, adhering to the routine service schedule, and acting promptly on any signs of wear or damage, you not only extend the life of your axle but, more importantly, ensure the safety of yourself, your cargo, and others on the road. Treat your SAF axle inspections as a non-negotiable part of your vehicle's upkeep – your safety depends on it.
