Engine Oil in Coolant: A Td5 Fix

Encountering engine oil in your coolant reservoir can be a rather alarming sight for any vehicle owner. This milky, sludgy mixture is a tell-tale sign of a breach within the engine's internal systems, allowing oil and coolant to mix. For owners of the Land Rover Discovery 2, particularly those with the Td5 engine, this is a well-documented, albeit frustrating, issue. My own experience with this problem, which first surfaced about two years ago, has finally prompted me to share the detailed process of diagnosis and repair, hoping to assist others who might find themselves in a similar predicament.

Understanding the Oil-in-Coolant Phenomenon on Td5 Engines

The fundamental reason for oil appearing in the coolant on a Td5 is a pressure differential. As per the official workshop manual (RAVE) and personal measurements, engine oil pressure can peak at around 3 bar when the engine is cold. In contrast, the maximum pressure the coolant system can handle is regulated by the expansion tank's relief valve, typically set at approximately 1.4 bar when the engine is hot. This significant pressure difference dictates the direction of the leak: engine oil is forced into the coolant system, not the other way around. This is a crucial point to grasp when troubleshooting, as it guides your diagnostic efforts.

The Diagnostic and Removal Process

My initial encounter with the problem presented as a typical oil stain in the expansion tank. However, this quickly escalated to a thick, approximately 1/8-inch oil film on top of the coolant, necessitating immediate attention. To access the components responsible for this oil-coolant exchange, a systematic dismantling process was required.

The following components were removed to gain access to the oil cooler assembly:

• All engine coolant was drained.
• The viscous fan was removed.
• The poly-v belt was taken off.
• Turbo hoses were disconnected.
• The turbocharger unit was unbolted.
• The exhaust manifold was removed.
• The A/C compressor was released and carefully moved aside, ensuring the refrigerant piping remained attached and undisturbed.
• The oil filter and its housing were taken out.
• The centrifugal filter and its housing were removed.
• Finally, the oil cooler assembly was unbolted and removed from the engine block.

Pinpointing the Leak: The Oil Cooler Assembly

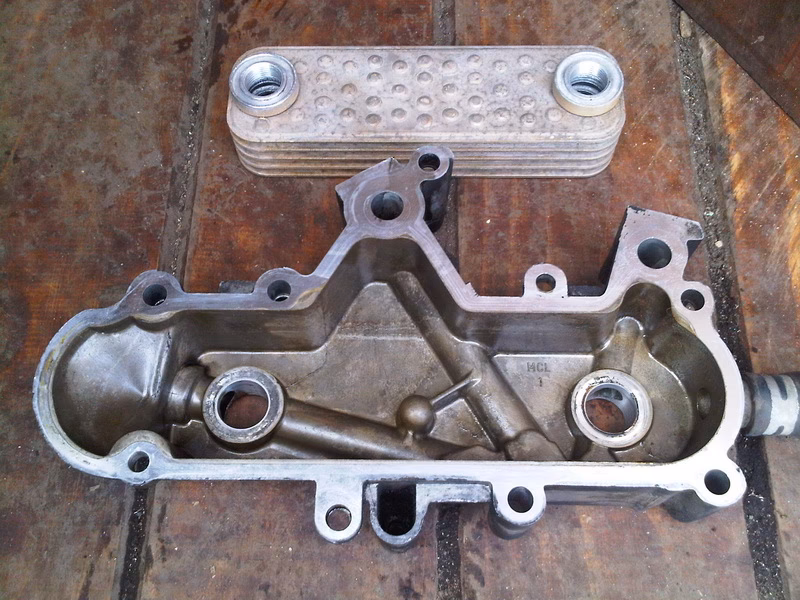

Upon initial inspection of the removed oil cooler assembly, the exact point of failure was not immediately obvious. To investigate further, I proceeded to undo the two hollow bolts that secure the heat exchanger to the main cooler housing. It was at this stage that the culprit became clear: the O-rings on the heat exchanger were significantly deformed – flattened and hardened with age and exposure to heat and hydrocarbons. Furthermore, there were visible oil marks on the surfaces of the oil cooler casing where these O-rings were supposed to create a seal.

While the heat exchanger itself didn't show any apparent signs of leakage, I wanted to be absolutely certain. Considering the pressure differential figures mentioned earlier, the most extreme stress on the sealing O-rings occurs during a cold engine start. At this point, the oil side of the system is at its highest pressure (around 3 bar), while the coolant side is at its lowest, potentially near atmospheric pressure (assuming all relative pressures). This pressure differential is what pushes the oil past any compromised seals.

Testing the Heat Exchanger Integrity

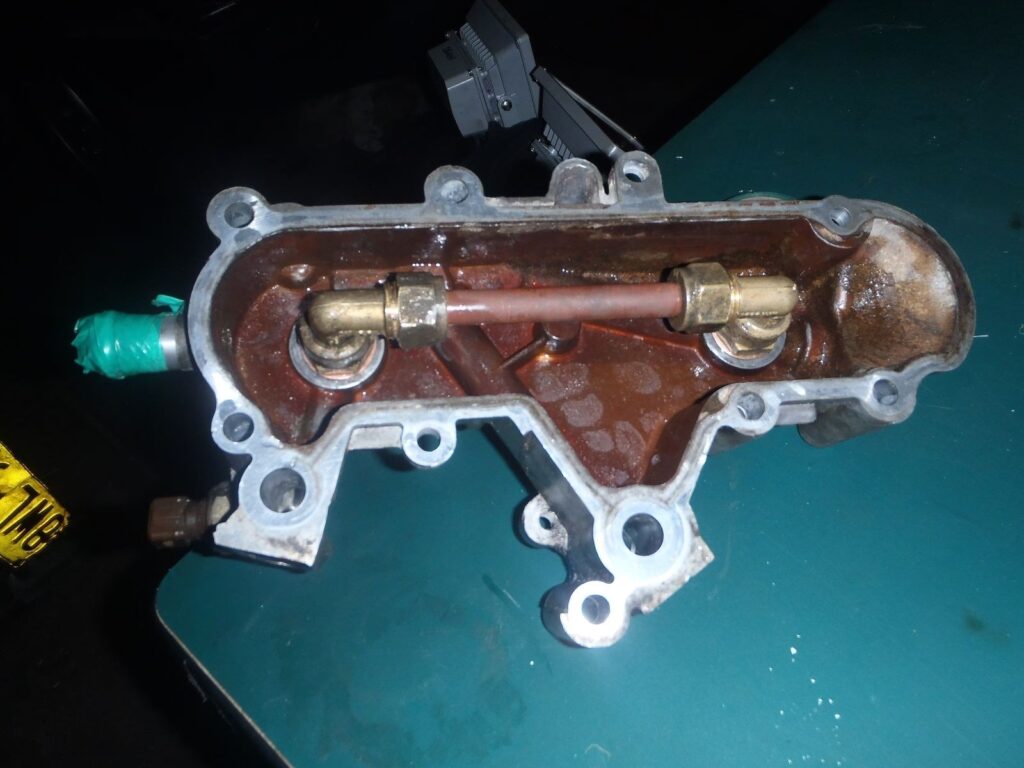

To confirm the health of the heat exchanger and to ensure that the O-rings were the sole failure point, I decided to pressure test the unit. This involved sourcing bolts with the same thread size and pitch as those used to attach the heat exchanger to the housing. The bolts I obtained were longer than necessary, so they were cut down to the appropriate length. Crucially, one of these bolts was drilled through and tapped to accept a 1/4" NPT (Female) fitting, allowing for pressurisation.

Using suitable hoses and various compressed air fittings, I rigged up a test setup. The heat exchanger element was then subjected to a pressure test, successfully holding just over 3.5 bar. I considered increasing the pressure further but decided against it to avoid any potential damage to the unit.

A subsequent test was performed with new O-rings fitted to the heat exchanger. Using the modified bolts, I tested the sealing integrity of the heat exchanger against its housing. While this test is only partially valid because the bolts would eventually need to be removed, it provided a good indication of the seal's robustness under pressure.

O-Ring Selection and Longevity

Regrettably, I did not meticulously record the exact sizes of the bolts or the O-rings during this process. The O-rings I managed to source at the time were not the ideal Viton (FKM) material, which is recommended for applications involving hot hydrocarbons. Instead, I used standard Buna rubber O-rings, also known as Nitrile or NBR. Honestly, I anticipated that these would have a limited lifespan and that I would soon face the same issue again, providing an opportunity to correctly size the O-rings. However, to my surprise, they have held up remarkably well, still performing their duty after approximately 70,000 miles.

I consider myself fortunate that the actual 'oil radiator' (the heat exchanger element itself) was not faulty. These parts were notoriously difficult, if not impossible, to obtain when I performed the repair. Furthermore, a complete replacement oil cooler assembly was, and still is, prohibitively expensive. Thankfully, the situation has improved somewhat, with some manufacturers now offering the heat exchanger as a separate part (part number DA1127), although they do not come cheap.

Key Takeaways and Recommendations

The Td5 oil-in-coolant problem is almost invariably caused by the failure of the O-rings within the oil cooler assembly. The high-pressure oil environment, coupled with fluctuating temperatures, leads to the degradation and eventual failure of these seals.

Symptoms to Watch For:

• Milky or frothy appearance of the coolant in the expansion tank.
• Visible oil film or sludge on the surface of the coolant.
• Loss of coolant, potentially with oil contamination.
• Overheating, as the oil can impede the coolant's ability to dissipate heat effectively.

Recommended Parts:

• O-rings: It is highly recommended to use O-rings made of Viton (FKM) material. These are designed to withstand higher temperatures and resist degradation from oils and fuels, offering a longer service life than standard Nitrile (NBR) O-rings. Ensure you get the correct imperial or metric sizes for your specific application.
• Heat Exchanger: While often the O-rings fail, it is worth inspecting the heat exchanger itself for any signs of corrosion or damage. If you are replacing the O-rings, consider replacing the heat exchanger if it shows significant wear or if it's cost-effective at the time.

Preventative Measures:

While this issue is often a result of component wear, regular maintenance can help identify problems early:

• Regular Coolant Checks: Periodically inspect your coolant for any signs of oil contamination. Early detection can prevent more significant damage.
• Oil Cooler Assembly Inspection: When performing other maintenance tasks that require access to this area, take a moment to visually inspect the oil cooler assembly and surrounding hoses for any leaks or signs of degradation.

Frequently Asked Questions

Q1: Can engine oil damage my coolant?

A1: Yes, when oil mixes with coolant, it can form a sludge that reduces the coolant's ability to transfer heat, potentially leading to overheating. It can also degrade rubber components within the cooling system, such as hoses and seals.

Q2: What is the most common cause of oil in coolant on a Td5?

A2: The most common cause is the failure of the O-rings that seal the heat exchanger to the oil cooler housing on Td5 engines. The pressure differential between the oil and coolant systems forces oil into the coolant.

Q3: Should I use Viton or Nitrile O-rings?

A3: Viton (FKM) O-rings are strongly recommended due to their superior resistance to heat and hydrocarbons, offering a more durable and reliable seal compared to Nitrile (NBR) O-rings.

Q4: Is it safe to drive with oil in the coolant?

A4: It is not recommended to drive the vehicle with significant oil contamination in the coolant. This can lead to overheating and damage to other engine components. It is best to address the issue as soon as possible.

Q5: Can the heat exchanger itself fail?

A5: While less common than O-ring failure, the heat exchanger (oil radiator) can corrode or develop leaks over time, particularly in older vehicles or those in harsh environments. Inspection is recommended when the assembly is dismantled.

Addressing the oil-in-coolant issue on a Td5 requires a methodical approach, but by understanding the system and the likely points of failure, owners can successfully diagnose and repair the problem, ensuring the longevity and reliability of their vehicle.
