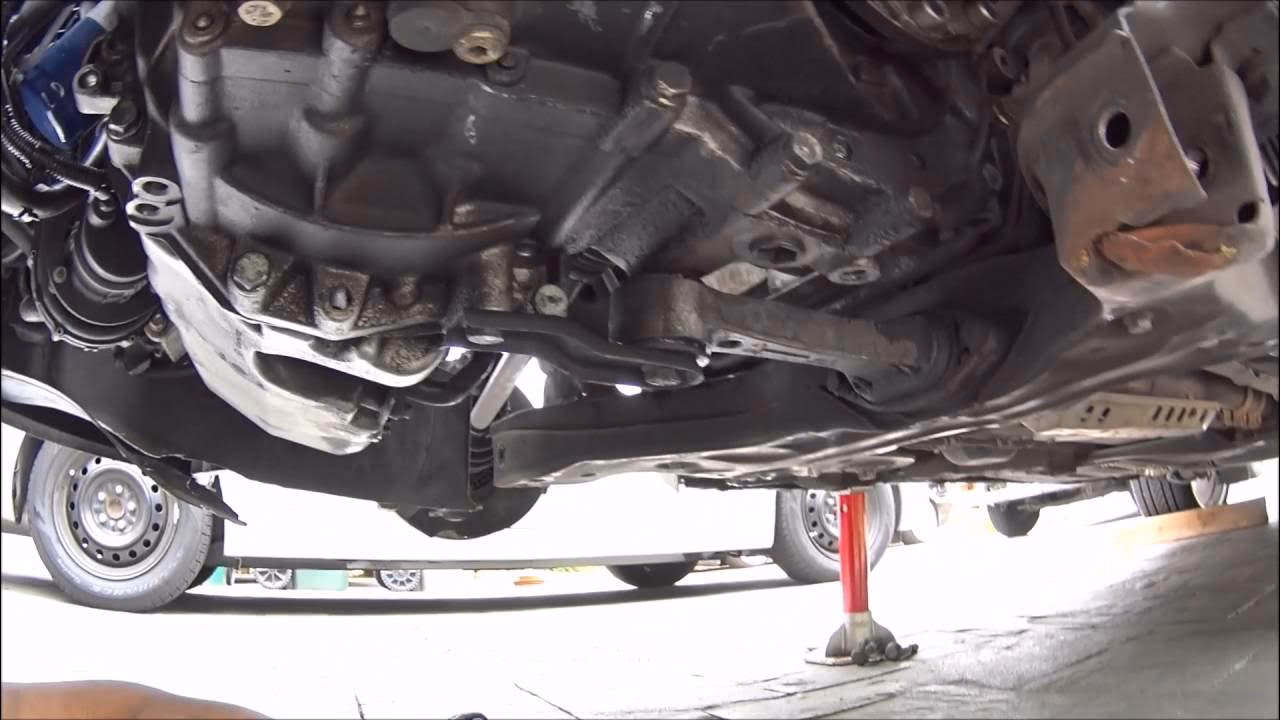

Mk4 FWD Subframe Rot: A Common Concern

The question of whether a Mk4 front-wheel-drive (FWD) subframe can succumb to the relentless march of corrosion is a pertinent one for many owners. Indeed, reports of subframes showing signs of rust, even if not severe enough to fail an MOT (Ministry of Transport) test, are not uncommon. This concern, while perhaps not a critical failure point immediately, certainly warrants attention to ensure the long-term integrity and safety of your vehicle. Fortunately, with the right approach and a bit of elbow grease, this issue can be effectively managed and rectified.

Understanding Subframe Corrosion

The subframe, also known as the crossmember or chassis, is a crucial structural component of your vehicle. It serves as the mounting point for various suspension and steering components, including the engine, gearbox, steering rack, and suspension arms. Given its location, often low down on the vehicle and exposed to road spray, dirt, and salt, it's a prime candidate for rust formation. Mk4 models, like many vehicles of their era, were not always treated with the most advanced anti-corrosion measures as standard, making them more susceptible over time, particularly in regions with harsh winters where road salt is liberally applied.

Surface rust might begin as a minor cosmetic issue, but left unchecked, it can penetrate deeper into the metal. In advanced stages, significant rust can compromise the strength of the subframe, potentially affecting its ability to hold the attached components securely. This could lead to alignment issues, handling problems, and, in extreme cases, structural failure, which is a serious safety hazard. Therefore, addressing even light surface rust is a prudent step in maintaining your vehicle.

Common Signs of Subframe Rust

Identifying rust on your subframe typically involves a visual inspection. Look for:

• Reddish-brown discolouration: This is the most obvious sign of rust.
• Flaking paint: Rust often forms beneath the paintwork, causing it to bubble and flake off.
• Pitting or holes: In more advanced cases, the metal itself may appear pitted or have holes where the rust has eaten through.
• Weakened mounting points: Check the areas where bolts attach suspension components to the subframe. Rust here can make bolt removal difficult and compromise the connection.

Repairing and Replacing a Mk4 FWD Subframe

Fortunately, the experience of many owners suggests that a Mk4 FWD subframe can indeed be replaced or, in some cases, repaired. A common approach, as highlighted by an owner who sourced a replacement for just £30 from eBay, involves:

1. Sourcing a Replacement Subframe

Used subframes are readily available from various sources, including online marketplaces like eBay, specialist scrapyards, and automotive parts suppliers. When sourcing a replacement, try to find one in the best possible condition, ideally with minimal existing rust. Even a used part might benefit from some preventative treatment before installation.

2. Preparing and Treating the Subframe

If you opt for a used subframe or are treating the original (assuming it's not too far gone), the process often involves:

• Wire brushing: Thoroughly remove loose rust and debris using a wire brush or an angle grinder with a wire wheel attachment. This is crucial for effective treatment.
• Rust Converter: Apply a quality rust converter. These products chemically react with existing rust to form a stable, paintable surface. Products like Dinitrol rust converter are often recommended.
• Protective Coating: Once the rust converter has dried, apply a protective paint. Several coats of a durable satin black paint, such as Rustoleum, can provide a good finish and further protection against the elements. This can make the old part look almost new again.

3. The Replacement Process

Replacing a subframe is a significant mechanical task that requires a good understanding of vehicle mechanics, appropriate tools, and a degree of patience. The process generally involves:

• Preparation: Safely jack up the vehicle and support it securely on axle stands. Remove the wheels.
• Disconnecting Components: Carefully disconnect all components attached to the subframe. This will include suspension arms, steering rack, anti-roll bar, and potentially exhaust components or heat shields.
• Supporting the Engine/Gearbox: As the subframe often supports the engine and gearbox, you will need to support these components from above using an engine support beam or a suitable jack before unbolting the subframe.
• Unbolting the Subframe: Locate and carefully remove the bolts securing the subframe to the vehicle's chassis. This is where patience is key, as these bolts can be heavily corroded and prone to snapping.
• Removing the Old Subframe: Carefully lower the old subframe, ensuring it doesn't snag on any remaining components.
• Installing the New Subframe: Position the replacement subframe and loosely fit the mounting bolts.
• Reconnecting Components: Reattach all the suspension and steering components to the new subframe.
• Torquing Bolts: Ensure all bolts are tightened to the manufacturer's specified torque settings.

Essential Replacement Parts and Considerations

It's important to note that many of the bolts attaching the subframe and its associated components are often single-use items, especially those found in critical suspension areas. When undertaking this job, you will likely need to purchase a number of new bolts from a reputable supplier like TPS (Toyota Parts and Service, or similar main dealer parts departments depending on the specific Mk4 model). These can include:

• The three small bolts connecting the ball joint to the lower control arm.
• Dogbone bolts (engine/gearbox mounts).
• The four large bolts that hold the subframe in place.
• Bolts securing the steering rack to the subframe.

The cost of these new fasteners can add up, with one owner reporting £24 just for the four main subframe bolts. Using new, correct-specification fasteners is crucial for safety and to ensure a proper fit.

Tips for a Smoother Replacement

The process, while not technically difficult, can be fiddly and time-consuming. Here are some tips to make it more manageable:

• Patience is Key: Don't rush the process. Take your time, especially when dealing with stubborn or corroded bolts.
• Penetrating Fluid: Generously apply penetrating fluid (a 50/50 mix of acetone and ATF is often cited as effective) to all bolts prior to removal. Allow it to soak in.
• Heat: Where necessary, the judicious application of heat can help loosen stubborn bolts. Use a blowtorch carefully and be aware of any flammable materials nearby.
• Bolt Snapping: The biggest time-saver is avoiding snapped bolts. If a bolt feels like it's about to snap, stop and try a different approach – more penetrating fluid, more heat, or a different technique.
• Support: Ensure the vehicle is stable and securely supported. If you're unsure about any step, consult a professional.

Frequently Asked Questions

Q1: Is it safe to drive with a rusty subframe?

It depends on the severity of the rust. Minor surface rust might not immediately compromise safety, but significant corrosion, especially around mounting points or where the subframe shows signs of pitting or holes, can be dangerous. If in doubt, get it inspected by a qualified mechanic. A rusty subframe can fail an MOT.

Q2: How long does it take to replace a subframe?

As one owner's experience suggests, it can take around four hours from start to finish, but this can vary significantly depending on your experience, the tools you have available, and the condition of the existing bolts. It's a job best tackled when you have ample time and aren't in a hurry.

Q3: Can a rusty subframe be repaired instead of replaced?

In cases of minor surface rust, it can be treated and protected as described. However, if the subframe is significantly corroded, pitted, or has holes, replacement is generally the safer and more effective option. Welding repairs on structural components like subframes should only be carried out by experienced professionals.

Q4: What tools are essential for this job?

You'll need basic mechanic's tools, including a good socket set, wrenches, penetrating fluid, wire brushes (or an angle grinder with a wire wheel), a jack, axle stands, potentially a torque wrench, and possibly a blowtorch for stubborn bolts. An engine support beam might also be necessary.

Q5: Where can I buy replacement subframes and bolts?

Replacement subframes can be found on eBay, from specialist car breakers, or through online automotive parts retailers. New bolts, especially specific OEM ones, are best sourced from main dealer parts departments (like TPS for VW/Audi Group models) or reputable online fastener suppliers.

In conclusion, while the potential for subframe corrosion on Mk4 FWD models is a valid concern, it's a manageable issue. By understanding the signs of rust, sourcing a suitable replacement, and approaching the repair or replacement process with diligence and the right techniques, you can ensure your vehicle's chassis remains sound and safe for many more miles to come. Proactive maintenance is always the best policy when it comes to structural components.
