Ford Transit Brake Care: Pads, Discs, & Reset

Ensuring your Ford Transit's braking system is in top condition isn't just about passing its MOT; it's absolutely crucial for the safety of yourself, your passengers, and other road users. As a workhorse vehicle, the Ford Transit, including the popular Custom models produced between 2012 and 2024, endures significant wear and tear, and its brakes are no exception. Whether you're hauling heavy loads or simply navigating urban environments, reliable stopping power is paramount. This guide will delve into the critical aspects of Ford Transit brake maintenance, helping you understand how to identify worn brake pads, the process of replacing brake discs, and importantly, how to reset that pesky brake wear indicator light.

Recognising Worn Brake Pads on Your Ford Transit

One of the most common issues drivers face with their braking system is worn brake pads. For a 2018 Ford Transit, just like any other year or model within the 2012-2024 range, the signs of worn brake pads are typically quite clear. Ignoring these signs can lead to reduced braking performance, damage to other components like brake discs, and ultimately, a dangerous driving situation.

Key Indicators of Worn Brake Pads:

• Squealing or Squeaking Noise: Often the first sign, this high-pitched noise occurs when the wear indicator tab (a small metal piece on the pad) scrapes against the brake disc.
• Grinding Noise: A much more serious sound, indicating that the brake pads are completely worn down, and the metal backing plate is grinding against the brake disc. This requires immediate attention.
• Vibration or Pulsation: While often a sign of warped brake discs, extremely worn or unevenly worn pads can also cause a vibrating sensation through the brake pedal.
• Longer Stopping Distances: If you notice your Transit takes longer to come to a complete stop, or you need to press the pedal harder than usual, your pads might be past their prime.
• Brake Wear Indicator Light: Many modern Transits, particularly the Custom models, are equipped with a brake wear sensor that illuminates a warning light on your dashboard when the pads reach a critical wear level. This is a definitive signal that replacement is due.
• Visual Inspection: If you can safely inspect your brake pads through the wheel spokes, look for the thickness of the friction material. If it's less than about 3mm (roughly the thickness of a few pennies stacked), it's time for new pads.

Understanding the Brake Wear Indicator Light

The brake wear indicator light is a vital safety feature on your Ford Transit Custom. It's designed to give you a clear, unambiguous warning when your brake pads have worn down to a point where they need replacing. The system typically uses a sensor embedded in one of the brake pads (usually on the inner pad, where wear can be more pronounced). When the friction material wears down to a specific level, the sensor makes contact with the brake disc, completing an electrical circuit and illuminating the warning light on your dashboard.

It's crucial to understand that this light means your pads are excessively worn. While you might still have some braking capability, performance will be compromised, and continued driving could lead to disc damage or even brake failure. Therefore, when this light appears, it's not a suggestion; it's a command to address your brakes promptly.

Resetting the Brake Wear Indicator Light on Your Ford Transit Custom

The information provided states that to reset the brake wear indicator light on the Ford Transit Custom, you first need to replace the excessively worn brake pads. This is a critical point: the light is an indicator of a physical issue (worn pads), and simply resetting it without addressing the underlying problem would be incredibly dangerous and futile. The light will remain on, or reappear shortly after, if the worn pads are not replaced.

Step-by-Step for Brake Pad Replacement (Pre-Reset):

Before you can even think about resetting the light, you must replace the worn pads. This is a job that requires mechanical aptitude, the correct tools, and a strong emphasis on safety. If you're unsure, it's always best to consult a professional mechanic.

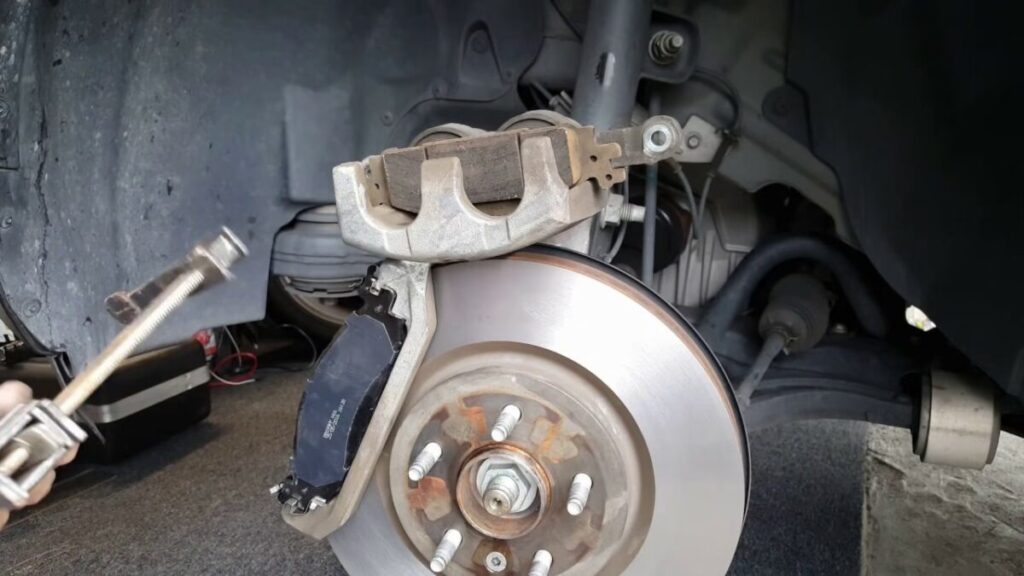

1. Preparation and Safety First: Park your Transit on a flat, stable surface. Engage the parking brake and chock the wheels that are not being worked on. Loosen the wheel nuts slightly, then jack up the vehicle using appropriate jack stands for support. Never rely solely on a jack. Remove the wheel.
2. Access the Brake Caliper: Locate the brake caliper. You'll usually find two bolts holding it to the caliper bracket. These are often slide pins.
3. Remove the Caliper: Carefully unbolt the caliper. You may need to use a large C-clamp or a brake pad spreader tool to push the caliper piston back slightly to ease removal. Do not let the caliper hang by the brake hose; support it with a wire or bungee cord to prevent damage to the hose.
4. Remove Old Brake Pads: The old pads will slide out from the caliper bracket. Note how they are seated, as the new ones will go in the same way. Pay attention to any shims or anti-rattle clips.
5. Clean and Inspect: Clean the caliper bracket and slide pins thoroughly. Inspect the brake disc for scoring, excessive wear, or cracks. If the disc is heavily worn or damaged, it should be replaced alongside the pads.
6. Install New Brake Pads: Insert the new brake pads. Ensure any anti-squeal shims or clips are correctly fitted. If your new pads come with a wear sensor, ensure it's correctly routed and connected.
7. Retract the Caliper Piston: This is a crucial step. Use a brake piston compressor tool to push the caliper piston (or pistons) all the way back into the caliper body. This creates space for the thicker new pads. Be careful not to damage the dust boot.
8. Reinstall the Caliper: Carefully position the caliper back over the new pads and disc. Reinstall the caliper bolts and tighten them to the manufacturer's specified correct torque settings. This is vital for safety.
9. Reinstall Wheel and Test: Reinstall the wheel and tighten the wheel nuts. Lower the vehicle. Before driving, pump the brake pedal several times to re-seat the caliper pistons and build up pressure in the system. The pedal should feel firm.

Resetting the Light Post-Replacement:

Once the new pads are correctly installed and the brake pedal feels firm, the brake wear indicator light should extinguish itself on most Ford Transit Custom models. This is because the new sensor (or the newly re-established contact point) will break the circuit that triggered the light. There is typically no manual reset procedure required via a scan tool or dashboard button specifically for the brake wear light itself, unlike some service interval lights. The act of replacing the worn component and restoring the sensor's integrity is the 'reset'. If the light persists, it suggests either an issue with the new sensor, incorrect installation, or damage to the wiring harness.

How Do You Remove a Brake Disc on a Ford Transit?

Replacing brake discs is often a necessary part of a comprehensive brake service, especially if they are warped, scored, or below their minimum thickness. The information provided specifically mentions using the Laser Tools brake disc removal tool, which is suitable for both front and rear-wheel-drive vehicles. This implies that some force or a specific method might be required due to the design of the Transit's hubs.

Steps for Brake Disc Removal:

1. Preliminary Steps: As with pad replacement, ensure the vehicle is safely supported on jack stands with the wheel removed. You'll also need to remove the brake caliper and its mounting bracket to gain full access to the disc.
2. For Front-Wheel Drive (FWD) Vehicles:
   • Remove the halfshaft retaining nut locking ring and discard the cotter pin. This secures the driveshaft to the hub.
   • Loosen the halfshaft retaining nut. This nut holds the driveshaft into the wheel hub assembly.
   • At this point, you would typically use the Laser Tools brake disc removal tool. This tool is designed to separate the disc from the hub assembly, which can sometimes be seized due to corrosion or tight fitment. The tool likely applies pressure to push the disc off the hub without damaging other components.
   • Once separated, the disc can be removed.
3. For Rear-Wheel Drive (RWD) Vehicles:
   • Remove the wheel spindle retaining nut locking ring and discard the cotter pin. Similar to the FWD, this secures the spindle.
   • Loosen the wheel spindle retaining nut.
   • Again, the Laser Tools brake disc removal tool would be employed here to separate the disc from the wheel hub/spindle assembly.
   • Remove the disc.

Important Note: Brake discs can often be seized onto the hub due to rust and heat. Never use excessive force with a hammer on the disc face, as this can cause damage. Using the correct removal tool, as suggested, is paramount. When installing new discs, ensure the hub surface is meticulously clean to ensure the disc sits perfectly flat, preventing future wobble or pulsation.

Choosing the Right Brake Components

When replacing brake pads and discs on your Ford Transit, you'll encounter various options. The choice between Original Equipment Manufacturer (OEM) parts and aftermarket alternatives can impact performance, longevity, and cost.

For a commercial vehicle like the Transit, investing in quality parts is always recommended to ensure reliability and safety, especially given the demands placed on its braking system. Don't compromise on brake components.

Beyond Pads and Discs: Brake Fluid and Other Considerations

While pads and discs are the primary wear items, the braking system is a complex network. Brake fluid is hygroscopic, meaning it absorbs moisture over time, which can reduce its boiling point and lead to corrosion within the brake lines and calipers. Ford recommends regular brake fluid changes, typically every two years, regardless of mileage. This helps maintain consistent pedal feel and prevents expensive component failures.

Other components to be aware of include:

• Brake Hoses: Check for cracks, bulges, or leaks.
• Caliper Slide Pins: Ensure they are clean and lubricated to allow the caliper to move freely. Sticking pins can lead to uneven pad wear.
• ABS System: If your ABS warning light illuminates, it indicates an issue with the anti-lock braking system. This requires professional diagnosis.

When to Seek Professional Help

While routine brake pad and disc replacement can be a DIY task for experienced mechanics or enthusiastic amateurs, there are times when professional intervention is strongly advised:

• If you are uncomfortable performing the work yourself or lack the correct tools.
• If the brake wear indicator light remains on after new pads are installed.
• If you notice any fluid leaks around the brakes or brake lines.
• If the brake pedal feels spongy, goes to the floor, or is excessively hard.
• If any other warning lights related to the braking system (e.g., ABS, traction control) are illuminated.
• For complex diagnoses or repairs involving the master cylinder, ABS module, or brake lines.

Your Ford Transit's brakes are a critical safety system. When in doubt, always consult a qualified mechanic.

Frequently Asked Questions About Ford Transit Brakes

How often should Ford Transit brake pads be replaced?

There's no fixed mileage for brake pad replacement as it depends heavily on driving style, load carried, and operating conditions. However, on average, Transit brake pads might last anywhere from 20,000 to 70,000 miles. Regular inspections, especially during servicing or tyre rotations, are the best way to determine their condition. The brake wear indicator light is the definitive sign that immediate attention is needed.

Can I drive with the brake warning light on?

It is strongly advised not to drive with the brake warning light on for an extended period. This light indicates that your brake pads are excessively worn and require immediate replacement. Driving with worn pads compromises your vehicle's stopping ability, increases the risk of disc damage, and could lead to a dangerous situation, especially under emergency braking conditions. Get your brakes checked as soon as possible.

What is the best type of brake pad for a Ford Transit?

For a Ford Transit, which is often used for heavy-duty work, a high-quality semi-metallic or ceramic brake pad is generally recommended. Semi-metallic pads offer excellent stopping power and heat dissipation, suitable for commercial use. Ceramic pads are quieter and produce less dust but might be slightly less durable under extreme heavy-duty conditions. Always choose a reputable brand that meets or exceeds OEM specifications for optimal performance and longevity.

Do I need to bleed the brakes after changing pads or discs?

Typically, you do not need to bleed the brakes after merely replacing pads or discs, provided you haven't opened any brake lines or introduced air into the system. However, it's crucial to pump the brake pedal several times before driving to push the caliper pistons back out and re-establish proper pedal feel. If the pedal feels spongy after replacement, or if any brake lines were disconnected, then a full brake bleed is necessary to remove any air from the system.

What's the difference between front and rear brakes on a Transit?

On a Ford Transit, the front brakes typically do about 70-80% of the braking work due to weight transfer during deceleration, meaning they wear out faster and are usually larger. Front brakes are almost always disc brakes. Rear brakes, while still important for stability and contributing to stopping power, often wear slower. Some Transits may have rear disc brakes, while older or lighter-duty models might have rear drum brakes. The principles of wear and replacement are similar, but the components and procedures can differ.

Conclusion

The braking system of your Ford Transit is arguably its most critical safety feature. Regular inspection, timely replacement of worn components like brake pads and discs, and understanding the significance of warning lights are all essential for maintaining your vehicle's reliability and ensuring safe operation. Whether you're driving a 2018 model or any other Transit from the 2012-2024 range, staying proactive with your brake maintenance will not only save you money in the long run but, more importantly, could save lives. Always prioritise safety and consider professional assistance if you're ever in doubt about performing brake work yourself.
