The F13 manual gearbox, a dependable workhorse found in countless small Vauxhall and Opel models, often becomes a focal point for enthusiastic DIY mechanics seeking to optimise its performance and lifespan. While manufacturers specify a precise oil fill level, a persistent theory and practice among some owners involve 'overfilling' the gearbox. This approach aims to address perceived shortcomings like stiff shifting or gearbox whine, particularly in older units. This article will guide you through the process of overfilling an F13 manual gearbox, drawing on practical experience to outline the necessary components, the step-by-step procedure, and crucial considerations for anyone contemplating this modification.
Understanding the F13 Manual Gearbox
The F13 manual gearbox is a widely used transmission, commonly paired with smaller displacement engines such as the 1.0, 1.2, and 1.4-litre variants. Its design, like many manual gearboxes, relies on a constant splash lubrication system, where the rotating gears pick up oil from the sump and distribute it throughout the casing. The 'overfilling' concept primarily stems from the idea that by adding slightly more oil than the factory recommended amount, certain gears, especially those located higher within the casing (like 5th gear), will receive more consistent lubrication, potentially reducing wear and improving shift quality. It's a modification born from observation and experimentation rather than official manufacturer guidance.
Why Consider Overfilling? Exploring the Rationale
Owners often consider overfilling their F13 gearboxes to mitigate a few common issues. One prevalent complaint is a 'notchy' or stiff gear change, particularly noticeable when cold, or difficulty engaging certain gears. Another frequently reported issue is a characteristic whine, especially from higher gears like fifth, which some attribute to insufficient lubrication at standard fill levels. The theory behind overfilling is straightforward: by increasing the total volume of oil, more of the gear train, particularly the upper shafts and bearings, will be consistently submerged or sufficiently splashed, thus enhancing lubrication. While anecdotal evidence strongly supports this practice among a segment of the DIY community, it's essential to approach it with an understanding of both the potential benefits and the inherent risks.
The Essentials: Parts and Fluids for Your F13 Overfill
Before embarking on this task, ensure you have all the necessary components. The information provided by fellow enthusiasts highlights the specific parts required for a successful and leak-free job:
- Gearbox Oil: You will need manual gearbox oil conforming to the 75W-85 GL4 specification. The part number 93165290 is often cited for this. It's crucial to use GL4-specific oil, as GL5 oils can contain additives that are corrosive to the 'yellow metals' (brass and bronze) found in synchronisers within older gearboxes. For an overfill, you'll typically aim for approximately 1.6 litres, which is slightly more than the standard fill of around 1.4 litres. Purchasing two 1-litre bottles is advisable to ensure you have enough.
- Diff Cover Plate Gasket: This is a critical component to replace. The part number 90345226 is specified. When removing the diff cover plate to drain the oil and access the internal components, the old gasket will almost certainly be damaged and will not provide an adequate seal upon reassembly. A new gasket ensures a leak-free seal.
- Sealing Washer for the Reverse Light Switch: While not always mandatory, it's a good practice to replace this small, inexpensive item, typically costing around 30p. The reverse light switch often serves as an access point for refilling the gearbox, and a fresh washer helps prevent minor leaks from this area.
In addition to these parts, you will need standard workshop tools: a socket set, ratchets, a torque wrench for correct bolt tension, a large drain pan to catch the old oil (expect it to be messy!), and ideally a fluid pump or large syringe to facilitate refilling the gearbox with new oil, as access can be awkward.
The Overfilling Procedure: A Step-by-Step Guide
Performing this job is fairly straightforward for a competent DIY mechanic, but patience and preparedness are key.
- Preparation: Park your vehicle on a level, hard surface. For safety, lift the front of the vehicle using a jack and secure it with sturdy axle stands. Never work under a vehicle supported only by a jack. It can be beneficial to run the engine for a few minutes to slightly warm the gearbox oil, making it less viscous and easier to drain. Locate the gearbox drain plug (usually at the very bottom of the gearbox casing) and identify the diff cover plate, which is typically on the side of the gearbox facing the front of the car.
- Draining the Old Oil: Position your large drain pan directly beneath the gearbox drain plug. Remove the drain plug (usually a large Allen key or square drive socket). Be prepared for the oil to gush out. Allow it to drain completely. While it's draining, you can proceed to the next step, but ensure your drain pan is large enough to handle the additional oil that will come from the diff cover.

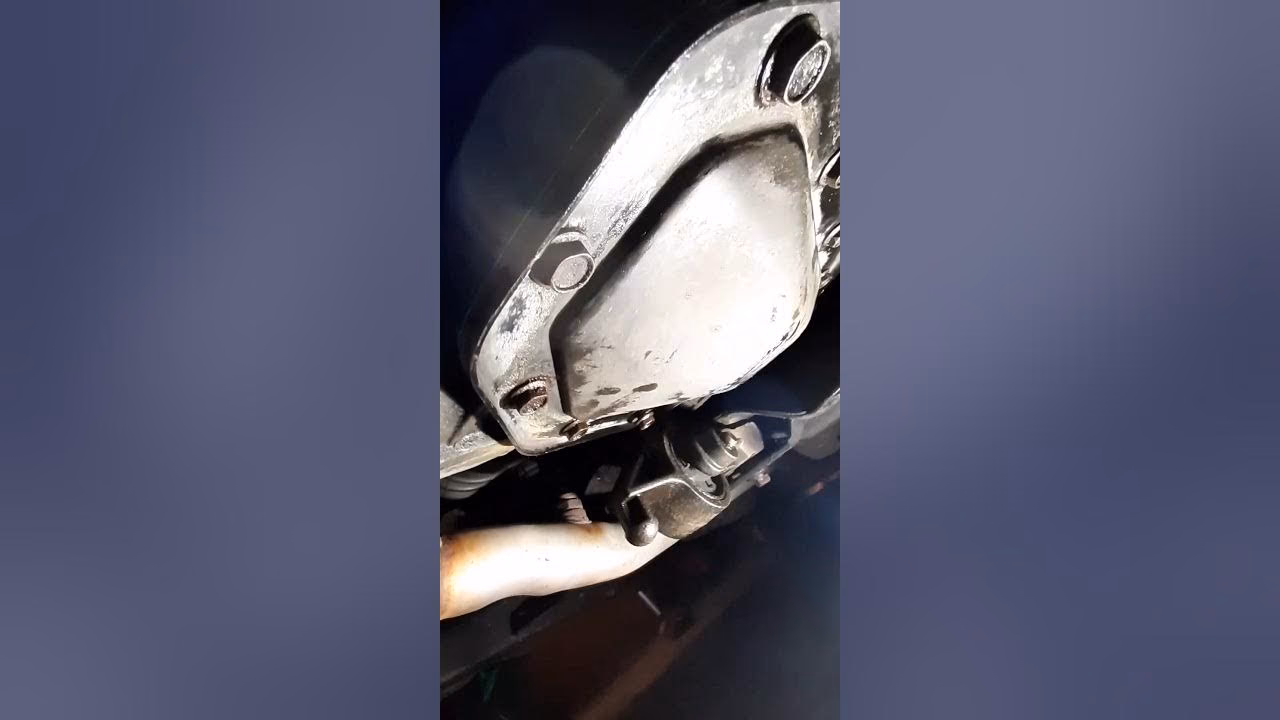

- Accessing the Diff Cover Plate: Once the main drain is slowing, or even fully drained, place the drain pan directly under the diff cover plate. This plate is held on by several bolts around its perimeter. Carefully begin to loosen and remove these bolts. As you remove the last few bolts, be prepared for more oil to spill out, as the diff cover often forms part of the gearbox sump. This is the 'messy' part mentioned, so have rags and absorbent material ready. Once all bolts are removed, gently pry the cover plate away from the gearbox casing. It may be stuck due to the old gasket sealant.
- Cleaning and Gasket Replacement: With the diff cover plate removed, thoroughly clean both the mating surface on the gearbox casing and the surface on the diff cover plate itself. Remove all traces of the old gasket material and any sealant. This step is crucial for preventing future leaks. Once clean, fit the new diff cover plate gasket (90345226) onto the cover plate, ensuring it's correctly aligned.
- Refilling the Gearbox: This is where the 'overfilling' aspect comes into play. Reattach the diff cover plate with its new gasket, tightening the bolts evenly and to the manufacturer's specified torque settings if you can find them (or tighten firmly in a criss-cross pattern if not, but avoid over-tightening which can damage the gasket). Replace the gearbox drain plug. Now, you need to add the new oil. The most common method for F13 boxes is to remove the reverse light switch (located on the gearbox casing, often near the top or side). This hole provides an access point for refilling. Using your fluid pump or syringe, slowly add the 1.6 litres of 75W-85 GL4 oil. Unlike a standard fill where you fill until oil overflows from a specific fill plug, here you are measuring the exact quantity (1.6 litres) to achieve the overfill.
- Replacing the Reverse Light Switch Washer: If you removed the reverse light switch for filling, ensure you fit the new sealing washer before reinserting and tightening the switch. This prevents leaks from this access point.
- Reassembly and Post-Procedure Check: Double-check all bolts are tightened, and the drain plug and reverse light switch are secure. Lower the vehicle off the axle stands. Start the engine and let it run for a few minutes, engaging gears to circulate the new oil. Then, take the car for a short test drive, paying attention to gear changes and any unusual noises. Crucially, after the test drive, park the car and visually inspect the gearbox area for any signs of leaks, especially around the diff cover plate and the drain plug.
Potential Risks and Long-Term Considerations of Overfilling
While many F13 owners report positive results from overfilling, it's important to acknowledge the potential downsides and risks. Any deviation from manufacturer specifications carries an inherent risk. The primary concerns associated with overfilling include:
- Increased Internal Pressure: Adding more fluid than designed can increase internal pressure within the gearbox casing. While modern gearboxes are robust, excessive pressure could potentially put strain on seals, leading to premature failure and oil leaks. Maintaining good seal integrity is paramount for a leak-free gearbox.
- Oil Frothing/Aeration: If the oil level is too high, it's possible for the gears to churn the oil excessively, leading to aeration or frothing. Aerated oil is less effective at lubrication because air bubbles reduce its heat transfer capabilities and load-carrying capacity, potentially leading to increased wear.
- Reduced Efficiency: A very slight increase in drag might occur due to more components being submerged in oil, theoretically leading to a marginal decrease in fuel efficiency. However, for a minor overfill like 0.2 litres, this effect is likely negligible.
- Component Damage: While rare with a slight overfill, in extreme cases or with already compromised seals, increased pressure could contribute to seal blowouts or other component failures.
It's crucial to weigh these potential risks against the anecdotal benefits. This is a modification that many find worthwhile for specific issues, but it's not a universally endorsed practice by manufacturers.
Table: Standard vs. Overfilled F13 Gearbox Oil
| Feature | Standard Fill (Approx. 1.4L) | Overfill (1.6L) |
|---|---|---|
| Oil Level | Up to designated filler plug | Beyond standard filler plug (measured volume) |
| Shift Feel | As per manufacturer design, potentially notchy/whiny on some older units | Potentially smoother shifts, reduced whine (anecdotal) |
| Lubrication | Adequate for most conditions and components | Enhanced for higher gears and upper shafts |
| Internal Pressure | Normal operating pressure | Slightly increased pressure |
| Seal Risk | Low (if seals are healthy) | Moderate (potential for increased strain/leaks) |
| Manufacturer Rec. | Yes | No (DIY modification, not officially sanctioned) |
Frequently Asked Questions (FAQs)
Q: Is overfilling really beneficial for an F13 gearbox?
A: Many F13 owners report improvements in shift quality and a reduction in gear whine, especially in higher gears, after overfilling. However, these are anecdotal benefits and not officially endorsed by the manufacturer. It's a common DIY solution to specific symptoms.
Q: How often should I change my F13 gearbox oil?
A: Gearbox oil is often considered 'lifetime' by manufacturers, but in reality, it degrades over time. Many mechanics recommend changing manual gearbox oil every 60,000 to 100,000 miles, or every 5-7 years, especially if you experience stiff shifts or excessive noise.
Q: What are the signs of low gearbox oil?
A: Signs of low gearbox oil include difficulty shifting gears (especially when cold), grinding noises during shifts, a whining or humming noise from the gearbox while driving, and visible oil leaks under the car.
Q: Can I use a different oil type than 75W-85 GL4?
A: It is strongly recommended to stick to the 75W-85 GL4 specification. Using GL5 oil, which is common for differentials, can damage the 'yellow metal' (brass/bronze) synchronisers in older manual gearboxes like the F13 due to its higher sulphur-phosphorus content.
Q: What if I don't replace the diff cover gasket?
A: Failing to replace the diff cover gasket (90345226) after removal will almost certainly result in oil leaks. The old gasket material will have hardened and compressed, and cannot form an adequate seal once disturbed. Replacing it is crucial for a leak-free repair.
Q: How do I know if my gearbox is an F13?
A: The F13 gearbox is commonly found in Vauxhall/Opel models with 1.0, 1.2, and 1.4-litre engines. You can often find identification codes stamped on the gearbox casing itself, or consult your vehicle's service manual or an online parts catalogue using your VIN.
Conclusion
Overfilling an F13 manual gearbox is a well-established practice within the DIY automotive community, often yielding noticeable improvements in shift feel and noise reduction for specific symptoms. While it deviates from manufacturer specifications and carries minor inherent risks like increased pressure on seals, for many, the benefits outweigh these concerns. By understanding the specific parts required – notably the 75W-85 GL4 oil and the essential diff cover plate gasket – and following a careful, step-by-step procedure, you can confidently undertake this modification. Always prioritise safety, use the correct materials, and thoroughly check for leaks post-procedure to ensure your F13 gearbox continues to perform reliably for many miles to come.
