Brake Pad Replacement: Your Essential UK Guide

Few components are as vital to your safety on the road as your car's brakes. They are your primary defence against accidents, allowing you to slow down or stop quickly and effectively. At the heart of this crucial system are the brake pads, hardworking components designed to create friction against the brake discs, converting kinetic energy into heat and bringing your vehicle to a halt. Due to this constant friction and the immense forces involved, brake pads are subject to significant wear and tear, meaning they have a finite lifespan and will eventually require replacement.

Understanding when your brake pads need attention is not just about maintenance; it's about safeguarding yourself, your passengers, and other road users. Ignoring worn brake pads can lead to reduced braking performance, increased stopping distances, damage to other brake components, and ultimately, a dangerous driving situation. This comprehensive guide will walk you through the tell-tale signs of worn brake pads, help you decide if a replacement is due, and provide a detailed, step-by-step process for undertaking this essential DIY task yourself, saving you money and giving you a deeper understanding of your vehicle.

Recognising the Signs: Do Your Brake Pads Need Replacing?

Identifying worn brake pads early can prevent more significant issues and ensure your continued safety. Pay close attention to your car's behaviour, as it often communicates its needs through various auditory, tactile, and visual cues.

Auditory Warnings: What Sounds Should You Listen For?

• Squealing or High-Pitched Screeching: This is often the first and most common indicator. Many modern brake pads are equipped with a small metal wear indicator, a 'squealer' tab, which makes contact with the rotor when the pad material wears down to a critical level. This sound is designed to be annoying, serving as an unmistakable warning that replacement is imminent.
• Grinding Noise: A much more serious sound, a metallic grinding noise indicates that the brake pad material has completely worn away, and you are now metal-on-metal – the brake disc rubbing directly against the caliper or the metal backing plate of the brake pad. This is extremely dangerous, severely compromises braking effectiveness, and will rapidly damage your brake discs, leading to a much more expensive repair.

Tactile Feedback: How Does Your Pedal Feel?

• Vibration Through the Pedal or Steering Wheel: While often a sign of warped brake discs, vibrations during braking can sometimes be exacerbated by unevenly worn pads or debris caught between the pad and disc.
• A Soft or Spongy Brake Pedal: If your brake pedal feels unusually soft or goes further to the floor than usual before engaging, it could indicate worn pads, but it might also point to issues with the hydraulic system, such as air in the lines or a master cylinder problem. However, worn pads can contribute to this feeling as the caliper pistons have to extend further.
• Pulsation: A pulsating brake pedal usually points to warped brake discs, but it's important to check pad wear simultaneously, as both issues can be related.

Visual Inspection: Look and See

• Visible Pad Thickness: You can often visually inspect your brake pads by looking through the spokes of your wheel. A healthy brake pad should have at least 3-4mm of friction material remaining. If it looks thinner than a 5p coin, it's time for a replacement. Many mechanics recommend replacement at 3mm.
• Brake Dust on Wheels: While normal, an excessive amount of brake dust can sometimes indicate rapid wear.
• Dashboard Warning Light: Many modern vehicles are equipped with electronic wear sensors on their brake pads. When the pad wears down to a certain point, the sensor triggers a warning light on your dashboard, usually an exclamation mark inside a circle, or a specific brake pad icon. This is a clear signal that immediate attention is required.

Performance Issues: Is Your Car Braking Differently?

• Increased Stopping Distances: If your car takes longer to stop than it used to, or you find yourself having to press the brake pedal harder to achieve the same braking effect, it's a strong indicator that your pads are worn and losing their effectiveness.
• Car Pulling to One Side When Braking: This can be a sign of uneven brake pad wear, a seized caliper, or an issue with the brake hose on one side, causing unequal braking force.

The Decision: When is Replacement Absolutely Necessary?

While the signs listed above are strong indicators, the definitive answer often comes down to the measurable thickness of the friction material. Most manufacturers recommend replacing brake pads when the friction material is 3mm thick or less. Some might even suggest replacement at 4mm for optimal safety and performance. Always consult your vehicle's owner's manual for specific recommendations.

It's also crucial to replace brake pads in axle sets (both front or both rear), even if only one side appears more worn. This ensures balanced braking performance across the axle, preventing uneven braking that could lead to instability or pulling.

Why Consider DIY Brake Pad Replacement?

Changing brake pads yourself is a highly rewarding task that offers several benefits:

• Cost Savings: Labour costs at garages can be significant. Performing the job yourself can save you a considerable amount of money.
• Understanding Your Vehicle: It provides a valuable opportunity to learn more about your car's mechanics and build confidence in basic maintenance tasks.
• Convenience: You can carry out the work at your own pace and schedule, without needing to book appointments or arrange alternative transport.
• Quality Control: You have direct control over the quality of the parts you install.

However, it's imperative to approach this task with caution and ensure you have the correct tools and knowledge. If you're unsure at any point, it's always best to consult a professional.

Choosing the Right Brake Pads: A Quick Comparison

Before you begin, selecting the appropriate brake pads for your vehicle is crucial. Brake pads are typically made from different materials, each with its own characteristics:

Always ensure the pads you purchase are compatible with your specific make, model, and year of vehicle. Reputable automotive parts suppliers in the UK will be able to guide you.

Tools and Materials You'll Need

Before you begin, gather all necessary tools and parts. This will make the process much smoother and safer:

• New brake pads (for the entire axle, e.g., both front or both rear)
• Car jack and jack stands (essential for safety!)
• Wheel chocks
• Lug wrench (for wheel nuts)
• Socket wrench set (with appropriate sockets for caliper bolts)
• C-clamp or brake caliper piston compression tool
• Wire brush
• Brake cleaner spray
• High-temperature brake grease (for caliper pins and pad backing plates)
• Torque wrench (crucial for tightening bolts to specification)
• Safety glasses and gloves
• Optional: Brake fluid (if bleeding is required, though usually not for just pads)

Step-by-Step Guide: Replacing Your Brake Pads

This guide covers the general procedure for disc brakes, which are common on most modern vehicles. Always refer to your car's specific service manual for exact torque specifications and any model-specific peculiarities.

Phase 1: Preparation and Safety First

1. Park Safely: Park your car on a level, hard surface. Engage the parking brake firmly.
2. Chock Wheels: Place wheel chocks behind the rear wheels if you're working on the front, or in front of the front wheels if you're working on the rear.
3. Loosen Wheel Nuts: Use your lug wrench to slightly loosen the wheel nuts on the wheel you'll be working on. Do not remove them yet.
4. Jack Up the Car: Place your car jack under the designated jacking point (refer to your owner's manual). Jack the car up until the wheel is off the ground.
5. Secure with Jack Stands: Immediately place jack stands under the appropriate support points near the jacking point. Lower the car onto the jack stands. Never rely solely on the jack.
6. Remove Wheel: Fully remove the loosened wheel nuts and carefully take off the wheel, setting it aside safely.

Phase 2: Accessing and Removing Old Pads

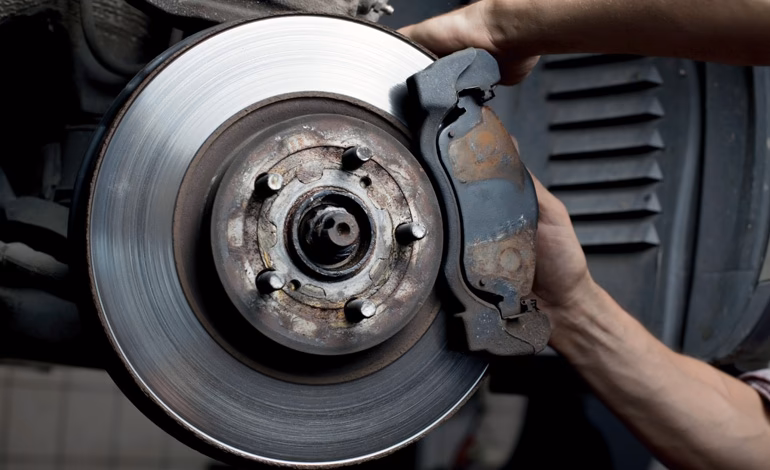

1. Locate the Caliper: You will see the brake caliper, which clamps over the brake disc.
2. Identify Caliper Bolts: Typically, there are two caliper guide pin bolts (sometimes just one) that hold the caliper in place. These are usually at the top and bottom or front and rear of the caliper. They often have rubber boots covering them.
3. Remove Caliper Bolts: Using your socket wrench, carefully remove these bolts. You may need to hold the guide pin with another wrench to prevent it from spinning.
4. Open the Caliper: Once the bolts are removed, the caliper should pivot or slide off the disc. Do not let the caliper hang by the brake hose, as this can damage the hose. Use a wire hanger or bungee cord to secure the caliper to the suspension coil or another sturdy part of the chassis.
5. Remove Old Brake Pads: The old pads will now be visible. They usually slide out of a mounting bracket or are held in place by retaining clips. Note their orientation.
6. Inspect Brake Disc: While the pads are out, visually inspect the brake disc for deep grooves, scoring, cracks, or excessive rust. If the disc is heavily worn or damaged, it may also need replacing.

Phase 3: Preparing for New Pads

1. Clean the Caliper Bracket: Use a wire brush to clean any rust or old brake dust from the caliper mounting bracket where the pads sit. This ensures the new pads can slide freely.
2. Lubricate Guide Pins: If you removed the guide pins, clean them thoroughly and apply a thin layer of high-temperature brake grease. This ensures the caliper can slide smoothly.
3. Compress the Caliper Piston: This is a critical step. As your old pads wore down, the caliper piston extended. To fit the new, thicker pads, the piston must be pushed back into the caliper. Use a C-clamp or a dedicated brake caliper piston compression tool. Place an old brake pad (or a piece of wood) against the piston to protect it, then slowly and steadily compress the piston back into its bore. Watch the brake fluid reservoir; it might rise. If it overflows, remove some fluid with a syringe.

Phase 4: Installing New Pads and Reassembly

1. Install New Pads: Carefully slide the new brake pads into the caliper mounting bracket. Ensure they are correctly seated and the wear indicators (if present) are on the correct side (usually the inner pad). Apply a thin layer of high-temperature brake grease to the metal backing plates of the new pads where they contact the caliper, but be extremely careful not to get any grease on the friction material.
2. Reattach Caliper: Carefully slide the caliper back over the new pads and disc. Align the caliper with the mounting holes.
3. Reinstall Caliper Bolts: Insert the caliper guide pin bolts and hand-tighten them.
4. Torque Caliper Bolts: This is where the torque wrench is essential. Tighten the caliper bolts to your vehicle's manufacturer-specified torque settings. Do not overtighten, as this can strip threads, or undertighten, which can lead to loosening.
5. Reinstall Wheel: Place the wheel back onto the wheel studs. Hand-tighten the wheel nuts.
6. Lower Vehicle: Raise the car slightly with the jack to remove the jack stands, then slowly lower the vehicle completely to the ground.
7. Torque Wheel Nuts: Using your torque wrench, tighten the wheel nuts in a star pattern to the manufacturer's specified torque.

Phase 5: Post-Installation and Bedding In

1. Pump the Brake Pedal: Before driving, get into the car and pump the brake pedal several times until it feels firm. This pushes the caliper piston out, bringing the new pads into contact with the disc. You might hear a slight 'clunk' as they seat.
2. Check Brake Fluid Level: Verify the brake fluid level in the reservoir. Top up if necessary, but remember that the level should have risen when you compressed the piston.
3. Test Drive with Caution: Drive slowly at first, in a safe area away from traffic. Gently apply the brakes several times to ensure they are working correctly.
4. Bedding In New Pads: This is a crucial step often overlooked. New pads need to be 'bedded in' to transfer a thin layer of friction material evenly onto the brake disc. Follow the pad manufacturer's recommendations, but a common procedure involves:
   • Perform 5-6 moderate stops from 30 mph down to about 5 mph, allowing a minute or two between stops for cooling.
   • Avoid coming to a complete stop and holding the brake pedal down firmly during this process, as this can imprint pad material unevenly.
   • After these initial stops, drive for a few miles without heavy braking to allow the brakes to cool down completely.

   Proper bedding in ensures optimal braking performance, reduces noise, and extends the lifespan of your new pads.

Common Issues and Troubleshooting

• Brake Noise After Replacement: A slight squeal or groan can sometimes occur as new pads bed in. If it persists, ensure all components were cleaned and lubricated correctly. Some pad materials are inherently noisier than others.
• Soft Pedal After Replacement: If the pedal remains soft even after pumping it, it could indicate air in the brake lines, which would require bleeding the brake system. This is less common with just pad replacement unless a caliper was disconnected or a line opened.
• Uneven Wear on Old Pads: If your old pads showed significantly uneven wear (one side much thinner than the other), it could indicate a seized caliper guide pin or piston, or a faulty brake hose. Address these issues before installing new pads, or the new ones will wear unevenly too.

Frequently Asked Questions (FAQs)

Q: How long do brake pads typically last?

A: The lifespan of brake pads varies significantly depending on driving style, vehicle type, and the type of brake pads. Aggressive driving, frequent city driving, and heavy loads will cause faster wear. Generally, front brake pads last between 25,000 to 70,000 miles, while rear pads can last longer, often 40,000 to 100,000 miles, as they do less of the braking work.

Q: Can I replace just one brake pad?

A: No, absolutely not. Brake pads should always be replaced in axle sets (both front wheels or both rear wheels). Replacing only one pad will lead to uneven braking force on that axle, causing the car to pull to one side, instability, and premature wear on the new pad or disc.

Q: Do I need to replace my brake discs (rotors) when I change pads?

A: Not always, but it's highly recommended to inspect them thoroughly. If the discs show signs of deep scoring, excessive rust, warping (causing pulsation), or are below the manufacturer's minimum thickness specification (often stamped on the disc edge), they should be replaced. Installing new pads on worn or damaged discs can compromise braking performance and lead to premature wear of the new pads.

Q: What is brake fluid, and when does it need changing?

A: Brake fluid is a hydraulic fluid that transmits the force from your brake pedal to the calipers, engaging the brake pads. It's hygroscopic, meaning it absorbs moisture over time, which lowers its boiling point and can lead to corrosion in the brake system. Manufacturers typically recommend flushing and replacing brake fluid every 2-3 years, regardless of mileage.

Q: How much does it cost to have brake pads replaced professionally in the UK?

A: The cost varies significantly depending on the vehicle make and model, the type of pads, and the garage. For front brake pads, you might expect to pay anywhere from £100 to £300, including parts and labour. Rear pads might be slightly less. This is where DIY can offer considerable savings.

Q: Why are my new brake pads squealing?

A: New brake pads can sometimes squeal for a short period as they bed in. This usually subsides. If the squealing persists, it could be due to improper installation (e.g., lack of lubrication on backing plates or guide pins), cheap pad material, or an issue with the brake disc (e.g., rust lip). Ensure all contact points were cleaned and greased properly during installation.

Conclusion

Replacing your car's brake pads is a fundamental maintenance task that every car owner should understand. Whether you choose to tackle the job yourself or have a professional do it, recognising the signs of wear is paramount for your safety and the longevity of your vehicle's braking system. By following the steps outlined in this guide and paying close attention to detail, you can ensure your car continues to stop safely and reliably on UK roads for many miles to come. Regular checks and proactive maintenance are key to a worry-free driving experience.
