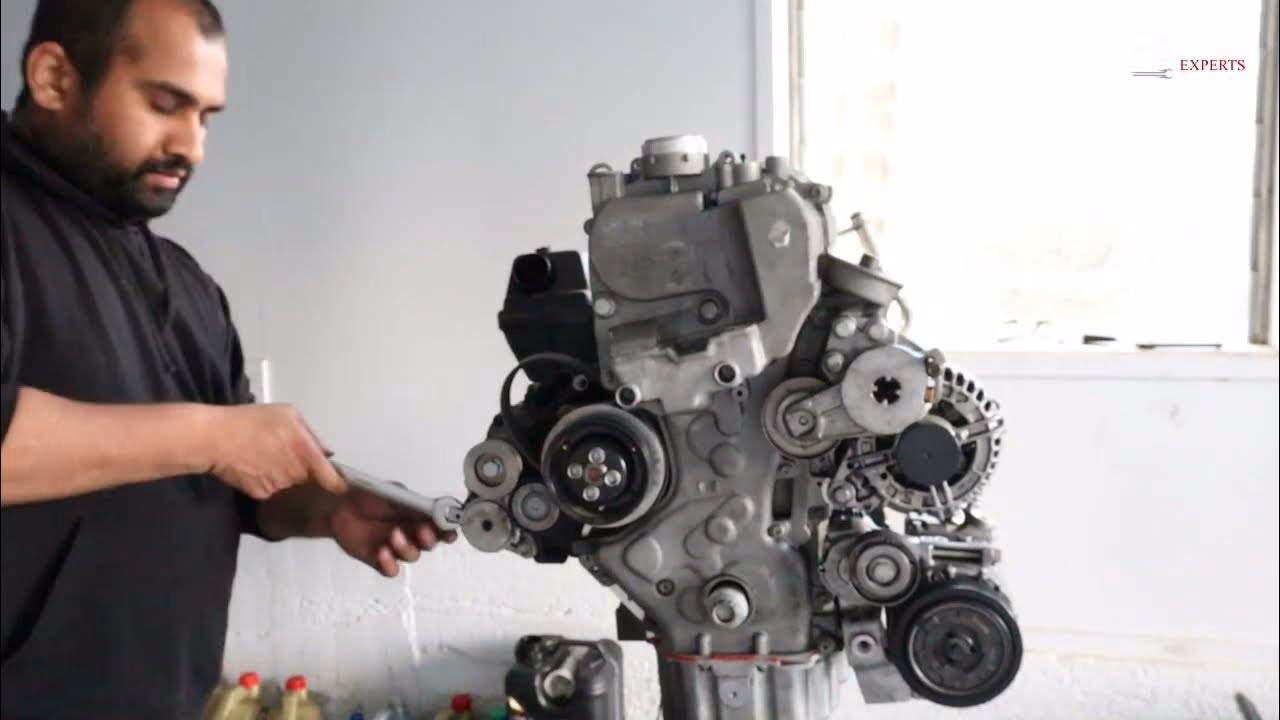

CAVD Engine Pinging: Causes & Fixes

If you own a Volkswagen Golf Mk6, particularly one equipped with the 1.4 Litre TSI twin-charged CAVD engine, you might have encountered a rather disconcerting sound: engine pinging. This metallic knocking or rattling noise, often heard during acceleration or under load, is more than just an annoyance; it's a clear indicator of an underlying problem that needs addressing. The CAVD engine, produced by Volkswagen between 2008 and 2012, was a sophisticated piece of engineering for its time, but this early generation was not without its teething troubles, particularly concerning its pistons and rings, and the critical timing chain system. Understanding the root causes of pinging in your CAVD engine is the first step towards ensuring its longevity and optimal performance.

Understanding Engine Pinging (Detonation)

Engine pinging, also known as detonation or knocking, occurs when the fuel-air mixture in the combustion chamber ignites prematurely and uncontrollably. Instead of a smooth, controlled burn initiated by the spark plug, pockets of the mixture explode spontaneously. This uncontrolled combustion creates shockwaves that collide with each other, resulting in the characteristic pinging sound. This phenomenon puts immense stress on engine components, especially the pistons, and can lead to significant damage if left unaddressed. Several factors can contribute to detonation, but in the context of the CAVD engine, specific culprits are more prevalent.

The Critical Role of Fuel Octane

One of the most common and, thankfully, often the simplest reasons for engine pinging in the CAVD engine is the use of the incorrect fuel octane rating. The CAVD engine, with its twin-charging technology (combining a supercharger and a turbocharger), operates at higher compression ratios and is more sensitive to fuel quality. Volkswagen specifically mandated the use of 98 octane unleaded fuel for this engine. Lower octane fuels have a lower resistance to premature ignition. When a lower octane fuel is used in an engine designed for higher octane, the heat and pressure within the combustion chamber can cause the fuel to auto-ignite before the spark plug fires. This is precisely what causes detonation. Using fuel below the recommended 98 octane is a direct pathway to pinging and, more seriously, can expedite the cracking of piston ring lands over time. The increased stress from detonation hammers the piston rings and the delicate 'land' that holds them, leading to premature failure.

Piston and Ring Issues in the CAVD Engine

The early generation CAVD engine, as fitted in the Mk6 Golf, was unfortunately known for its susceptibility to piston and ring damage. A primary concern was the design of the piston ring lands. These are the grooves machined into the piston where the piston rings sit. In the CAVD, these lands were prone to cracking, particularly under the stress of detonation. As mentioned, using fuel with an octane rating lower than 98 significantly increases the likelihood of detonation, thereby accelerating this wear process. The cracking of a piston ring land compromises the seal between the piston and the cylinder wall, leading to loss of compression, increased oil consumption, and a further exacerbation of pinging due to compromised combustion.

The Timing Chain Conundrum

Another significant and widely reported issue plaguing the CAVD engine is related to its timing chain and, more specifically, the timing chain tensioner. The timing chain is a critical component that synchronises the rotation of the crankshaft and camshafts, ensuring the valves open and close at the precise moments required for efficient combustion. The tensioner's job is to keep the timing chain taut, preventing it from becoming slack. It has been observed that around the 100,000 km (approximately 60,000 miles) mark, the original timing chain tensioners in many CAVD engines tend to fail. This failure results in a loss of tension, allowing the timing chain to become slack. A loose timing chain can, and often does, jump teeth on the sprockets it engages with. When the timing chain jumps even a single tooth, the precise synchronisation of the engine is lost. This can lead to catastrophic consequences, including valves colliding with the pistons, resulting in bent or smashed valves and severe cylinder head damage. While this doesn't directly cause pinging, a malfunctioning timing chain system can indirectly affect engine timing and combustion, potentially contributing to or masking other issues.

Symptoms of a Failing Timing Chain Tensioner

Beyond the potential for catastrophic failure, a failing timing chain tensioner can also present with audible symptoms. You might hear a rattling or slapping noise from the front of the engine, particularly on cold starts or during initial acceleration, as the slack chain moves against its guides. This noise can be mistaken for other issues, but if your CAVD engine is approaching or has surpassed the 100,000 km service interval, a thorough inspection of the timing chain system should be a priority.

Solutions and Upgrades

Fortunately, for owners of the CAVD engine, there are viable solutions to address these inherent weaknesses.

The CTHD Engine Upgrade

Volkswagen recognised the shortcomings of the CAVD and addressed them by introducing the CTHD engine in 2012. The CTHD is essentially a revised and improved version of the CAVD. Key upgrades include newly designed pistons and piston rings that are more robust and less prone to cracking. They also incorporated oil squirters, which are small jets that spray oil onto the underside of the pistons, aiding in cooling and lubrication, thereby reducing thermal stress. Furthermore, the CTHD features a superseded, more reliable timing chain tensioner and other minor internal tweaks. The CTHD engine is significantly more reliable and does not suffer from the same prevalent issues as its predecessor. A popular and effective solution for CAVD owners is to replace their existing CAVD engine with a CTHD unit. This can typically be achieved with relatively minor modifications, usually taking around 2-3 hours of labour for a skilled mechanic. This upgrade offers a long-term solution and peace of mind.

Grant Walker Parts' Approach

For those who wish to continue using their CAVD engine or are purchasing a second-hand CAVD unit, reputable parts suppliers like Grant Walker Parts offer a proactive solution. At Grant Walker Parts, they make it a standard practice to install a new, revised timing chain in every second-hand CAVD engine they supply. This addresses the critical timing chain tensioner issue head-on, fitting a component designed to be more durable and reliable. While this doesn't resolve the inherent piston design weaknesses, it significantly mitigates the risk of catastrophic timing chain failure, which is a major concern for CAVD owners. Combining this with a commitment to always using 98 octane fuel will further enhance the longevity of a CAVD engine.

What You Can Do Immediately

If your CAVD engine is pinging, the most immediate and crucial step you can take is to ensure you are using 98 octane unleaded fuel exclusively. If you have been using lower octane fuel, switch immediately and see if the pinging subsides. However, it's vital to understand that if the engine has already suffered from detonation due to lower octane fuel, there may already be internal damage, such as to the pistons or ring lands. Therefore, even after switching to the correct fuel, if the pinging persists or if you suspect existing damage, a professional diagnosis is essential.

Frequently Asked Questions (FAQs)

Q1: Can I use E5 or E10 fuel in my CAVD engine?
While E5 fuel generally has a higher octane rating than standard unleaded and might be acceptable, E10 fuel, which contains up to 10% ethanol, can sometimes be more corrosive and may affect engine performance if the engine is not specifically designed to handle it. It is always best to stick to the manufacturer's recommendation of 98 octane unleaded fuel for the CAVD engine to avoid potential issues and pinging.

Q2: How can I tell if my CAVD engine has piston damage?
Symptoms of piston damage can include persistent engine pinging even with the correct fuel, a noticeable loss of power, increased oil consumption (indicated by blue smoke from the exhaust), rough idling, and potentially misfires. A compression test or a leak-down test performed by a mechanic can confirm the extent of piston or ring damage.

Q3: Is the timing chain replacement a difficult job?
Replacing the timing chain and tensioner on a CAVD engine is a complex procedure that requires specialised tools and a good understanding of engine mechanics. It is highly recommended to have this work carried out by a qualified mechanic experienced with Volkswagen TSI engines. Incorrect installation can lead to severe engine damage.

Q4: How much does it cost to upgrade from a CAVD to a CTHD engine?
The cost can vary significantly depending on labour rates, the availability of CTHD engines, and whether any ancillary parts need to be replaced. However, you can expect it to be a substantial investment, potentially ranging from several hundred to over a thousand pounds for the engine itself, plus labour costs.

Q5: If my CAVD engine is pinging, how quickly should I get it checked?
You should address engine pinging as a matter of urgency. Continued detonation can cause irreversible damage to your engine's pistons, valves, and cylinder head. Get it checked by a reputable mechanic as soon as possible to prevent further, more costly repairs.

Conclusion

The Volkswagen CAVD 1.4 TSI twin-charged engine in the Mk6 Golf, while a powerful unit, is known for specific weaknesses that can lead to issues like engine pinging. The primary culprits are the requirement for 98 octane fuel and the vulnerability of the timing chain tensioner. By ensuring you use the correct fuel and by proactively addressing the timing chain system, either through an engine upgrade to the more reliable CTHD or by replacing critical components with updated parts, you can significantly mitigate these risks. Regular maintenance, using the correct fluids and fuels, and heeding the warning signs like pinging are crucial for maintaining the health and performance of your CAVD engine.
