The Caterpillar 3204 is a robust and reliable engine, a workhorse found in a variety of heavy equipment. When it's time for a rebuild, understanding what a comprehensive rebuild kit includes is crucial for a successful and efficient overhaul. A properly specified rebuild kit ensures that all vital components are replaced, restoring the engine's performance and extending its operational life. This guide will delve into the typical contents of a Caterpillar 3204 rebuild kit, helping you identify the necessary parts and understand their importance.
Understanding the Caterpillar 3204 Engine
Before diving into the rebuild kit, it's beneficial to have a basic understanding of the 3204. This engine is a four-cylinder, naturally aspirated or turbocharged diesel engine. Its versatility has seen it employed in applications ranging from backhoe loaders and skid steer loaders to agricultural machinery and industrial equipment. Its reputation for durability and simplicity makes it a favoured choice for many operators. However, like any engine that has seen extensive service, wear and tear are inevitable, necessitating periodic rebuilds.
What Constitutes a Rebuild Kit?
A comprehensive engine rebuild kit is designed to replace the most critical wear items within the engine. The goal is to bring the engine back to its original specifications, or even improve upon them with updated components. While specific kit contents can vary slightly between manufacturers and the exact application, a quality Caterpillar 3204 rebuild kit will typically include:
Core Engine Components
These are the fundamental parts that form the heart of the engine and are most susceptible to wear over time.

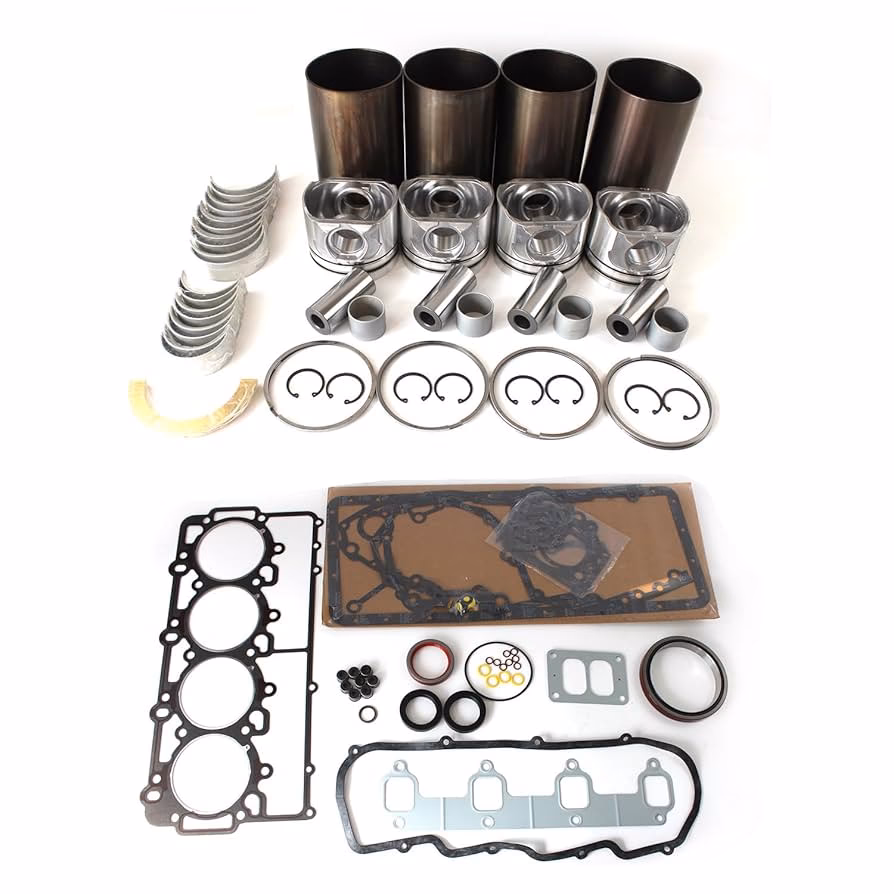

- Pistons and Piston Rings: Pistons are critical for transferring combustion pressure to the crankshaft. Piston rings provide a seal between the piston and cylinder wall, preventing blow-by and oil consumption. A rebuild kit will usually contain new pistons (often with specific bore sizes) and a complete set of piston rings.
- Cylinder Liners: These are replaceable sleeves that line the cylinder bore. They provide a wear surface for the piston rings and can be replaced if the cylinder bore becomes damaged or worn beyond its service limits.
- Bearings: Engine bearings are essential for smooth rotation of the crankshaft and connecting rods. This includes main bearings (supporting the crankshaft in the block) and connecting rod bearings (supporting the big end of the connecting rods). Worn bearings can lead to catastrophic engine failure.
- Gaskets and Seals: A complete set of high-quality gaskets and seals is vital for preventing leaks of oil, coolant, and combustion gases. This includes head gaskets, oil pan gaskets, manifold gaskets, valve cover gaskets, front and rear crankshaft seals, and O-rings. The head gasket, in particular, is a critical component that must maintain a seal between the cylinder head and the engine block under extreme pressure and temperature.
Valvetrain Components
Proper functioning of the valvetrain is essential for air intake and exhaust. Rebuild kits often include:
- Valves: Intake and exhaust valves control the flow of air/fuel mixture into the cylinders and exhaust gases out.
- Valve Guides: These guide the movement of the valves within the cylinder head.
- Valve Springs and Retainers: These ensure the valves seat properly and close quickly.
- Valve Seals: These prevent oil from entering the combustion chamber through the valve stems.
Minor Components and Hardware
While not always the primary focus, these smaller parts contribute significantly to the overall integrity of the engine.
- Thrust Washers: These are used to control end play in the crankshaft.
- Camshaft Bushings (sometimes): Depending on the kit and engine design, these may be included for the camshaft.
- Freeze Plugs (Core Plugs): These are metal plugs in the engine block that are designed to pop out if the coolant freezes, preventing the block from cracking. They are often replaced during a rebuild.
What Might NOT Be Included (and Why You Need to Check)
It's important to note that not all rebuild kits are created equal, and some may exclude certain components. Always verify the contents against your specific needs. Common exclusions might include:
- Crankshaft: While bearings are included, the crankshaft itself is a major component that is usually inspected and either reconditioned or replaced separately if damaged.
- Camshaft: Similar to the crankshaft, the camshaft is typically inspected and reconditioned or replaced if worn.
- Connecting Rods: The rods themselves are usually reused after inspection and cleaning, though rod bolts might be included.
- Cylinder Head: The cylinder head is a significant component that requires its own inspection, machining (like valve seat grinding, surfacing), and testing.
- Oil Pump and Water Pump: These are often considered service items and may be purchased separately, though some premium kits might include them.
- Injectors and Turbocharger: These are specialized components that are typically rebuilt or replaced as separate units.
Choosing the Right Rebuild Kit
The most critical step in the rebuild process is selecting the correct kit for your specific Caterpillar 3204 engine. Engines can have variations based on their application and production year. To ensure you get the right parts, you will need to provide detailed information:
| Information Needed | Why It's Important |
|---|---|
| Engine Serial Number (ESN): The most definitive identifier. | Guarantees compatibility with specific engine build configurations. |
| Equipment Model and Serial Number: Helps narrow down the application. | Some 3204 engines are configured differently depending on the machinery they power. |
| Bore Size: If known, helps confirm piston and liner specifications. | Allows for correct sizing of pistons and liners, especially if an overbore is planned. |
Providing this information to a reputable supplier ensures that the kit contains the correct part numbers for your engine. For instance, a 3204 used in a Caterpillar 215B excavator might have different specifications than one used in a 518 Skidder. Always double-check with your parts supplier.
The Rebuild Process: More Than Just Parts
While a quality rebuild kit provides the necessary components, a successful engine rebuild also requires:
- Skilled Technicians: Experienced mechanics are essential for proper disassembly, cleaning, inspection, machining, and reassembly.
- Specialised Tools: Piston ring compressors, torque wrenches, dial indicators, and bearing alignment tools are just a few examples.
- Cleaning and Inspection: Thorough cleaning of all existing parts and meticulous inspection for wear, cracks, or damage is paramount.
- Machining Services: Often, the engine block, cylinder head, crankshaft, and connecting rods will need professional machining to meet specifications.
- Service Manual: The official Caterpillar service manual for the 3204 provides detailed procedures, specifications, and torque values.
Common Questions About Caterpillar 3204 Rebuilds
Q1: How long does a Caterpillar 3204 engine rebuild typically take?
A1: The time can vary significantly depending on the availability of parts, the complexity of the work, and the skill of the technician. A basic rebuild might take several days, while a full overhaul with significant machining could take weeks.
Q2: What are the signs that my Caterpillar 3204 needs a rebuild?
A2: Common indicators include excessive smoke (blue, white, or black), loss of power, increased oil consumption, unusual noises (knocking or rattling), and low oil pressure.
Q3: Can I reuse my old pistons if they look okay?
A3: It is strongly recommended to replace pistons and rings with new ones during a rebuild. While they might appear satisfactory, microscopic wear can lead to premature failure and reduced performance. It's a relatively small cost for peace of mind and optimal results.
Q4: What is the expected lifespan of a rebuilt Caterpillar 3204 engine?
A4: With a proper rebuild using quality parts, adhering to correct procedures, and maintaining a regular maintenance schedule, a rebuilt 3204 can provide many more years of reliable service, often achieving a significant percentage of its original operational life.
Q5: Where can I find a rebuild kit for my Caterpillar 3204?
A5: Reputable heavy equipment parts suppliers, authorized Caterpillar dealers, and specialized engine rebuilders are the best sources. Ensure they can verify compatibility using your engine serial number.
Conclusion
A Caterpillar 3204 rebuild kit is a comprehensive collection of essential components designed to restore an engine's performance and reliability. By understanding the typical contents, knowing what might be excluded, and most importantly, providing accurate engine identification information, you can ensure you procure the correct parts for a successful engine overhaul. Investing in a quality kit and adhering to proper rebuild procedures will undoubtedly extend the life and enhance the operational efficiency of your valuable Caterpillar equipment.
