Case IH 1594: Engine and Troubleshooting Guide

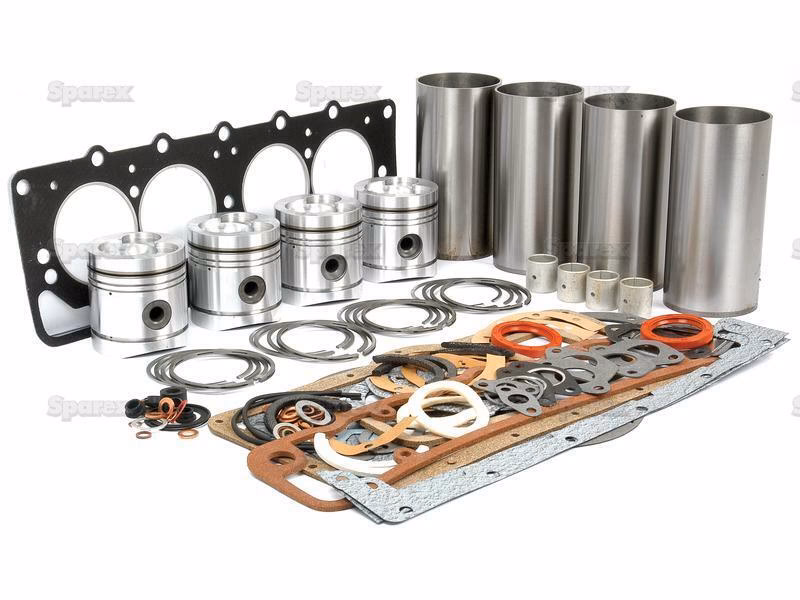

Unveiling the Heart of the Case IH 1594 Tractor

The Case IH 1594 utility tractor, a robust workhorse manufactured between 1985 and 1988, is renowned for its reliability and performance. At its core lies the formidable AD6.55 diesel engine. This powerhouse is a six-cylinder, liquid-cooled unit, boasting a displacement of 330 cubic inches. When it comes to raw power, the AD6.55 delivers a maximum output of 97 horsepower (72.3 kW). Complementing this horsepower is an impressive torque figure of 329.1 Nm (242.8 lb-ft), readily available at 1425 revolutions per minute. This combination ensures the 1594 has the grunt to tackle a wide array of agricultural tasks, from ploughing fields to hauling heavy loads.

Transmission Options for Optimal Performance

To cater to diverse operational needs, the Case IH 1594 was offered with two distinct transmission types:

• Type 1: 12x4 Synchromesh Gear Transmission - This traditional manual gearbox provides a straightforward and dependable shifting experience with 12 forward and 4 reverse gears.
• Type 2: Hydra-Shift Transmission - For enhanced operational flexibility and smoother gear changes, the Hydra-Shift option offers 12 forward and 4 reverse gears, allowing for on-the-go adjustments without the need for a clutch pedal in many situations.

Regardless of the transmission type, the 1594 is capable of a brisk maximum travel speed. In forward gears, it can reach up to 19.7 mph (31.7 kph), while in reverse, the maximum speed is 11.6 mph (18.7 kph). This speed capability is beneficial for tasks that involve travelling between fields or moving equipment.

Hydraulic System Capabilities

The tractor's operational prowess is further enhanced by its open-center hydraulic system. This system is powered by a gear pump with a fluid flow rate of 10.5 gallons per minute (39.8 litres per minute). The main relief pressure is set at a robust 180 bar (2600 psi), ensuring sufficient power for operating various hydraulic implements such as loaders, backhoes, and cultivators. A well-maintained hydraulic system is crucial for the efficient operation of these attachments.

Tyre Configurations and Wheelbase

The Case IH 1594 was available in both two-wheel drive (2WD) and four-wheel drive (4WD) configurations, each with specific tyre recommendations to optimise traction and stability:

The tractor's wheelbase measures 100 inches (2540 mm), contributing to its stable platform and manoeuvrability across varied terrain.

Troubleshooting Common Diesel Engine Issues

Even the most reliable machinery can encounter issues. Here's a guide to troubleshooting common problems with the Case IH 1594's AD6.55 diesel engine:

Engine Difficult to Start or Will Not Start

• Air in the fuel lines: This is a common culprit. The solution is to bleed the fuel lines thoroughly to remove any trapped air.
• Fuel filter plugging: A clogged fuel filter restricts fuel flow. Regular maintenance involves servicing or replacing the fuel filter element.
• Defective injection nozzle: Faulty injectors can prevent proper fuel atomisation. If an injector is suspect, it may need to be replaced with a new nozzle.
• Dirt or water in fuel system: Contaminated fuel can cause starting problems. It's essential to drain any water or flush dirt from the system.
• Valve clearance is wrong: Incorrect valve lash can affect compression and starting. Proper valve clearance adjustment is key.
• Fuel injection pump malfunctioning: A problem with the injection pump itself will require professional attention, often involving a rebuild or replacement of the pump.

Diesel Starts But Then Stops

• Air cleaner is dirty: A blocked air filter restricts airflow, starving the engine. Ensure you install a new air filter element when necessary.
• Dirty fuel filter: Similar to starting issues, a dirty filter can cause the engine to stall. Clean the filter element or replace it.
• Fuel injection pump has loose connections: Vibrations can loosen connections. Periodically check and tighten the fuel injection pump connections.
• Fuel injectors are faulty or clogged: If injectors are not delivering fuel correctly, the engine may stop. You may need to replace or clean the fuel injectors.
• Fuel injection pump is broken: A catastrophic failure of the injection pump will stop the engine. This requires replacement or repair of the injection pump.

Engine Shuts Off Suddenly While Running

• Coolant temperature is low: While seemingly counterintuitive, an engine running too cold can cause issues. Ensure you normalize the temperature by warming up the engine.
• Fuel filter plugging: A partially clogged filter can lead to intermittent fuel starvation. Clean the filter element.
• Air in the fuel lines: Air ingress can cause erratic running and stalling. Bleed the fuel lines.
• Defective injection nozzle: A faulty nozzle can disrupt combustion. Check injection nozzles and replace if required.
• Improper setting of fuel injection pump timing: Incorrect timing will lead to poor performance and potential stalling. Adjust the pump timing as required.

Engine Stops While Idle

• Low idle speed setting is not correct: The engine needs to idle at the correct RPM. Correct the idle speed settings.
• Faulty fuel injection pump: A worn or damaged injection pump can cause stalling at idle. Consider a rebuild or installation of a new injection pump.
• Dirty or defective injectors: Clogged or faulty injectors won't deliver fuel properly at low RPM. Inspect fuel injectors and change as required.
• Improper valve clearance: Incorrect valve lash can affect the engine's ability to maintain a stable idle. Check and adjust valve clearance.

Engine Power is Too Low

• Clogged air cleaner: Reduced airflow is a primary cause of power loss. Clean the air cleaner element.
• Faulty or dirty injection nozzles: Poor fuel atomisation reduces combustion efficiency. Service or change injection nozzles.
• Uneven fuel injection pressure: Incorrect pressure prevents optimal fuel delivery. Check the fuel injection pressure and adjust if necessary.
• Improper valve clearance: As mentioned, incorrect valve clearance affects engine performance. Check and adjust as required.
• Low idle speed setting is not correct: While this primarily affects idling, it can also contribute to perceived low power. Correct the low idle adjustment.
• Dirt in the fuel lines or hoses: Restricted fuel flow will reduce power. Ensure fuel lines and hoses are clean.
• Blown cylinder head gasket: A blown gasket can lead to loss of compression and power. Promptly replace the cylinder head gasket.
• Piston rings are defective or leaking: Worn piston rings allow combustion gases to blow past, reducing power. Replace the piston rings as required.

Engine is Overheated

• Low engine coolant: Insufficient coolant is the most common cause of overheating. Add coolant fluid and inspect the cooling system for leaks.
• Engine oil level is insufficient: Oil plays a role in cooling. Ensure the engine oil level is sufficient.
• Clogged radiator fins or damaged radiator cap: Poor airflow through the radiator or a faulty cap will lead to overheating. Install a new cap or clean the radiator fins.
• Excessive wear of the fan belt: A loose or worn fan belt won't drive the cooling fan effectively. A belt change is required.
• Engine overload: Pushing the engine beyond its capacity will cause it to overheat. Load reducing is recommended.

Oil Pressure is Insufficient

• Oil level is insufficient: A low oil level means the pump may not be able to draw enough oil. Check the oil level and add if necessary.
• Oil filter clogging: A clogged filter restricts oil flow. Change or clean the engine oil filter element.
• Oil grade or viscosity is wrong: Using the incorrect oil can lead to low pressure. Always use the correct viscosity oil.
• Main bearing oil clearance is excessive: Worn bearings create larger gaps for oil to escape. This requires changing the bearings.
• Defective oil pump: If the oil pump itself is failing, it won't generate adequate pressure. Check and replace the oil pump if necessary.

Engine Noise or Knocking

• Engine oil level is insufficient: Low oil can lead to increased friction and noise. Add oil to the engine crankcase.
• Coolant temperature is low: As mentioned, running too cold can cause issues. Normalize the temperature by warming up the engine.
• Improper fuel injection timing: Incorrect timing can cause knocking sounds. Ensure you use the correct fuel injection pump timing adjustment.
• Incorrectly adjusted low idle speed: Improper idle settings can sometimes manifest as noise. Test and adjust the idle speed.
• Fuel injectors are dirty or defective: Faulty injectors can cause uneven combustion and noise. Inspect fuel injectors and change as required.
• Connecting rod misalignment or failure: Serious internal engine issues like this will cause significant noise. Need to replace or align the connecting rod.
• Pistons are broken or worn: Damaged pistons will create knocking sounds. Have pistons replaced.

Transmission Troubleshooting

Transmission Oil Pressure is Insufficient

• Insufficient transmission oil: A low oil level is a common cause of low pressure. Check transmission oil level and add oil as required.
• Plugged transmission oil filter (if equipped): A dirty filter restricts oil flow. Service or change the transmission oil filter.
• Relief valve is stuck: A stuck relief valve can prevent proper pressure buildup. Install a new relief valve.

Excessive Transmission Noise

• Low oil level: Insufficient lubrication can lead to increased gear and bearing noise. Check transmission oil level and add oil as required.
• Transmission oil contamination: Dirty or degraded oil can cause noise and damage. Fill up with fresh transmission oil.
• Defective gears or improper backlash: Worn or damaged gears, or incorrect gear meshing, will cause noise. Install new gears and set backlash correctly.
• Worn or broken bearings: Bearing failure is a significant source of transmission noise. Change the bearings.
• Worn or damaged gear shift forks: These components engage the gears. Damage here will lead to noise and shifting problems. Change defective shift forks.
• Worn or damaged shaft splines: Splines connect gears to shafts. Wear here can cause noise and slippage. Replace defective shafts.

Hard to Shift Gears

• Worn or rusty gear shift linkage: Binding or damaged linkage will make shifting difficult. Install new shift linkage.
• Worn or bent gear shift forks: Damaged forks can prevent gears from engaging properly. Change the shift forks.
• Worn parts of the gear shifting mechanism: Any wear in the synchronizers or other internal parts can cause shifting difficulties. Change worn parts.
• Clutch is out of adjustment or defective: If the clutch isn't disengaging fully, shifting will be difficult. Adjust correctly or replace the clutch.

External Oil Leaks

• Transmission oil level is high: Overfilling can lead to pressure buildup and leaks. Correct the oil volume.
• Damaged seals or gaskets: The most common cause of external leaks. Install new components.

Hydraulic System Troubleshooting

Insufficient Hydraulic Oil Pressure

• Low hydraulic oil level: Similar to the transmission, insufficient oil means the pump can't operate efficiently. Check and refill the hydraulic oil.
• Clogged hydraulic oil filter: A blocked filter restricts oil flow to the pump and components. Change the hydraulic filter element or service if required.
• Hydraulic pump is faulty: If the pump itself is worn or damaged, it won't generate sufficient pressure. Install a new hydraulic fluid pump.
• Incorrectly adjusted hydraulic spool valve: Spool valves control hydraulic flow. Incorrect adjustment can lead to pressure loss. Adjust the spool valve correctly.
• Hydraulic cylinder failure: Leaks within a cylinder can cause a loss of pressure. Install a new hydraulic cylinder or repair it.
• Leaking hydraulic pipes: Any external leak in the system will reduce overall pressure. Inspect hydraulic system for leaks and repair it.

Hydraulics Overheating

• Main relief valve is defective: A faulty relief valve may be stuck open, causing constant fluid bypass and heat. Install a new relief valve.
• Hydraulic fluid type is wrong: Using the incorrect fluid can lead to poor lubrication and heat generation. Always use the correct type of hydraulic fluid.
• Dirty hydraulic fluid: Contaminated fluid can hinder lubrication and cooling. The fluid must be changed.
• Air in hydraulic lines: Air in the system can cause erratic operation and increased heat. Bleed hydraulic lines.

3-Point Hitch Fails to Lift or Lifts Slowly

• Hitch is under excessive load: The hydraulic system has limits. The load should be reduced.
• Hydraulic oil is insufficient: Low oil levels affect pump performance. Need to add oil.
• Clogged hydraulic oil filter element: A blocked filter starves the system of oil. Hydraulic filter maintenance is required.
• Hydraulic pump is faulty: A weak pump cannot supply enough flow or pressure. Change or repair the hydraulic oil pump.
• Main relief valve is faulty: A faulty relief valve can prevent the system from reaching adequate pressure. The relief valve must be changed.
• Hydraulic spool valve block is defective: Issues with the control valve can prevent proper hydraulic actuation. Repair or change the hydraulic valve.
• Defective hydraulic cylinder: A leaking or damaged cylinder will not hold pressure to lift the hitch. Repair or replace the hydraulic cylinder.
• Suction line is disconnected or broken: This prevents the pump from drawing oil effectively. Replace or connect correctly.

Hitch Fails to Drop or Drops Slowly

• Hydraulic control valve is set improperly: The control valve dictates fluid flow for dropping. The control valve must be set correctly.
• Hydraulic cylinder is defective: A cylinder with internal leaks can cause slow dropping. Repair or change the hydraulic cylinder.
• Three-point hitch has not been adjusted: Linkages and settings need to be correct for proper operation. The 3-point hitch must be adjusted.
• Lift arm shaft is worn: Wear in the lift arm mechanism can cause slow or uneven movement. Install a new shaft.

Hitch Lift or Drop is Jerky

• Air in hydraulic lines: Air pockets can cause intermittent operation. Bleed hydraulic lines.
• Dirty hydraulic fluid: Contaminated fluid can cause erratic valve operation. The fluid must be changed.
• Hydraulic pump malfunction: An inconsistent pump output can lead to jerky movements. Replace or repair the hydraulic oil pump.
• Defective hydraulic spool valve block: Issues with the control valve can cause jerky operation. Repair or change the hydraulic valve.
• Defective hydraulic cylinder: Internal cylinder issues can lead to jerky responses. Repair or change the hydraulic cylinder.

Steering Troubleshooting

Steering is Difficult

• Improperly installed or damaged steering column: Issues with the steering column itself can cause resistance. Install the steering column as required or replace it.
• Air lock in hydraulic steering system: Air in the power steering can make it feel heavy. Bleed air from the system.
• Not adjusted toe-in: Incorrect front wheel alignment can cause steering drag. Adjust toe-in properly.
• Tires have uneven wear: Severely worn or mismatched tyres can affect steering effort. Replace the tires.
• Faulty steering pump: A weak or failing steering pump is a common cause of difficult steering. The steering pump needs to be repaired or replaced.
• Stuck or damaged steering pump control valve: The control valve directs fluid from the pump. Issues here will impact steering. Change or flush the control valve.
• Steering oil level is insufficient: Low fluid levels will starve the steering system. Check steering oil level and add it if necessary.

Excessive Play in Steering

• Worn steering column coupling or shaft: Wear in the steering column components can create looseness. Change defective parts.
• Steering pump stopped working: While this usually leads to no power steering, in some cases, it can manifest as looseness or erratic behaviour. The steering pump needs to be repaired or replaced.
• Loose or worn steering linkage parts: Tie rods, ball joints, and other linkage components can wear out, causing play. Replace or repair steering linkage.

Tractor is Pulling to Right or Left

• Front tyres wear unevenly: Uneven wear can indicate alignment issues or other problems. Change the tires.
• Improper toe-in: Incorrect wheel alignment is a primary cause of pulling. Adjust toe-in wheels.
• Steering linkage components are loose or worn: As mentioned, worn linkage can cause pulling. Repair or replace steering linkage.
• Damaged or improperly adjusted or worn front wheel bearings: Worn wheel bearings can cause the wheel to drag or steer incorrectly. Change or adjust bearings correctly.

Electrical System Troubleshooting

Battery is Not Charging

• Wiring connections are corroded or loose: Poor electrical connections interrupt charging current. Service or tighten connections.
• Defective battery terminal clamps: Corroded or loose clamps prevent proper charging. Terminal clamps should be changed.
• Faulty cell in battery: A damaged battery cell will prevent it from holding a charge. Replace the battery.
• Defective or loose belt: The alternator is driven by a belt. If the belt is loose or broken, the alternator won't charge. Install a new belt or adjust belt tension.

Starter Turns Slow

• Low battery voltage: A weak battery won't have enough power to turn the starter motor quickly. Charge the battery.
• Battery drains quickly: If the battery is old or faulty, it won't maintain its charge. Service charging system or install new battery.
• Wires are disconnected or battery terminals are corroded: Poor connections impede current flow to the starter. Check battery wires and service or replace terminals.

Starter Motor Won't Turn

• Battery is discharged or worn: The most common reason for a starter not engaging. Recharge or replace battery.
• Battery cables are disconnected or incorrectly connected: Ensure all connections are secure and correct. Check cables and connect as needed.
• Low battery output voltage: Even if charged, a faulty battery might not deliver sufficient voltage. The battery is drained, recharge it.
• Defective starter motor: If the battery and connections are good, the starter motor itself may have failed. Repair or change the starter.

By understanding the components and common issues associated with the Case IH 1594, owners and operators can ensure this dependable tractor continues to provide reliable service for years to come.
