When tackling vehicle maintenance, whether in a professional workshop, a busy garage, or even your own driveway, the right equipment makes all the difference. Car ramps are a staple for many automotive tasks, allowing for improved access underneath a vehicle. However, not all ramps are created equal, and understanding their capabilities is crucial for both safety and efficiency. In this article, we delve into the specifics of hydraulic car ramps, addressing key questions about their lifting capacity, the presence of safety features like overload valves, and what you should look for when choosing a pair.
Understanding Car Ramp Lifting Capacity
The most fundamental question many users have is: 'How many kg can a car ramp lift?' This is a critical piece of information that dictates which vehicles you can safely work on. Based on the information provided, we can see varying capacities. For instance, one set of ramps specifies a lifting capacity of 2000 kg per unit, designed for tires up to 245mm wide and with an adjustable height from 270mm to 375mm. Each of these ramps features a single hydraulic cylinder.
In contrast, another set of heavy-duty hydraulic car ramps boasts a combined weight capacity of 3-tonnes (3000 kg). These ramps are designed with a manually operated bottle jack, offering a lifting height adjustment from 305mm to 390mm. Crucially, the specifications clarify that this 3-tonne total capacity is achieved with each ramp having an individual capacity of 1.5 tonnes (1500 kg). This highlights the importance of understanding whether a stated capacity is per ramp or for the pair.
Key Specifications to Consider:
- Individual Ramp Capacity: The maximum weight a single ramp can safely support.
- Total Combined Capacity: The maximum total weight the pair of ramps can support when used together.
- Maximum Tyre Width: Ensures the ramp is compatible with your vehicle's tyres.
- Lifting Height Range: The minimum and maximum height the ramp can raise the vehicle.
- Platform Size: The dimensions of the surface the tyre rests on.
Do Hydraulic Car Ramps Have Overload Valves?
Safety is paramount when working with vehicles, especially when they are elevated. A key safety feature in hydraulic systems is the overload valve. These valves are designed to protect the hydraulic system and, more importantly, the user and the vehicle from exceeding the designed pressure limits. If the system is subjected to a load greater than it can safely handle, the overload valve will open, preventing further pressure build-up and potential damage or catastrophic failure.
The information confirms that indeed, hydraulic car ramps can be equipped with these vital safety mechanisms. One of the described sets explicitly mentions that 'the hydraulic cylinders are equipped with an overload valve to ensure that the system operates within safe pressure limits, protecting both the equipment and personnel.' This feature is a significant indicator of a well-designed and safety-conscious product. When evaluating car ramps, always look for confirmation of overload protection.
Comparing Different Hydraulic Car Ramps
To better illustrate the differences, let's compare the two sets of ramps based on the provided details:
| Feature | Ramp Set A (2000 kg Capacity) | Ramp Set B (3 Tonne Capacity) |
|---|---|---|
| Total Weight Capacity | 2000 kg (Implied per ramp, but often stated for the pair in marketing) | 3 Tonne / 3000 kg (Total for the pair) |
| Capacity Per Ramp | 2000 kg | 1.5 Tonne / 1500 kg |
| Lifting Height | 270mm - 375mm | 305mm - 390mm |
| Max Tyre Width | 245mm | 245mm |
| Hydraulic System | One hydraulic cylinder per unit | 2 x Manual Hydraulic Bottle Jacks |
| Overload Valve | Not explicitly mentioned | Yes |
| Construction Material | Not specified | Heavy Duty Steel |
| Assembly Required | Yes (KD design) | Not explicitly mentioned, but typical for hydraulic jacks |
From this comparison, it's clear that while Ramp Set A states a higher individual capacity, Ramp Set B offers a more comprehensive set of specifications, including the crucial overload valve and detailed material information. The total capacity of 3-tonnes for Set B is also a significant factor for users needing to work on heavier vehicles.

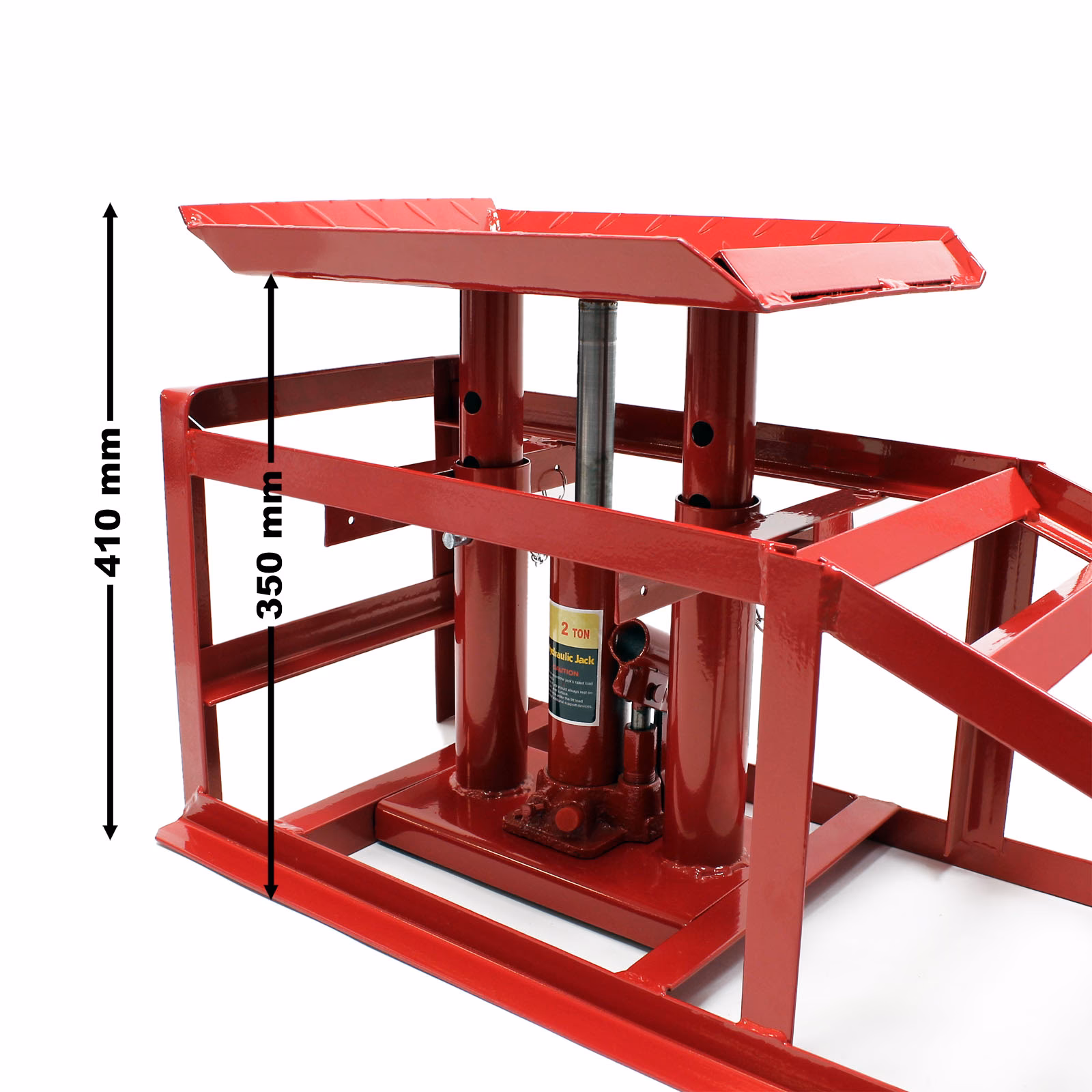

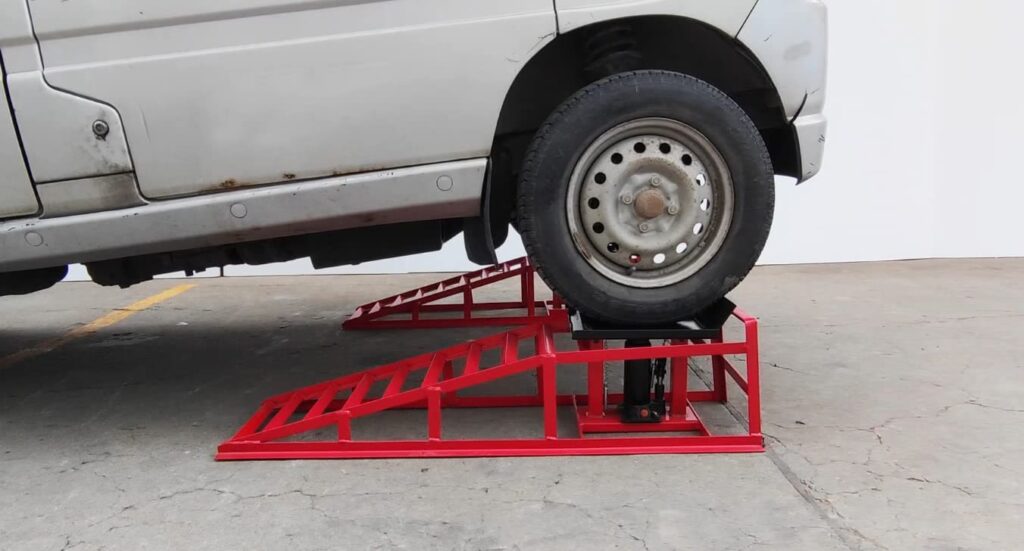

What is a Car Ramp?
A car ramp, in its most basic form, is a sloped structure used to raise one end of a vehicle, typically the front or rear. This elevation provides essential clearance beneath the car, allowing mechanics or DIY enthusiasts to access components like the engine, exhaust system, suspension, or undercarriage for inspection, repair, or maintenance. Traditional car ramps are often made of sturdy metal or reinforced plastic and are designed to be driven onto. Hydraulic car ramps, as discussed, incorporate a jacking mechanism, usually a hydraulic cylinder or bottle jack, to lift the ramp (and thus the vehicle) to the desired working height, offering greater convenience and adjustability.
Choosing the Right Hydraulic Car Ramps
When selecting hydraulic car ramps, consider the following:
- Vehicle Weight: Always ensure the combined capacity of the ramps significantly exceeds your vehicle's weight. A good rule of thumb is to aim for a capacity at least 1.5 to 2 times the Gross Vehicle Weight (GVW).
- Lifting Height: Determine the minimum working height you require for your typical tasks. Adjustable height ramps offer more versatility.
- Tyre Compatibility: Check the maximum tyre width and diameter the ramps can accommodate.
- Build Quality and Material: Heavy-duty steel construction generally indicates greater durability and strength.
- Safety Features: Prioritise ramps with features like overload valves, non-slip surfaces, and secure locking mechanisms.
- Ease of Use and Storage: Consider how easy the ramps are to operate, adjust, and store, especially if space is limited.
Frequently Asked Questions
Q1: Can I use car ramps for SUVs or trucks?
A1: It depends on the specific capacity and size of the ramps. The ramps described have a maximum tyre width of 245mm, which might be suitable for smaller SUVs and some light trucks, but larger or heavier vehicles would require ramps with higher weight capacities and potentially wider tyre support.
Q2: What is the difference between standard ramps and hydraulic ramps?
A2: Standard car ramps are static and rely on driving the vehicle up them to achieve a fixed height. Hydraulic car ramps incorporate a jacking system, allowing for controlled lifting and adjustable working heights, making them more versatile and often easier to use.
Q3: Is it safe to get under a car supported only by ramps?
A3: While ramps provide elevation, they should ideally be used in conjunction with additional safety measures. For maximum safety, it is strongly recommended to use car stands (jack stands) rated for your vehicle's weight to support the chassis once it's on the ramps. Never rely solely on the ramps or the jack.
Q4: How do I maintain hydraulic car ramps?
A4: Regular maintenance typically involves cleaning the ramps, checking for any signs of damage or wear, and ensuring the hydraulic system is functioning correctly. For hydraulic jacks, checking the fluid level and condition, and lubricating moving parts as per the manufacturer's instructions, is important.
In conclusion, hydraulic car ramps offer a significant advantage in terms of convenience and adjustability for vehicle maintenance. Understanding their lifting capacities, recognising the importance of safety features like overload valves, and carefully considering your specific needs will help you select the right equipment for a safer and more efficient workshop experience.
