Understanding Car Diagnostic Tools

How Do Car Diagnostic Tools Work?

In the realm of automotive maintenance, understanding what's ailing your vehicle can often feel like deciphering a cryptic message. Fortunately, the advent of car diagnostic tools, often referred to as OBD-II (On-Board Diagnostics) scanners, has revolutionised the way we approach car troubleshooting. These sophisticated devices are designed to communicate directly with your car's internal computer systems, extracting valuable information that can pinpoint potential issues, from minor glitches to significant mechanical faults. Whether you're a seasoned DIY mechanic or a car owner keen on understanding their vehicle better, a diagnostic tool can be an invaluable asset, saving you time, money, and the frustration of guesswork. This article will delve into the intricacies of how these tools function, what key features to consider when choosing one, and provide insights into some of the top contenders on the market.

The OBD-II System: The Foundation of Car Diagnostics

At the heart of every modern car diagnostic tool lies the OBD-II system. Introduced in the mid-1990s, OBD-II is a standardized system mandated by the US Environmental Protection Agency (EPA) to monitor and control vehicle emissions. However, its capabilities extend far beyond just emissions control. Your car's Engine Control Unit (ECU), or Powertrain Control Module (PCM), is essentially the brain of the vehicle. It constantly collects data from a vast network of sensors scattered throughout the car, monitoring everything from engine temperature and fuel pressure to oxygen levels and throttle position. When the ECU detects a problem that could affect emissions, or a critical system malfunction, it illuminates the 'Check Engine' light on your dashboard and stores a Diagnostic Trouble Code (DTC) in its memory. These DTCs are alphanumeric codes that correspond to specific faults. An OBD-II scanner acts as a translator, connecting to a specific port in your vehicle (usually located under the dashboard on the driver's side) and retrieving these stored DTCs.

Connecting to Your Vehicle: The OBD-II Port

The standard OBD-II connector is a 16-pin trapezoidal-shaped port. This port is the gateway through which the diagnostic tool communicates with the vehicle's ECU. Different types of OBD-II scanners connect in various ways. Basic code readers are typically handheld devices with a simple screen that display the DTCs. More advanced scanners might feature larger, colour touchscreens, wireless connectivity (like Bluetooth or Wi-Fi), and the ability to display live data streams from sensors.

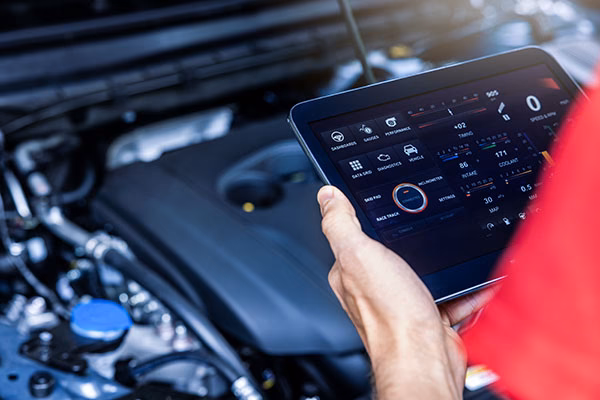

Decoding the Information: DTCs and Live Data

Once connected, the diagnostic tool interrogates the ECU. The primary function is to read the stored DTCs. Each code, such as 'P0300' (Random/Multiple Cylinder Misfire Detected), provides a starting point for diagnosing a problem. However, DTCs are often just indicators, and further investigation is usually required. This is where the 'live data' functionality of more advanced scanners becomes crucial. Live data allows you to monitor the real-time performance of various sensors and systems within your vehicle. For example, you could observe the oxygen sensor readings, engine RPM, coolant temperature, and fuel trim levels as they fluctuate. By comparing these real-time values against expected parameters, you can gain a much deeper understanding of how different components are interacting and identify the root cause of a fault. Some scanners even offer a 'freeze frame' data feature, which captures a snapshot of sensor readings at the exact moment a DTC was triggered, providing a valuable historical context.

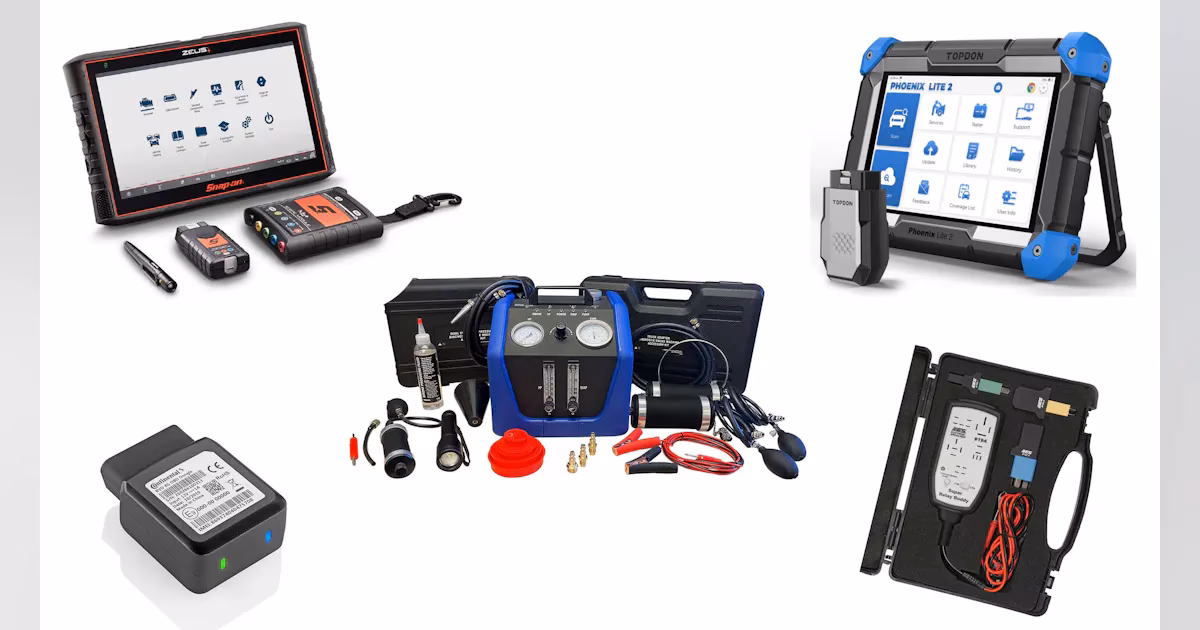

Types of Diagnostic Tools: From Basic to Professional

The market offers a wide spectrum of diagnostic tools, catering to different needs and budgets:

• Basic Code Readers: These are the most affordable and simplest tools. They primarily read and clear DTCs. They are excellent for getting a quick idea of what might be wrong but offer limited additional information.
• Bluetooth/Wi-Fi OBD-II Adapters: These small devices plug into the OBD-II port and transmit data wirelessly to a smartphone or tablet via a dedicated app. They offer a good balance of affordability and functionality, often providing live data and graphing capabilities. The BlueDriver Bluetooth Pro is a prime example, offering excellent value and ease of use.
• Handheld Scanners: These are self-contained units, often with built-in screens and buttons for navigation. They range from simple models like the Autel OBD2 Scanner Autolink AL319, which offer basic code reading and live data, to more sophisticated units with colour displays and advanced features.
• Professional Diagnostic Systems: Tools like the Autel MaxiPRO MP808K or the Autel MaxiSys Elite Scanner are designed for professional mechanics. They offer a vast array of functionalities, including extensive service functions (e.g., injector coding, steering angle calibration, DPF regeneration), bidirectional control (allowing the tool to command vehicle components), and support for a huge number of vehicle makes and models. These are typically more expensive and often require annual software subscriptions for updates.

Key Features to Consider When Buying

When selecting a car diagnostic tool, consider these crucial aspects:

Service Functions: Beyond Basic Diagnostics

Many higher-end diagnostic tools offer 'service functions.' These are advanced capabilities that go beyond simply reading codes. They allow you to perform specific maintenance tasks that often require special procedures. Examples include:

• Oil Light Reset: Resets the service reminder after an oil change.
• Electronic Throttle Control (ETC) Reset: Relearns the throttle position.
• Steering Angle Sensor (SAS) Calibration: Resets the steering angle sensor after alignment or replacement.
• Battery Management System (BMS) Reset: Informs the vehicle's computer that a new battery has been installed.
• Diesel Particulate Filter (DPF) Regeneration: Clears soot from the DPF.
• Tyre Pressure Monitoring System (TPMS) Reset: Relearns tyre pressure sensors.
• Injector Coding: Pairs new fuel injectors with the ECU.

While these functions can be incredibly useful, especially for professional mechanics looking to save time and money, they are often not necessary for the average DIYer performing routine maintenance. Tools like the Launch OBD2 Scanner CRP129E offer a selection of these functions at a more accessible price point.

Keeping Your Tool Up-to-Date: The Importance of Updates

The automotive industry is constantly evolving, with new vehicle models and technologies emerging annually. For professional diagnostic tools, software updates are crucial to ensure compatibility with the latest vehicles and to incorporate new diagnostic protocols and repair information. Many premium tools come with a period of free updates (e.g., Autel MaxiPRO MP808K offers 24 months), after which a subscription fee may be required to maintain access to the latest data. For DIY users, updates might be less critical unless they plan to work on newer vehicles not covered by the tool's initial software.

Frequently Asked Questions (FAQs)

Are cheap scan tools any good?

Yes, for basic diagnostics. Cheap scan tools are generally capable of reading and clearing DTCs and often provide live data. For the average car owner wanting to understand a 'Check Engine' light, these basic functions are usually sufficient. However, they may lack advanced features, broader vehicle coverage, or the robustness of professional tools.

Do I need an expensive OBD2 scanner?

It depends on your needs. If you're a professional mechanic working on a variety of vehicles daily, an expensive, feature-rich scanner is a worthwhile investment that can improve efficiency and accuracy. For a typical car owner who occasionally needs to diagnose a problem, a more affordable tool that provides basic code reading and live data will likely suffice.

Does AutoZone charge for code reading?

No, AutoZone and many other auto parts stores offer free code reading services. If you can get your vehicle to one of these stores, they can scan your car for free. However, this service is typically limited to reading DTCs and may not offer the in-depth live data analysis or advanced functions of a personal diagnostic tool.

How do you reset the Check Engine Light without a scanner?

A common method to reset the 'Check Engine' light without a scanner is to disconnect the vehicle's battery. Specifically, remove the negative battery terminal, wait for approximately 5-15 minutes, and then reconnect it. This action can reset the ECU and clear temporary fault codes, including the 'Check Engine' light. However, be aware that this will also reset other learned settings, such as radio presets and idle adaptations. If the underlying issue persists, the light will likely illuminate again.

What should I look for when buying a scanner?

When purchasing a scanner, prioritise features that align with your needs: ensure it reads and clears codes, provides live data, and offers good vehicle compatibility for your car(s). Consider the user interface for ease of use. If you plan on performing specific maintenance tasks, look for relevant service functions. For professional use, broader vehicle coverage, bidirectional control, and regular software updates are paramount.

Conclusion: Empowering Your Automotive Maintenance

An automotive diagnostic tool is an essential piece of equipment for anyone serious about maintaining their vehicle. From the simple Bluetooth adapters like the BlueDriver Bluetooth Pro, offering great value for DIYers, to the comprehensive professional systems, there's a tool to suit every need and budget. By understanding how these tools work and what features are important, you can make an informed decision that empowers you to take better control of your car's health, potentially saving you considerable expense on unnecessary repairs and diagnostic fees. Don't wait for a problem to arise; invest in a diagnostic tool today and gain the confidence to tackle your car's maintenance with clarity and precision.
