In the intricate world of automotive collision repair, precision and structural integrity are paramount. When a vehicle has suffered frame damage, simply replacing panels won't suffice. The underlying structure must be meticulously restored to its original specifications. This is where the humble, yet incredibly vital, body jig system comes into play. Often found in professional bodyshops, these systems are the backbone of serious structural repair work, ensuring that a vehicle's chassis is held perfectly stable while damaged components are removed and new ones are fitted with absolute accuracy.
What Exactly is a Body Jig?
At its core, a body jig is a robust frame designed to support a vehicle during repair. Think of it as putting the car into a form of 'traction'. Unlike a rotisserie, which is excellent for general restoration and allows for 360-degree access, a jig is specifically engineered for structural work. Its primary function is to maintain the vehicle's frame alignment and support its weight without any deflection, even as heavy, damaged parts are removed and replaced. This unwavering stability is crucial for achieving precise measurements and ensuring the vehicle's structural integrity is fully restored.
While some might associate jigs with extensive rust repair, where a jig can be built around a relatively straight frame, they are equally, if not more, critical for collision damage. In these scenarios, the jig must be constructed to support the car at points where the frame is still sound, or where the new components will eventually connect. This requires a more considered approach to jig placement and design, ensuring it doesn't interfere with the repair process itself.
The process of building and using a jig often involves referencing complex frame measurement diagrams. These diagrams, while essential, can sometimes be overwhelming. The key isn't just having a lot of measurements, but understanding which dimensions are critical for accurately locating new components. Essentially, you need to control the part's position in six degrees of freedom: fore-aft, left-right, height, and rotation around each of those axes (roll, pitch, and yaw).
Each axis requires a minimum of two measurements, and some measurements can serve double duty. Therefore, the goal is to identify and utilise measurements that effectively control these six axes. This often involves consulting multiple sources, including factory service manuals and insights from experienced restorers online, to cobble together a comprehensive list of critical dimensions.
A well-designed jig system will incorporate points that securely mount to the car's 'hardpoints' – designated strong points on the chassis. It also often includes adjustable elements, such as scissor jacks, to allow for fine-tuning the alignment of new parts as they are fitted, compensating for any slight variations from the old, damaged components.
Building Your Own Jig: A Pragmatic Approach
For those undertaking significant structural repairs, particularly in a less-than-factory environment, building a custom jig can be a cost-effective and highly rewarding solution. The choice of materials is important; while some opt for wood, steel is generally preferred for its strength and rigidity. Square steel tubing, such as 2"x2" with a 0.125" wall thickness, is often sufficient for many unibody cars, provided the design accounts for potential flexing over longer spans.
A common approach involves constructing a ladder frame from steel tubing. This forms the base of the jig. Precision is key here; ensuring the frame is perfectly level and square is vital. Using leveling feet at the corners and bolts at other intersections can help prevent unwanted flex. It's advisable to clamp and level the components in place before welding to avoid introducing any twists or distortions into the jig itself.
The 'datum plane' or 'baseline' is a critical concept. This is essentially an imaginary horizontal plane that serves as the zero reference for all vertical measurements. In a custom jig, this datum plane is often established by the top surfaces of the main longitudinal rails of the jig. Laser levels are invaluable tools for ensuring these rails are perfectly level, establishing a precise reference plane.
Once the base ladder frame is in place and levelled under the vehicle, the next step is to create support points that will interface with the car's hardpoints. This typically involves fabricating cross-pieces with vertical posts. These posts are designed to align with specific mounting holes on the car's chassis, such as leaf spring mounts or lower control arm (LCA) mounts.
Adjustability is often incorporated using scissor jacks. These can be mounted to the main rails of the jig and used to support or adjust the position of crossbars that, in turn, support critical frame sections. This adjustability is invaluable for precisely aligning new frame rails or other structural components before they are welded or bolted into place. U-bolts can be used to secure the scissor jacks to the jig's frame, allowing for sliding adjustments.
For areas where the original frame is being entirely replaced and is not needed for support, it's acceptable to weld directly to the existing, damaged structure to provide additional rigidity to the jig setup. The final jig assembly will have multiple support points – a combination of welded posts, bolted posts, and adjustable scissor jacks – all working in concert to hold the vehicle securely and accurately.
The Importance of Precision Measurements
As highlighted, accurate measurements are the bedrock of successful jig work. Relying solely on factory drawings can sometimes be insufficient, especially when dealing with the aftermath of a significant impact. The process often involves cross-referencing information from various sources:
- Factory Service Manuals: These provide baseline measurements and diagrams, crucial for understanding the intended structure.
- Online Forums and Restorer Communities: Experienced individuals often share measurements taken from pristine examples of vehicles. However, it's important to vet the source of this information to ensure its accuracy.
- Aftermarket Parts: High-quality reproduction parts, such as crossmembers or braces, can sometimes offer reliable reference points, as they are designed to fit a factory-correct chassis.
Key measurements often include distances between specific chassis points (e.g., LCA mounts, frame rail holes), as well as diagonal measurements between critical points. These diagonals are particularly useful for checking the overall squareness and alignment of the chassis. When the frame is damaged, these factory-specified diagonals will likely not match, providing a clear indicator of the extent of the distortion.
A practical tip is to use a combination of factory data and measurements taken from the vehicle itself (even in its damaged state) to establish a working set of critical dimensions. It's also wise to re-measure everything multiple times throughout the process to catch any discrepancies early on.
Jig Systems in the Modern Bodyshop
In professional collision repair facilities, dedicated jig systems are standard equipment. These are often sophisticated, multi-post setups that can be precisely adjusted to accommodate a wide range of vehicle makes and models. They are designed for speed, accuracy, and safety, allowing technicians to perform complex structural repairs efficiently.
The availability of high-quality jig systems from specialised manufacturers is crucial for modern bodyshops. These systems represent a significant investment but are indispensable for guaranteeing the structural integrity of repaired vehicles, a key factor in ensuring customer safety and satisfaction. While the DIY approach can be effective for individual projects, professional bodyshops rely on calibrated, purpose-built equipment to meet industry standards and customer expectations.
Frequently Asked Questions
Q1: Do I need a jig for minor body damage?
A: Generally, no. Jigs are primarily for repairs involving the vehicle's underlying frame or unibody structure. Minor cosmetic damage typically doesn't require a jig.
Q2: What's the difference between a jig and a frame machine?

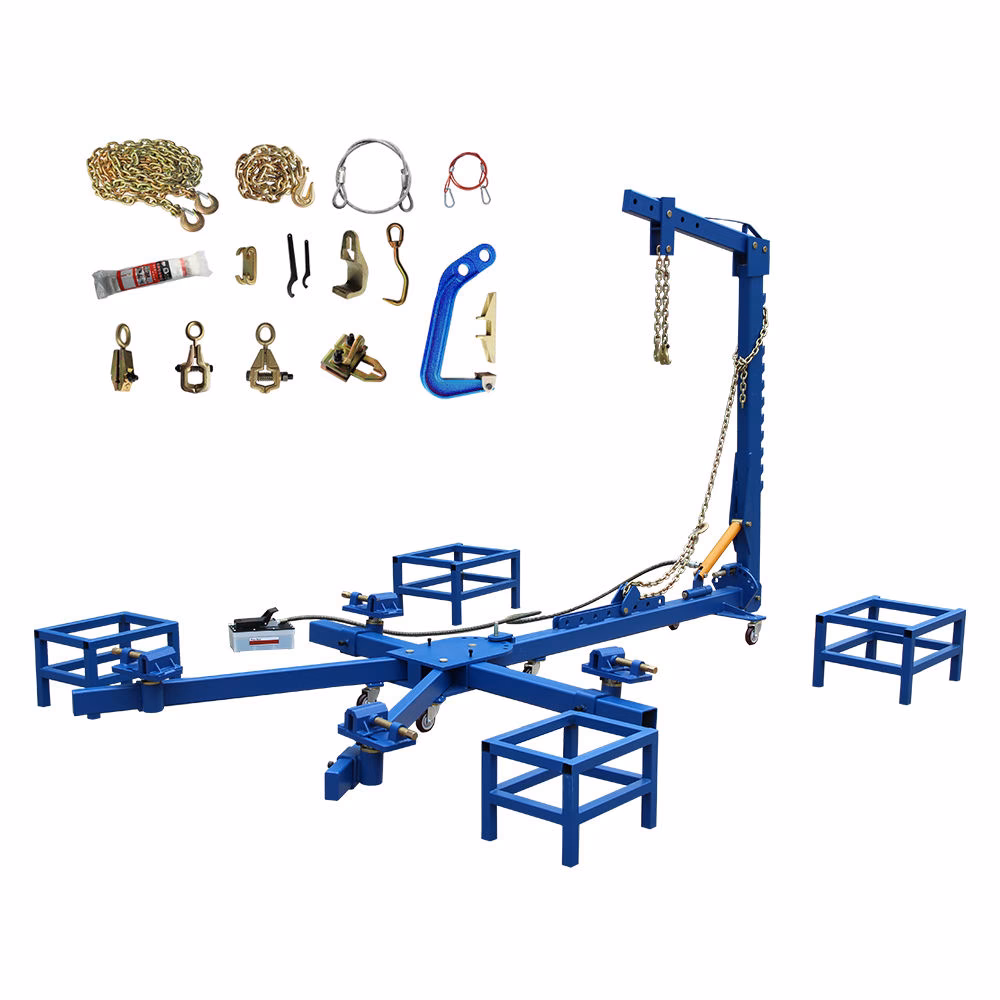

A: While related, they serve slightly different purposes. A frame machine is designed to pull and straighten a damaged frame. A jig is primarily a support structure that holds the vehicle perfectly still and aligned, allowing for precise measurement and fitting of new parts, often in conjunction with a frame machine or other repair tools.
Q3: Can I use jack stands instead of a jig?
A: For structural repairs, jack stands alone are insufficient. They provide support but lack the precision and multi-point stability required to maintain frame alignment during complex repairs. Relying solely on jack stands could lead to inaccurate repairs or even instability.
Q4: Where can I buy professional car jig systems?
A: Professional jig systems are typically available from specialised automotive equipment suppliers and manufacturers. Companies like Blackhawk are well-known leaders in this field. You can also find suppliers through industry trade shows and online B2B marketplaces, although it's crucial to ensure the quality and suitability of the system for your specific needs.
Q5: How important is the datum line when using a jig?
A: The datum line (or plane) is critically important. It serves as the primary reference point for all vertical measurements, ensuring consistency and accuracy in positioning new components. Any deviation from the established datum line will translate into misaligned parts and compromised structural integrity.
In conclusion, body jig systems are not merely accessories but fundamental tools in the collision repair industry. Whether employing a professionally manufactured system or meticulously building a custom jig, the goal remains the same: to provide an unshakeable foundation for restoring a vehicle's structural integrity with the highest degree of precision.
