Engine Seizure: The Harsh Reality of a Locked Motor

Few automotive mishaps are as alarming and final as an engine seizure. One moment, you're cruising along, and the next, your vehicle lurches, perhaps emits a puff of smoke, and goes eerily silent. This abrupt halt, especially when it occurs due to a critical lack of lubrication while the engine is running, signifies a severe internal catastrophe. It's a moment of dread for any car owner, and for you, with your 2008 Toyota Yaris 1.0L (1KR-FE) that ran low on oil, the experience has been particularly jarring. You've sought reassurance, or perhaps closure, and this guide aims to provide just that, by delving deep into what happens when an engine seizes, what it truly means for its future, and what your options, however limited, might be.

What Exactly is a Seized Engine?

At its core, a seized engine is one where the internal moving parts have become immovably stuck. This isn't a simple stall; it's a mechanical lock-up. Imagine the intricate dance of pistons, crankshaft, and camshaft, all designed to move with incredible precision on a thin film of oil. When that oil film is compromised, metal grinds against metal. The resulting friction generates immense heat, often to the point where components can weld or fuse together. This effectively turns the engine's precision-engineered moving parts into a solid, unyielding mass. It's akin to a locked rear wheel, but far more devastating internally.

There are generally two primary scenarios for engine seizure:

• Seizure from Inactivity: This occurs when a vehicle has been left unused for extended periods. Moisture and condensation can lead to rust building up on cylinder walls, causing the piston rings to 'freeze' against them. This is often seen in classic cars awaiting restoration.
• Seizure While In-Use: This is the more catastrophic scenario, typically caused by a sudden, severe lack of lubrication or extreme overheating. Your Toyota Yaris's experience, with low oil and a sudden stop, falls squarely into this category.

The Catastrophic Nature of In-Use Seizure

When an engine seizes while it's running, especially due to oil starvation, the damage is usually far more extensive and irreversible than a seizure from inactivity. The high speeds and pressures involved mean that components don't just gently rust together; they violently tear, warp, or melt. Connecting rods can bend or snap, bearings can disintegrate, and the crankshaft itself can be severely scored or even fractured. In the worst cases, a connecting rod can punch a hole right through the engine block, a clear sign of terminal damage.

Common Causes of an Engine Seizure

While an engine seizure is a singular event, its causes are varied, though almost always preventable with diligent maintenance.

• Insufficient Lubrication (Low Oil Level): This is by far the most common and destructive cause. Without adequate oil, the protective film between moving metal parts disappears. The resulting metal-on-metal contact causes extreme friction and heat, leading to components seizing. This appears to be the primary culprit in your Yaris's case.
• Overheating: While often linked to low coolant, extreme engine temperatures can also lead to oil breakdown, reducing its lubricating properties. Components expand excessively, leading to tighter tolerances and increased friction, which can culminate in seizure even if oil levels are technically adequate.
• Water Ingress (Hydrolock): If water enters the combustion chamber (e.g., driving through deep floods, or a severe head gasket failure allowing coolant into cylinders), it cannot be compressed like air. When a piston tries to compress water, the engine abruptly stops, often bending connecting rods or cracking the block. This is different from a typical seizure but results in similar immobility.
• Rust Buildup (Long-Term Inactivity): As mentioned, for vehicles stored for extended periods, rust can bind internal components.
• Mechanical Failure: Less common, but a sudden failure of a critical internal component (e.g., a timing chain snapping, a valve breaking off) can also lead to an immediate lock-up.

Recognising a Seized Engine: Warning Signs and Final Symptoms

While an engine seizure can feel sudden, there are often preceding warning signs. However, in cases of severe oil starvation while driving, the signs can be very brief before the final stop.

Pre-Seizure Warning Signs:

• Oil Warning Light: The most obvious sign of low oil pressure. Ignoring this is extremely risky.
• Loud Engine Noises: Knocking, clunking, or grinding sounds, particularly from the bottom end, indicate severe bearing wear due to lack of lubrication.
• Loss of Power: The engine struggles to maintain speed or accelerate.
• Overheating: Temperature gauge rising, steam from the bonnet.
• Smoke from Exhaust/Engine Bay: Blue smoke (burning oil) or white smoke (burning coolant) can indicate serious internal issues. Your observation of smoke from your Yaris is a critical indicator.

Symptoms of a Fully Seized Engine:

• Engine Won't Turn Over: When you try to start the car, you'll hear a single click from the starter motor, or perhaps a weak groan, but the engine crankshaft will not rotate. The starter motor simply cannot overcome the internal resistance.
• Loud Clunking on Attempted Start: The starter solenoid might engage, but the starter motor's pinion gear hits the flywheel and immediately binds, producing a distinct clunk.
• Smoke/Fumes: Residual oil or other fluids burning off hot components can lead to smoke or even fire.
• No Movement of Piston/Crankshaft: A mechanic attempting to turn the crankshaft manually with a breaker bar will find it completely rigid.

Can a Seized Engine Be Fixed? The Harsh Truth

This is the question that weighs heavily on your mind, especially after hearing that in-use seizures are the most difficult and costly to fix. The short answer is: possibly, but typically not economically, especially for an in-use seizure caused by oil starvation.

The Reality for Your Toyota Yaris (1KR-FE)

Given your description – low oil, sudden stop while driving, smoke – your 1KR-FE engine likely suffered catastrophic internal damage. This isn't a case of pistons merely rusting to cylinder walls from inactivity. This is a scenario where crucial components like crankshaft bearings, connecting rod bearings, and potentially the crankshaft and connecting rods themselves, have melted, warped, or fractured due to immense heat and friction. The smoke you saw likely indicates burning oil or even metal.

In such a situation, the engine is not merely 'stuck'; it is fundamentally damaged. Attempting to 'un-seize' it with lubricants, as you might for an engine seized from long-term storage, is highly unlikely to work and could even exacerbate existing damage. The internal clearances are gone, and the components are likely deformed beyond specification.

The online information you read is largely correct: a seizure during use, particularly from oil starvation, is almost always the most severe. It usually necessitates either a complete engine rebuild or, more commonly, a full engine replacement.

Comparing Seizure Types & Repair Prospects

To provide clarity on why your situation is different from a 'fixable' seizure, let's compare:

Attempting to 'Un-Seize' (Applicable to Inactivity Seizures)

While these methods are generally not applicable to your situation, it's important to understand the typical process for freeing an engine seized by inactivity, as this is what you might have read online:

1. Assess the Situation: Check oil for water (milky, grey appearance) or burnt smell. Drain old oil.
2. Remove Spark Plugs: This relieves compression and allows access to the cylinders.
3. Apply Penetrating Oil: Pour a good quality penetrating oil (like Plus Gas, or even a mix of ATF and acetone) directly into each cylinder through the spark plug holes. Ensure it coats the cylinder walls. Some people also use diesel fuel.
4. Wait, and Wait Some More: Patience is key. Allow the penetrating oil to work its way down to the piston rings, often for several days, re-applying daily.

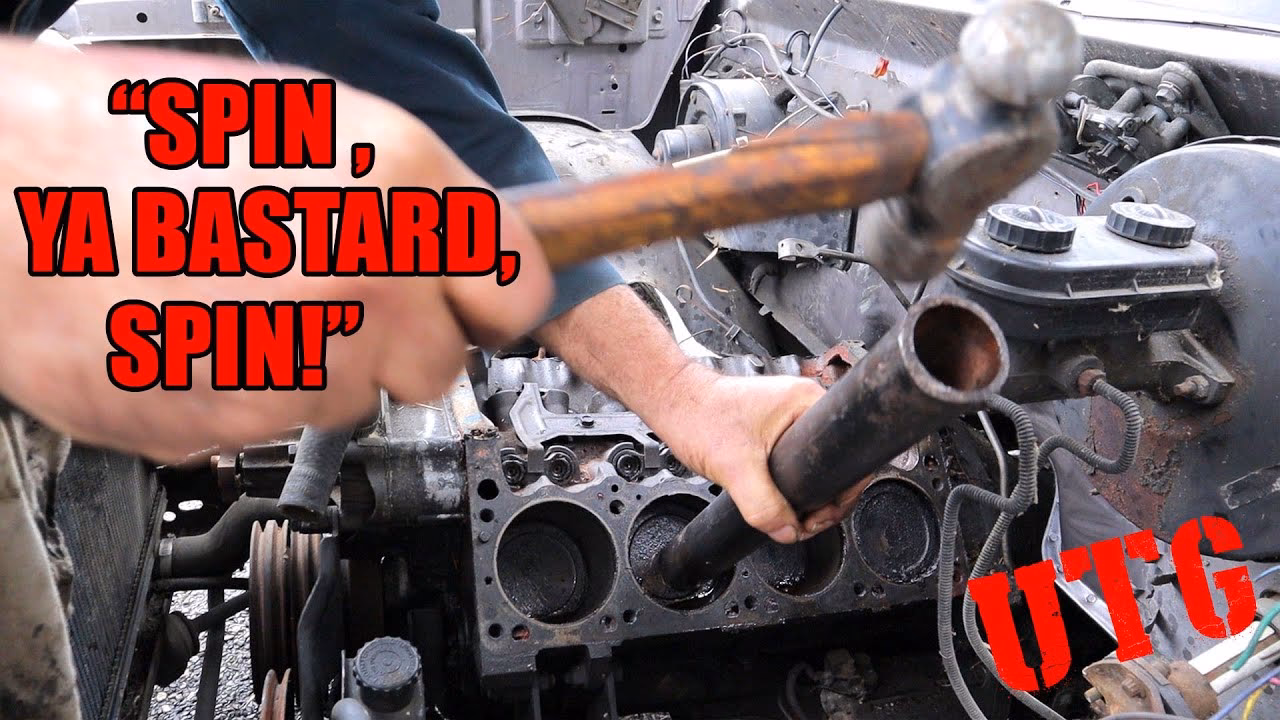

5. Apply Gentle Force: With the spark plugs still out, try to turn the crankshaft manually using a breaker bar on the crankshaft bolt. Alternatively, and often safer, use a lever on the flywheel ring gear through the starter motor aperture. Avoid excessive force, as this can break the crankshaft bolt or other components. Rock the crankshaft back and forth gently, gradually increasing the range of motion.
6. Heat (Optional): Gently heating the engine block (e.g., with hot water in the coolant system, or a heat gun) can help expand components and allow penetrating oil to work better.
7. If Still Stuck: If the engine resists all gentle attempts, it might be necessary to remove the cylinder head to inspect the pistons and bores directly. You might then try to gently tap the piston tops with a wooden block and hammer (again, with extreme care to avoid damage). Removing big end caps to free individual pistons is a more involved step.

Crucial Note for Your Yaris: These methods are designed for engines where rust has caused the seizure. For an engine that seized due to a lack of oil while running, the internal components have likely fused or are severely damaged. Pouring oil into the cylinders will not reverse the damage to melted bearings or bent rods. Your battery dying while trying to restart it by the roadside is further evidence of the engine's complete immobility, as the starter could not overcome the internal resistance.

The Cost of Fixing a Seized Engine

This is where the 'closure' you seek often becomes a stark reality. For an engine that seized catastrophically while in use, the options are typically a full engine rebuild or a complete engine replacement.

Engine Rebuild:

A rebuild involves removing the engine, disassembling it completely, inspecting every component, machining surfaces (like the crankshaft or cylinder head), and replacing all damaged parts (bearings, pistons, rings, connecting rods, valves, etc.). This is highly labour-intensive and requires specialist equipment. For a 1KR-FE engine in a 2008 Yaris, the cost of a professional rebuild in the UK can easily range from £2,500 to £4,500+, depending on the extent of the damage and parts availability. This often approaches, or even exceeds, the market value of the vehicle itself.

Engine Replacement:

This involves fitting a new (unlikely for an older Yaris), reconditioned (recon), or used engine. A recon engine is one that has been rebuilt to factory specifications. A used engine is pulled from another vehicle, usually a breaker. The cost of a replacement engine (including labour for removal and fitting) can vary significantly:

• Used Engine: £1,000 - £2,500 (plus fitting labour, which can be another £500-£1,000). Riskier due to unknown history.
• Reconditioned Engine: £2,000 - £4,000 (plus fitting labour). Generally more reliable than a used engine, often comes with a warranty.

When you factor in potential additional costs for ancillary parts that might have been damaged (e.g., starter motor, wiring, cooling system components), the total repair bill for a seized engine can quickly exceed £3,000 to £5,000. For a 2008 Toyota Yaris, which might have a market value of £1,500 - £3,000 (depending on condition), this often makes repair economically unviable.

Seeking Closure: When to Accept the Loss

Given the nature of your engine seizure – low oil, while driving – it is highly probable that your 1KR-FE engine has sustained severe, irreparable damage that would cost more to fix than the car is worth. The smoke, the sudden stop, and the inability to turn the engine over are all classic signs of catastrophic failure. The fact that you've already added oil and left it for weeks, and it remains seized, further confirms that simple lubrication won't resolve the issue.

While it's difficult to accept, it's important to be realistic. For a vehicle of this age and value, investing thousands of pounds into an engine replacement or rebuild often doesn't make financial sense. You might find yourself in a situation where the repair cost far outweighs the car's market value, leading to a negative equity situation.

Before making a final decision, you could consider getting a professional diagnosis from a trusted mechanic. However, be prepared for them to confirm what you've likely already concluded: the engine is beyond economical repair. They might be able to confirm the exact nature of the damage (e.g., a bent rod, a hole in the block) which would provide that definitive closure.

Your options then typically become:

1. Sell the Car for Parts/Scrap: Many salvage yards or scrap dealers will buy cars with seized engines, even if for a nominal sum.
2. Part Exchange: Some dealerships might offer a very low part-exchange value, but it's an option if you're buying another vehicle.
3. Invest in a Used Engine: If you are emotionally attached to the car and can find a reliable used engine with a warranty, this might be a cheaper route than a full rebuild, but still a significant investment.

Prevention: The Best Cure

While it's too late for your Yaris, it's crucial to remember that most engine seizures are preventable. Regular oil checks and timely oil changes are paramount. Always adhere to your vehicle's service schedule and address any warning lights or unusual noises immediately. An engine is a complex machine; proper care is its lifeblood.

Frequently Asked Questions (FAQs)

Can a seized engine be fixed?

Unfortunately, if a professional mechanic confirms your engine has seized due to internal mechanical failure (like low oil while driving), your options are very limited. In most such cases, a complete engine replacement or a costly, extensive rebuild is the only solution, rather than a simple repair.

Can a seized engine run again?

Yes, it's possible for a seized engine to run again, but it almost always requires significant repair work. For a truly seized engine from in-use failure, the cost of getting it running again typically exceeds the value of the engine itself, and often the entire vehicle.

Is it expensive to fix a seized engine?

Absolutely. For a professional engine repair, you should budget anywhere from £3,000 to £5,000, and potentially more for a full replacement with a new or reconditioned unit. Due to these substantial costs, many older vehicles with seized engines end up being scrapped or sold for parts.

What sound does a seized engine make?

A seizing engine might produce loud knocking, clunking, or grinding noises just before it stops. Once seized, when you try to start the car, you'll typically hear a single, loud 'clunk' as the starter motor attempts to engage but cannot turn the crankshaft, followed by silence, or perhaps a faint whirring if the starter motor is still trying to spin against the locked engine.

How do I know if I need a new engine?

If your engine has seized, meaning it won't turn over at all, and a mechanic confirms severe internal damage (like a bent rod or a hole in the engine block), then a new or reconditioned engine is likely required. Other signs include persistent severe knocking noises, significant loss of power despite repairs, excessive smoke, or a complete lack of compression in multiple cylinders.

Can an engine seize from too much oil?

Yes, overfilling your engine with oil can indeed cause significant damage and potentially lead to seizure. Excess oil can be whipped into a froth by the crankshaft, leading to aeration. This aerated oil is less effective at lubricating, causing increased friction and heat. It can also create excessive pressure, potentially damaging seals and leading to leaks, or even hydraulic lock if enough oil gets into the combustion chamber. If you suspect an overfill, it's crucial to drain the excess oil immediately before starting the engine.

Ultimately, a seized engine, especially one that failed due to oil starvation while driving, represents a major mechanical failure. While the thought of letting go of your Yaris is undoubtedly tough, understanding the extent of the damage and the likely repair costs can help you make an informed and realistic decision about its future.
