Camshaft Sensor: Your Engine's Timing Maestro

Understanding the intricate workings of your car's engine can feel like delving into a complex symphony. At the heart of this symphony lies the camshaft sensor, a seemingly small component that plays an absolutely monumental role in ensuring your engine runs smoothly, efficiently, and powerfully. Think of it as the conductor, precisely dictating the rhythm and timing of your engine's internal ballet. Without its accurate guidance, the entire performance can fall apart, leading to a cascade of undesirable symptoms.

This guide will take you on a journey to demystify the camshaft sensor. We'll explore its fundamental purpose, delve into the mechanics of how it operates, discuss the different types you might encounter, highlight the tell-tale signs of a failing sensor, and provide essential tips for its maintenance and replacement. By the end, you'll have a comprehensive understanding of why this component is so critical to your vehicle's overall health and performance.

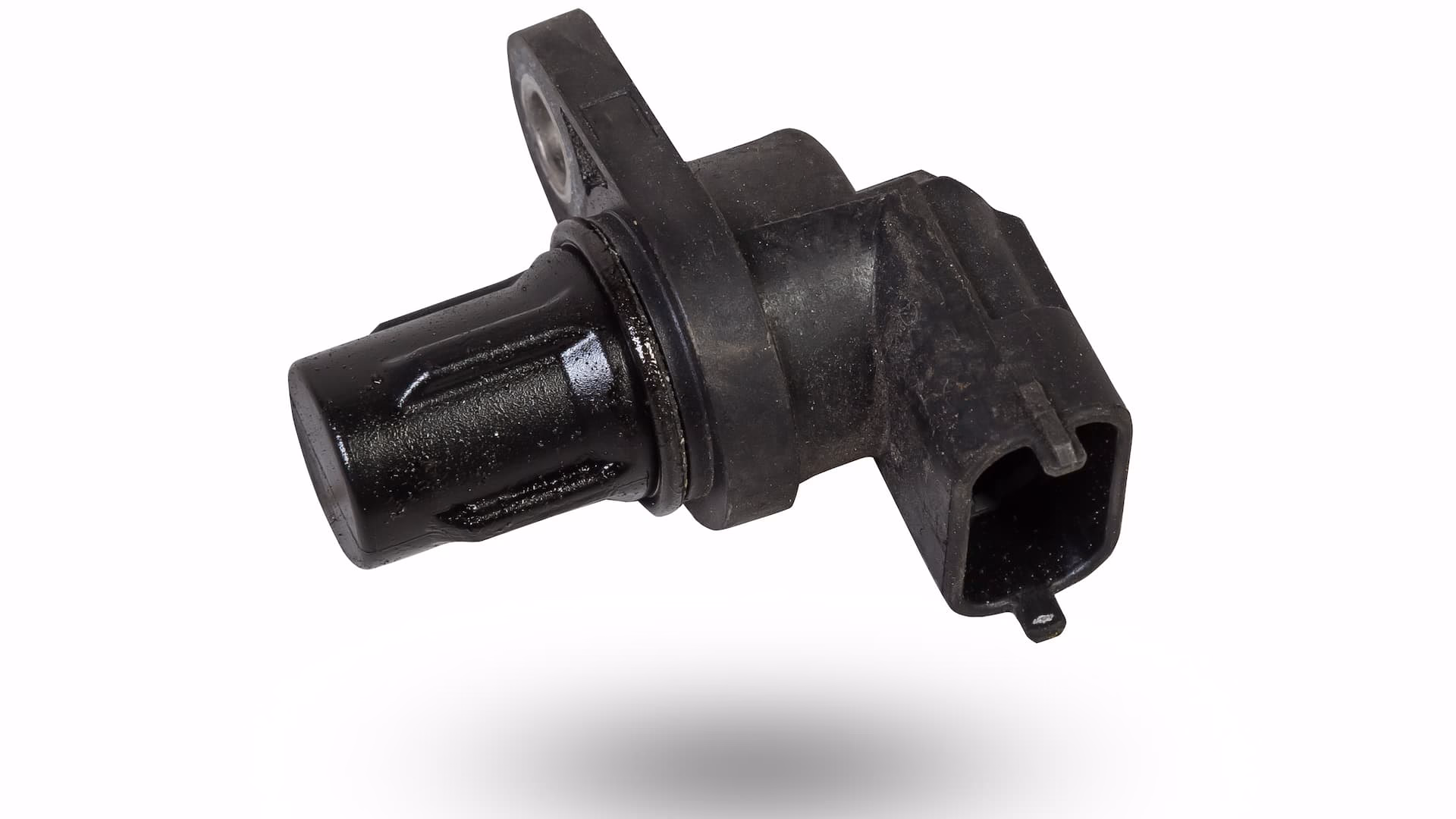

The Indispensable Role of the Camshaft Sensor

At its core, the camshaft sensor is an integral part of your vehicle's engine management system. Its primary function is to monitor the position and rotational speed of the camshaft. The camshaft itself is a vital engine component responsible for operating the intake and exhaust valves. These valves, in turn, control the flow of air and fuel into the cylinders and the expulsion of exhaust gases. The precise timing of these valve openings and closings is absolutely paramount for efficient combustion.

The data gathered by the camshaft sensor is relayed to the Engine Control Unit (ECU), often referred to as the car's 'brain'. The ECU then uses this information, along with data from other sensors (like the crankshaft sensor), to make critical adjustments to several engine parameters. These adjustments include:

• Fuel Injection Timing: Ensuring that the correct amount of fuel is injected into each cylinder at the precise moment for optimal combustion.
• Ignition Timing: Determining when the spark plug should fire to ignite the air-fuel mixture.
• Variable Valve Timing (VVT): In modern engines, the ECU can adjust valve timing to improve performance and fuel economy under different driving conditions. The camshaft sensor provides the necessary feedback for this system.

The result of this intricate coordination is an engine that runs smoothly, delivers optimal power, achieves excellent fuel economy, and minimises harmful emissions. Conversely, a faulty camshaft sensor can disrupt this delicate balance, leading to a host of frustrating and potentially damaging issues.

How Does a Camshaft Sensor Actually Work?

The operation of a camshaft sensor is a fascinating interplay of magnetism and electrical principles. While there are different types of sensors, they all achieve the same goal: detecting the camshaft's position and speed.

The Working Principle Explained

Most modern camshaft sensors operate on the principle of magnetic induction or the Hall effect. Let's break down the common mechanisms:

The camshaft typically has a reluctor wheel or a notched ring attached to it. As the camshaft rotates, this wheel or ring also turns. The camshaft sensor is strategically positioned to 'read' this wheel.

• Hall-Effect Sensors: These sensors contain a semiconductor element that generates a voltage when exposed to a magnetic field. As the reluctor wheel rotates, its teeth and gaps pass by the sensor. The presence of a tooth causes a change in the magnetic field, which in turn alters the voltage output from the Hall-effect element. This creates a clean, square-wave signal that the ECU can easily interpret. Hall-effect sensors are known for their accuracy and reliability.
• Variable Reluctance (VR) Sensors: These sensors utilise a permanent magnet and a coil of wire. As a toothed wheel (the reluctor wheel) rotates and passes by the sensor, the teeth disturb the magnetic field. This disturbance induces a small electrical current in the coil. The voltage generated by a VR sensor is typically an AC (alternating current) voltage that varies in frequency and amplitude with the speed of the camshaft. The ECU then processes this signal to determine the camshaft's position and speed.

Regardless of the specific technology, the sensor converts the physical movement of the camshaft into an electrical signal that the ECU can understand and act upon. This signal is critical for synchronising the engine's various operations.

Types of Camshaft Sensors

As mentioned, there are two primary types of camshaft sensors commonly found in vehicles:

• Hall-Effect Sensors: These are prevalent in many modern vehicles due to their precision and consistent output. They are less susceptible to interference and provide a more stable signal, which is advantageous for sophisticated engine management systems.
• Variable Reluctance (VR) Sensors: While still used, VR sensors are often found in slightly older vehicles or specific applications. They are generally more robust but can be more susceptible to electromagnetic interference and require the ECU to interpret a more complex signal waveform.

The choice between these two types often depends on the vehicle's manufacturer and the specific requirements of the engine design.

Symptoms of a Failing Camshaft Sensor

A malfunctioning camshaft sensor can manifest itself in a variety of ways, often impacting engine performance and drivability. It's crucial to be aware of these symptoms so you can address the issue promptly before it leads to more significant damage.

Common Indicators of a Faulty Sensor:

• Check Engine Light (CEL): This is often the first and most obvious sign. The ECU will detect an anomaly in the camshaft sensor's signal and illuminate the CEL on your dashboard. The specific diagnostic trouble code (DTC) stored will usually point towards the camshaft position sensor circuit.
• Rough Idling: The engine may run unevenly when stationary, with noticeable vibrations or hesitations. This is because the ECU isn't receiving accurate timing information, leading to inconsistent combustion.
• Misfires: You might experience the engine sputtering or feeling like it's skipping a beat, especially during acceleration. This occurs when a cylinder doesn't receive the correct fuel or spark at the right time due to incorrect sensor data.
• Poor Acceleration: The vehicle may feel sluggish and lack its usual responsiveness when you press the accelerator pedal. The ECU's inability to optimise fuel and spark timing directly impacts acceleration.
• Difficulty Starting: In some cases, a severely faulty camshaft sensor can prevent the engine from starting altogether. The ECU might not be able to synchronise the injection and ignition events, making it impossible for the engine to fire up.
• Stalling: The engine may unexpectedly cut out while driving, particularly at lower speeds or when coming to a stop.
• Reduced Fuel Economy: An inefficiently running engine due to incorrect timing will naturally consume more fuel, leading to a noticeable drop in your MPG.
• Engine Fails to Start (No Crank or Crank No Start): While a bad starter or fuel pump can cause similar issues, a completely dead camshaft sensor can prevent the ECU from initiating the combustion cycle.

Diagnostic Trouble Codes (DTCs)

When the CEL illuminates, a mechanic will typically use an OBD-II scanner to retrieve the stored DTCs. Codes related to the camshaft position sensor often include:

• P0340: Camshaft Position Sensor Circuit (Bank 1 or Single)
• P0341: Camshaft Position Sensor Circuit Range/Performance (Bank 1 or Single)
• P0342: Camshaft Position Sensor Circuit Low Input (Bank 1 or Single)
• P0343: Camshaft Position Sensor Circuit High Input (Bank 1 or Single)
• P0345: Camshaft Position Sensor Circuit (Bank 2)
• P0346: Camshaft Position Sensor Circuit Range/Performance (Bank 2)
• P0347: Camshaft Position Sensor Circuit Low Input (Bank 2)
• P0348: Camshaft Position Sensor Circuit High Input (Bank 2)

These codes help pinpoint the specific issue, whether it's a problem with the sensor itself, its wiring, or the ECU's interpretation of the signal.

Troubleshooting and Replacement

If you suspect your camshaft sensor is faulty, it's essential to have it diagnosed by a qualified mechanic. Attempting to replace it yourself without proper knowledge can lead to further complications.

Common Causes of Failure:

• Internal Sensor Failure: Like any electronic component, camshaft sensors can fail over time due to wear and tear.
• Damaged Wiring: The wiring harness connected to the sensor can become frayed, corroded, or damaged due to heat or physical stress, interrupting the signal.
• Loose Connections: A dirty or loose connector can prevent the sensor from transmitting its signal effectively.
• Interference: While less common with modern sensors, strong electromagnetic interference can sometimes affect the sensor's reading.
• Reluctor Wheel Damage: Damage or debris on the reluctor wheel can also lead to incorrect readings.

Replacement Process:

The replacement process for a camshaft sensor can vary depending on the vehicle's make and model. However, the general steps involve:

1. Locate the Sensor: The camshaft sensor is typically located on the cylinder head, near the front or rear of the camshaft. Consult your vehicle's service manual for its exact location.
2. Disconnect Battery: Always disconnect the negative battery terminal before working on any electrical components to prevent short circuits.
3. Remove Obstructions: You may need to remove air intake components or other parts to gain access to the sensor.
4. Unplug Connector: Carefully disconnect the electrical connector from the sensor.
5. Remove Sensor: The sensor is usually held in place by a bolt. Remove the bolt and carefully pull the sensor out. Some sensors might require a specific tool for removal.
6. Install New Sensor: Ensure the new sensor is the correct part for your vehicle. Install it in the same position as the old one and secure it with the bolt.
7. Reconnect Connector: Plug the electrical connector back into the new sensor.
8. Reassemble: Reinstall any components that were removed for access.
9. Reconnect Battery: Reconnect the negative battery terminal.
10. Clear Codes: After replacement, use an OBD-II scanner to clear any stored DTCs.
11. Test Drive: Take the vehicle for a test drive to ensure the issue is resolved and the engine is running smoothly.

Important Note: It is highly recommended to have a professional mechanic perform this replacement, especially if you are not comfortable working with automotive electrical systems. Incorrect installation or using the wrong part can lead to further problems.

Frequently Asked Questions (FAQs)

Q1: Can I drive my car with a bad camshaft sensor?

While you might be able to drive your car for a short period, it is not recommended. A failing camshaft sensor can lead to poor performance, reduced fuel economy, and potentially cause more severe engine damage. It's best to address the issue as soon as possible.

Q2: How often should a camshaft sensor be replaced?

Camshaft sensors are generally designed to last the lifetime of the vehicle. However, they can fail due to wear and tear, electrical issues, or environmental factors. There isn't a fixed replacement interval; it's typically replaced only when it fails.

Q3: Does a crankshaft sensor do the same job as a camshaft sensor?

No, while both are crucial for engine timing, they monitor different components. The crankshaft sensor monitors the position and speed of the crankshaft, while the camshaft sensor monitors the camshaft. The ECU uses data from both sensors to synchronise the engine's operations.

Q4: Is a camshaft sensor expensive to replace?

The cost of replacement can vary depending on the vehicle's make and model and whether you have it done by a professional mechanic or a DIY job. The sensor itself can range from £20 to £100+, and labour costs can add to this. However, compared to potential engine damage from a faulty sensor, it's a relatively affordable repair.

Q5: What is the difference between a camshaft position sensor and a camshaft phase sensor?

In most modern applications, these terms are used interchangeably. Both refer to the sensor that monitors the camshaft's position relative to the crankshaft. The term 'phase' highlights its role in ensuring the correct phase relationship between the camshaft and crankshaft for optimal engine timing.

Conclusion

The camshaft sensor, though often overlooked, is a cornerstone of modern engine management. Its ability to provide accurate real-time data on camshaft position and speed is fundamental to achieving optimal fuel efficiency, smooth performance, and reduced emissions. By understanding the symptoms of a failing sensor and seeking prompt diagnosis and repair, you can ensure your engine continues to perform at its best, safeguarding your vehicle against more significant issues and keeping you safely on the road.
