Brake Calipers: Your Car's Stopping Power

When you press the brake pedal in your vehicle, you're engaging a complex and vital system designed to bring your car safely to a halt. At the heart of your disc braking system are the brake calipers – often unsung heroes that are absolutely crucial for effective stopping power. Without properly functioning calipers, your car's ability to slow down or stop would be severely compromised, putting you and other road users at risk.

How Brake Calipers Work: The Mechanics of Stopping

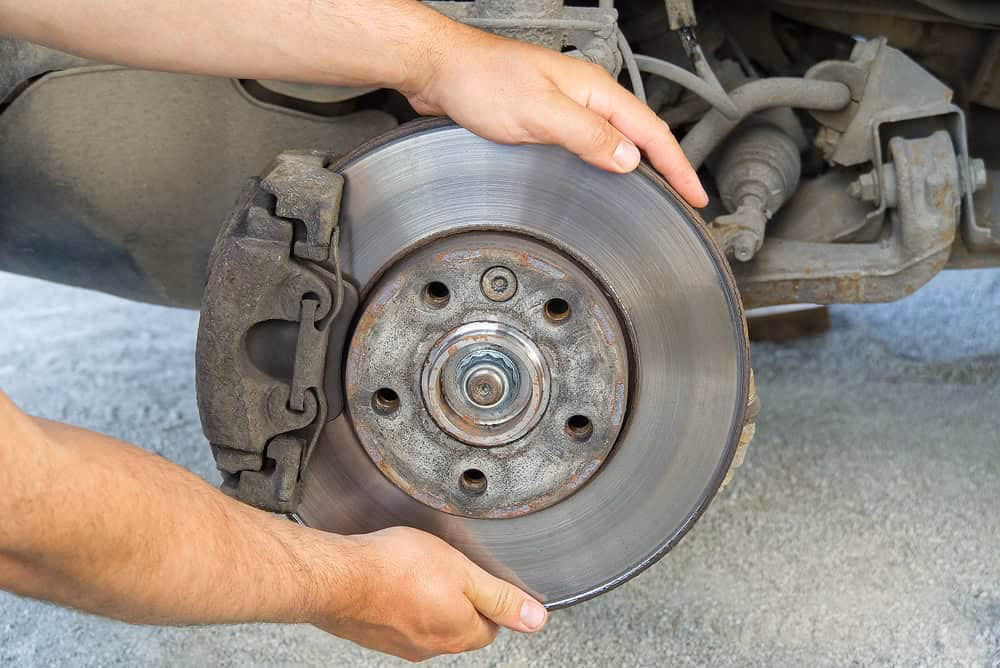

Brake calipers are an integral component of your car's disc brake system, serving as the housing for the brake pads and the mechanism that guides them into action. Imagine them as a vice that clamps down on a spinning disc to create friction. When you depress the brake pedal, a sequence of events unfolds, translating your foot's action into immense stopping force at each wheel.

The Hydraulic Chain Reaction

The entire process begins with the master cylinder. This component, connected to your brake pedal, converts the mechanical force of your foot into hydraulic pressure. Brake fluid, a specially formulated incompressible liquid, is then forced through a network of hoses, valves, and tubes towards the calipers at each wheel. This fluid acts as the messenger, transmitting the pressure from the master cylinder directly to the caliper.

Inside the brake caliper, there are one or more pistons. As the hydraulic fluid enters the caliper, it pushes against these pistons. The pistons, in turn, exert force on the brake pads, pressing them firmly against the spinning brake rotors (or discs). This friction between the pads and the rotors is what generates the immense force required to slow down and eventually stop the vehicle's wheels.

Types of Brake Calipers

While the fundamental principle remains the same, brake calipers come in a couple of primary designs:

• Floating (or Sliding) Calipers: These are the most common type found on modern vehicles. They typically have one or two pistons on one side of the rotor. When hydraulic pressure is applied, the piston pushes one pad against the rotor, and the caliper itself then slides on guide pins, pulling the other pad against the opposite side of the rotor. This design allows for a compact and cost-effective braking system.
• Fixed Calipers: Often found on high-performance or heavy-duty vehicles, fixed calipers have pistons on both sides of the rotor. When pressure is applied, both sets of pistons push the pads directly against the rotor simultaneously. This design offers superior braking power and a more consistent pedal feel, as there's no sliding motion involved. They are generally more expensive and complex.

The Role of Heat Dissipation

The friction generated during braking produces a significant amount of heat. Brake calipers are designed to withstand and dissipate this heat effectively. If heat builds up excessively, it can lead to brake fade, where the brakes become less effective, or even warping of the brake rotors, leading to vibrations and reduced braking efficiency. This is why proper caliper function and regular maintenance are so vital.

Common Issues and Signs of Caliper Failure

Like any mechanical component, brake calipers are subject to wear and tear, and various issues can arise that compromise their performance. Recognising the signs of a failing caliper early can prevent more serious problems and ensure your safety.

Corrosion

Exposure to road salt, moisture, and general environmental elements can lead to corrosion on the caliper body and its internal components, particularly the guide pins and pistons. Corrosion can cause the guide pins to seize, preventing the caliper from sliding freely, or the pistons to stick, leading to uneven brake pad wear or constant dragging.

Brake Fluid Leaks

Seals within the caliper can deteriorate over time, leading to brake fluid leaks. A leaking caliper will result in a loss of hydraulic pressure, leading to a spongy brake pedal feel, reduced braking effectiveness, and potentially a warning light on your dashboard. Leaks should be addressed immediately as they can lead to complete brake failure.

Seized Components

Beyond corrosion, dirt, debris, or simply old, contaminated brake fluid can cause pistons or guide pins to seize. A seized piston means the brake pad will either remain permanently engaged with the rotor (causing dragging, overheating, and rapid wear) or fail to engage at all (leading to reduced braking on that wheel). Seized guide pins prevent the caliper from clamping evenly, resulting in uneven pad wear and pulling to one side when braking.

Other Symptoms of a Failing Caliper:

• Pulling to One Side: If your car pulls strongly to the left or right when you apply the brakes, it often indicates a caliper issue on one side not engaging or releasing properly.
• Squealing or Grinding Noises: While often associated with worn brake pads, unusual noises during braking can also point to a caliper problem, especially if the pads are new.
• Burning Smell: A continuous burning smell, particularly after driving, can indicate a seized caliper causing the pads to drag and overheat.
• Spongy or Hard Brake Pedal: A spongy pedal can indicate air in the brake lines or a fluid leak, while a hard pedal might suggest a seized caliper or a blockage.
• Uneven Brake Pad Wear: Inspecting your brake pads can reveal issues. If one pad is significantly more worn than the other, or if pads on one wheel are worn much faster than the others, a caliper problem is likely.

Replacing Your Brake Calipers: A Comprehensive Guide

If you've identified a faulty brake caliper, replacement is often the most reliable solution. While it's a job many competent DIY mechanics can undertake, it requires careful attention to detail, the correct tools, and a good understanding of safety procedures. If in doubt, always consult a professional mechanic.

Before You Begin: Safety First!

Working on your vehicle's braking system is critical for safety. Ensure you have the right tools, work in a safe environment, and follow all safety precautions. Wear appropriate personal protective equipment, including safety glasses and gloves. Never work under a vehicle supported only by a jack – always use sturdy jack stands.

Tools and Materials You'll Need:

• New brake calipers (ensure they are compatible with your vehicle – use your registration number to verify).
• New brake pads (it's highly recommended to replace pads when replacing calipers).
• Brake fluid (check your vehicle manual for the correct DOT specification).
• Jack and jack stands.
• Wheel wrench/lug nut wrench.
• Socket set and ratchet.
• Torque wrench.
• Line wrench (for brake line fittings).
• Caliper piston compressor or large C-clamp.
• Wire brush and brake cleaner.
• Drain pan for old brake fluid.
• Bleeder wrench or a brake bleeding kit.
• Gloves and safety glasses.

Step-by-Step Replacement Process:

1. Prepare the Vehicle: Park your car on a level, firm surface. Engage the parking brake. If replacing a front caliper, chock the rear wheels. If replacing a rear caliper, chock the front wheels. Loosen the lug nuts on the wheel you'll be working on, but do not remove them yet.
2. Lift and Secure: Using your jack, lift the vehicle until the wheel is off the ground. Place jack stands securely under the vehicle's frame or designated jack points. Lower the vehicle onto the stands.
3. Remove the Wheel: Fully remove the lug nuts and then the wheel.
4. Access the Caliper: You'll see the caliper assembly covering a portion of the brake rotor. Identify the brake hose connecting to the caliper and the two bolts that secure the caliper to the steering knuckle (or caliper bracket).
5. Disconnect the Brake Line: Place your drain pan beneath the caliper to catch any dripping brake fluid. Using a line wrench (to avoid rounding the fitting), carefully loosen and disconnect the brake hose from the caliper. Be prepared for fluid to leak out.
6. Remove the Old Caliper: Remove the two bolts holding the caliper in place. These are usually hex bolts. Once the bolts are out, carefully slide the old caliper off the rotor. You may need to wiggle it a bit.
7. Prepare the New Caliper: If your new caliper didn't come with new guide pins and boots, you might transfer them from the old one or purchase new ones. Lightly lubricate the guide pins with appropriate caliper grease.
8. Install the New Caliper: Position the new caliper over the brake rotor. Ensure the brake pads are correctly seated within the caliper (if pre-installed, or install new ones now). Reattach the two mounting bolts and tighten them to the manufacturer's specified torque settings using your torque wrench.
9. Reconnect the Brake Line: Carefully reattach the brake hose to the new caliper. Ensure the fitting is clean and threads correctly. Tighten it securely, but do not overtighten, as this can damage the fitting.
10. Bleed the Brakes: This is a crucial step! Air will have entered the brake lines when you disconnected the caliper. Air in the system leads to a spongy pedal and severely reduced braking performance. You will need to bleed the brake system to remove all air. This typically involves opening the bleeder valve on the caliper while a helper presses the brake pedal, closing the valve, then releasing the pedal, repeating until no air bubbles appear in the fluid being bled out. Ensure you keep the master cylinder reservoir topped up with fresh brake fluid throughout this process to prevent more air from entering. Always bleed the caliper furthest from the master cylinder first, then work closer.
11. Reassemble and Test: Reinstall the wheel, tighten the lug nuts hand-tight, lower the vehicle, and then torque the lug nuts to specification. Before driving, pump the brake pedal several times until it feels firm. Check for any leaks around the new caliper and brake line connections.
12. Road Test: Drive slowly in a safe area, gently applying the brakes to ensure they function correctly. Listen for any unusual noises and feel for any pulling or sponginess.

Maintenance Tips for Prolonging Caliper Life

Regular maintenance can significantly extend the life of your brake calipers and ensure consistent braking performance.

• Regular Inspections: During tyre rotations or other routine maintenance, visually inspect your calipers for signs of corrosion, leaks, or uneven pad wear.
• Brake Fluid Flushes: Brake fluid absorbs moisture over time, which can lead to internal corrosion within the brake system, including the calipers. Manufacturers typically recommend flushing and replacing brake fluid every 2-3 years. This is a simple, cost-effective preventative measure.
• Lubricate Guide Pins: When replacing brake pads, it's good practice to remove, clean, and re-lubricate the caliper guide pins with high-temperature silicone brake grease. This ensures the caliper can slide freely.
• Clean Calipers: Periodically clean the exterior of your calipers with brake cleaner to remove accumulated dirt and brake dust, which can contribute to corrosion.

Frequently Asked Questions About Brake Calipers

Q: How long do brake calipers typically last?
A: With proper maintenance, brake calipers can last for a very long time, often over 100,000 miles. However, factors like driving conditions, climate (e.g., salty roads), and maintenance habits can significantly affect their lifespan. Corrosion and seized components are common reasons for premature failure.

Q: Can I replace just one brake caliper?
A: While technically possible, it is highly recommended to replace calipers in pairs (both front or both rear) to ensure even braking performance. If one caliper has failed due to wear or age, the other one on the same axle is likely to follow soon. Replacing them in pairs ensures balanced braking force across the axle.

Q: What happens if I don't replace a bad caliper?
A: Ignoring a failing caliper can lead to several dangerous issues, including significantly reduced braking effectiveness, uneven and rapid brake pad wear, rotor damage (warping or scoring), pulling to one side when braking, and potentially complete brake failure in severe cases. It's a critical safety component that should be addressed promptly.

Q: Is replacing brake calipers a difficult DIY job?
A: For someone with basic mechanical knowledge and the right tools, replacing brake calipers is a manageable DIY task. However, it involves working with the hydraulic system and requires careful bleeding of the brakes, which can be tricky. If you're unsure or uncomfortable, it's always best to have a professional mechanic perform the job.

Q: Do I need to bleed my brakes after replacing calipers?
A: Yes, absolutely! When you disconnect the brake hose from the old caliper, air will enter the brake line. Air in the hydraulic system is compressible, leading to a spongy brake pedal and severely compromised braking power. Bleeding the brakes is essential to remove all air and restore proper hydraulic pressure.

Q: What kind of brake fluid should I use?
A: Always refer to your vehicle's owner's manual for the correct type of brake fluid (e.g., DOT 3, DOT 4, DOT 5.1). Using the wrong type can damage your brake system components and compromise braking performance. Never mix different types of brake fluid unless explicitly stated by the manufacturer.

Understanding how your brake calipers work and knowing when to replace them is fundamental to maintaining your vehicle's safety and performance. Regular checks and timely replacements will ensure your car stops reliably every time you press the pedal, giving you peace of mind on the road.
