Brompton Shifter Explained

The humble Brompton bicycle, renowned for its ingenious folding mechanism and compact design, also boasts a remarkably straightforward yet effective gear shifting system. For many riders, especially those new to the Brompton fold, understanding precisely how that left-hand lever orchestrates gear changes can be a source of curiosity. This article delves into the mechanics of the Brompton shifter, demystifying its operation and highlighting its elegant simplicity. Whether you own a single-speed, a BWR (Brompton Wide-Range) hub gear, or the classic 3-speed, grasping these principles will enhance your appreciation for this iconic machine.

The Heart of the System: The Shifter Lever

At the core of the gear selection process is the shifter, typically located on the left-hand handlebar. For models equipped with an external derailleur (primarily the 2-speed and some older 6-speed configurations), this lever is a direct mechanical link. When you move the lever, it pulls or releases a gear cable. This cable, a thin but strong strand of steel, runs from the shifter, often through a housing, to the rear derailleur. The tension in this cable dictates the position of the derailleur, which in turn guides the chain onto different sprockets, thereby changing the gear ratio.

Understanding Brompton's Gear Options

It's crucial to acknowledge that not all Bromptons are equipped with the same gearing. The most common configurations include:

• Single-Speed: As the name suggests, these have no shifter, offering a fixed gear ratio.
• 3-Speed (BWR Hub Gear): This is the classic Brompton setup. The 3-speed system is housed within the rear hub itself, making it incredibly robust and low-maintenance. The shifter on the left handlebar controls an internal mechanism within the hub to select between the three gears.
• 6-Speed (2 x 3 Speed): These models combine an external derailleur with the 3-speed BWR hub. The left shifter controls the external derailleur (selecting between two chainrings), while a second, usually smaller lever on the right handlebar controls the BWR hub (selecting between three gears).
• 2-Speed: A simpler setup, often found on newer models, featuring one chainring and a single cog on the rear wheel, with a shifter that typically controls a very basic internal hub or even an external derailleur for a single gear change.

How the 3-Speed BWR Hub Shifter Works

The magic of the 3-speed Brompton lies in its Sturmey-Archer BWR (Brompton Wide-Range) hub. This internally geared hub is a marvel of compact engineering. The shifter on the left handlebar operates a cable that connects to a series of levers and pawls within the hub. The cable's tension dictates which of the internal gear sets is engaged.

Here's a simplified breakdown:

• Position 1 (Lowest Gear): When the cable is pulled to a certain tension, it engages a specific set of gears within the hub, providing a lower gear ratio for easier climbing.
• Position 2 (Direct Drive/Middle Gear): Releasing the cable to a specific point disengages the lower gear mechanism and engages a direct drive, offering a balanced gear for general riding.
• Position 3 (Highest Gear): Further releasing the cable (or reaching its fully relaxed state, depending on the specific cable routing and adjustment) engages another set of gears, providing a higher gear ratio for faster, flat-terrain riding.

The brilliance of the BWR hub is its lack of external derailleurs, meaning fewer moving parts exposed to dirt and damage, and a cleaner aesthetic that complements the Brompton's design. The shifter itself is typically a 2-position lever, but its internal connection to the hub allows for three distinct gear outcomes.

The External Derailleur System (2-Speed and 6-Speed)

For Brompton models that utilise an external rear derailleur, the operation is more akin to traditional geared bicycles, albeit on a smaller scale. The shifter on the left handlebar, often a trigger or a rotary shifter, directly controls the movement of the derailleur:

In a 6-speed Brompton, the left shifter manages the front derailleur (if fitted, for the chainrings), and the right shifter manages the rear derailleur controlling the cassette. For the 2-speed models with an external derailleur, the single left shifter dictates the change between the two available gears, achieved by moving the chain between two different-sized sprockets at the rear.

Key Components and Their Roles

Regardless of the specific gearing, a few key components are essential to the shifting process:

• Shifter: The user interface, translating your hand movement into a mechanical signal.
• Gear Cable: Transmits the force from the shifter to the derailleur or hub mechanism.
• Cable Housing: Protects the cable and ensures smooth operation.
• Rear Derailleur (on some models): Guides the chain between sprockets.
• Internal Hub Gears (BWR): The complex mechanism within the rear hub that selects gears.
• Chainrings and Sprockets: The toothed gears that the chain engages with.

Tips for Optimal Shifting

To ensure your Brompton shifts smoothly and reliably, consider these tips:

• Regular Cleaning: Keep the chain, sprockets, and derailleur (if fitted) clean from dirt and grime.
• Cable Lubrication: Periodically lubricate the gear cable to ensure smooth movement within its housing.
• Proper Adjustment: If you experience hesitant or inaccurate shifting, the gear cable may need adjustment. This usually involves turning a barrel adjuster at the shifter or derailleur to fine-tune cable tension.
• Shift While Pedalling: Always apply light pressure to the pedals when shifting. This helps the chain move smoothly between gears. Avoid shifting while stationary.
• Avoid Cross-Chaining: On derailleur systems, try not to use the smallest chainring with the smallest rear sprocket, or the largest chainring with the largest rear sprocket. This puts excessive stress on the chain and can lead to poor shifting.

Frequently Asked Questions

Can I shift gears when the bike is stationary?

For derailleur systems, no. You must be pedalling for the chain to move to a different sprocket. For internal hub gears like the Brompton BWR, you can shift while stationary, but it's generally recommended to ease off the pedalling pressure slightly during the shift for the smoothest engagement.

My Brompton shifter feels stiff. What could be wrong?

A stiff shifter usually indicates a problem with the gear cable or its housing. The cable might be dirty, corroded, or kinked, or the housing might be damaged. Lubricating the cable or replacing the cable and housing are common solutions.

How do I know if my Brompton has an internal hub gear or an external derailleur?

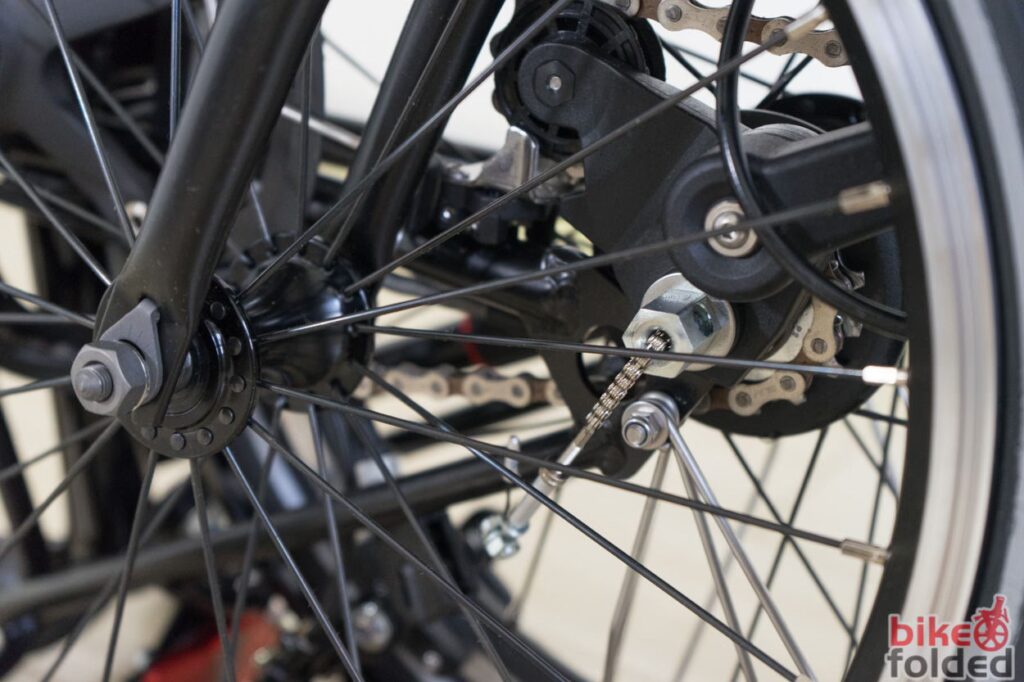

Look at the rear wheel. If you see a cluster of sprockets (like a cassette) and a mechanism with jockey wheels that moves the chain, you have an external derailleur. If the rear wheel hub looks relatively clean and smooth, with no external gear-changing mechanism, it's likely an internal hub gear. Brompton's 3-speed is always an internal hub gear.

In conclusion, the Brompton shifter, whether controlling a sophisticated internal hub or a simple external derailleur, is a testament to elegant engineering. Its intuitive operation, combined with the robust nature of the Brompton's components, ensures a reliable and enjoyable cycling experience. Understanding how it works not only demystifies the process but also empowers you to maintain your bicycle for optimal performance.
