Skoda Octavia Mk1 RS Braking System Explained

The Skoda Octavia Mk1 1.8T 20V RS, a true performance icon from the early 2000s, offered a fantastic blend of practicality and spirited driving. While its turbocharged engine often grabs the headlines, the unsung hero ensuring its dynamic capabilities is undoubtedly its braking system. Understanding the specifications and nuances of these crucial components is paramount for any owner, whether for routine maintenance or contemplating performance upgrades. A well-maintained braking system isn't just about stopping power; it's about control, safety, and confidence behind the wheel.

The Heart of the Stop: Octavia Mk1 RS Front Brakes

For the Skoda Octavia Mk1 1.8T 20V RS, the front braking system is designed to handle the majority of the stopping force. These cars were equipped with a robust setup that provided a significant upgrade over lesser Octavia models. Specifically, the RS model featured:

• Disc Diameter: 312 millimetres (mm)
• Disc Thickness: 25 millimetres (mm)
• Disc Type: Ventilated
• Caliper Type: Single-piston sliding caliper (often identified as ATE FSIII or similar)

The 312mm ventilated discs are crucial for dissipating heat efficiently. Ventilation allows air to flow between the two friction surfaces of the disc, preventing brake fade during prolonged or heavy braking. This is particularly important for a performance-oriented vehicle like the RS, which encourages more enthusiastic driving. The 25mm thickness provides a good thermal mass, further aiding in heat management and preventing warping. Maintaining these components with quality parts is essential for consistent performance.

Key Front Brake Components and Their Role

Beyond the disc itself, several other components work in harmony to deliver effective front braking:

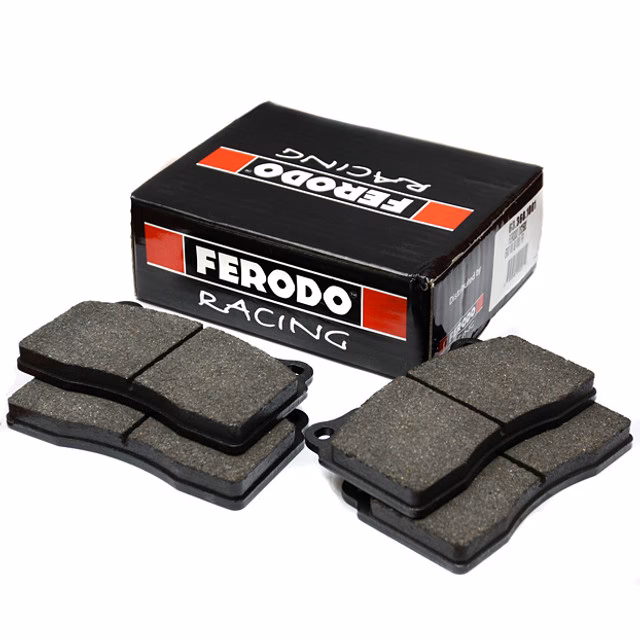

• Brake Pads: These friction materials press against the disc to create the stopping force. The choice of pad material significantly impacts braking performance, feel, and dust levels. Standard pads offer a good balance for everyday driving, while performance pads provide better bite and fade resistance at higher temperatures.
• Brake Calipers: The single-piston sliding caliper houses the brake pads and uses hydraulic pressure from the master cylinder to clamp them onto the disc. Regular inspection for seized pistons or worn slider pins is vital.
• Brake Lines: These flexible or rigid pipes transmit hydraulic fluid pressure from the master cylinder to the calipers. Stainless steel braided lines are a popular upgrade for a firmer pedal feel, as they resist expansion under pressure better than standard rubber hoses.

Balancing Act: Octavia Mk1 RS Rear Brakes

While the front brakes do most of the work, the rear braking system plays a critical role in balancing the car during deceleration and providing stability. For the Octavia Mk1 1.8T 20V RS, the rear brakes were also specifically chosen to complement the front setup:

• Disc Diameter: 256 millimetres (mm)
• Disc Thickness: 22 millimetres (mm)
• Disc Type: Solid (non-ventilated)
• Caliper Type: Single-piston sliding caliper (often Lucas 38 or similar)

The 256mm solid discs are perfectly adequate for the rear of the car, as they are not subjected to the same extreme heat loads as the front. Their primary function is to provide balanced braking and assist the front in bringing the vehicle to a controlled stop, especially under heavy braking or when the ABS system engages. Ensuring the rear brakes are in good condition prevents premature lock-up and maintains the car's composure.

Rear Brake Component Considerations

Similar to the front, the rear braking system relies on quality components:

• Brake Pads: Rear pads typically wear slower than front pads but should still be inspected regularly.
• Brake Calipers: Rear calipers on the Octavia Mk1 RS often incorporate the handbrake mechanism, which can be a point of failure if not maintained. Ensuring the handbrake operates smoothly is part of overall brake health.
• Brake Hoses: Like the front, rear hoses can degrade over time, leading to a spongy pedal feel or potential failure.

Understanding Your Brake Fluid

Often overlooked, brake fluid is the lifeblood of your braking system. It's a hydraulic fluid that transmits the force from your pedal to the calipers. The Skoda Octavia Mk1 RS typically uses DOT4 brake fluid. This fluid is hygroscopic, meaning it absorbs moisture from the air over time. Moisture in the brake fluid lowers its boiling point, which can lead to brake fade, especially under heavy braking when the fluid gets hot. It also contributes to internal corrosion of brake components.

It is generally recommended to replace brake fluid every two years, regardless of mileage, to maintain optimal braking performance and component longevity. A full fluid flush ensures all old, contaminated fluid is removed and replaced with fresh, high-quality fluid.

Comparative Table: Octavia Mk1 RS Brakes vs. Other Models

To put the RS braking system into perspective, here's a comparison with some other common Octavia Mk1 models:

As you can see, the RS model features significantly larger discs, particularly at the front, highlighting its performance pedigree and the need for superior stopping power.

Essential Maintenance Tips for Your RS Brakes

To ensure your Octavia RS's braking system remains in peak condition, regular maintenance is non-negotiable:

1. Regular Inspections: Visually inspect pads, discs, and fluid levels every 6-12 months, or during every service. Look for cracks in discs, uneven pad wear, or fluid leaks.
2. Pad and Disc Replacement: Replace pads when they reach their wear limit (typically around 3mm of friction material remaining). Discs should be replaced if warped, cracked, or when they reach their minimum thickness specified by the manufacturer. It's often good practice to replace pads and discs together for optimal performance.
3. Brake Fluid Flush: As mentioned, replace your brake fluid every two years. This prevents moisture contamination and maintains a high boiling point.
4. Clean and Lubricate: During pad changes, clean caliper slides and lubricate them with appropriate high-temperature grease to ensure smooth operation and prevent seized calipers.
5. Bleeding Brakes: If the pedal feels spongy, it might indicate air in the system. Bleeding the brakes will remove trapped air and restore a firm pedal. This is also done after any component replacement that involves opening the hydraulic system.

Upgrading Your Octavia RS Brakes: Considerations

While the standard RS brakes are competent, many enthusiasts choose to upgrade for enhanced performance, especially for track use or spirited driving. Common upgrades include:

• Performance Pads: Offer better initial bite, higher temperature resistance, and reduced fade.
• Grooved or Drilled Discs: These can help with gas expulsion and pad cleaning, though some argue drilled discs can be prone to cracking under extreme conditions.
• Stainless Steel Braided Hoses: Provide a firmer, more consistent pedal feel by preventing hose expansion under pressure.
• Big Brake Kits (BBK): A more significant upgrade involving larger calipers (e.g., multi-piston Brembo or AP Racing), larger discs, and bespoke mounting hardware. This offers a substantial increase in stopping power and fade resistance but can be costly.
• Brake Fluid Upgrade: Moving to a higher-performance DOT5.1 or racing fluid for even higher boiling points, though these often require more frequent flushing.

When considering upgrades, always ensure compatibility with your existing wheels and suspension components. A reputable specialist can advise on the best options for your specific driving needs.

Frequently Asked Questions About Octavia Mk1 RS Brakes

What are the exact brake disc sizes for the Octavia Mk1 1.8T 20V RS?

The front brake discs are 312mm in diameter and 25mm thick, and are ventilated. The rear brake discs are 256mm in diameter and 22mm thick, and are solid (non-ventilated).

Can I use standard Octavia Mk1 brake parts on my RS?

No, you should not. The RS model features larger and more robust braking components (312mm front, 256mm rear) compared to standard Octavia Mk1 models. Using incorrect parts will compromise safety and performance.

How often should I change my brake pads and discs on my RS?

This depends heavily on your driving style. For average driving, front pads might last 20,000-40,000 miles, and discs around 40,000-80,000 miles. Rear components typically last longer. Always inspect them regularly and replace when wear limits are reached or if performance deteriorates.

Why does my brake pedal feel spongy?

A spongy brake pedal usually indicates air in the hydraulic system, low brake fluid, or old, moisture-contaminated brake fluid. It could also point to a failing master cylinder or flexible brake hoses expanding under pressure. A brake fluid flush and system bleed are often the first steps to diagnose and resolve this.

Are braided brake lines a worthwhile upgrade for the Octavia RS?

Many owners find stainless steel braided brake lines to be a worthwhile upgrade. They offer a firmer, more consistent pedal feel by reducing hose expansion under pressure, which can be particularly noticeable during hard braking or track use. They don't increase outright stopping power but improve pedal modulation and feedback.

What brake fluid should I use for my Octavia Mk1 RS?

The standard recommendation is DOT4 brake fluid. For performance driving or track use, you might consider a higher-boiling-point fluid like DOT5.1, but ensure it's compatible and be aware that some high-performance fluids may require more frequent changes.

Conclusion

The braking system on your Skoda Octavia Mk1 1.8T 20V RS is a sophisticated assembly designed for performance and safety. Knowing the specific sizes – 312mm front and 256mm rear – is the first step towards proper maintenance and informed upgrade decisions. Regular inspection, timely replacement of worn components, and a proactive approach to brake fluid maintenance are crucial for preserving your car's stopping power and ensuring a safe, enjoyable driving experience. Don't underestimate the importance of good brakes; they are as vital to your car's performance as its engine.
