Brake Caliper Cleaning Guide

Maintaining your vehicle's braking system is paramount for safety and performance. One crucial component often overlooked during routine checks is the brake caliper. Over time, brake dust, dirt, and road grime can accumulate, hindering the caliper's ability to function optimally. This guide will walk you through the process of cleaning your brake calipers, ensuring they remain in excellent condition. We'll cover the necessary tools, the step-by-step cleaning procedure, and the importance of using the right products, such as a specialised high-temperature synthetic lubricant designed for brake systems.

Why Clean Your Brake Calipers?

Brake calipers are the heart of your disc braking system. They house the brake pads and pistons, which apply pressure to the brake discs (rotors) to slow down your vehicle. When brake dust, moisture, and road salt build up, they can:

• Cause corrosion: Leading to seizing of caliper pins and pistons.
• Reduce lubrication: Affecting the smooth movement of the caliper.
• Lead to uneven braking: Potentially causing vibrations and reduced stopping power.
• Cause noise: Squealing or grinding sounds can often be attributed to a dirty or poorly lubricated caliper.

Regular cleaning and lubrication can prevent these issues, extending the life of your brake components and ensuring consistent braking performance. A key aspect of this maintenance is the application of a high-temperature synthetic lubricant designed specifically for the demanding environment of a brake system.

Essential Tools and Materials

Before you begin, gather the following items:

• Jack and Jack Stands: To safely lift and support your vehicle.
• Lug Wrench: To remove the wheel.
• Wire Brush: For scrubbing away stubborn grime.
• Brake Cleaner Spray (e.g., Rapid Cleaner Part no. 3318): A powerful solvent to remove brake dust and oil.
• High-Temperature Synthetic Brake Lubricant: Crucial for lubricating moving parts. The specified lubricant is extremely adherent, resistant to road salt and splash water, and operates in a temperature range of –40 °C to +1,200 °C.
• Clean Rags or Microfibre Cloths: For wiping down components.
• Gloves: To protect your hands from brake dust and chemicals.
• Safety Glasses: To protect your eyes.
• Optional: Brake File: For cleaning stubborn deposits from sliding surfaces.

Step-by-Step Cleaning Process

Step 1: Safely Lift the Vehicle

Park your car on a level surface and engage the parking brake. Using a jack, lift the vehicle high enough to comfortably access the wheels. Place jack stands securely under the chassis or designated jacking points to support the vehicle. Never work under a vehicle supported only by a jack.

Step 2: Remove the Wheel

Use your lug wrench to loosen the lug nuts on the wheel you'll be working on. Once loosened, remove the lug nuts completely and carefully pull the wheel off the hub. Set the wheel aside.

Step 3: Inspect the Brake Caliper

With the wheel removed, you'll have a clear view of the brake caliper, brake pads, and brake disc (rotor). Take a moment to visually inspect these components for any obvious signs of damage, wear, or excessive build-up of brake dust and grime. Look for any leaks or signs of rust.

Step 4: Clean the Sliding Surfaces and Contact Points

This is a critical step. For floating brake calipers, you'll need to clean all the sliding surfaces, channels, and contact surfaces where the caliper moves. Use a wire brush to gently scrub away accumulated brake dust and corrosion from these areas. If there are stubborn deposits, a brake file can be used carefully. Ensure you don't damage the rubber boots or seals during this process.

Next, liberally spray the entire brake caliper assembly, including the bracket and the areas where the brake pads sit, with the brake cleaner spray. Allow the cleaner to work for a few moments to break down grease and grime. Use clean rags or cloths to wipe down all the cleaned surfaces. Ensure the solvent has completely evaporated before proceeding.

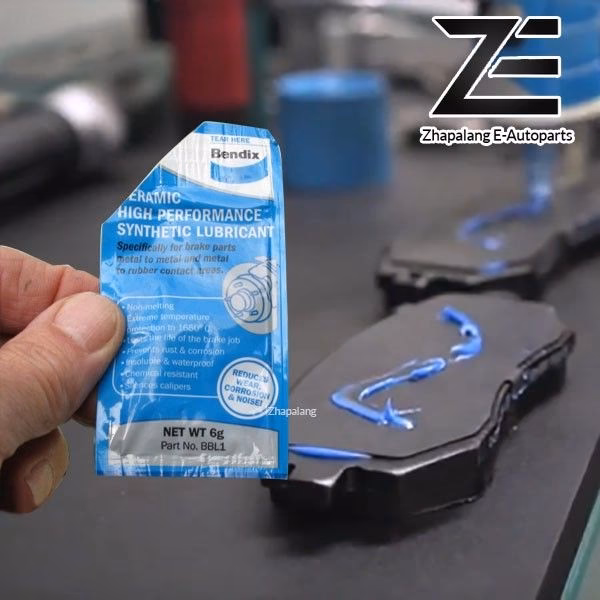

Step 5: Lubricate the Caliper Components

This is where the specialised high-temperature synthetic lubricant comes into play. Apply a small, even amount of the lubricant to the following areas:

• Caliper Pin Boots: If your caliper has sliding pins, remove them (if possible and you are comfortable doing so) and clean them thoroughly. Apply the lubricant to the pins themselves and inside the rubber boots. This ensures smooth movement and prevents seizing.
• Caliper Bracket Contact Points: Apply the lubricant to the areas on the caliper bracket where the brake pads rest and slide. This prevents the pads from sticking and reduces noise.
• Pad Backs: Apply a thin layer of lubricant to the back of the brake pads (the metal side that doesn't contact the rotor). This helps to dampen vibrations and prevent squealing.

Crucially, do not apply the lubricant to the friction surface of the brake pad or the surface of the brake disc (rotor). Doing so will severely compromise your braking performance and is extremely dangerous.

Step 6: Reassemble and Test

Once all components are cleaned and lubricated, carefully reattach the wheel. Hand-tighten the lug nuts first, then lower the vehicle off the jack stands. With the vehicle on the ground, tighten the lug nuts securely in a star pattern using your lug wrench. Before driving, pump the brake pedal several times until it feels firm. This ensures the brake pads are properly seated against the disc. Then, test your brakes at a low speed in a safe area before resuming normal driving.

Additional Applications of the Lubricant

The specified synthetic lubricant is versatile and can be used for several other critical applications within your vehicle's brake system and beyond:

• Drum Brake Contact Points: It can be applied to the contact points in drum brake systems for smooth operation.
• Centering Rings on Alloy Wheels: Applying it to the centering rings on alloy wheels prevents them from seizing onto the wheel hub, making future wheel removal easier.
• Wheel Hub Connections: Use it on the connection points between the wheel and the hub to prevent rust and seizing.
• Other Plugged and Screwed Connections: Its high-temperature resistance and anti-seize properties make it suitable for various other automotive connections that may be exposed to heat and corrosion.

Frequently Asked Questions

Q1: How often should I clean my brake calipers?

It's recommended to inspect and clean your brake calipers during your regular brake service, typically every 12,000 to 15,000 miles, or if you notice any braking issues like noise or reduced performance.

Q2: Can I use any grease to lubricate the caliper pins?

No, it's essential to use a high-temperature synthetic lubricant specifically designed for brake systems. Regular grease can break down at high temperatures, leading to brake failure or reduced performance. The specified lubricant's ability to withstand up to 1,200 °C makes it ideal.

Q3: What happens if I get lubricant on the brake pads or rotor?

Getting lubricant on the friction surfaces of your brake pads or the brake rotor will significantly reduce their effectiveness. It can cause the brakes to slip, leading to a dangerous loss of stopping power. If this happens, you will need to replace the brake pads and clean or replace the rotor.

Q4: Do I need to remove the caliper to clean it?

For a basic clean, you might not need to fully remove the caliper. However, to properly clean and lubricate the caliper pins and sliding surfaces, it's often necessary to unbolt the caliper from its bracket, or at least remove the caliper bolts to allow it to pivot away from the bracket.

Q5: What is the purpose of the lubricant's resistance to road salt and splash water?

This resistance ensures that the lubricant stays in place and continues to protect the caliper components from corrosion and seizing, even in harsh weather conditions. It maintains the smooth operation of the caliper, preventing issues caused by moisture and contaminants.

Conclusion

Cleaning and lubricating your brake calipers is a vital part of maintaining a healthy and safe braking system. By following these steps and using the correct high-temperature synthetic lubricant, you can ensure your calipers operate smoothly, prevent noise, and contribute to the overall longevity of your brakes. Regular maintenance is key to reliable stopping power.
