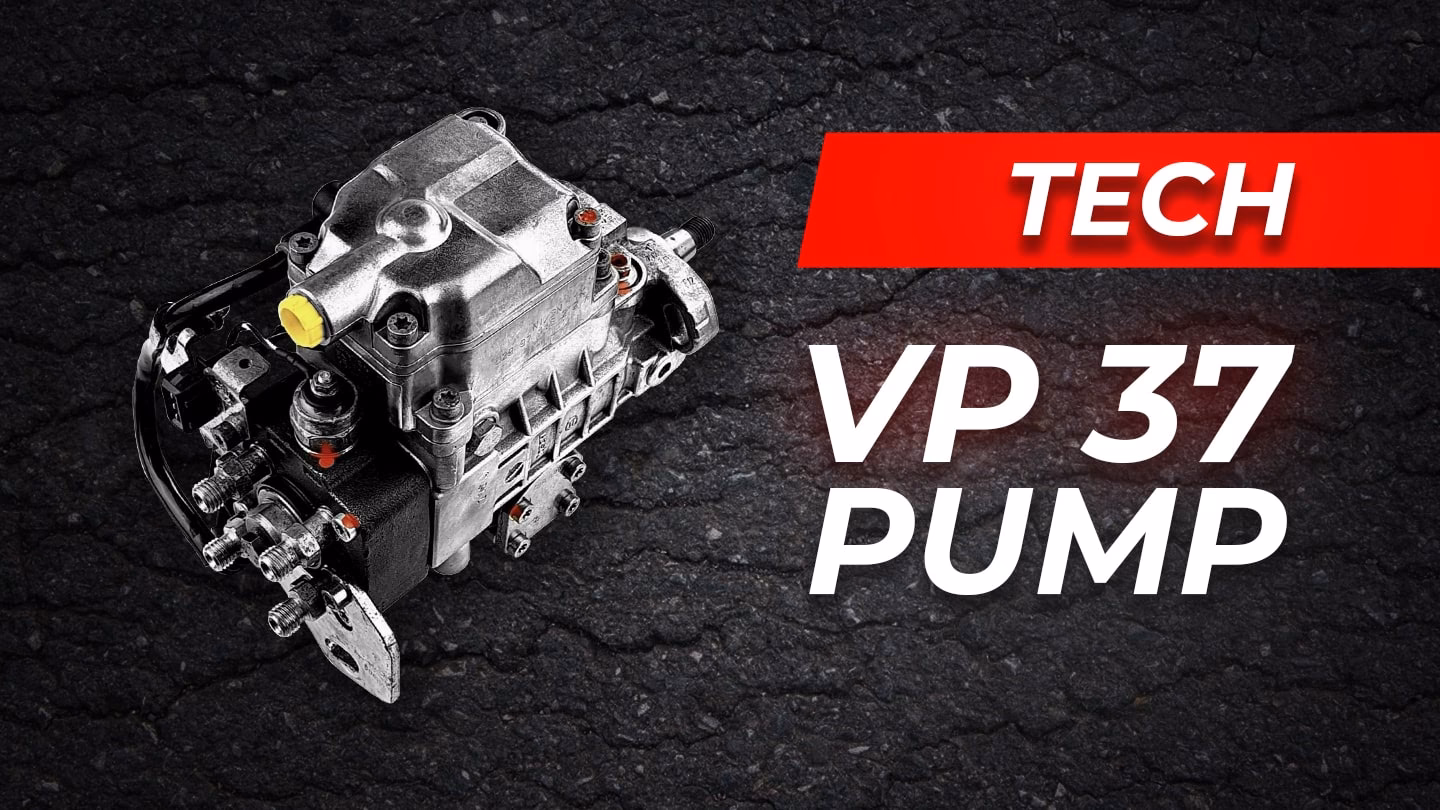

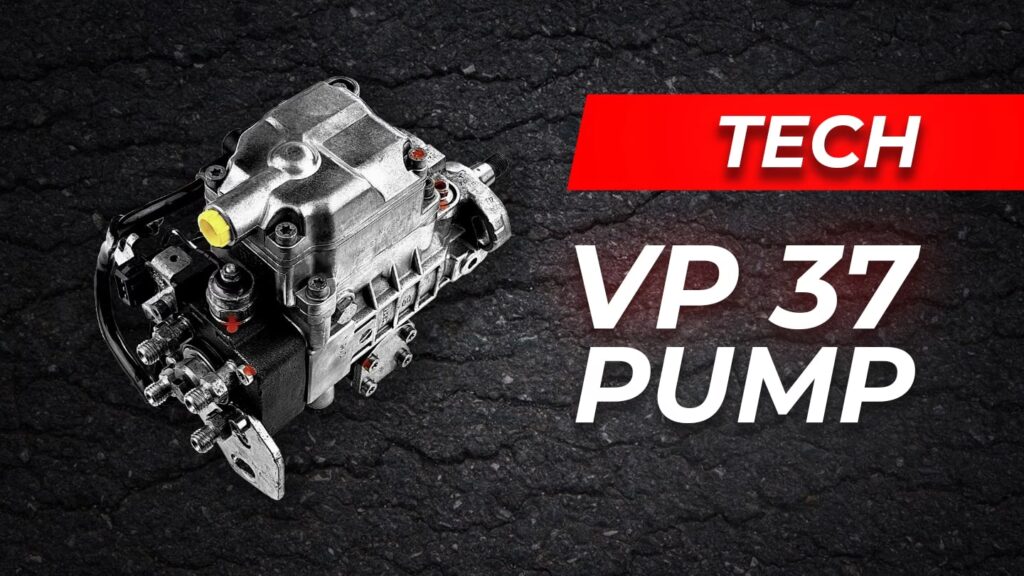

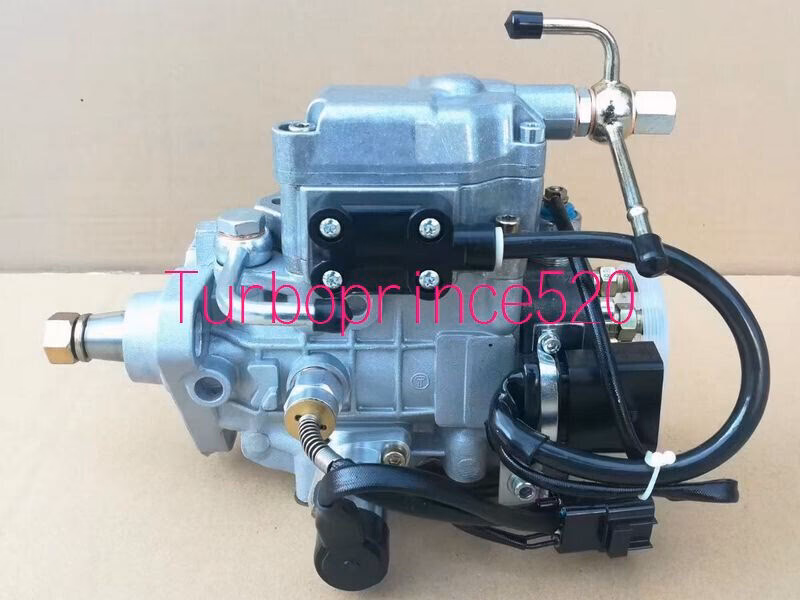

The world of diesel engines is vast and varied, but certain components stand out for their ubiquity and reliability. Among these are the Bosch VP-36 and VP-37 injection pumps. These electronically controlled marvels from Bosch have powered a significant number of vehicles across various makes and models, particularly those equipped with diesel engines. Their reputation for durability is well-earned, with many units capable of performing flawlessly for an impressive half a million kilometres. This longevity makes them a cornerstone of many diesel powertrains, but like any complex mechanical system, understanding their intricacies is key to maintaining their optimal performance.
Understanding the Bosch VP-36 and VP-37 Family
The VP-36 and VP-37 represent a significant advancement in diesel fuel injection technology. As electronically controlled rotary distributors, they integrate sophisticated control mechanisms to precisely meter and distribute fuel to each cylinder. The 'VP' designation signifies 'Verteiler Pumpe' (distributor pump), highlighting their design principle. These pumps are responsible for not only delivering the correct amount of fuel but also injecting it at the precise moment and pressure required for efficient combustion. The HDK (Hydraulic Timing) and MES (Mechanical Electronic Speed) versions represent different control strategies employed within this pump family, catering to a range of engine requirements and emissions standards.
The sheer number of vehicles fitted with these pumps means that mechanics and enthusiasts alike will encounter them frequently. Their widespread use translates to a substantial knowledge base and a good availability of spare parts, although the complexity of the pump itself means that specialist knowledge is often required for in-depth servicing.
The Quest for Technical Specifications: Torque and Plunger Lift
When it comes to servicing and rebuilding these sophisticated pumps, precision is paramount. This brings us to a common point of inquiry among those looking to perform more involved maintenance: the availability of official Bosch torque specifications and plunger lift specifications. The need for these numbers becomes particularly acute when undertaking a full teardown, seal replacement, or addressing performance issues. Replacing the front shaft seal, for instance, often necessitates removing the pump's hub, which requires meticulous attention to timing during reassembly.
The challenge often lies in accessing comprehensive service manuals. While information on the general operation of these pumps is relatively accessible, detailed workshop manuals containing the exact specifications required for a professional rebuild can be harder to come by. Threads on automotive forums often discuss the 'correct' way to time the pump off the vehicle, frequently involving the use of a dial indicator to set the plunger lift. This process aims to ensure that the pump's internal timing mechanism is perfectly synchronised, which is critical for smooth engine operation and optimal power delivery.
Why Plunger Lift and Timing Matter
The plunger lift refers to the distance the pump's internal plunger travels during its injection stroke. This measurement is a direct indicator of the pump's internal timing and the volume of fuel being delivered. Setting the plunger lift accurately ensures that the injection event occurs at the correct point in the engine cycle. Incorrect plunger lift can lead to:
- Poor Idle Quality: The engine may run rough at low speeds.
- Reduced Power: Insufficient fuel delivery or incorrect timing can hinder performance.
- Increased Emissions: Improper combustion leads to higher levels of pollutants.
- Starting Difficulties: Especially in cold weather, precise timing is crucial for ignition.
- Potential Engine Damage: In severe cases, incorrect timing can lead to serious internal engine issues.
Similarly, the timing mark on the face of the pump and the corresponding woodruff slot on the shaft are critical alignment points. These marks provide a visual reference for setting the pump's rotational position relative to the engine's camshaft. While 'eyeball alignment' might seem sufficient for some tasks, achieving the factory-specified plunger lift with a dial indicator offers a far greater degree of accuracy and confidence in the rebuild's success.
Common Issues and Maintenance Considerations
Despite their robust nature, VP-36 and VP-37 pumps can develop issues over time. Some common problems include:
- Seal Leaks: The most common issue is often a leaking front shaft seal or o-rings, leading to fuel or oil leaks.
- Wear of Internal Components: Over high mileage, internal parts like the distributor head or plungers can experience wear, affecting performance.
- Electronic Control Unit (ECU) Failures: While less common, the integrated electronics can sometimes fail.
- Cavitation: Poor fuel quality or air ingress can lead to cavitation, damaging internal pump components.
When undertaking maintenance, it's crucial to use high-quality replacement parts, especially seals and o-rings. The environment within a fuel injection pump is demanding, requiring seals that can withstand high fuel pressures, temperatures, and the lubricating properties of diesel fuel.
DIY vs. Professional Rebuild
Deciding whether to tackle a pump rebuild yourself or entrust it to a specialist often comes down to the availability of tools, technical knowledge, and the desired level of precision. For a basic seal replacement, careful disassembly and reassembly might be manageable. However, for a full rebuild that involves setting plunger lift and ensuring precise timing, specialized equipment and expertise are highly recommended. A professional diesel injection specialist will have access to the necessary service manuals, calibration benches, and diagnostic tools to ensure the pump is rebuilt to factory specifications.
Finding Service Manuals and Specifications
As noted, obtaining the precise torque and plunger lift specifications can be a hurdle. Here's where one might look:
- Manufacturer Technical Data: While direct access for consumers can be limited, some automotive repair databases used by professionals may contain this information.
- Specialist Diesel Repair Shops: These businesses often have extensive libraries of service manuals and technical bulletins.
- Online Automotive Forums: While links can break, persistent searching may uncover shared resources or individuals who can provide specific data.
- Aftermarket Manual Publishers: Companies that produce comprehensive vehicle repair manuals sometimes include detailed sections on fuel systems.
When searching for information, using specific part numbers (e.g., the Bosch number found on the pump itself) can yield more targeted results.
Table: Comparing VP Pump Characteristics
While specific model variations exist, here's a general overview:
| Feature | Bosch VP-36 | Bosch VP-37 |
|---|---|---|
| Type | Electronically Controlled Rotary Distributor | Electronically Controlled Rotary Distributor |
| Control Mechanism | Variable, often with integrated ECU or external control | Variable, often with integrated ECU or external control |
| Typical Applications | Various European diesel vehicles (e.g., VW, Audi, Ford) | Various European diesel vehicles (e.g., VW, Audi, BMW, Mercedes-Benz) |
| Key Feature | Robust design, good longevity | Advanced electronic control, precise fuel metering |
| Common Issues | Seal leaks, internal wear | Seal leaks, electronic component failure, internal wear |
Frequently Asked Questions
Q1: Can I rebuild a Bosch VP-36/VP-37 pump myself?
While basic seal replacements might be achievable with careful work, a full rebuild requiring accurate plunger lift and timing adjustments is best left to specialists due to the need for specific tools and expertise.
Q2: How do I know if my VP pump is failing?
Symptoms of a failing VP pump can include rough idling, loss of power, increased smoke, difficulty starting, fuel leaks, or the illumination of a check engine light.
Q3: Where can I find the Bosch part number on the pump?
The Bosch part number is typically stamped or etched onto the metal body of the pump itself, often on a metal tag or directly on the housing.
Q4: Is it possible to upgrade a VP pump?
While modifications are possible, they are complex and generally not recommended without expert knowledge. The focus for most owners is on maintaining the pump's original performance and reliability.
In conclusion, the Bosch VP-36 and VP-37 injection pumps are testament to German engineering, offering impressive reliability and performance. Understanding their function, common issues, and the importance of precise technical specifications is vital for any owner or mechanic looking to maintain these workhorses. While the pursuit of specific torque and plunger lift figures can be challenging, the reward is a well-running, efficient diesel engine that can continue to serve for many years and miles to come.
