Diesel Fuel Injection Explained

The heart of any diesel engine beats with the precise rhythm of its fuel injection system. Unlike their petrol counterparts, diesel engines rely on the direct injection of fuel into the combustion chamber under immense pressure. This process, orchestrated by a complex network of components, is the secret to diesel's renowned efficiency and torque. But what exactly is this system, and who are the experts who keep it running smoothly? Let's explore the intricate world of diesel fuel injection.

The Core of Diesel Power: Fuel Injection Explained

At its most basic, a diesel fuel injection system's job is to deliver a finely atomised spray of diesel fuel into the cylinder at precisely the right moment and under extremely high pressure. This atomisation is critical; it allows the fuel to mix thoroughly with the compressed air, leading to spontaneous combustion. The heat generated by the compression of air alone is what ignites the fuel, a stark contrast to the spark plug ignition in petrol engines.

The evolution of diesel fuel injection systems has been a fascinating journey, driven by the constant pursuit of better performance, lower emissions, and improved fuel economy. From the early mechanical systems to the sophisticated common rail systems of today, each iteration has brought significant advancements.

Types of Diesel Fuel Injection Systems

Understanding the different types of systems helps appreciate the complexity and the need for specialised knowledge:

1. Indirect Injection (IDI) Systems

These were among the earliest diesel injection systems. In an IDI system, fuel is injected into a pre-combustion chamber (an auxiliary chamber connected to the main cylinder). This chamber is designed to promote initial mixing and combustion, with the flame front then propagating into the main combustion chamber. While simpler in design, IDI systems generally produce more noise and emissions compared to modern systems.

2. Direct Injection (DI) Systems

In DI systems, fuel is injected directly into the main combustion chamber. This allows for more precise control over the combustion process, leading to higher efficiency, better power output, and reduced emissions. Early DI systems often used robust but less precise mechanical pumps.

3. Common Rail Direct Injection (CRDI)

This is the dominant technology in modern diesel engines. In a common rail system, a high-pressure pump supplies fuel to a 'common rail' – essentially a pressurised fuel accumulator. Injectors, electronically controlled by the engine's control unit (ECU), then draw fuel from this rail and inject it directly into the combustion chamber. The key advantage here is the ability to maintain extremely high fuel pressures consistently, and to precisely control the timing and duration of multiple injections per combustion cycle. This allows for:

• Improved Fuel Economy: Optimised combustion reduces waste.
• Reduced Emissions: Precise control minimises soot and NOx.
• Quieter Operation: Multiple, smaller injections smooth out combustion.
• Increased Power and Torque: More efficient fuel delivery.

4. Unit Injector (UI) Systems

Also known as pump-nozzle systems, UI systems integrate the injection pump and injector into a single unit, typically mounted directly on top of each cylinder head. Each unit is actuated by the camshaft. While offering benefits similar to common rail in terms of direct injection, they are mechanically driven and can be more complex to service due to their integrated nature.

Key Components of a Modern Diesel Fuel Injection System

A typical common rail system, for instance, comprises several vital parts:

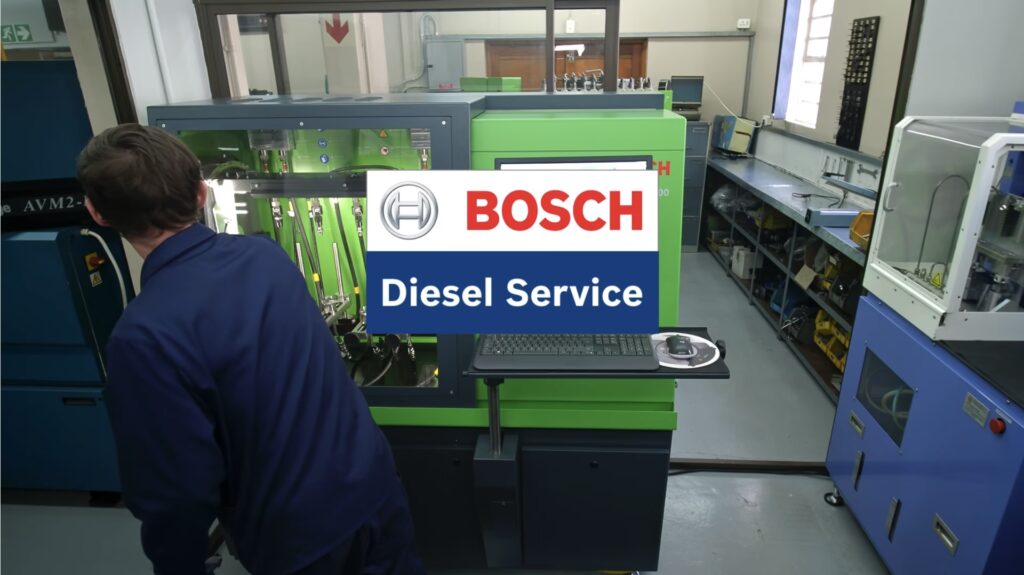

Who is a Diesel Fuel Injection Specialist?

A diesel fuel injection specialist is a highly trained and experienced mechanic who possesses in-depth knowledge of diesel fuel systems. They are experts in the diagnosis, repair, and maintenance of these complex components, including mechanical, electronic, and common rail systems. Their skills are essential because the precision required for diesel fuel injection is far greater than that for petrol engines. Working with these systems demands:

• Specialised Tools: Diagnostic scanners, pressure testers, injector flow benches, and specific tools for disassembly and reassembly.
• Technical Expertise: Understanding of hydraulics, electronics, and combustion dynamics.
• Cleanliness: Diesel fuel systems are extremely sensitive to contamination. A specialist maintains a meticulous working environment.
• Diagnostic Acumen: The ability to interpret diagnostic trouble codes (DTCs) and perform targeted tests to pinpoint issues.

These specialists are often found in dedicated diesel service centres, larger garages with specialised departments, or even as mobile technicians catering to commercial fleets. They are the go-to professionals for issues ranging from poor performance and increased fuel consumption to engine misfires and starting problems.

Common Problems with Diesel Fuel Injection Systems

Even the most robust systems can encounter issues. Some common problems include:

• Clogged Injectors: Due to poor fuel quality or contamination, injectors can become blocked, leading to poor atomisation, misfires, and reduced power.
• Fuel Pump Failure: The high-pressure pump is a precision component that can wear out or fail, resulting in a complete loss of power or inability to start.
• Leaking Injectors: Injectors can develop leaks, causing fuel to drip into the cylinder, leading to rough idling, smoke, and potential engine damage.
• Sensor Malfunctions: Faulty pressure sensors or temperature sensors can send incorrect data to the ECU, disrupting the injection timing and causing performance issues.
• Contaminated Fuel: Water, dirt, or other contaminants in the fuel can cause significant damage to the high-pressure pump, injectors, and common rail.
• Wear and Tear: Over time, internal components can wear, leading to reduced pressure or inconsistent fuel delivery.

Maintenance is Key: Keeping Your Diesel System Healthy

Preventative maintenance is paramount for diesel fuel injection systems. Neglecting it can lead to costly repairs. Key maintenance tasks include:

• Regular Fuel Filter Changes: This is arguably the most important maintenance task. Follow the manufacturer's recommended intervals religiously. Using high-quality filters is also essential.
• Use Quality Fuel: Always refuel at reputable stations to minimise the risk of contaminated diesel. Consider using a diesel additive periodically to clean the system and improve lubricity.
• Check for Leaks: Periodically inspect fuel lines and connections for any signs of diesel leaks.
• Professional Servicing: Have your fuel system inspected by a diesel specialist during regular vehicle servicing. They can identify potential issues before they become major problems.
• Listen to Your Engine: Pay attention to changes in engine noise, performance, or fuel economy. These can be early indicators of a fuel system problem.

The Role of Diesel Additives

Diesel additives can play a role in maintaining a healthy fuel system. They can help:

• Clean injectors and the combustion chamber.
• Improve fuel lubricity, which is vital for protecting high-pressure fuel pumps and injectors, especially with modern low-sulphur diesel fuels.
• Prevent water formation and corrosion.
• Boost cetane number for smoother combustion.

However, it's important to use reputable brands and follow dosage instructions carefully. They are a supplement to, not a replacement for, proper maintenance.

When to Call the Specialist

Don't delay seeking professional help if you notice any of the following:

• Difficulty Starting: Especially when the engine is cold.
• Rough Idling or Misfiring: The engine doesn't run smoothly.
• Loss of Power or Acceleration: The vehicle feels sluggish.
• Increased Fuel Consumption: You're filling up more often.
• Black or White Smoke from the Exhaust: Can indicate incomplete combustion or fuel issues.
• Unusual Engine Noises: Knocking or rattling sounds.
• Check Engine Light: Particularly if accompanied by performance issues.

Frequently Asked Questions

Q1: How often should I change my diesel fuel filter?

A1: Always refer to your vehicle's owner's manual for the manufacturer's recommended interval. As a general guideline, it's often between 15,000 and 30,000 miles, but this can vary significantly. It's better to change it sooner if you suspect poor fuel quality.

Q2: Can I use petrol additives in my diesel engine?

A2: Absolutely not. Petrol additives are designed for spark-ignition engines and can cause severe damage to diesel fuel systems. Always use additives specifically designed for diesel engines.

Q3: Is common rail diesel more expensive to repair than older systems?

A3: Generally, yes. The precision and complexity of common rail components, particularly the injectors and high-pressure pump, mean that repairs can be more costly. This underscores the importance of regular maintenance to prevent major failures.

Q4: What is the most common cause of diesel injector failure?

A4: Contamination from dirt or water in the fuel is a leading cause. Poor fuel quality, infrequent fuel filter changes, and internal wear also contribute significantly.

Q5: How can I improve my diesel engine's fuel economy?

A5: Besides regular maintenance of the fuel system, ensure your tyres are properly inflated, drive smoothly without rapid acceleration, avoid excessive idling, and keep your vehicle's air filter clean. A healthy fuel injection system is fundamental to good economy.

In conclusion, the diesel fuel injection system is a marvel of engineering that demands respect and proper care. While modern systems are incredibly efficient and powerful, their complexity means that specialised knowledge is often required for their upkeep. By understanding the basics, performing diligent maintenance, and knowing when to entrust your vehicle to a qualified diesel fuel injection specialist, you can ensure your diesel engine continues to deliver reliable performance and efficiency for years to come. Reliability is built on a foundation of expert care.
