BMW Z4 Brakes: A Comprehensive UK Guide

The BMW Z4, a vehicle synonymous with exhilarating driving and precision engineering, demands a braking system that lives up to its performance pedigree. Far from being a mere afterthought, your Z4's brakes are a critical safety component, directly influencing your car's stopping power and overall handling dynamics. Understanding the specifics of your Z4's braking system, from the type of brakes it employs to the meticulous maintenance required, is paramount for both safety and preserving that signature BMW driving experience.

This comprehensive guide will delve into the intricacies of your BMW Z4's braking setup, focusing on the robust disc brakes found at each wheel. We'll explore the vital process of inspecting and measuring brake rotors, a task often overlooked but crucial for ensuring optimal stopping performance. Furthermore, we'll shed light on the importance of the correct brake fluid, especially for modern vehicles equipped with advanced safety systems like ABS and ESP. By the end of this article, you'll be well-equipped to undertake essential brake maintenance, ensuring your Z4 remains a joy to drive and a fortress of safety.

The Anatomy of Your Z4's Braking System: Disc Brakes Explained

Every BMW Z4 model comes equipped with highly efficient disc brakes on all four wheels. This design is preferred for its superior stopping power, excellent heat dissipation, and consistent performance compared to older drum brake systems. At the heart of this system are the brake rotors (often called discs in the UK) and brake pads. When you press the brake pedal, hydraulic pressure forces the brake pads to clamp down on the spinning rotor, creating friction that slows the wheel.

A key distinction in the Z4's setup lies in the design of its front and rear rotors. The front discs are typically larger and vented. This vented design features a series of fins between two disc surfaces, allowing air to flow through and cool the rotor more effectively. Given that the front brakes bear the majority of the braking force – often up to 70% during hard braking – this enhanced cooling capacity is vital to prevent overheating, which can lead to brake fade and reduced stopping power. Conversely, the rear rotors can be either solid or vented, depending on the specific brake package and the engine size of your Z4. Generally, higher performance models or those with larger engines are more likely to feature vented rear rotors to match the increased demands.

Another clever integration within the Z4's braking system is the parking brake. Unlike some vehicles that use a separate drum brake for parking, the Z4's parking brake mechanism is integrated directly into the rear rotor. This design simplifies the system and often uses a small set of shoes that expand against the inner hat of the rear rotor, providing a secure hold when the vehicle is stationary.

Why Rotor Health is Paramount

Brake rotors are under immense mechanical and thermal stress every time you use your brakes. The friction generated when the pads clamp down creates significant heat, and over time, this constant friction causes the rotors to wear down and become thinner. If a rotor becomes too thin, its ability to dissipate heat is compromised, leading to increased risk of warping, cracking, and a severe reduction in braking efficiency. More critically, a rotor that is below its minimum thickness specification can fail under extreme braking, posing a significant safety hazard. Therefore, understanding and monitoring the wear on your brake rotors is not just about performance; it's about fundamental vehicle safety.

Mastering Rotor Measurement: A DIY Guide to Brake Health

Regular inspection of your brake rotors is a crucial part of maintaining your BMW Z4's braking system. While visual inspection can reveal obvious damage like severe cracks or deep scoring, the most critical measurement is rotor thickness. Each rotor has a specified minimum thickness stamped on its edge, usually in millimetres (mm) or inches (in). This figure represents the thinnest the rotor can safely be before it requires replacement. Ignoring this specification can lead to compromised braking performance and potential safety risks.

Tools and Preparation for Rotor Measurement

To accurately measure your brake rotors, you'll need a few essential tools:

• A reliable micrometer: This precision instrument is designed for accurate thickness measurements.
• A sturdy jack and a set of jack stands: Always use jack stands to support the vehicle safely once lifted. Never rely solely on a jack.
• Wheel nut wrench (for removing wheels).
• Optional: Wire brush and brake cleaner to clean the rotor surface for more accurate readings.

The entire process, including lifting the car and taking measurements, should take approximately 1.5 hours. For those who prefer professional assistance, expect a labour cost of around £20 for this inspection, plus any parts required for replacement.

Step-by-Step Rotor Measurement Process

1. Safety First: Park your Z4 on a flat, level surface. Engage the parking brake and consider chocking the wheels that will remain on the ground. Loosen the wheel nuts slightly on the wheel you intend to inspect.
2. Lift and Secure: Using your jack, lift the vehicle until the wheel is clear of the ground. Place the jack stand securely under the appropriate jacking point and slowly lower the vehicle onto the stand. Repeat for the other side if you plan to measure both rotors on an axle simultaneously (which is recommended).
3. Remove the Wheel: Fully remove the wheel nuts and carefully take off the wheel.
4. Clean the Rotor: If the rotor surface is dirty or has significant rust, gently clean a section with a wire brush and brake cleaner to ensure accurate micrometer readings. Focus on the area where the brake pads contact the rotor.
5. Measure in Multiple Spots: This is a crucial step for accuracy. Use your micrometer to measure the rotor's thickness in approximately 10 different spots around the rotor's circumference. It's vital to measure the actual braking surface, avoiding any lip that may have formed at the outer edge due to wear.
6. Mark Your Measurements: As you measure, mark each spot with a piece of chalk or a marker. This helps you keep track of where you've measured and ensures you cover the entire rotor evenly.
7. Compare to Minimum Thickness: Once you have all 10 measurements, compare the lowest reading to the minimum thickness specification stamped on the edge of the rotor. This specification is typically a small number, often found near the hub or outer edge.

Brake Rotor Minimum Thickness Per Z4 Model

The minimum thickness varies significantly between Z4 models due to differing brake packages and engine sizes. Always refer to the stamp on your specific rotor, but the table below provides general guidelines for common Z4 models:

If any of your measurements fall below the minimum thickness specification, the rotor requires immediate replacement. It is absolutely essential to replace brake rotors in pairs on the same axle (both front or both rear) to ensure even braking performance and prevent dangerous pulling or instability under braking.

Beyond Thickness: Other Rotor Inspections

Even if your rotor passes the thickness test, other issues can necessitate replacement:

• Brake Pulsation: If you experience a pulsation or vibration through the brake pedal when applying the brakes, this often indicates a warped or unevenly worn rotor. Even if it meets thickness, a pulsating rotor must be replaced to restore smooth, effective braking.
• Overheating Signs: Look for discolouration, such as blue or purple spots, on the rotor surface. This is a sign of severe overheating, which can compromise the rotor's structural integrity.
• Cracks: Inspect the rotor surface carefully for any signs of cracks, especially around the hub or drill holes (if applicable). Even small cracks can propagate and lead to catastrophic failure.
• Deep Grooves or Rust: While some surface rust is normal, deep grooves or excessive pitting on the braking surface can reduce braking efficiency and prematurely wear out new brake pads.

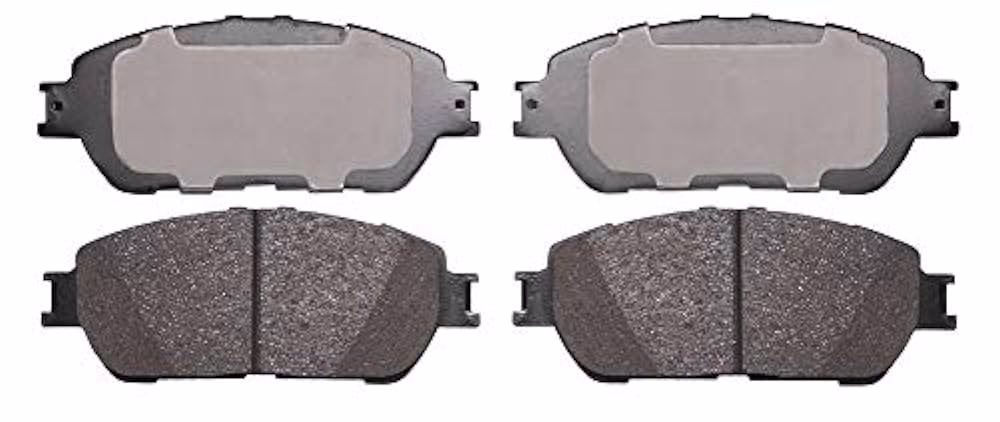

As a complementary modification, it is always highly recommended to replace brake pads whenever you replace brake rotors. New pads conform perfectly to new rotors, maximising braking efficiency and longevity for both components. This ensures performance is fully restored.

The Unsung Hero: Brake Fluid for Your BMW Z4

While often overshadowed by the more tangible brake pads and rotors, brake fluid plays an absolutely critical role in your Z4's braking system. It's the medium that transmits the force from your brake pedal to the calipers, engaging the pads. For a vehicle like the BMW Z4 Roadster (E89) sDrive 28i, choosing the correct brake fluid is even more paramount, especially with its sophisticated anti-locking (ABS) and electronic stability control (ESP) systems.

For these modern, performance-oriented vehicles, a fluid like Brembo's Xtra line brake fluid is an ideal choice. It's engineered to combine the high-temperature resistance typically found in DOT 5.1 fluids with the crucial low viscosity of DOT 4 low viscosity fluids. This unique combination offers significant advantages:

• High Resistance to High Temperatures: Performance driving, or even just spirited road use, generates considerable heat within the braking system. High-temperature resistance means the fluid is less likely to boil, which would lead to a spongy pedal feel and a dangerous loss of braking effectiveness.
• Low Viscosity: This is where modern brake fluids truly shine. Viscosity, a measure of a fluid's resistance to flow, is a critical factor for the precise operation of ABS and ESP systems. In these systems, brake fluid must flow rapidly and precisely through very narrow passages within complex control mechanisms (often valves). A fluid with very low viscosity ensures an immediate and accurate transfer of hydraulic pressure, allowing these safety systems to react lightning-fast to prevent wheel lock-up or maintain stability during challenging driving conditions. Without low viscosity, the effectiveness of your ABS and ESP could be significantly compromised.

Given these characteristics, the Xtra line brake fluid is often suggested by manufacturers like Brembo in combination with their high-performance Xtra range products (discs, pads, calipers) for those seeking a blend of sporty and safe road driving. Regular brake fluid flushes, typically every two years, are essential to remove moisture that contaminates the fluid over time, reducing its boiling point and effectiveness.

Project Considerations and Safety Reminders

Undertaking any maintenance on your BMW Z4 requires careful attention to detail and, most importantly, adherence to safety protocols. When working on your vehicle, always prioritise your well-being:

• Personal Protective Equipment: Protect your eyes with safety glasses, your hands with gloves, and your body from fluids, dust, and debris.
• Fluid Handling: Always use appropriate containers to catch any fluids (like brake fluid) and ensure proper disposal of all fluid waste. Recycle parts, packaging, and fluids whenever possible to minimise environmental impact.
• Electrical System: If your work involves the electrical system, always disconnect the battery before beginning to prevent accidental short circuits or component damage.
• Know Your Limits: Never attempt a task on your vehicle if you feel it is beyond your skill or ability. If in doubt, consult a qualified mechanic.
• Fastener Sizes: While we provide common fastener sizes, remember that your car may have been serviced before, and parts replaced with different size fasteners. Be prepared with a range of different size sockets and wrenches to avoid frustration.

Vehicle models evolve, and slight variations may exist between your specific Z4 and the general information provided. If something seems different, cross-reference with your vehicle's service manual or seek professional advice.

Frequently Asked Questions (FAQs)

Q: How often should I check my BMW Z4's brake rotors?
A: It's recommended to visually inspect your brake rotors and pads at every oil change, or at least every 10,000 miles. A more detailed measurement of rotor thickness, as described in this article, should be done if you notice any changes in braking performance, hear unusual noises, or during major service intervals.

Q: Can I just replace one brake rotor if only one is worn?
A: No, it is crucial to replace brake rotors in pairs on the same axle (both front or both rear). This ensures balanced braking force across the axle, preventing the car from pulling to one side under braking and maintaining stability.

Q: What are the signs that my brake rotors need replacing?
A: Key signs include a pulsating sensation through the brake pedal or steering wheel when braking, a squealing or grinding noise (often from worn pads, but sometimes from rotors), extended stopping distances, deep grooves on the rotor surface, visible cracks, or if the rotor thickness falls below the minimum specification stamped on its edge.

Q: Why is low viscosity brake fluid important for my Z4?
A: Low viscosity brake fluid is critical for the proper functioning of modern anti-locking braking systems (ABS) and electronic stability control (ESP). These systems rely on rapid and precise fluid movement through small valves to modulate brake pressure quickly. A low viscosity fluid ensures instantaneous response, enhancing the effectiveness of these safety features.

Q: How long does a brake rotor replacement typically take?
A: For an experienced DIY enthusiast, measuring and assessing brake rotors might take about 1.5 hours per axle. A full rotor and pad replacement for one axle could take 2-3 hours. Professional shops can often do it quicker due to specialised tools and experience. The project time mentioned (1.5 hours) specifically refers to the measurement task.

Maintaining your BMW Z4's braking system is not just about keeping it on the road; it's about ensuring every drive is as safe and enjoyable as intended. By diligently inspecting your brake rotors and understanding the vital role of appropriate brake fluid, you're investing in the longevity and safety of your cherished Z4. Don't underestimate the power of a well-maintained braking system – it’s the ultimate performance gain for any driver.
