Supercharging Your BMW M4x Engine

Unleashing More Power: Supercharging Your BMW M4x Engine

For owners of the venerable BMW M4x series of 4-cylinder engines, particularly those found in the popular 318ti (M42/M43/M44), the allure of increased power is often a strong one. While these engines are known for their reliability and engaging driving characteristics, there's always room for more performance. One of the most effective ways to achieve a significant power boost is through the addition of a supercharger. This article delves into the world of supercharging for your M4x, focusing on available kits, essential considerations, and the potential need for engine upgrades.

The Hyde Motor Works V4 M.O.A.B. Supercharger Kit: A Serious Upgrade

When it comes to supercharging BMW's 4-cylinder M4x engines, the V4 M.O.A.B. Supercharger Kit from Hyde Motor Works stands out as a prominent option. This kit is notable for being the largest supercharger kit commercially available specifically designed for the M42, M43, and M44 engines. Hyde Motor Works offers three distinct variations of the V4 kit, catering to different performance goals and budgets. Installing a supercharger can dramatically alter the driving experience, providing a noticeable surge in torque and horsepower across the rev range.

Assessing Your M4x Engine: A Case Study of a 1996 318ti

Let's consider a common scenario faced by M4x enthusiasts. Imagine you have a 1996 318ti equipped with the M42 engine, boasting around 200,000 km. You've attempted a head gasket replacement, but unfortunately, misaligned timing resulted in significant damage to piston number 1 and associated valves. The question then arises: what's the best course of action?

Piston Replacement: To Pull or Not to Pull?

The immediate concern is whether the damaged piston can be replaced without removing the entire engine. In many cases, particularly with front-wheel-drive vehicles, accessing and replacing a piston with the engine in situ can be a complex and labour-intensive task. For rear-wheel-drive BMWs like the 318ti, it's more feasible, but still requires careful disassembly of the engine's top end. This involves removing the cylinder head, oil pan, connecting rod cap, and carefully extracting the damaged piston. While it's possible to replace just one piston, it's crucial to consider the overall condition of the engine, especially one with high mileage.

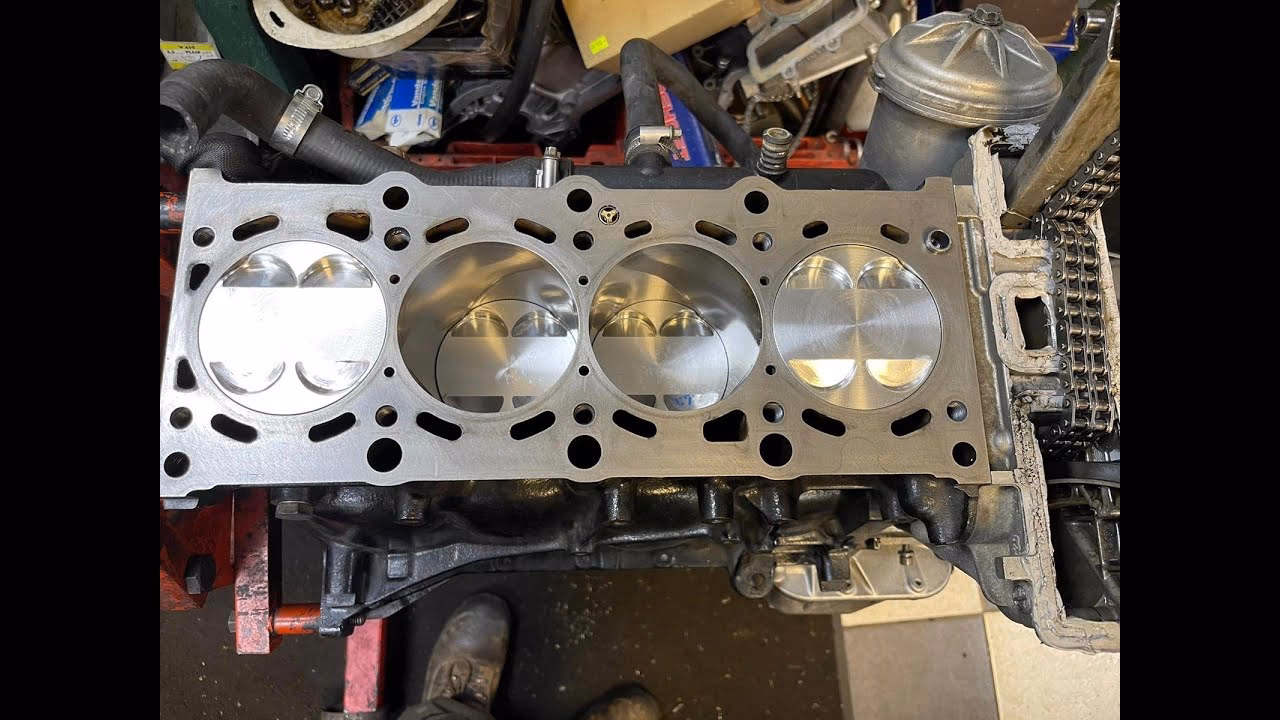

Rebuilding vs. Replacement: A Cost-Benefit Analysis

Given the engine's mileage and the existing damage, a comprehensive rebuild should be seriously considered. A rebuild typically involves:

• Crankshaft and Bearing Inspection: Checking the crankshaft for straightness and wear, and replacing the main and connecting rod bearings.
• Piston and Ring Replacement: Replacing all pistons and piston rings, ensuring proper fitment and sealing.
• Seal and Gasket Overhaul: Replacing all engine seals (oil pan, rear main seal, valve stem seals, etc.) and gaskets to address the reported leaks.
• Cylinder Head Refurbishment: Thoroughly inspecting and potentially reconditioning the cylinder head, including valve seats and guides.

The cost of a rebuild can vary significantly depending on whether you undertake the work yourself or use a professional workshop. A DIY rebuild, focusing on parts alone, might cost anywhere from £1000 to £2500, whereas a professional rebuild could easily range from £2500 to £5000 or more, depending on the extent of the work and parts used. It's also worth noting that addressing multiple leaks (rack and pinion, oil pan, rear main seal) suggests a general need for a thorough overhaul.

Supercharging and Piston Requirements

If your ultimate goal is to supercharge the engine, you'll need to consider the impact of increased cylinder pressures. While the stock M42/M44 pistons might handle mild boost levels, for more significant power gains, upgraded pistons are often recommended. The Hyde Motor Works V4 kit details suggest that stronger, lighter forged pistons are beneficial. Forged pistons are generally more resistant to detonation and higher temperatures, offering greater durability under forced induction. If you opt for a rebuild, specifying forged pistons designed for forced induction is a wise investment.

What About the MM 228 Engine?

For those with engines that have received the MM 228 treatment, the focus shifts slightly. The MM 228 package often includes upgrades such as a lighter flywheel and clutch assembly for improved acceleration, an EPROM chip upgrade for enhanced engine management, and potentially a longer stroke crankshaft (88mm) for increased displacement and torque. Furthermore, stronger, lighter 87mm forged alusil pistons with lighter 21mm wrist pins are common, designed to handle the increased demands of a more powerful engine. If your M4x has these enhancements, it's likely already better prepared for the stresses of a supercharger, though specific boost levels and supporting modifications should still be carefully considered.

Essential Considerations Before Supercharging

Before diving into a supercharger installation, several key areas should be addressed:

Frequently Asked Questions

Q1: Can I install a supercharger on a high-mileage M4x engine without a rebuild?

While technically possible for very mild boost applications, it's generally not recommended. High mileage often means increased wear on internal components, making them less resilient to the added stress of forced induction. A rebuild ensures a solid foundation for the supercharger.

Q2: What kind of power increase can I expect from a V4 M.O.A.B. kit?

Power figures vary depending on the specific kit configuration, supporting modifications, and the engine's baseline health. However, expect a significant increase, potentially adding 50-100 horsepower or more over stock, transforming the car's performance.

Q3: Do I need an intercooler with a supercharger kit?

For most supercharger applications, especially those aiming for substantial power gains, an intercooler is highly recommended. It cools the compressed intake air, making it denser and reducing the risk of detonation, thereby increasing efficiency and power.

Q4: How much does a typical engine rebuild for an M4x cost?

As mentioned, a DIY parts-only rebuild can range from £1000-£2500, while a professional rebuild could be £2500-£5000+. This excludes the cost of the supercharger kit itself.

Q5: If I have to pull the engine, should I also replace the clutch?

Absolutely. When the engine is out for major work or upgrades like a supercharger, it's the perfect opportunity to address wear items like the clutch. Replacing it simultaneously saves significant labour costs down the line.

Conclusion: A Rewarding, But Significant, Endeavour

Supercharging your BMW M4x engine, particularly a 318ti, can be an incredibly rewarding modification, offering a dramatic uplift in performance. However, it's a project that requires careful planning, a realistic assessment of your engine's condition, and a willingness to invest in necessary supporting modifications. Whether you opt for a full engine rebuild or carefully assess your current engine's health, ensuring a robust foundation is paramount to enjoying the enhanced power safely and reliably. The Hyde Motor Works V4 M.O.A.B. kit offers a compelling path for those seeking substantial power gains, but always remember that a supercharger is only as good as the engine it's bolted to.
