Custom Intake Manifolds: Production Times

When embarking on a performance automotive build, particularly one involving a Big Block Chevy, the quest for optimal airflow and fuel delivery often leads to the consideration of custom intake manifolds. These meticulously engineered components can significantly enhance engine performance, but a common question that arises is: how long does it actually take to get a custom intake manifold? The answer, as with many bespoke automotive parts, is not a simple one-size-fits-all figure. Several factors come into play, influencing the lead time from initial order to the manifold gracing your engine bay. At Shaun's Custom Alloy, specialists in billet aluminium intake manifolds, understanding these variables is key to setting realistic expectations for their discerning clientele.

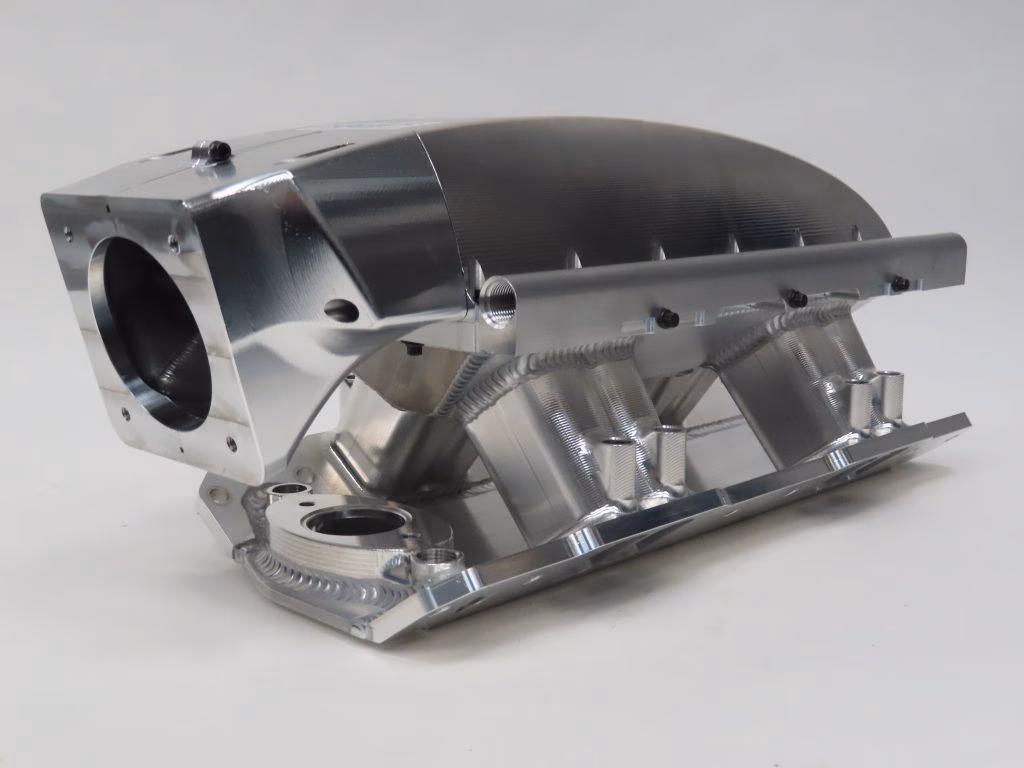

The process of creating a custom intake manifold is far more involved than simply pulling a part off a shelf. It often begins with a detailed consultation to understand the specific requirements of your engine build. This might include the type of cylinder heads you are using, the intended application of the vehicle (e.g., drag racing, street use, road racing), desired power levels, and specific fuel system configurations. Shaun's Custom Alloy, for instance, offers a range of specifications for their Big Block Chevy manifolds, including options for single fuel rails with single or dual injectors, and dual injector rails which are a top choice for Drag 'n' Drive vehicles utilising two fuel types. They also cater to specific cylinder heads like Dart 20, Big Chief, HeadHunter, Brodix SR20, Higgins SR20, and AFR, necessitating tailored designs.

Factors Influencing Production Time

Several key elements contribute to the overall timeframe for producing a custom intake manifold:

1. Design Complexity and Customisation

The more bespoke the design, the longer it will likely take. If a manifold requires significant modification to fit specific engine configurations, cylinder heads, or chassis clearances, the design and engineering phase will naturally extend. Shaun's Custom Alloy's ability to produce intakes specific to various high-performance cylinder heads highlights this. Each of these collaborations requires precise data and potentially new CAD modelling, adding to the production cycle.

2. Material Availability

While billet aluminium is a common material for high-end intake manifolds, ensuring a consistent supply of the specific grade and dimensions required can sometimes be a factor. Global supply chains can impact material lead times, although reputable manufacturers usually maintain good stock levels of primary materials.

3. Machining Capacity and Workflow

Once the design is finalised and materials are ready, the manifold enters the machining phase. This is typically carried out on advanced CNC (Computer Numerical Control) machines. The availability of these machines, their current workload, and the complexity of the machining operations all play a role. A highly intricate design with multiple features and tight tolerances will naturally require more machining time than a simpler component.

4. Finishing Processes

After the primary machining is complete, intake manifolds often undergo finishing processes. Shaun's Custom Alloy offers options like a Raw/Clear finish or a Black Anodized finish. Anodising, in particular, is a chemical process that adds durability and aesthetic appeal, but it requires specific treatment times and can add several days to the overall production schedule. The choice of finish can therefore influence the final delivery date.

5. Quality Control and Testing

Reputable manufacturers implement rigorous quality control measures. This might involve dimensional checks, pressure testing (especially for fuel rails), and visual inspections to ensure the manifold meets the highest standards. While crucial for performance and reliability, these checks add to the overall time before a part is ready for dispatch.

6. Order Volume and Manufacturer's Backlog

Like any manufacturing business, the volume of orders a company receives at any given time will impact how quickly yours can be processed. If a manufacturer is experiencing a high demand for their products, there may be a backlog, extending the lead time for new orders. It's always advisable to inquire about current lead times when placing an order.

Typical Lead Times

While it's impossible to give an exact figure without knowing the specifics of your order and the manufacturer's current capacity, a general estimate for a custom billet aluminium intake manifold can range from 4 to 12 weeks. This timeframe accounts for the design, material procurement, manufacturing, finishing, and quality control processes. Simpler designs or those that are part of a more standard offering from a manufacturer might fall at the lower end of this spectrum, while highly specialised or complex bespoke projects could lean towards the longer end, or even exceed it in exceptional circumstances.

Shaun's Custom Alloy Specifics

For a company like Shaun's Custom Alloy, known for their precision and customisation, the lead times will be influenced by the factors mentioned above. Their ability to craft manifolds for specific cylinder heads means that each order is, to an extent, a bespoke project. When ordering from them, it would be prudent to:

• Be clear about your engine specifications: Provide details of your cylinder heads, intended use, and fuel system.
• Inquire about current lead times: Contact them directly to get an up-to-date estimate for your specific order.
• Understand the options: Be aware that choices like single vs. dual throttle body adapters or different finishes can impact the schedule.

For example, a standard Big Block Chevy manifold with a common head configuration and a raw finish might be quicker to produce than a highly specialised unit designed for a unique cylinder head and requiring black anodising. The dual injector rail option, popular for specific racing applications, might also have slightly different production considerations.

Table: Estimating Your Custom Intake Manifold Timeline

To help visualise the process and potential delays, consider this comparative table:

This table provides a guideline. Actual times can vary significantly. It's crucial to remember that quality and precision are paramount when dealing with high-performance engine components, and rushing the process can lead to suboptimal results or even component failure.

Frequently Asked Questions (FAQs)

Q1: Can I expedite the production of my custom intake manifold?

A1: In some cases, manufacturers may offer expedited services for an additional fee, depending on their current workload and material availability. It's best to inquire directly with the manufacturer about this possibility.

Q2: How do I know if I need a custom intake manifold?

A2: A custom intake manifold is typically beneficial for high-performance builds, especially those with significantly modified engines, custom camshafts, forced induction, or specific cylinder heads that are not well-supported by off-the-shelf manifold designs. If you've invested in high-flow cylinder heads or are aiming for maximum power output, a custom manifold can be a worthwhile investment.

Q3: What information will the manufacturer need from me?

A3: You'll generally need to provide detailed specifications of your engine, including the make and model, year, specific cylinder head manufacturer and model (e.g., Dart 20, Brodix SR20), camshaft specifications, intended use of the vehicle, and any known chassis or accessory clearance issues.

Q4: Are there any common delays I should be aware of?

A4: Common delays can include material shortages, unexpected issues during machining, extended lead times for specialised finishing processes like anodising, or a high volume of orders at the manufacturer. Communication with the manufacturer throughout the process can help mitigate surprises.

In conclusion, while the allure of a custom-designed intake manifold is strong for any performance enthusiast, patience is a virtue. Understanding the multi-stage process involved, the critical factors influencing production times, and maintaining open communication with a reputable manufacturer like Shaun's Custom Alloy will ensure you receive a high-quality component that meets your engine's demanding requirements, ultimately contributing to the success of your build.
