Ford FE Engine Fuel Systems Explained

The Ford FE (Ford-Edsel) engine family, renowned for its robust performance and versatility, has a rich history of fuel delivery systems that have evolved significantly over its production years. Understanding how these systems function is crucial for anyone looking to maintain, restore, or enhance the performance of these iconic V8s. This guide delves into the various fuel systems employed, from the conventional mechanical fuel pumps and carburetors to more advanced multi-carburettor setups and the advent of fuel injection.

The Conventional Fuel System

Throughout its production, the Ford FE engine typically utilised a conventional fuel system. At its heart was a mechanical fuel pump, driven by an eccentric bolted to the front of the camshaft. This pump, usually mounted on the driver's side of the timing cover, was responsible for delivering fuel to the carburettor. The vast majority of FE engines were equipped with a single, either 2-barrel or 4-barrel, carburettor mounted atop a cast-iron intake manifold. This setup provided reliable and straightforward fuel delivery for everyday driving and mild performance applications.

High-Performance Fuel Delivery Options

While factory high-performance FE engines were produced in limited numbers, they offered a greater variety in fuel delivery methods. These often featured aluminium intake manifolds, a departure from the standard cast-iron. The dominant carburettor choice for these performance-oriented engines, and indeed for most aftermarket builds, was the Holley 4-barrel. Most single 4-barrel intakes were designed to accommodate the Holley 4150 mounting pattern. Holley offered various configurations, including single 4-barrel, dual 4-barrel, and even triple 2-barrel setups. The dual 4-barrel engines commonly used a pair of Holley 4160 models mounted in line, a setup that provided increased fuel capacity and improved performance.

Ford Carburettor Packages

Beyond the standard offerings, Ford also provided aftermarket and non-production carburettor packages through its parts department. These often mirrored the popular configurations but introduced unique variations. Notable among these were the offset-mounted dual-quad setups found on Edelbrock and Mickey Thompson "cross-ram" intakes. Early multiple 2-barrel intakes and Weber carburettor systems also represented alternative approaches to fuel delivery for enthusiasts seeking specific performance characteristics.

The Rise of Fuel Injection

Mechanical fuel injection systems, featuring individual runner stacks, have also been available for the FE engine, though their popularity has varied from unusual to exceptionally rare. More recently, electronic fuel-management systems have brought modern fuel injection technology to the FE engine builder. Edelbrock, for instance, offers converted carburettor-style intakes with pre-drilled fuel rail mountings and injector bungs on their Victor intake castings. These systems blend the aesthetic appeal of traditional intake designs with the precise control and efficiency of modern electronic fuel injection (EFI).

4-Barrel Carburettor Deep Dive

The 4-barrel carburettor remains the most common choice for FE engine builds, whether for street use or mild racing. Understanding the nuances of different 4-barrel carburettors is essential for optimising performance.

Autolite 4-Barrels

Ford often equipped non-performance FE engines with the Autolite 4100-series carburettor. Despite its advanced design features, such as dual integral fuel bowls, easily changeable jetting, a bathtub design with minimal gaskets below the fuel level, and annular boosters, the Autolite never achieved the same popularity as a high-performance part as Holley. This was largely due to Ford's preference for Holley carburettors in their factory high-powered combinations. However, the Autolite 4100 can still be tuned effectively, particularly for restoration projects where originality and appearance are paramount. Its design even served as an inspiration for the later Holley 4010 and 4011 models.

Holley 4-Barrels: Basic Design Elements

The Holley 4-barrel carburettor is the undisputed favourite for most FE engine builders. Holley carburettors are identified by model numbers, historically reflecting airflow and design features. Key models for the FE include the 4150 and 4160 series, which share a modular architecture. Holley identifies its components and assemblies with engineering numbers, often prefixed with "R," and a specific part number stamped on the choke horn.

Model 4160 vs. Model 4150

The standard mounting flange Holley carburettor is the Model 4160. It features a metering block on the primary side (containing replaceable jets and a power valve) and a metering plate on the secondary side. The metering plate, being thinner, has only drilled holes for fuel metering and lacks adjustability. In contrast, the Model 4150 carburettors have adjustable/replaceable jets and a metering block on both the primary and secondary sides. While sharing the same mounting pattern as the 4160, the 4150 offers greater tunability for various engine combinations.

Fuel Feed Configurations

Holley carburettors can be either single-feed or dual-feed. A single-feed carburettor has a single fuel inlet, with a transfer tube connecting the primary and secondary fuel bowls. Dual-feed carburettors feature "cathedral" fuel bowls with an inverted "V" appearance and have separate fuel lines feeding each bowl, often joined externally.

Secondary Actuation: Vacuum vs. Mechanical

Model 4160 carburettors are typically vacuum secondary designs. These utilise a diaphragm that senses airflow through a bleed in the primary venturi to open the rear barrels. The rate of secondary opening can be adjusted by altering the spring tension within the diaphragm housing. Model 4150 carburettors can be either vacuum secondary or mechanically actuated. Those with mechanical secondary actuation and dual fuel feeds are commonly referred to as "double pumpers," as they incorporate accelerator pumps on both the primary and secondary sides.

Dominator 4500-Series Carburettors

The Dominator 4500-series represents a significant departure from the 4150/4160 designs. These carburettors were engineered for racing from the outset, featuring unique main bodies and linkage, an integral main and throttle body, and replaceable boosters. The Dominator boasts a distinctive, larger mounting flange and throttle blades, and all are "double pumpers." They are typically rated for 1,050 or 1,150 cfm and are a potent choice for high-performance applications.

Understanding Airflow Ratings

Carburettor sizing is often based on airflow ratings, measured in cubic feet per minute (cfm). Historically, these ratings were determined by a Society of Automotive Engineers (SAE) procedure, which measured cfm at a specific vacuum drop. However, in recent decades, there has been a shift towards marketing-driven naming conventions where assigned "SAE airflow numbers" may not accurately reflect actual performance. The SAE procedure involved testing on a "wet" bench, simulating the effects of fuel on airflow. In contrast, many modified carburettors were tested on "dryflow" benches, yielding artificially inflated airflow values. For accurate sizing, it is now recommended to consider throttle bore and venturi bore diameters and consult with knowledgeable suppliers.

Carburettor Boosters

Boosters are the venturi rings within the carburettor that aid in fuel delivery. Holley carburettors commonly feature three booster configurations:

Picking the Right Carburettor Size

While various formulas exist for carburettor sizing, they often rely on flawed assumptions. A general rule of thumb is to err on the side of a larger carburettor, as it's easier to tune a large carburettor down for good drivability than it is to make a small carburettor flow more air. For example, moving from a 750 cfm vacuum secondary to a double pumper with the same rating, or even a larger 850 cfm, can yield significant horsepower gains. For larger displacement FE stroker engines (e.g., 482 cubic inches), a dual-quad setup or a Dominator 4500 is often the preferred choice for optimal performance.

Dual-Quad Considerations

When setting up a dual-quad configuration, especially on factory-style FE medium-riser intakes, the carburettors are often mounted "backward" to ensure distributor clearance. This unusual arrangement requires careful consideration during installation. For optimal tuning, it's often advised to size the carburettors as if they were single double-pumpers, allowing the rear barrels to come in as needed. Tuning with lighter springs in the diaphragm housings can help control the opening rate of the secondary barrels.

Internal Carburettor Components: Power Valves, Floats, Jets, and Bleeds

Power Valves

Power valves are vacuum-operated fuel delivery devices integral to the carburettor's main circuit, ensuring adequate fuel supply at wide-open throttle. Located in the primary metering block (and often the secondary), they are normally held closed by manifold vacuum and open when vacuum drops below a specific threshold, indicated by a number (e.g., 6.5 for 6.5 inches of vacuum). Power valves deliver fuel through Power Valve Channel Restrictions (PVCRs), which are separate from the main jets. Proper selection of power valves and PVCRs is key to achieving both clean part-throttle operation and robust wide-open throttle performance. Removing power valves, especially from the primary side, is generally not recommended for street applications as it necessitates significant recalibration of jetting.

Floats, Needles, and Seats

Holley carburettors feature float bowls at each end. While appearing similar, the front and rear bowls have distinct differences. The float level, which regulates fuel in the bowl, is externally adjustable via a sight plug. A preferred method is to set the level with the bowl removed, ensuring the float is parallel to the bowl's top. The needle and seat assembly, with its O-rings, is critical for preventing leaks and flooding. O-ring condition and viton tip integrity are important considerations, as old fuel or additives can cause premature wear. A bumper spring should be installed below the float arm to assist in its pickup.

Jets, Bleeds, and Tuning

Carburettor tuning involves understanding the interplay between various circuits. Main metering jets are the most frequently adjusted components, but often changed for the wrong reasons or to compensate for other issues. Jets work in conjunction with fuel level, emulsion bleeds, PVCRs, boosters, and main air bleeds. Changes to jet size affect both part-throttle and wide-open throttle fuel delivery. Main air bleeds, located at the top of the carburettor, influence the start and amount of fuel delivered by the main circuit, affecting the overall fuel curve. Emulsion bleeds, drilled into the metering block, further tailor the fuel delivery by introducing air into the fuel stream, creating an aerated mixture. Small adjustments to bleeds can have a significant impact on performance.

Accelerator Pumps

The accelerator pump circuit is vital for providing an initial shot of fuel when the throttle is opened, preventing a lean stumble. Squirters, located at the venturi, are sized by their outlet diameter. The pump itself, a 30- or 50-cc unit, is operated by a cam mounted on the throttle lever. This cam can be changed to adjust the timing and volume of the pump shot. The size of the pump cavity and the pump stroke determine the total fuel available. A "hiccup" followed by solid acceleration often indicates an inadequate pump shot. Tuning involves adjusting squirter size, pump volume, and cam position to achieve optimal throttle response.

Fuel Injection Overview for the FE

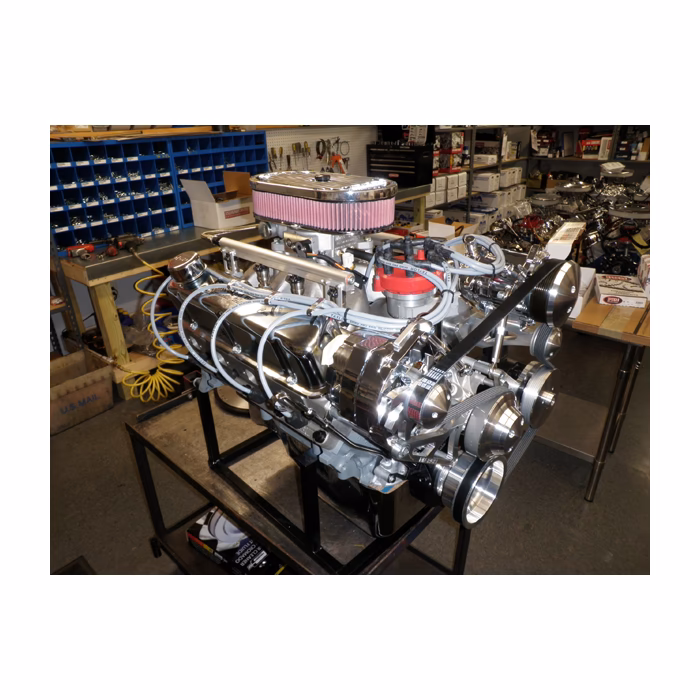

While "FE" and "fuel injection" may not have historically been common pairings, this is rapidly changing. Early mechanical fuel injection systems are often found on the used market but can be difficult to maintain and calibrate for street use. Modern electronic fuel injection (EFI) systems offer a compelling alternative, retrofitted onto FE engines using carburettor-style intake manifolds with integrated fuel rails and injector bungs. A throttle body replaces the traditional carburettor, incorporating sensors like the Throttle Position Sensor (TPS) and Idle Air Control (IAC). Additional sensors, including Manifold Absolute Pressure (MAP), Inlet Air Temperature, and Coolant Temperature sensors, along with oxygen sensors in the exhaust, provide the engine management system with crucial data.

Benefits and Considerations of EFI

EFI systems from manufacturers like F.A.S.T., Big Stuff 3, DFI, Holley, and Edelbrock offer precise control over fuel and ignition parameters, with advanced datalogging capabilities. Programming these systems involves setting up tables for engine efficiency and target air/fuel ratios. The process of establishing fuel delivery control is significantly faster with EFI than with carburettors. Key to EFI success is selecting the correct injector size; too large an injector can lead to poor low-RPM performance and idle quality, while too small an injector may require higher fuel pressure to compensate. A common guideline is to target an 80% duty cycle at peak power. The advantages of EFI include superior idle quality, improved drivability, and better fuel control across a wider range of operating conditions, especially under boost. While the initial cost of an EFI system is substantial, it can be justified by the enhanced performance and drivability it provides, especially when compared to high-end racing carburettors.
